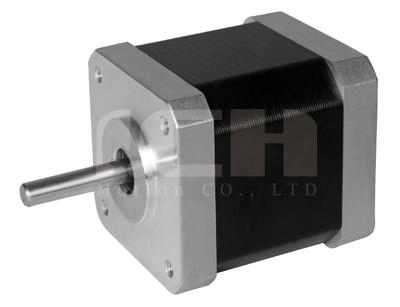

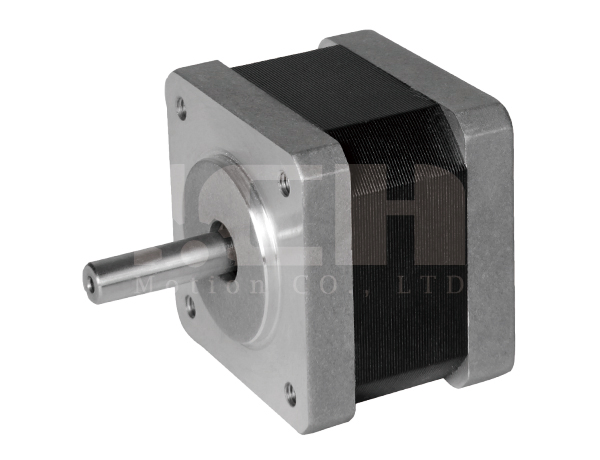

Reprap 3D Printer NEMA 17 Step Stepper Electric Motor with High Quality
Note:The specifications can be designed according to the customer's requirements!Option:Customized shaft, performance, voltage, lead wires...Application:Robots, Electric Automatic Equipment, Medical Instrument, Advertisement Instrument, Lighting& audio Equipment, Printer, Textile Machinery, ......
Send Inquiry
Product Description
Note:
The specifications can be designed according to the customer's requirements!
Option:
Customized shaft, performance, voltage, lead wires...
Application:
Robots, Electric Automatic Equipment, Medical Instrument, Advertisement Instrument, Lighting& audio Equipment, Printer, Textile Machinery, CNC Router, 3D Printer.
Parameter:
Electrical Specification:
About Us:
I.CH motion co., LTD, headquartered in Nanjing, is a professional manufacturer and supplier of the motor. We have provided Hybrid stepper motor, stepper gear motor, BLDC motor, BLDC Gear motor, BLDC Servo motor since 2006, which are widely used in medical equipment, automation equipment, automobile industry, and 3D printer.
As a professional manufacturer who has professional teams, we can custom according to your needs.
Work-flow:
Certificate:
IOS9001, CE...
Service:
1, OEM & ODM service.
2, One-year guarantee.
Shipping:
1, Inside: High-density foam box
outside: hardboard carton box.
2, The Delivery time is about 30-45 days.
Customer's Visiting:
FAQ:
1, Are you a factory?
Yes, we have been in designing and providing excellent motors for customers.
2, Can you provide a sample?
Yes.
3, How long you could prepare samples?
If customized one, about a week around.
4, If My package has missing products. What can I do?
Please contact our support team and we will confirm your order with the package contents. We apologize for any inconvenience.
The specifications can be designed according to the customer's requirements!
Option:
Customized shaft, performance, voltage, lead wires...
Application:
Robots, Electric Automatic Equipment, Medical Instrument, Advertisement Instrument, Lighting& audio Equipment, Printer, Textile Machinery, CNC Router, 3D Printer.

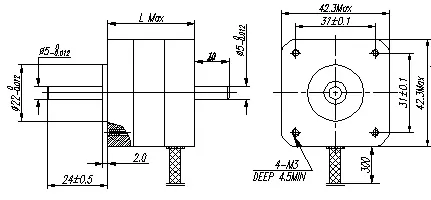

Parameter:
Electrical Specification:
| Series Model | Step Angle ( o ) | L (mm) | Rated Current (A) | Phase Resistance ( Ω ) | Phase Inductance (mH) | Holding Torque (N.cm) | Detent Torque (N.cm) | Lead Wire (NO.) | Motor Weight ( g) |
| H421-01206 | 1.8 | 28 | 0.6 | 8 | 10 | 12 | 1.6 | 4 | 150 |
| H421-02813 | 1.8 | 34 | 1.3 | 2.4 | 2.8 | 28 | 1.6 | 4 | 220 |
| H421-02817 | 1.8 | 34 | 1.7 | 1.2 | 1.8 | 28 | 1.6 | 4 | 220 |
| H421-02804 | 1.8 | 34 | 0.4 | 30 | 35 | 28 | 1.6 | 4 | 220 |
| H421-02104 | 1.8 | 34 | 0.4 | 30 | 18 | 21 | 1.6 | 6 | 220 |
| H421-01402 | 1.8 | 34 | 0.16 | 75 | 40 | 14 | 1.6 | 6 | 220 |
| H421-04017 | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 2.2 | 4 | 280 |
| H421-04013 | 1.8 | 40 | 1.3 | 2.5 | 5.0 | 40 | 2.2 | 4 | 280 |
| H421-02812 | 1.8 | 40 | 1.2 | 3.2 | 2.8 | 28 | 2.2 | 6 | 280 |
| H421-02804 | 1.8 | 40 | 0.4 | 30 | 28 | 28 | 2.2 | 6 | 280 |
| H421-05217 | 1.8 | 48 | 1.7 | 1.8 | 3.2 | 52 | 2.6 | 4 | 350 |
| H421-05213 | 1.8 | 48 | 1.3 | 3.2 | 5.5 | 52 | 2.6 | 4 | 350 |
| H421-05223 | 1.8 | 48 | 2.3 | 1.2 | 1.6 | 52 | 2.6 | 4 | 350 |
| H421-03404 | 1.8 | 48 | 0.4 | 30 | 38 | 34 | 2.6 | 6 | 350 |
| H421-054120 | 1.8 | 58 | 1.2 | 4.5 | 5.5 | 54 | 3.2 | 6 | 450 |
About Us:
I.CH motion co., LTD, headquartered in Nanjing, is a professional manufacturer and supplier of the motor. We have provided Hybrid stepper motor, stepper gear motor, BLDC motor, BLDC Gear motor, BLDC Servo motor since 2006, which are widely used in medical equipment, automation equipment, automobile industry, and 3D printer.
As a professional manufacturer who has professional teams, we can custom according to your needs.

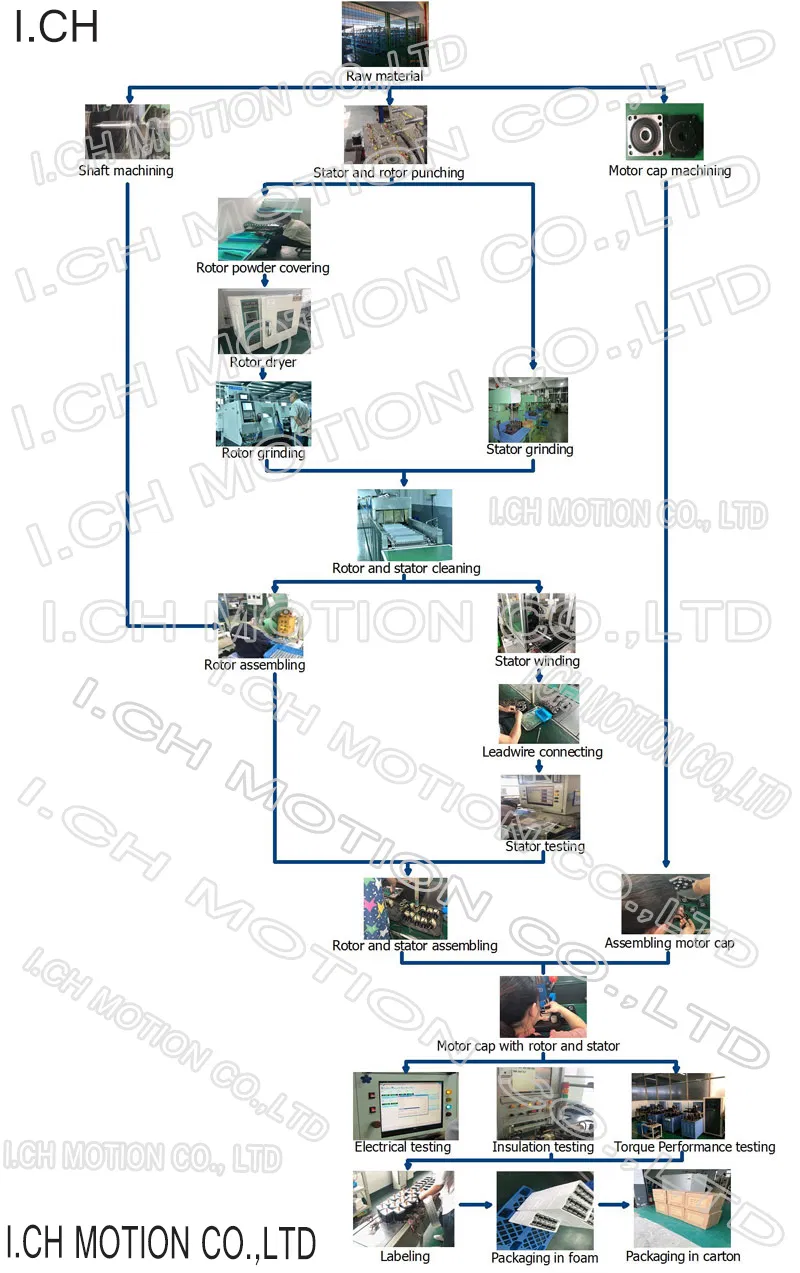

Work-flow:
Certificate:
IOS9001, CE...
Service:
1, OEM & ODM service.
2, One-year guarantee.
Shipping:
1, Inside: High-density foam box
outside: hardboard carton box.
2, The Delivery time is about 30-45 days.
Customer's Visiting:
FAQ:
1, Are you a factory?
Yes, we have been in designing and providing excellent motors for customers.
2, Can you provide a sample?
Yes.
3, How long you could prepare samples?
If customized one, about a week around.
4, If My package has missing products. What can I do?
Please contact our support team and we will confirm your order with the package contents. We apologize for any inconvenience.
