NEMA23 High Torque Round Hb Stepper Motor for 3D Printer
NEMA23 high torque round Hb stepper motor for 3D printer 57HY51 - 0426Item Specifications:Step Angle 1.8degreeTemperature Rise 80. C Max.Ambient Temperature -20. C~+50. CInsulation Resistance 100MΩ Min., 500VDCDielectric Strength 500VAC for one minuteShaft Radial Play 0.02Max. (450 g-load)......
Send Inquiry
Product Description
NEMA23 high torque round Hb stepper motor for 3D printer 57HY51 - 0426
Item Specifications:
Step Angle 1.8degree
Temperature Rise 80. C Max.
Ambient Temperature -20. C~+50. C
Insulation Resistance 100MΩ Min., 500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.02Max. (450 g-load)
Shaft Axial Play 0.08Max. (450 g-load)
Max. Radial force 75N (20mm from the flange)
Max. Axial force 15N
1. NEMA8 Hybrid Stepper Motor
2. Model Number: JK57HY51- 0426
3. Phase: 2 Phase
4. Lead Wire (No. ): 6wires
5. Structure: Hybrid
6. Step Angle: 1.8 degree
7. Motor Height: 51mm
8. Current: 0.42A
9. Resistance: 29Ω
10. Inductance: 36mH
11. Motor Weight: 0.6KG
12. Holding Torque: 4.97Kg. Cm
13. Speed: Low / High speed
14. Certification: CE, RoHS, ISO9001
15. Shape: Square
16. Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.
Description:
1.8 degree Size 57mm Hybrid stepper motor. 3D Printer stepper motor
57mm size stepper motor, NEMA23 stepping motor,
Small stepping motors, 2 phase 57mm stepper motor, Stepper motor 57mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
CNC router stepper motor.
About our manufacturer:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and RoHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.
If you need more information. Please contact with us, our contact information:
Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Contact Person: Ms Jane
More Quantity. More discount! ! !

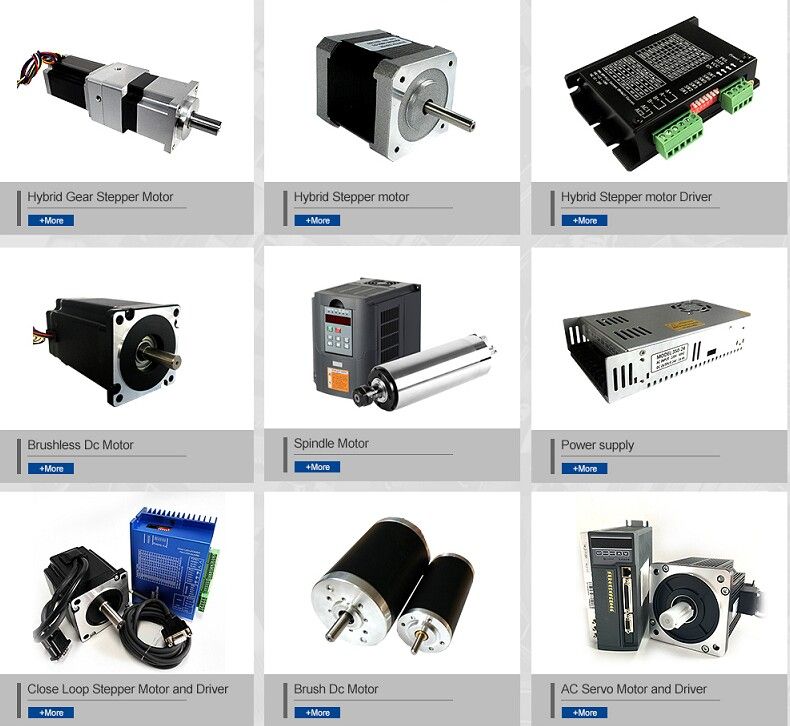

Our Products:
Our Packing:

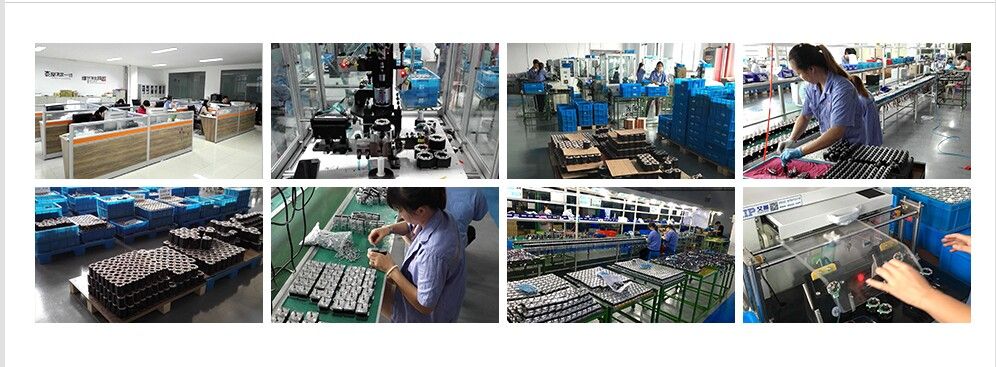

Our Company:
Item Specifications:
Step Angle 1.8degree
Temperature Rise 80. C Max.
Ambient Temperature -20. C~+50. C
Insulation Resistance 100MΩ Min., 500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.02Max. (450 g-load)
Shaft Axial Play 0.08Max. (450 g-load)
Max. Radial force 75N (20mm from the flange)
Max. Axial force 15N
1. NEMA8 Hybrid Stepper Motor
2. Model Number: JK57HY51- 0426
3. Phase: 2 Phase
4. Lead Wire (No. ): 6wires
5. Structure: Hybrid
6. Step Angle: 1.8 degree
7. Motor Height: 51mm
8. Current: 0.42A
9. Resistance: 29Ω
10. Inductance: 36mH
11. Motor Weight: 0.6KG
12. Holding Torque: 4.97Kg. Cm
13. Speed: Low / High speed
14. Certification: CE, RoHS, ISO9001
15. Shape: Square
16. Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.
Description:
1.8 degree Size 57mm Hybrid stepper motor. 3D Printer stepper motor
57mm size stepper motor, NEMA23 stepping motor,
Small stepping motors, 2 phase 57mm stepper motor, Stepper motor 57mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
CNC router stepper motor.
About our manufacturer:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and RoHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.
If you need more information. Please contact with us, our contact information:
Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Contact Person: Ms Jane
More Quantity. More discount! ! !
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
| JK57HY41-1106 | 1.8 | 41 | 1.1 | 3.6 | 3.6 | 2.88 | 6 | 180 | 57 | 0.18 |
| JK57HY41-0406 | 1.8 | 41 | 0.4 | 30 | 30 | 2.88 | 6 | 180 | 57 | 0.18 |
| JK57HY41-1564 | 1.8 | 41 | 1.56 | 1.8 | 3.6 | 4 | 4 | 180 | 57 | 0.18 |
| JK57HY51-0856 | 1.8 | 51 | 0.85 | 7.1 | 9 | 4.97 | 6 | 350 | 110 | 0.35 |
| JK57HY51-0426 | 1.8 | 51 | 0.42 | 29 | 36 | 4.97 | 6 | 350 | 110 | 0.35 |
| JK57HY51-2804 | 1.8 | 51 | 2.8 | 0.85 | 2.1 | 6.9 | 4 | 350 | 110 | 0.35 |
| JK57HY56-1206 | 1.8 | 56 | 1.2 | 5 | 8 | 6 | 6 | 420 | 135 | 0.42 |
| JK57HY56-0606 | 1.8 | 56 | 0.6 | 20 | 32 | 6 | 6 | 420 | 135 | 0.42 |
| JK57HY56-2554 | 1.8 | 56 | 2.55 | 1.1 | 3.6 | 8.4 | 4 | 420 | 135 | 0.42 |
| JK57HY76-1506 | 1.8 | 76 | 1.5 | 3.6 | 6 | 9 | 6 | 720 | 200 | 0.72 |
| JK57HY76-0686 | 1.8 | 76 | 0.68 | 17.7 | 30 | 9 | 6 | 720 | 200 | 0.72 |
| JK57HY76-3304 | 1.8 | 76 | 3.3 | 0.85 | 3 | 12.5 | 4 | 720 | 200 | 0.72 |
