NEMA23 57mm BLDC Brushless DC Motor 2500rpm 28.8W with Gearbox 1: 100 High Holding Torque
NEMA23 57mm BLDC brushless dc motor 2500rpm 28.8W with gearbox 1:100 high holding torque Nema 23 Brushless DC MotorModel Number: JK57BL01PLF100Motor Length: 34mmGearbox Ratio: 100:1No. of poles: 4Voltage: 24V DCRated Torque: 0.11N.mRated Speed: 2500RPMOutput Power: 28.8WDescription:NEMA23 57mm Brush......
Send Inquiry
Product Description

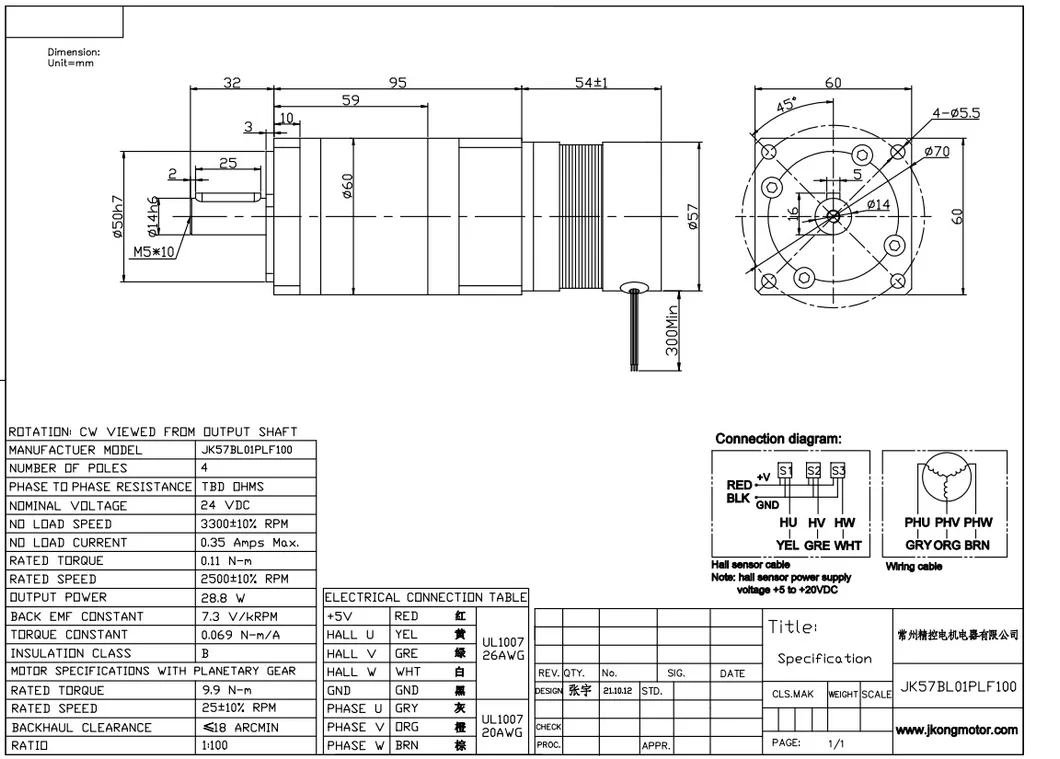

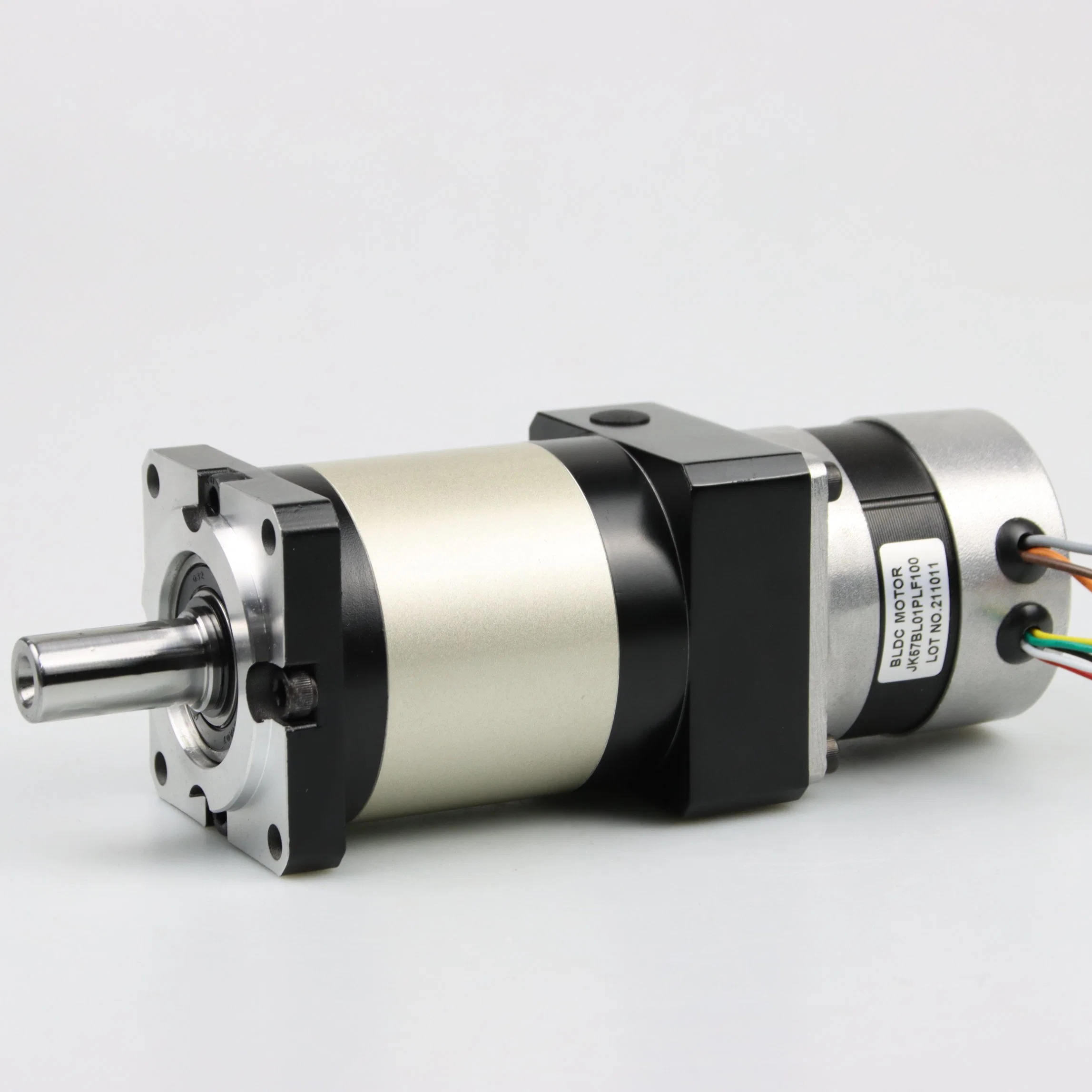

NEMA23 57mm BLDC brushless dc motor 2500rpm 28.8W with gearbox 1:100 high holding torque
- Nema 23 Brushless DC Motor
- Model Number: JK57BL01PLF100
- Motor Length: 34mm
- Gearbox Ratio: 100:1
- No. of poles: 4
- Voltage: 24V DC
- Rated Torque: 0.11N.m
- Rated Speed: 2500RPM
- Output Power: 28.8W
Description:

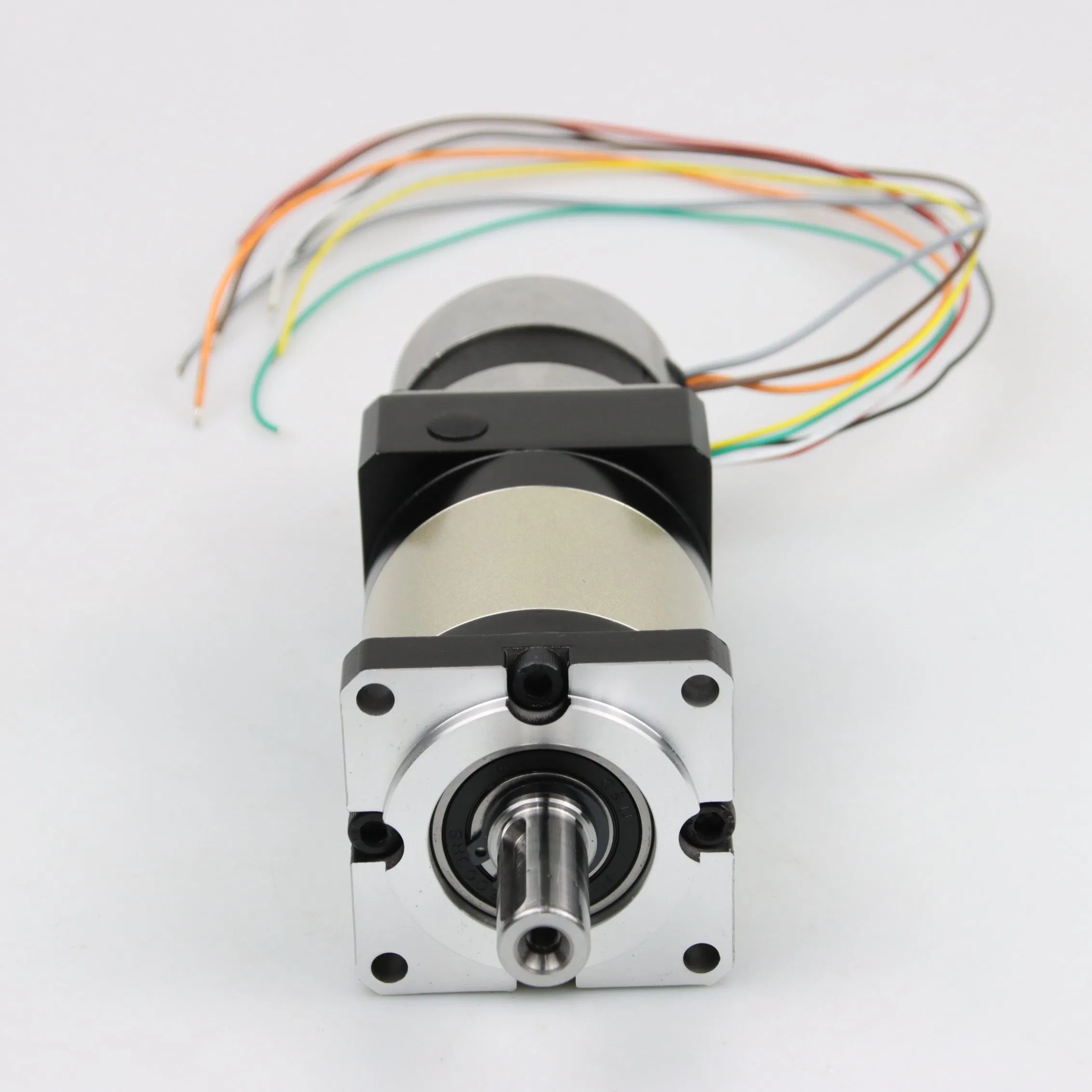

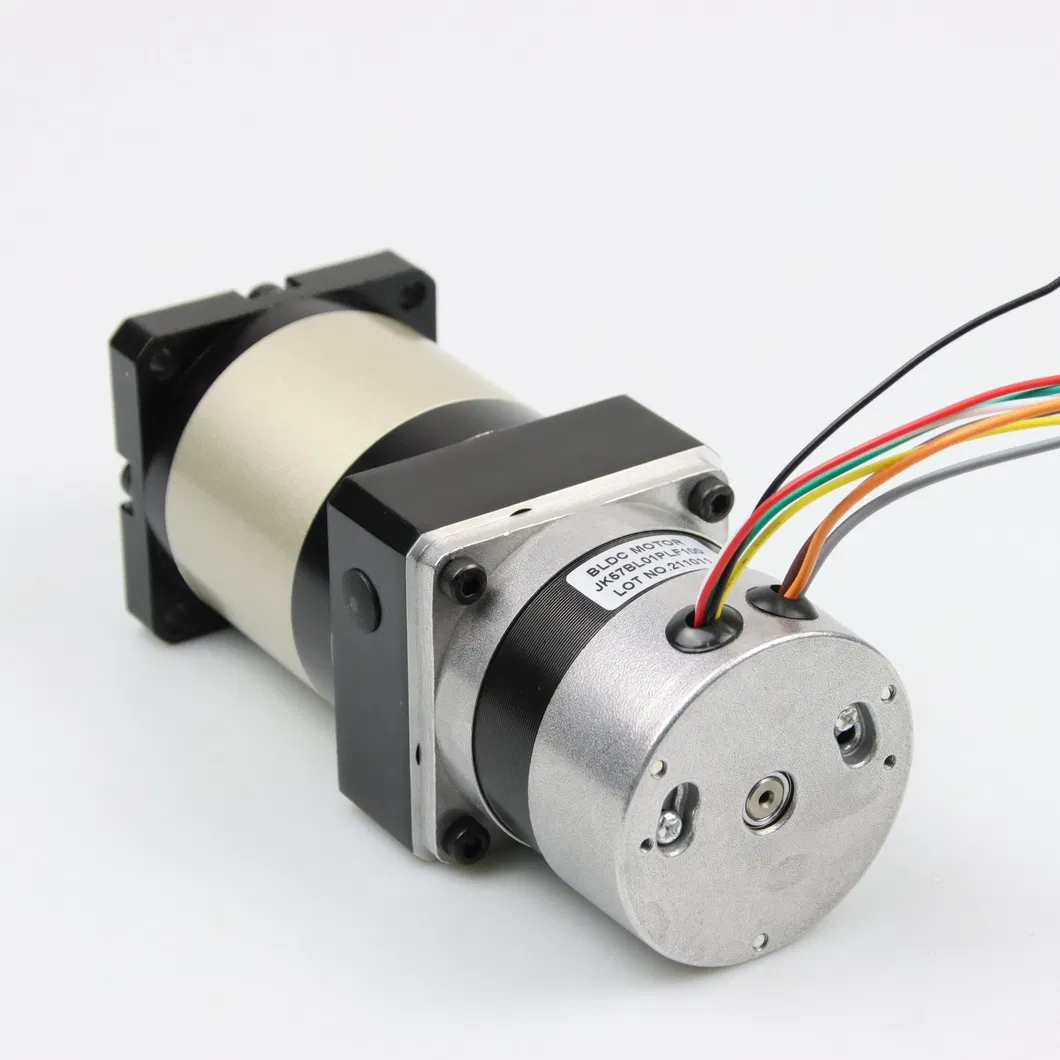

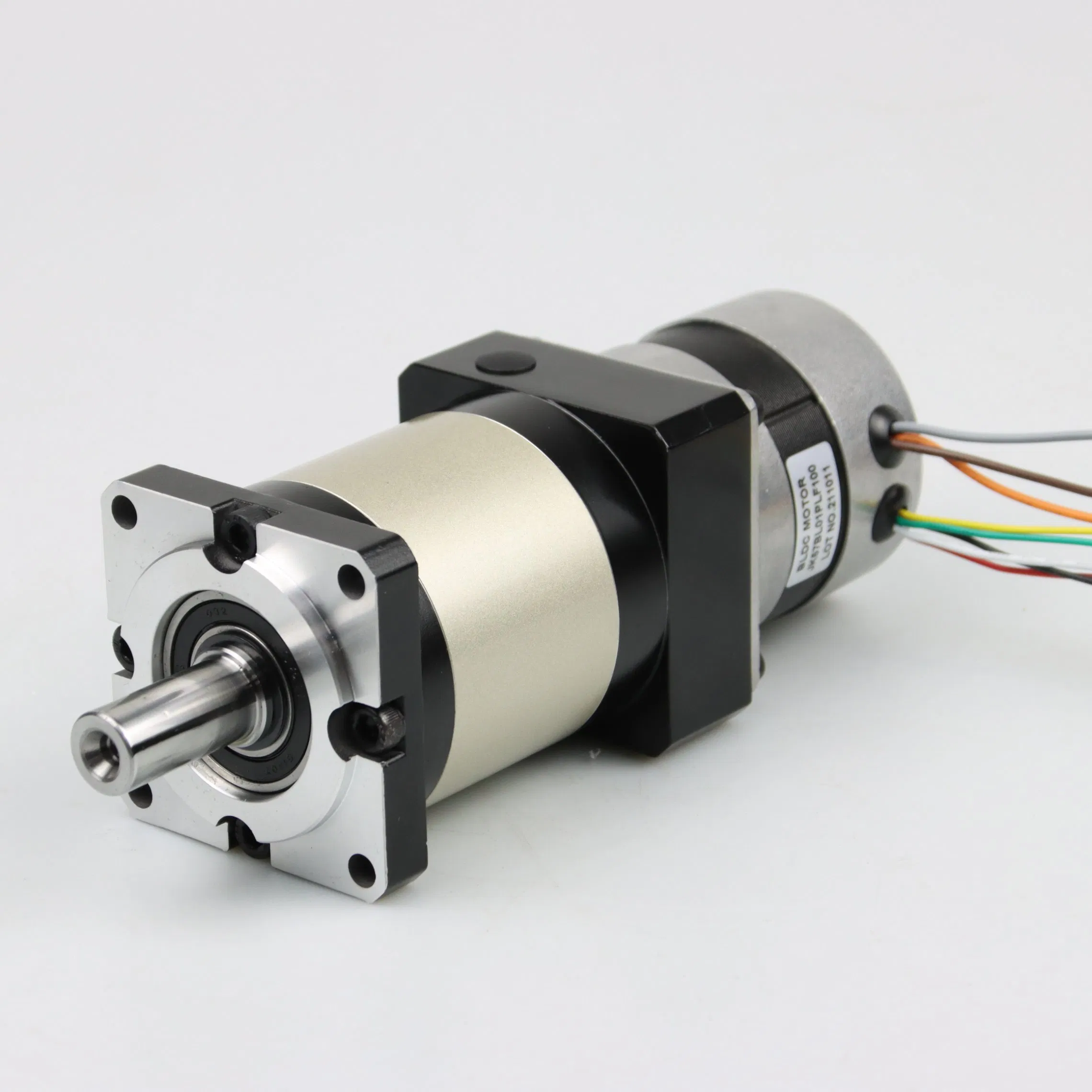

NEMA23 57mm Brushless DC motor with a planetary gearbox 100:1
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertisementing instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor,
Textile machinery stepper motor.
Cnc router stepper motor.
About our manufacturer:

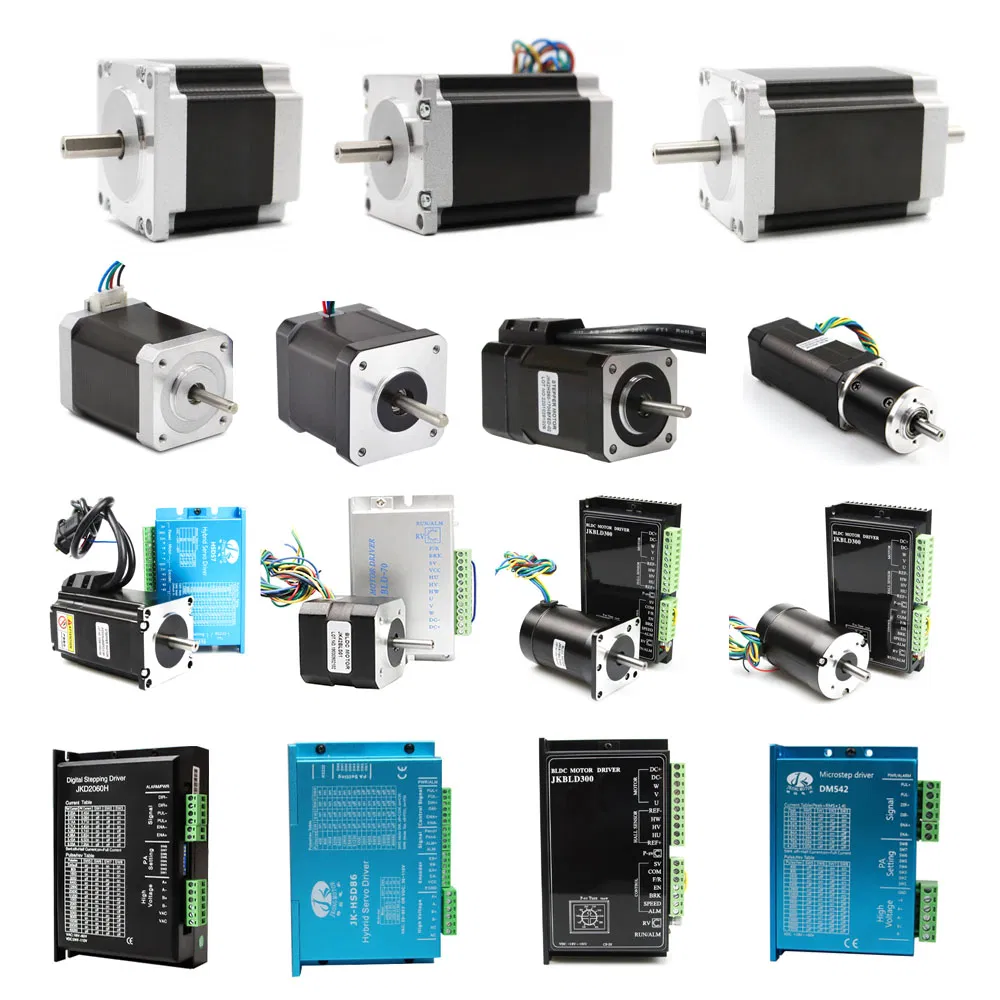

We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd

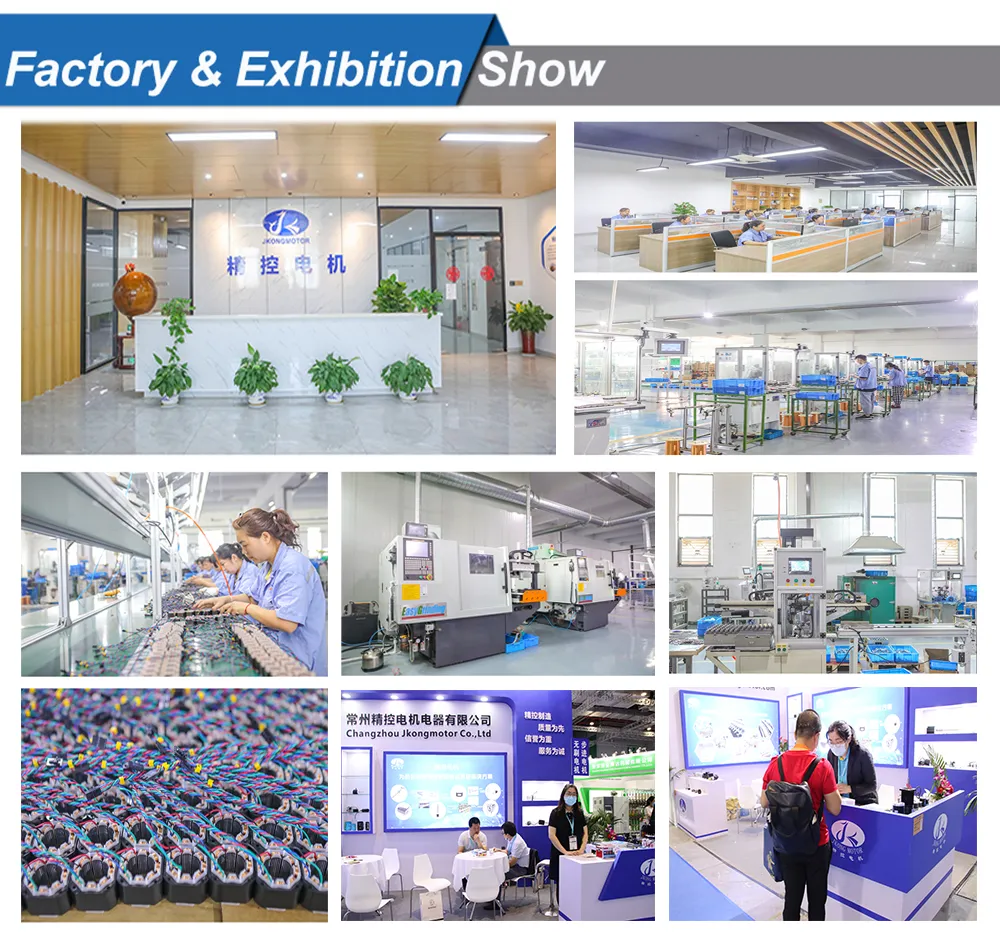

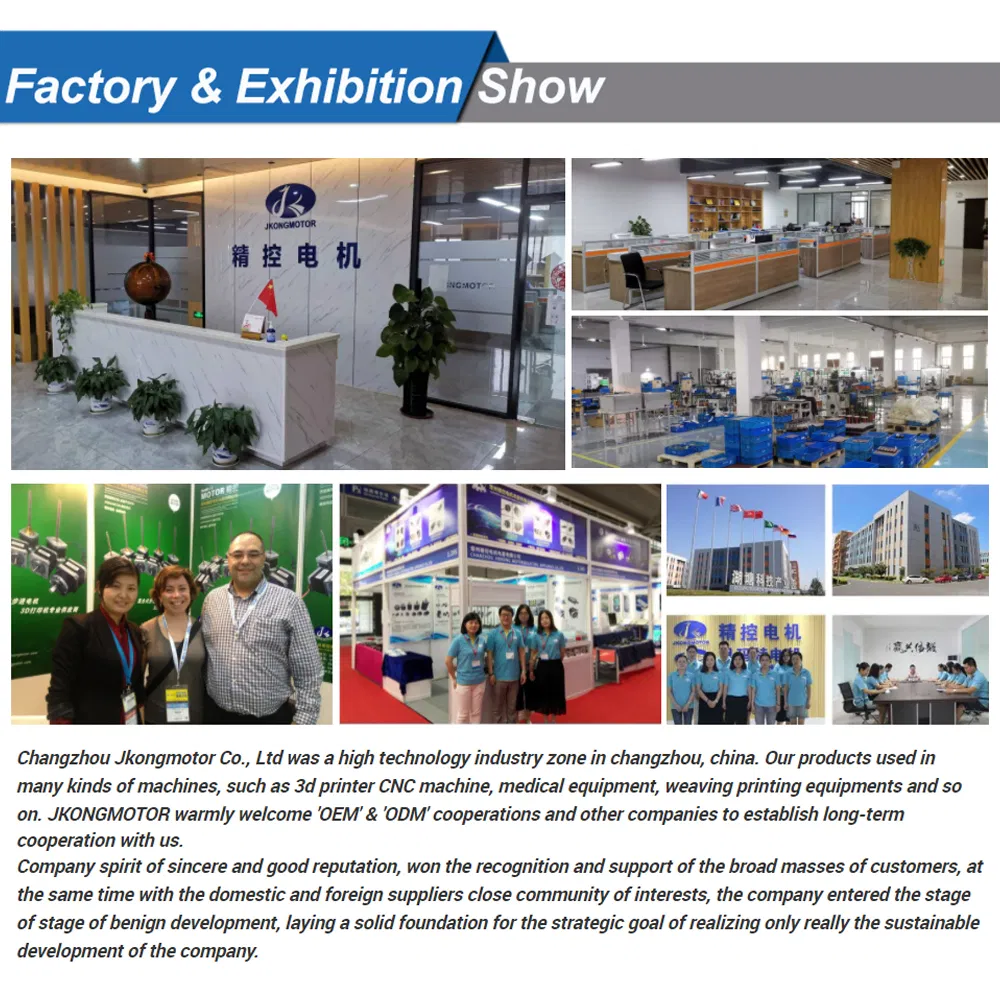

Changzhou JKongmotor Co., Ltd was a high technology industry zone in Changzhou, China.Our products used in many kinds of machines, such as 3D printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome "OEM" & "ODM" cooperations and other companies to establish long-term cooperation with us.
Company spirit os sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage od benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
