24HT6335 3-Phase NEMA23 Step Stepping Stepper Electric Motor
24HT6335 3-Phase NEMA23 Stepper Motor for CNC MachineItem SpecificationsStepper motor is made up of rotor and stator winding magnet coil. A certain electric current goes through the stator winding timely, then produces a rotating magnetic field within the motor. Under the action of magnetic suction,......
Send Inquiry
Product Description

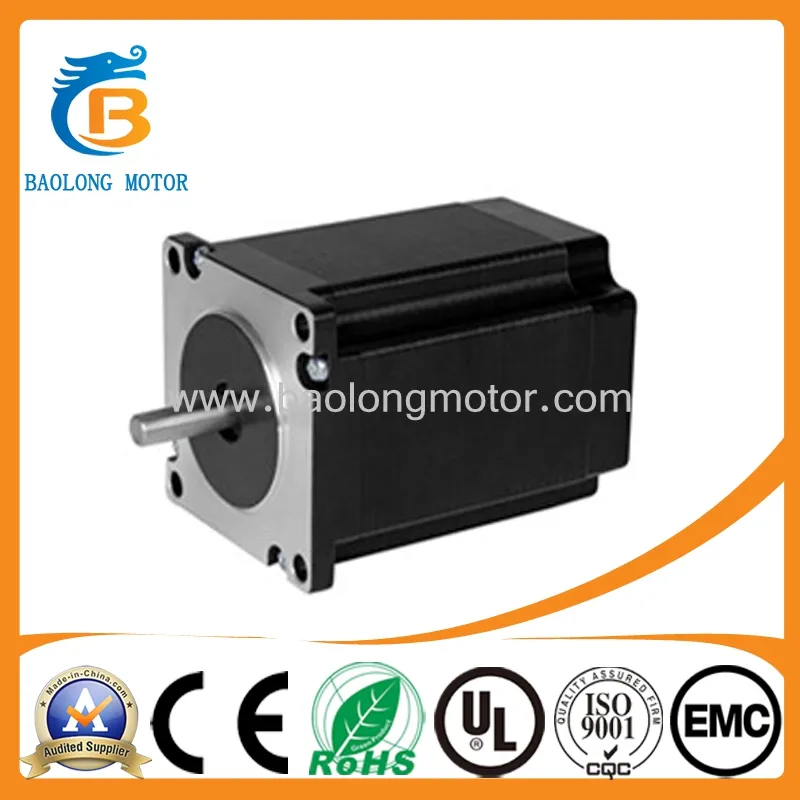

24HT6335 3-Phase NEMA23 Stepper Motor for CNC Machine
Item Specifications
Stepper motor is made up of rotor and stator winding magnet coil. A certain electric current goes through the stator winding timely, then produces a rotating magnetic field within the motor. Under the action of magnetic suction, the rotor will follow this creates a rotating magnetic field, the stator and rotor flux in each chain, produce rotary torque output.
Series
Motor model: 24HT6335
Place of Origin: JIANGSUCHANGZHOU
Brand Name: BAOLONG
Certification: IOS9001,CE,UL,EMC
Description

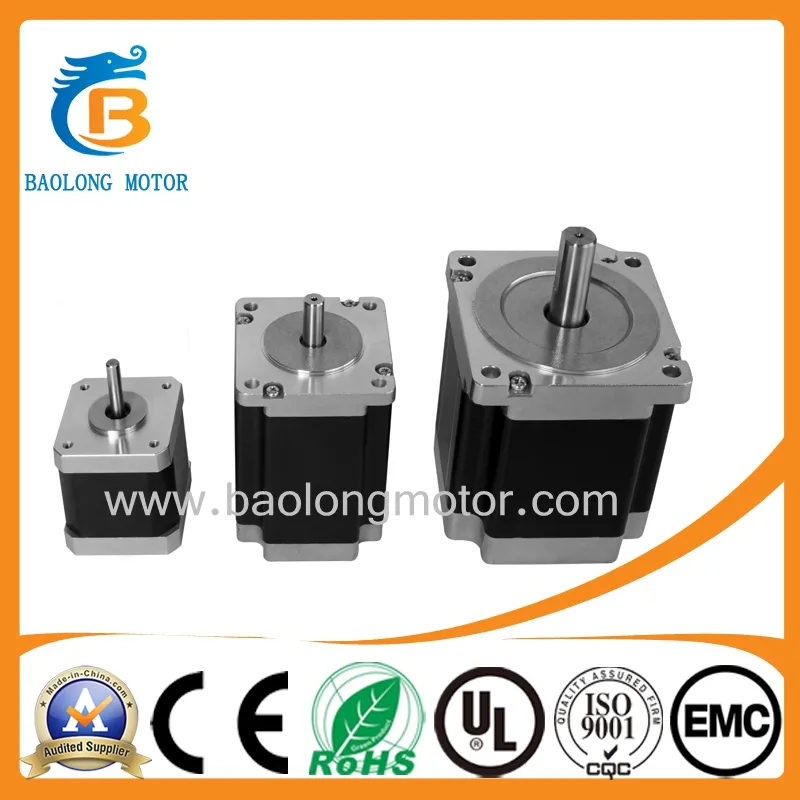

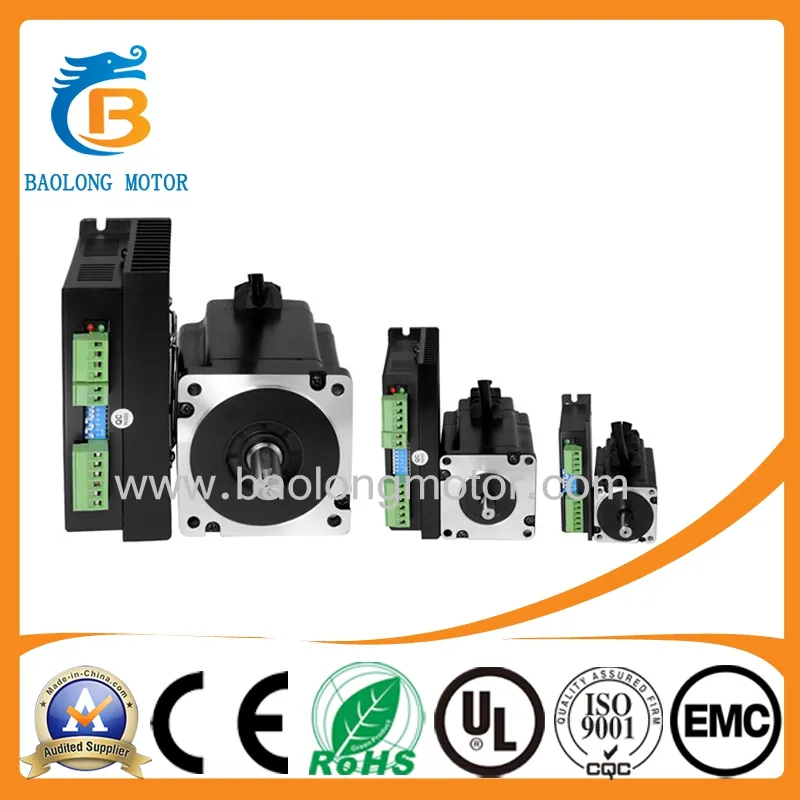

We are a lead motor manufacture in China. Our products range over HB stepper motor, BLDC motor, servo motors and driver systems.
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.

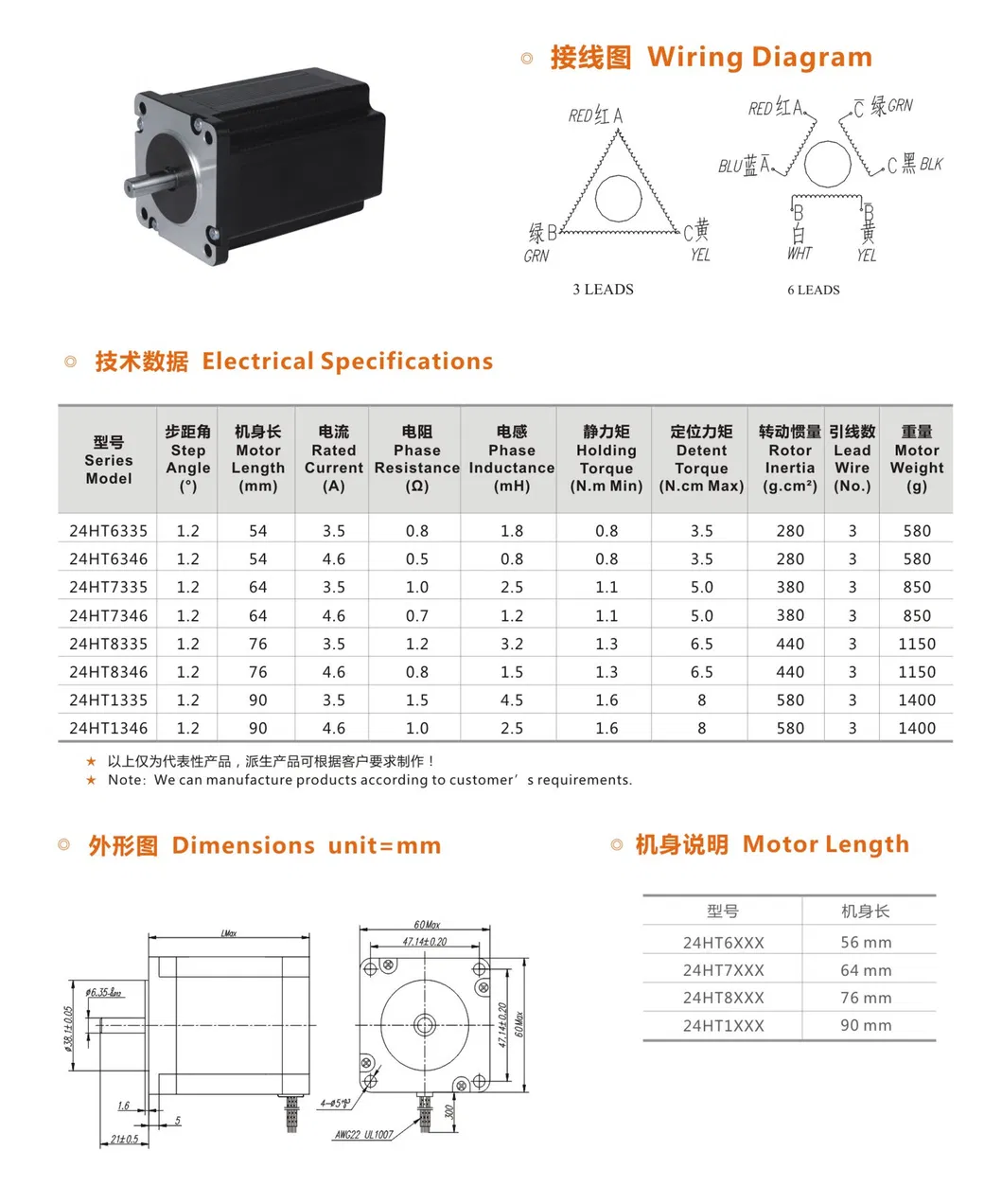

Item Specifications
Stepper motor is made up of rotor and stator winding magnet coil. A certain electric current goes through the stator winding timely, then produces a rotating magnetic field within the motor. Under the action of magnetic suction, the rotor will follow this creates a rotating magnetic field, the stator and rotor flux in each chain, produce rotary torque output.
| Series Model | 24HT6335 |
| Step Angle(°) | 1.2 |
| Motor Length(mm) | 54 |
| Rated Current(A) | 3.5 |
| Phase Resistance(ohm) | 0.8 |
| Phase Inductance(mH) | 1.8 |
| Holding Torque(N.cm Min) | 0.8 |
| Detent Torque(N.cm Min) | 3.5 |
| Rotor Inertia(g.cm2) | 280 |
| Lead Wire(No.) | 3 |
| Motor Weight(g) | 580 |
Series
Motor model: 24HT6335
Place of Origin: JIANGSUCHANGZHOU
Brand Name: BAOLONG
Certification: IOS9001,CE,UL,EMC
Description
We are a lead motor manufacture in China. Our products range over HB stepper motor, BLDC motor, servo motors and driver systems.
- Our products have good quality and pretty competitive price.
- We can do custom-made changes as customers' requirements.
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.
Payments
1) We can accept EXW, FOB
2) Payment must be made before shipment.
3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping
1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2) Most orders will be shipped out within 3-7 working days upon payment confirmation.
3) Shipping normally takes 7-25 working days. Most of the items will delivery in 2 weeks, while there will be a delay for something we cannot control (such as the bad weather). If it happens, just contact us, we will help you check and resolve any problem.
3) Please check the package upon receipt, if there are some damages, please contact us immediately.
Feedback & Refund
1) Feedback is important to us, if you have any problem with our products, please contact us, our technician will give you useful advises.
2) When you have the parcel and not satisfied with the goods or it is other problem, please tell us immediately, and provide us a photo showing the detail.
3) Any reason requiring for all refund. Items must be in original condition and no physical damage. Buyer responsible for all shipping cost.
If you need more information, please contact with us. We will attach great importance to your any problems. Hope we could establish a long-term effective cooperation.
1) We can accept EXW, FOB
2) Payment must be made before shipment.
3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping
1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2) Most orders will be shipped out within 3-7 working days upon payment confirmation.
3) Shipping normally takes 7-25 working days. Most of the items will delivery in 2 weeks, while there will be a delay for something we cannot control (such as the bad weather). If it happens, just contact us, we will help you check and resolve any problem.
3) Please check the package upon receipt, if there are some damages, please contact us immediately.
Feedback & Refund
1) Feedback is important to us, if you have any problem with our products, please contact us, our technician will give you useful advises.
2) When you have the parcel and not satisfied with the goods or it is other problem, please tell us immediately, and provide us a photo showing the detail.
3) Any reason requiring for all refund. Items must be in original condition and no physical damage. Buyer responsible for all shipping cost.
If you need more information, please contact with us. We will attach great importance to your any problems. Hope we could establish a long-term effective cooperation.
