NEMA8 1.8 Degree 2 Phase NEMA Stepper Motor Jk20hs33- 0604
Nema8 1.8 Degree 2 Phase Nema Stepper Motor JK20HS33-0604Nema 8 Hybrid Stepper MotorModel Number: JK20HS33-0604Phase: 2 PhaseLead Wire (No.): 4 wireStructure: HybridStep Angle: 1.8°Motor Height: 33 mmHolding Torque:200 g.cm Speed: Low / High speedCertification: CE, ROHS, ISO9001Shape: Square......
Send Inquiry
Product Description
Nema8 1.8 Degree 2 Phase Nema Stepper Motor JK20HS33-0604
- Nema 8 Hybrid Stepper Motor
- Model Number: JK20HS33-0604
- Phase: 2 Phase
- Lead Wire (No.): 4 wire
- Structure: Hybrid
- Step Angle: 1.8°
- Motor Height: 33 mm
- Holding Torque:200 g.cm
- Speed: Low / High speed
- Certification: CE, ROHS, ISO9001
- Shape: Square
- Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.
Description:
1.8 degree Size 20mm Hybrid stepper motor. 3D Printer stepper motor
20mm size stepper motor , NEMA8 stepping motor,
Small stepping motors, 2 phase 20mm stepper motor, Stepper motor 20mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,
advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
About our manufacturer:

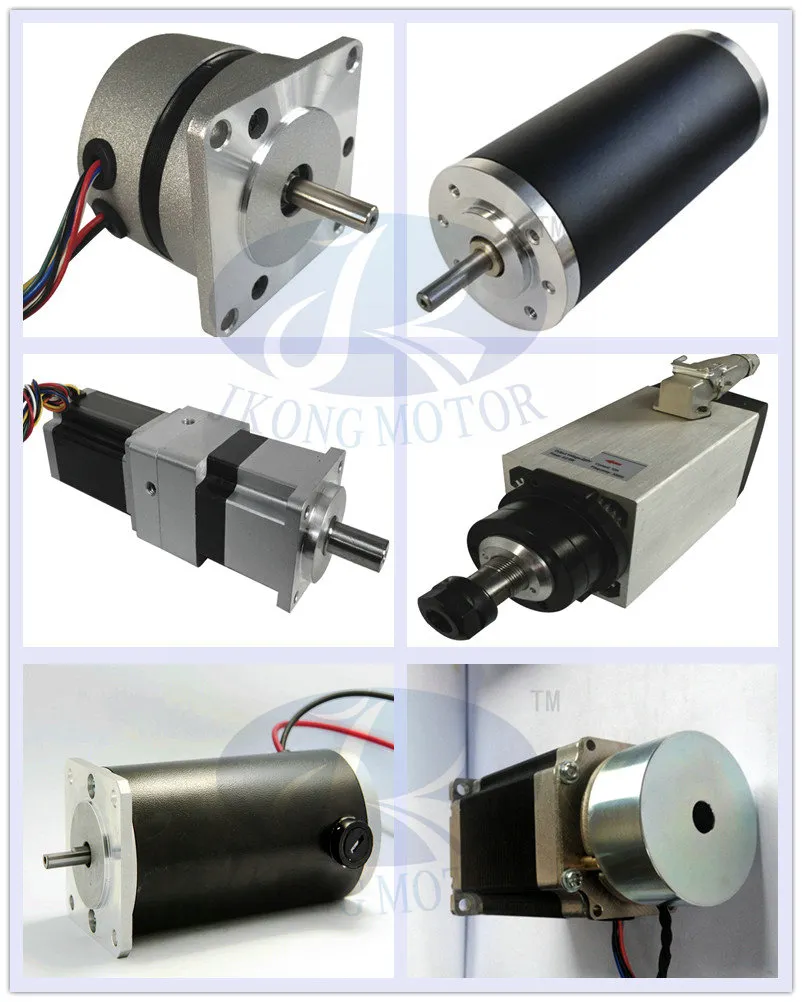

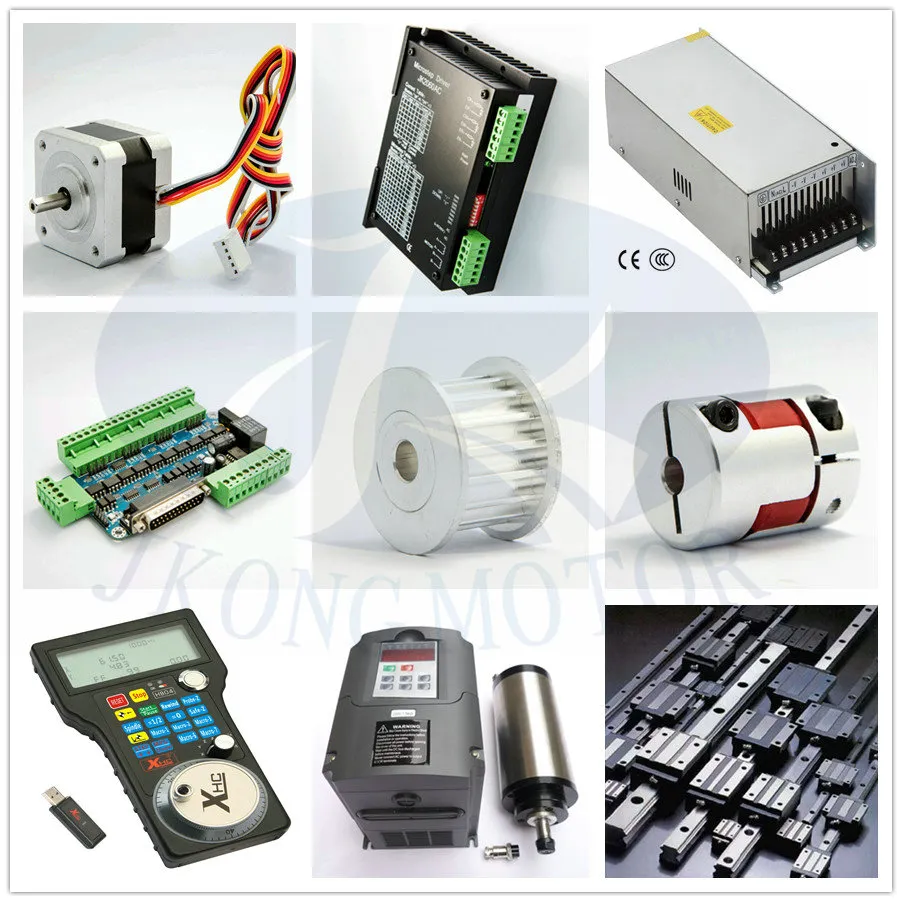

We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
if you need more information. please contact with us, our contact information:
Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Contact Person: Ms Jane
Tel: 0086 15189798401
Fax: 0086 519 88713769
More Quantity. more discount! ! !
| Model No. | Step Angle | Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads |
Motor Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | Kg | |
| JK20HS28-0204 | 1.8 | 28 | 0.2 | 24 | 8.0 | 160 | 4 | 0.05 |
| JK20HS30-0506 | 1.8 | 30 | 0.5 | 11.5 | 1.7 | 180 | 6 | 0.06 |
| JK20HS33-0604 | 1.8 | 33 | 0.6 | 6.5 | 2.2 | 200 | 4 | 0.07 |
| JK20HS38-0604 | 1.8 | 38 | 0.6 | 10 | 5.5 | 400 | 4 | 0.08 |
