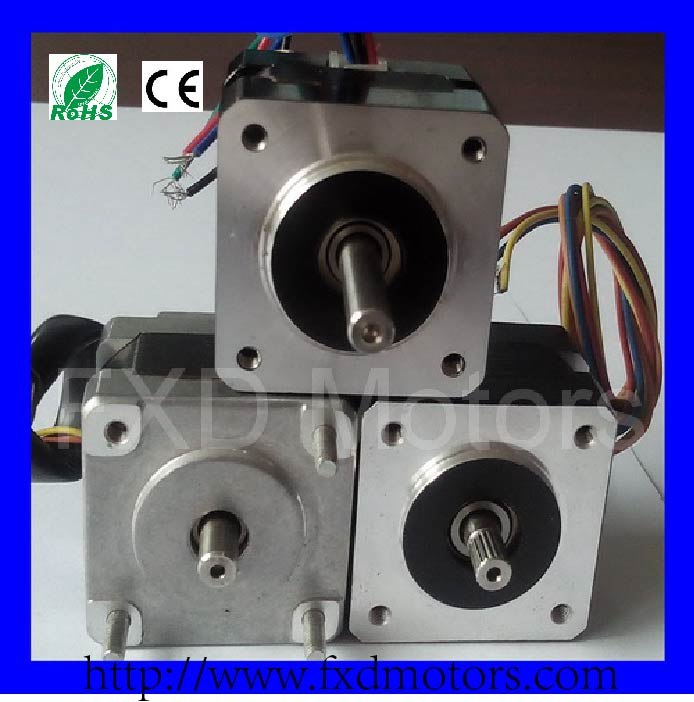

NEMA14 Hybird Motor with RoHS Certification
Model:FXD 35 H 2 34 -042 -18General Info A B C D E F GStep angle accuracy±5%Note: A FuxiandaTemperature rise80K Max B Motor dia or square sizeAmbient temperature20-+50ºC C Hybrid stepper motorInsulati......
Send Inquiry
Product Description
| Model:FXD 35 H 2 34 -042 -18 | General Info | |
| A B C D E F G | Step angle accuracy | ±5% |
| Note: A Fuxianda | Temperature rise | 80K Max |
| B Motor dia or square size | Ambient temperature | 20-+50ºC |
| C Hybrid stepper motor | Insulation resistance | 100M Min.500VDC |
| D Phase number | Dielectric strenght | 500VAC.3mA,1 minute |
| E Motor length | IP Class | IP40 |
| F Phase current multiply by 100 | Insulation Class | Class B |
| G Step angle multiply by 10 |
Motor specification
| Model | Step angle | Length | Phase current | Phase resistance | Phase inductance | Holding torque | Lead No. | Weight |
| Unit | (°) | L(mm) | (A) | (Ω) ±10% @25ºC | (mH) | g.cm | (kg) | |
| FXD28H232-067-18 | 1.8 | 34 | 0.42 | 25 | 32 | 18 | 4 | 0.16 |
| FXD20H251-067-18 | 1.8 | 34 | 0.8 | 6.5 | 9.8 | 18 | 4 | 0.16 |
| FXD57H240-170-18 | 1.8 | 34 | 0.4 | 30 | 22 | 12 | 6 | 0.16 |
Applications:
The stepper motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note: If you have some different specifications, we can product stepper motor as your special requirements.
