NEMA 17 Electric Motor Waterproof DC Motor

Product Description

Nema 17 electric motor waterproof dc motor

1.please feel free to contact us!

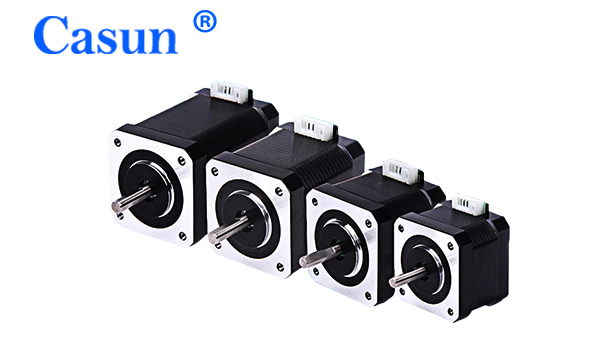

2.Motor Name:NEMA17 Hybrid Stepper Motor
3.Size:Nema17 (42*42mm)
4.Feature:High precision, low inertia, low noise,small size,mooth movement

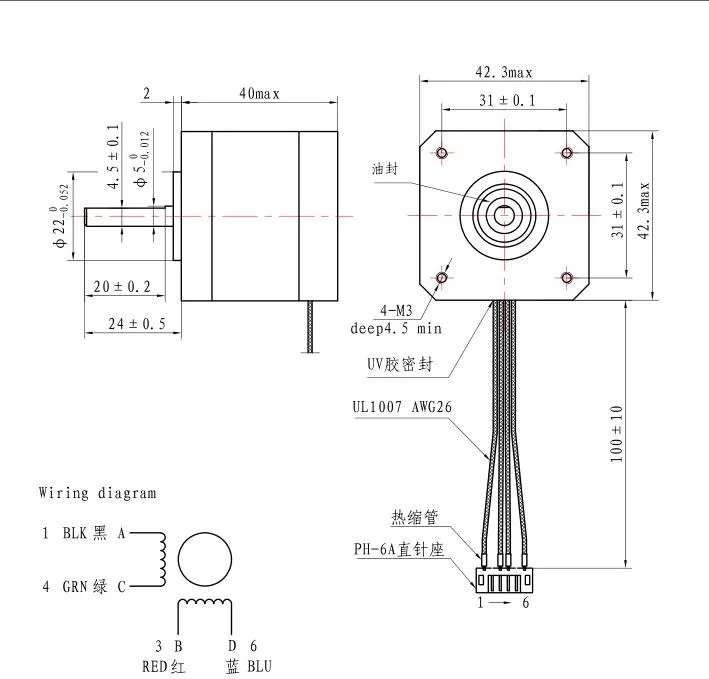

5.The Outline Drawing of nema17Stepper Motor

HYBRID STEPPING MOTOR F42SHD4255-24B Casun
General Specification		Electrical Specification
Step Angle	1.8°	Rated Voltage	2.89V dc
Number of Phase	2	Rated Current	1.7A
Insulation Resistance	100MΩmin. (500V DC)	Resistance per phase	1.7Ω±10%
Insulation Class	Class B	Inductance per Phase	3.7mH±20%
Rotor Inertia	57g.cm²	Holding torque	500mN.m
Mass	0.24kg	Detent torque	18mN.m

Our company offers variety of products which can meet your multifarious demands.

We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers.

Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

NEMA 17 Electric Motor Waterproof DC Motor

Description:

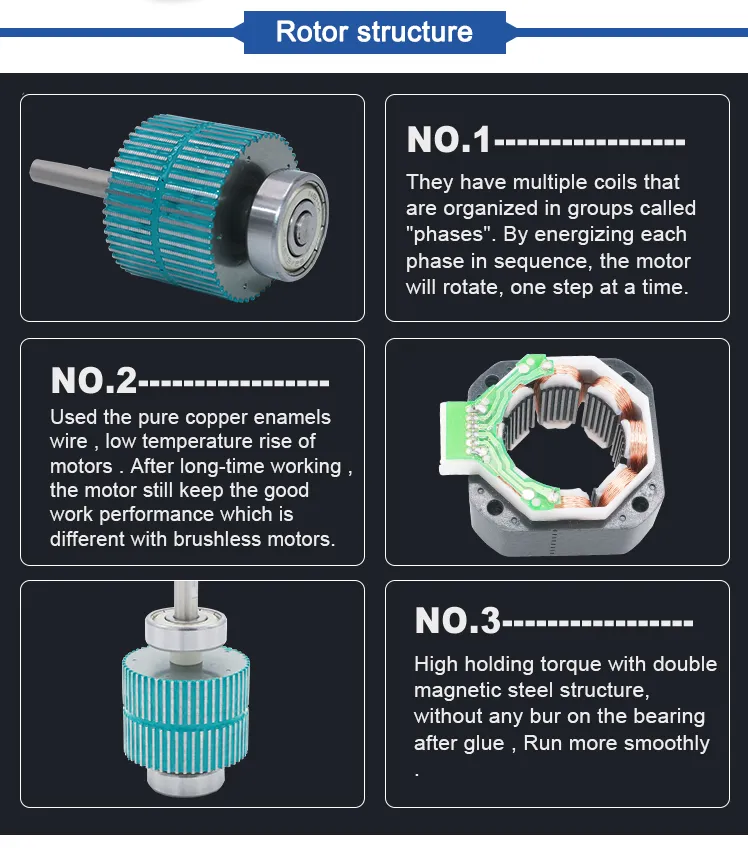

The motor adopts the unique precision technology of stator rotor,its structure is accurate,even and smooth,high precision inner hole, smoothand accurate running process without losing step.
The motor was inspected with precision instruments before it was sold.

1.We promise that more than one year warranty for all products.
2.We promise high quality of our products.
3.We promise best services for customers.

If you have interests in our products or any questions about our products,please don't hesitate to contact us,our sales team can provide the information what you want to know.

If we are not online, please leave your name and your contact details,as email,skype,whatsapp,trademanager and your telephone number,we will contact you as soon as possible in 2 hours.
NEMA 17 Electric Motor Waterproof DC Motor

Superiority:

1.High precision /High accuracy
2.Low noise
3.Large torque/high torque
4.Smooth operation
5.High temperature resistance
6.Small size
7.Low inertia

Note:
1.(*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with (*) when ordering.
2.We also could manufacture the custom stepper motors, according to the customer's requirements.
NEMA 17 Electric Motor Waterproof DC Motor

Remarks:

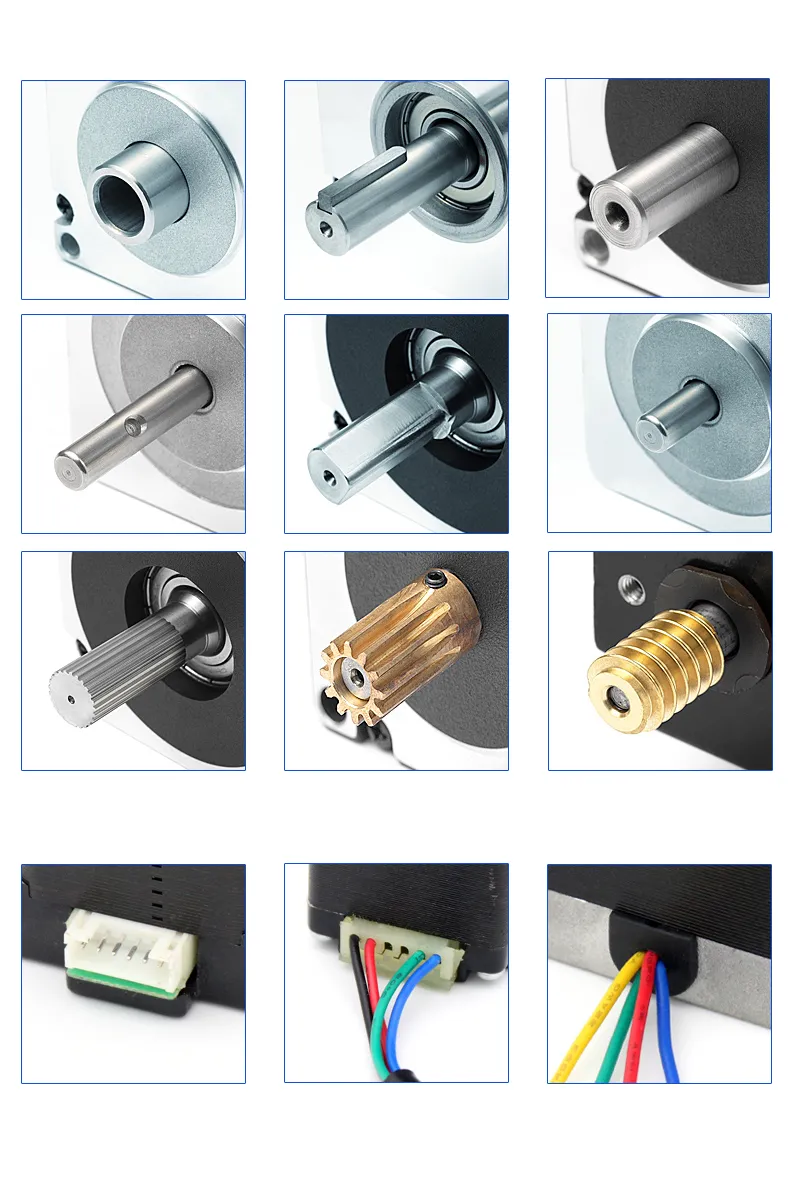

We are the source manufacturer, complete product model, rich production experience, can accept drawings custom stepper motor (including shaft processing, outlet mode, etc.)

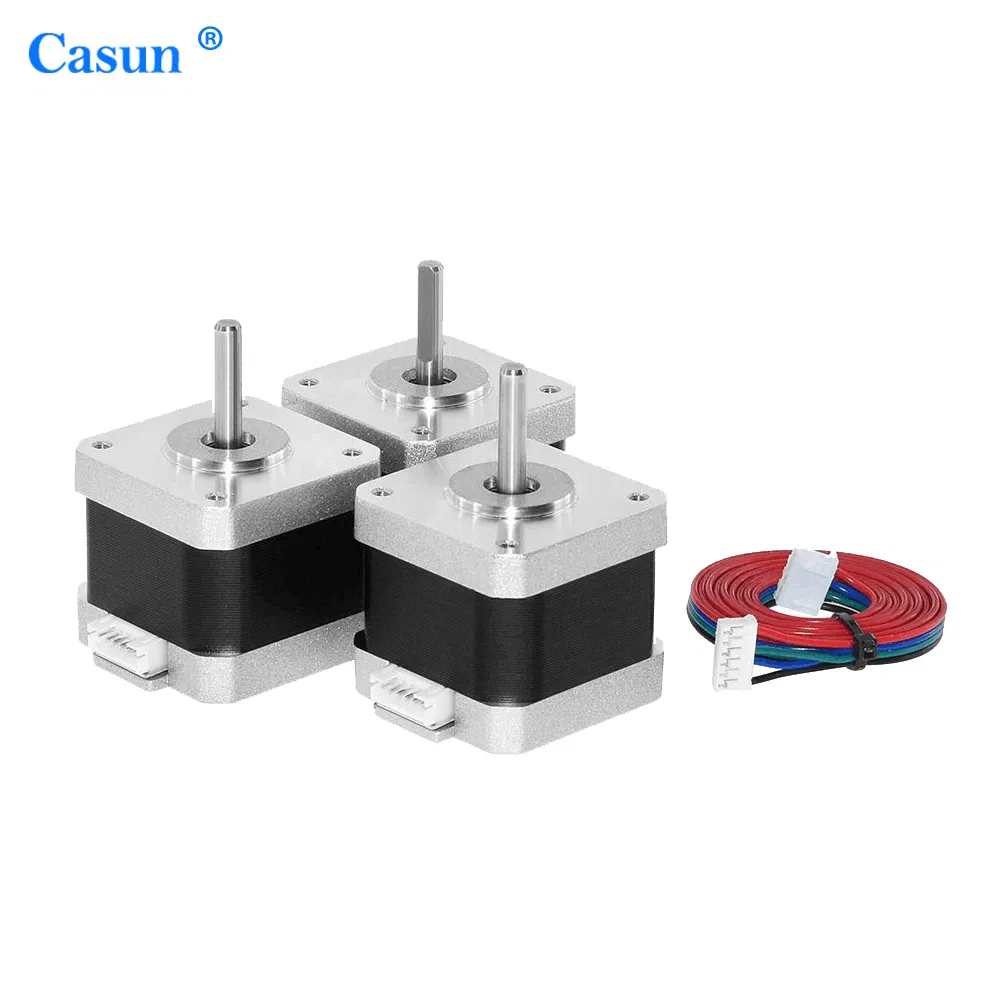

Motor wiring is optional (stock has ordinary line, 1M DuPont line, 1M XH 2.54 cable , 1M 2510 cable)

Note :/Attention Please:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.

*Note:We can also manufacture products according to customer's requirements.
NEMA 17 Electric Motor Waterproof DC Motor

Why Choose Us?

1) Trade Assurance Supplier, Over 10 Years Manufacturing Experience.
2) CE,RoHs, ISO9001,TUV Rheinland certification report.
3) After sales service 24*7, professional technical team work.
4) OEM &ODM are welcomed, we have our own R & members team.
5) 1 year guarantee.
6) Payment by PAYPAL.
7) Confidentiality Agreement "Business Secret CONTRACT"

Welcome Contact Us!!

Contact Person	Janven Huang
Email	[email protected]
Mob	+0086 13539996352
Address	Fude industrial building, no. 198, sandong avenue, xinhua street, huadu district, guangzhou city, guangdong province
