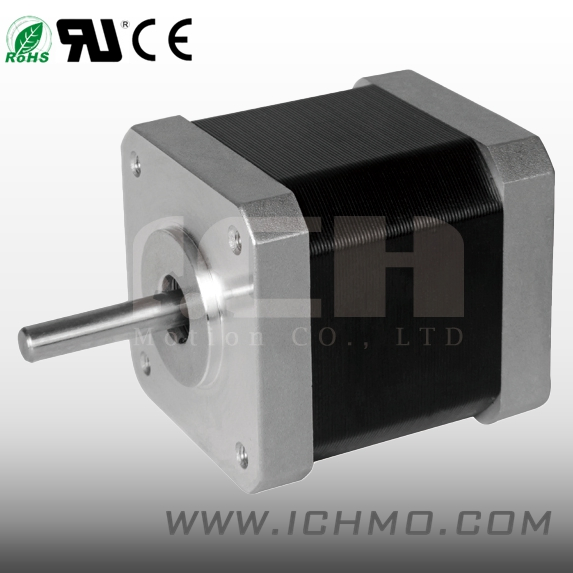

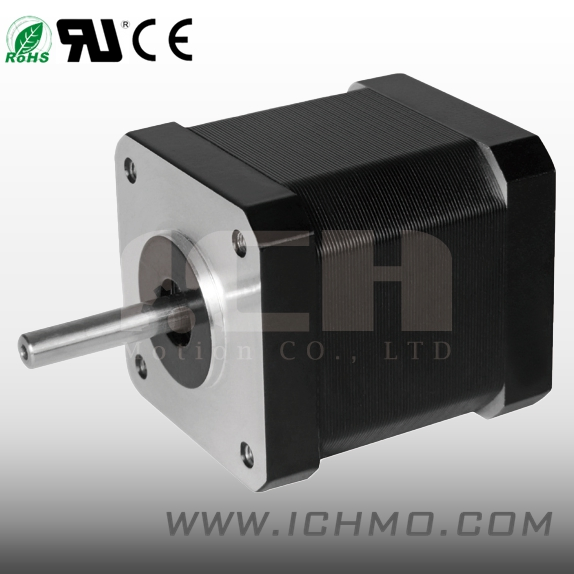

NEMA 17 40mm Hybrid Bipolar Stepper Servo Motor with Metal Gear for Satellite Communication Equipment
I.CH Motion Hybrid Stepper Servo Motor HS421General SpecificationsSpeed:0-3000RPMInsulation Resistance:100MIN,500VDCAmbient Temperature:(0-55ºCEncoder lines:2500/1000Drawing:Electrical Specification Series ModelRated Voltage (V)L(mm)Phase Current (A)PhaseResistance(Ω)PhaseInduc......
Send Inquiry
Product Description
I.CH Motion Hybrid Stepper Servo Motor HS421
General Specifications
Speed:0-3000RPM
Insulation Resistance:100MIN,500VDC
Ambient Temperature:(0-55ºC
Encoder lines:2500/1000
Drawing:
Electrical Specification
About Us:
We specialized in researching, developing and servicing electric motors, gearbox and high precision gears with the small modules.
After years of development, we have an independent product design and the R&D team, service team, and professional quality control team.
What's more, we have two joint ventures. One is located in Changzhou, which produces hybrid stepper motor, precious linear stepper motor, brushless DC motor, servo motor, stepper motor driver, brushless motor driver, encoder and brake.
Another one is located in Shenzhen, which produces DC gear motor. The factory has dozens of CNC machines and high precision test equipment, implements the process management and automatic operation in most
producing process.
We also have two cooperation factories. One is producing AC reversible synchronous motor and AC servo motor, the other one is producing linear permanent stepper motor, permanent stepper motors.
Customer's Visit:

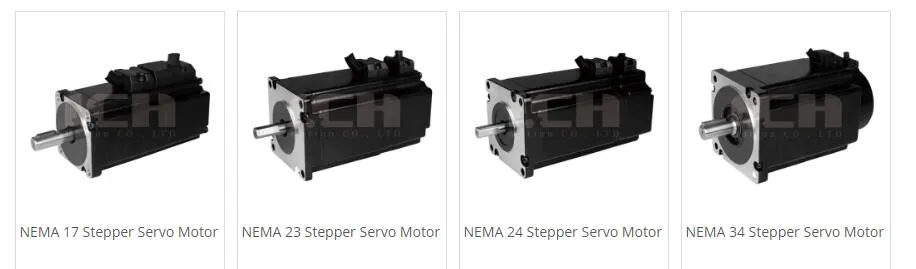

Related Products:
General Specifications
Speed:0-3000RPM
Insulation Resistance:100MIN,500VDC
Ambient Temperature:(0-55ºC
Encoder lines:2500/1000

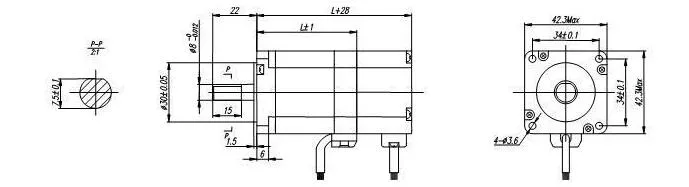

Drawing:
Electrical Specification
| Series Model | Rated Voltage (V) | L (mm) | Phase Current (A) | Phase Resistance (Ω) | Phase Inductance(mH) | Holding Torque (N.cm) | Moment of Inertia (g.cm2) | Motor Weight ( g) |
| HS421-05013A | 4.16 | 51 | 1.3 | 3.2 | 5.5 | 50 | 77 | 530 |
| HS421-05023A | 2.3 | 51 | 2.3 | 1.0 | 1.9 | 50 | 77 | 530 |
| HS421-05613A | 4.94 | 67 | 1.3 | 3.8 | 8.5 | 56 | 115 | 670 |
| HS421-07023A | 3.22 | 67 | 2.3 | 1.4 | 3.1 | 70 | 115 | 670 |
About Us:
We specialized in researching, developing and servicing electric motors, gearbox and high precision gears with the small modules.
After years of development, we have an independent product design and the R&D team, service team, and professional quality control team.
What's more, we have two joint ventures. One is located in Changzhou, which produces hybrid stepper motor, precious linear stepper motor, brushless DC motor, servo motor, stepper motor driver, brushless motor driver, encoder and brake.

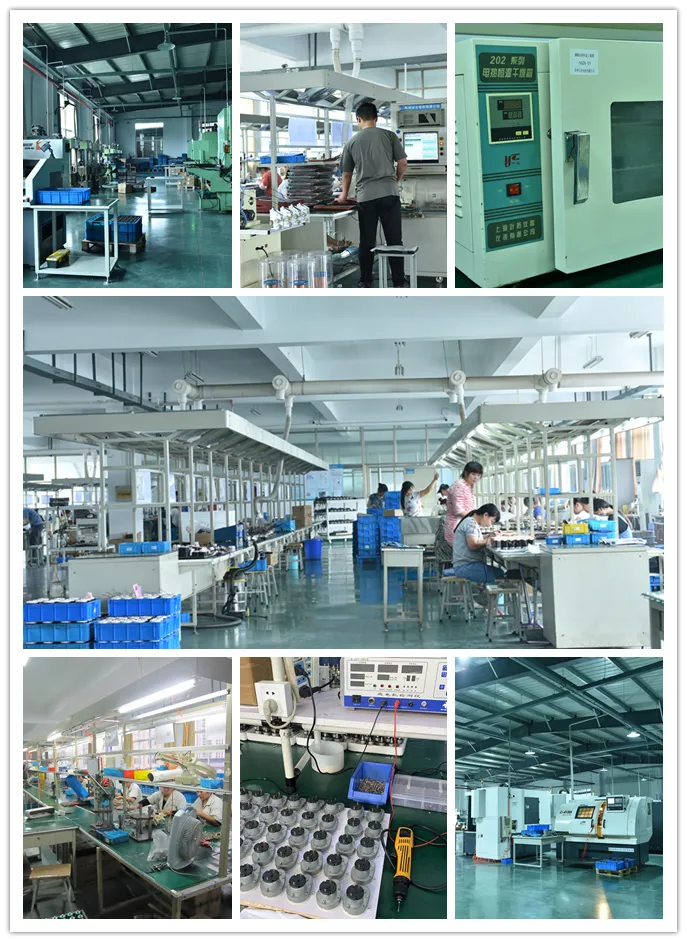

Another one is located in Shenzhen, which produces DC gear motor. The factory has dozens of CNC machines and high precision test equipment, implements the process management and automatic operation in most
producing process.
We also have two cooperation factories. One is producing AC reversible synchronous motor and AC servo motor, the other one is producing linear permanent stepper motor, permanent stepper motors.
Customer's Visit:
Related Products:
