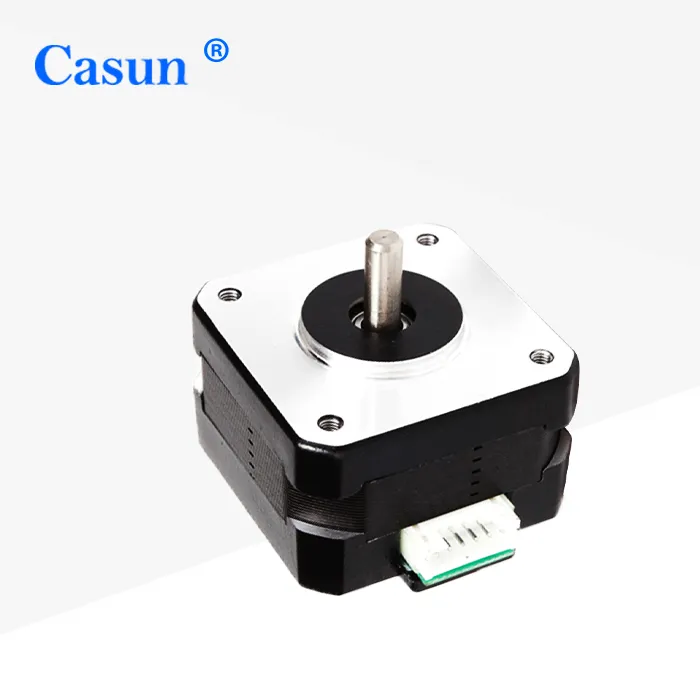

NEMA 16 39 mm 1.8 Degree Hybrid Stepper Motor (39SHD0609-25)
NEMA16 39mm 1.8Degree Hybrid Stepper Motor (39SHD0609-25)1.Please feel free to contact us!2.Motor Name:Hybrid Stepper Motor 3.Size:Nema 16(39*39mm)4.Feature:High precision, low inertia, low noise,small size,mooth movement5.The Outline Drawing of nema16 stepper motorHYBRID STEPPING MOTOR 39SHD0609-25......
Send Inquiry
Product Description
NEMA16 39mm 1.8Degree Hybrid Stepper Motor (39SHD0609-25)
1.Please feel free to contact us!
2.Motor Name:Hybrid Stepper Motor
3.Size:Nema 16(39*39mm)
4.Feature:High precision, low inertia, low noise,small size,mooth movement

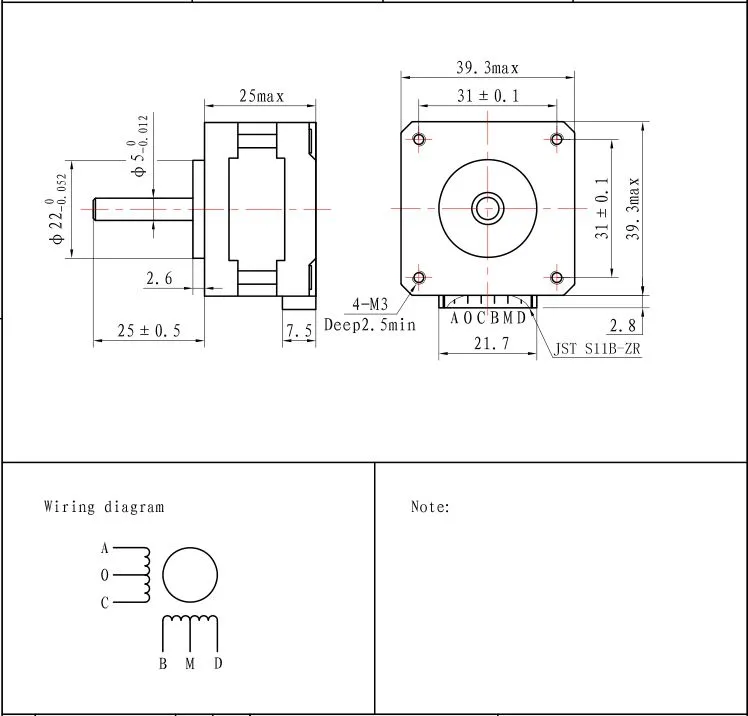

5.The Outline Drawing of nema16 stepper motor
Our company offers variety of products which can meet your multifarious demands.
We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers.
Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Description:

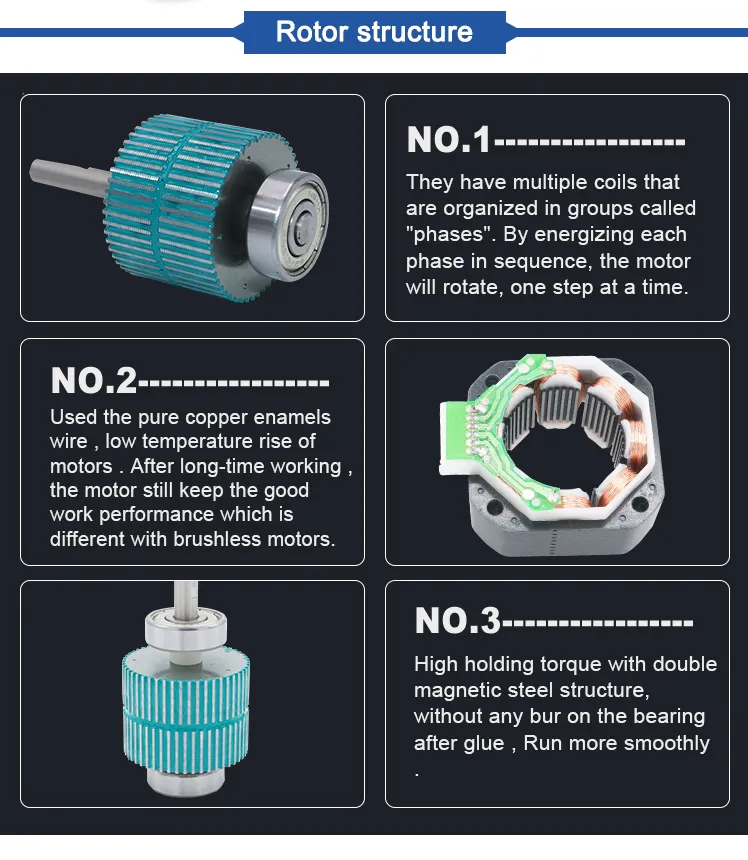

The motor adopts the unique precision technology of stator rotor,its structure is accurate,even and smooth,high precision inner hole, smoothand accurate running process without losing step.
The motor was inspected with precision instruments before it was sold.
1.We promise that more than one year warranty for all products.
2.We promise high quality of our products.
3.We promise best services for customers.
If you have interests in our products or any questions about our products,please don't hesitate to contact us,our sales team can provide the information what you want to know.
If we are not online, please leave your name and your contact details,as email,skype,whatsapp,trademanager and your telephone number,we will contact you as soon as possible in 2 hours.
Superiority:
1.High precision /High accuracy
2.Low noise
3.Large torque/high torque
4.Smooth operation
5.High temperature resistance
6.Small size
7.Low inertia
Note:
1.(*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with (*) when ordering.
2.We also could manufacture the custom stepper motors, according to the customer's requirements.
Remarks:

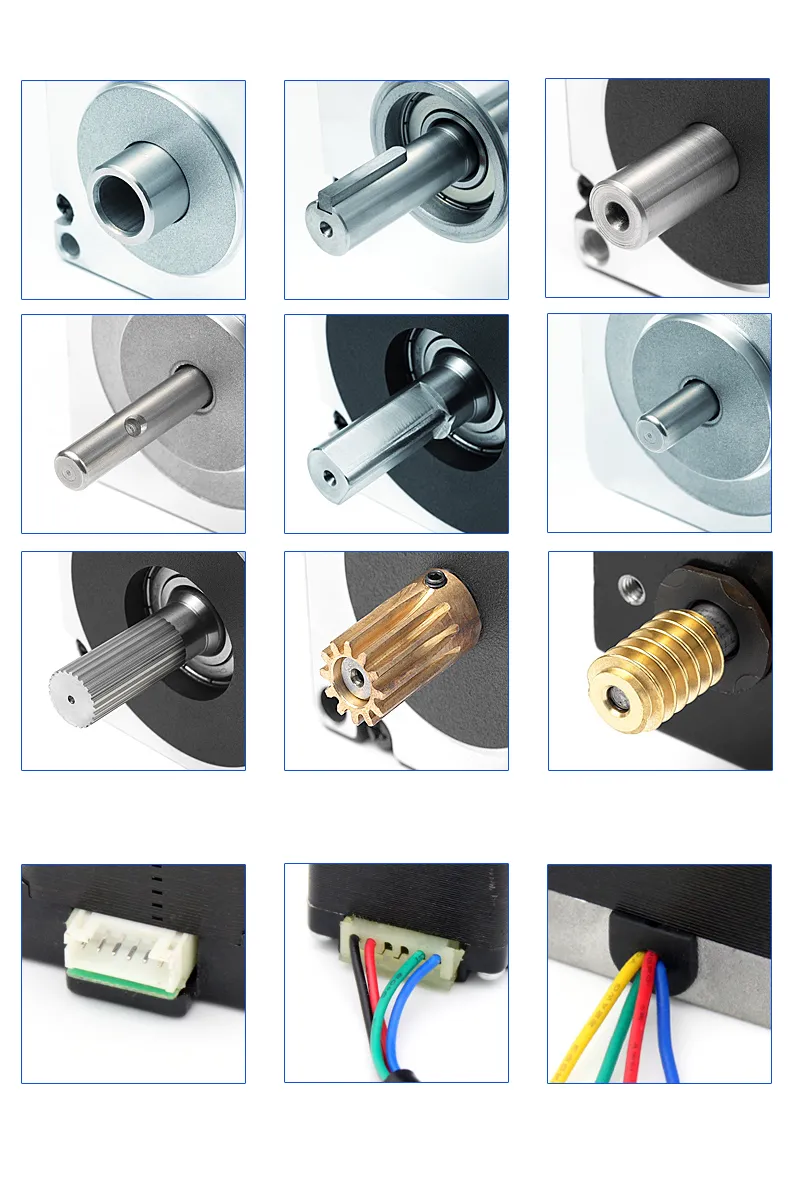

We are the source manufacturer, complete product model, rich production experience, can accept drawings custom stepper motor (including shaft processing, outlet mode, etc.)
Motor wiring is optional (stock has ordinary line, 1M DuPont line, 1M XH 2.54 cable , 1M 2510 cable)
Note :/Attention Please:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
*Note:We can also manufacture products according to customer's requirements.

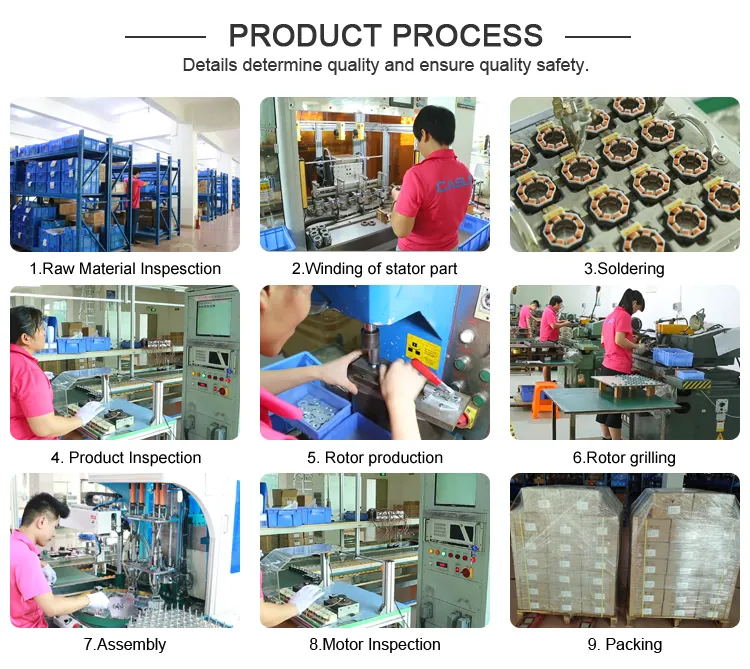

1.Motors production
All the proucts we sold here are manufactured by Guangzhou FUDE Technology Co., Ltd.,China.
2.Motors selection
Please contact us to confirm the model and other details of the motor before purchase.
3.Payment
We can serve samples and accept fully prepayment only .50% advance is needed for bulk purchase and balance before shipment .Paypal, Western Union, T/T are all accepted.
4.Delivery
Samples in stock can be delivered within 7 days and customized samples within 30 days.Delivery date for bulk order depends on quantity.
5.Feedback and after-sale service
Any problems in using are welcome to be informed !Our technician will give you professional advise.We will give you free maintenance within 24 months if the flaws are the result of production.
*COMMON PROBLEM
Q1.Do you have online contact info?
Q2.How can we know the product quality?
A2:We suggest you to order a sample.Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q3.Can we have free sample?
A3:Yes sure, but please pay the shipping cost by youself.
Q4.Is this your final price?May i have the discount?
A4:Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
Q5.Can we visit your factory?
A5:Yes welcome warmly.Our address is
Q6:Do you have any certificates?
A6:Yes, we have.All the motors have been approved by CE and Rohs.
Q7:Do you offer OEM AND ODM service?
A7:Yes.We can supply OEM andmake customized design for any specific application.
Q8:What's the delivery time ?
A8:Except special order.For samples usually 10-14 working days .For batch order .Usually 20-25days.
1.Please feel free to contact us!
2.Motor Name:Hybrid Stepper Motor
3.Size:Nema 16(39*39mm)
4.Feature:High precision, low inertia, low noise,small size,mooth movement
5.The Outline Drawing of nema16 stepper motor
| HYBRID STEPPING MOTOR 39SHD0609-25 Casun | |||
| General Specification | Electrical Specification | ||
| Step Angle | 1.8° | Rated Voltage | 12.32V dc |
| Number of Phase | 4 | Rated Current | 0.28A |
| Insulation Resistance | 100MΩmin. (500V DC) | Resistance per phase | 44Ω±10% |
| Insulation Class | Class B | Inductance per Phase | 20mH±20% |
| Rotor Inertia | 18g.cm² | Holding torque | 120mN.m |
| Mass | 0.17kg | Detent torque | 12mN.m |
Our company offers variety of products which can meet your multifarious demands.
We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers.
Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Description:
The motor adopts the unique precision technology of stator rotor,its structure is accurate,even and smooth,high precision inner hole, smoothand accurate running process without losing step.
The motor was inspected with precision instruments before it was sold.
1.We promise that more than one year warranty for all products.
2.We promise high quality of our products.
3.We promise best services for customers.
If you have interests in our products or any questions about our products,please don't hesitate to contact us,our sales team can provide the information what you want to know.
If we are not online, please leave your name and your contact details,as email,skype,whatsapp,trademanager and your telephone number,we will contact you as soon as possible in 2 hours.
Superiority:
1.High precision /High accuracy
2.Low noise
3.Large torque/high torque
4.Smooth operation
5.High temperature resistance
6.Small size
7.Low inertia
Note:
1.(*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with (*) when ordering.
2.We also could manufacture the custom stepper motors, according to the customer's requirements.
Remarks:
We are the source manufacturer, complete product model, rich production experience, can accept drawings custom stepper motor (including shaft processing, outlet mode, etc.)
Motor wiring is optional (stock has ordinary line, 1M DuPont line, 1M XH 2.54 cable , 1M 2510 cable)
Note :/Attention Please:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
*Note:We can also manufacture products according to customer's requirements.
1.Motors production
All the proucts we sold here are manufactured by Guangzhou FUDE Technology Co., Ltd.,China.
2.Motors selection
Please contact us to confirm the model and other details of the motor before purchase.
3.Payment
We can serve samples and accept fully prepayment only .50% advance is needed for bulk purchase and balance before shipment .Paypal, Western Union, T/T are all accepted.
4.Delivery
Samples in stock can be delivered within 7 days and customized samples within 30 days.Delivery date for bulk order depends on quantity.
5.Feedback and after-sale service
Any problems in using are welcome to be informed !Our technician will give you professional advise.We will give you free maintenance within 24 months if the flaws are the result of production.
*COMMON PROBLEM
Q1.Do you have online contact info?
Q2.How can we know the product quality?
A2:We suggest you to order a sample.Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q3.Can we have free sample?
A3:Yes sure, but please pay the shipping cost by youself.
Q4.Is this your final price?May i have the discount?
A4:Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
Q5.Can we visit your factory?
A5:Yes welcome warmly.Our address is
Q6:Do you have any certificates?
A6:Yes, we have.All the motors have been approved by CE and Rohs.
Q7:Do you offer OEM AND ODM service?
A7:Yes.We can supply OEM andmake customized design for any specific application.
Q8:What's the delivery time ?
A8:Except special order.For samples usually 10-14 working days .For batch order .Usually 20-25days.
