Hot 1.8 Degree NEMA 11 Micro Stepper Motor (28SHD4501-14P)

Product Description

2020 Wholesale Hot 1.8 Degree NEMA 11 Micro Stepper Motor (28SHD4501-14P)

Product Information

1) Raw Materials: Tested by Professional Precise Equipment.

2) 3 Inspection Lines

3) 1 Year Gurantee + Famous Chain Customers

Product Name	Electric Stepper Motor
Dimensions	Nema8(20mm), 11(28mm), 14(35mm), 16(39mm), 17(42mm), 23(57mm), 24(60mm), 34(86mm)
Step Angle	Degree 0.9, 1.2, 1.8(Optional or Customized)
Torque (oz.in)	Up to 3.11, 5.7, 17, 41, 56, 85, 113, 425,
Rated Current (A/Phase)	0.1A~10A
Typical Applications	Inject Printers, Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera and Robotics

Product Display

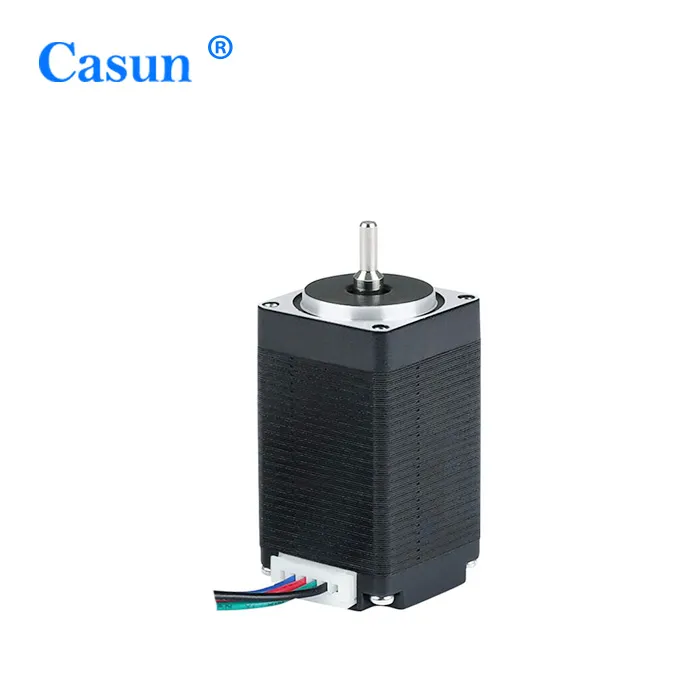

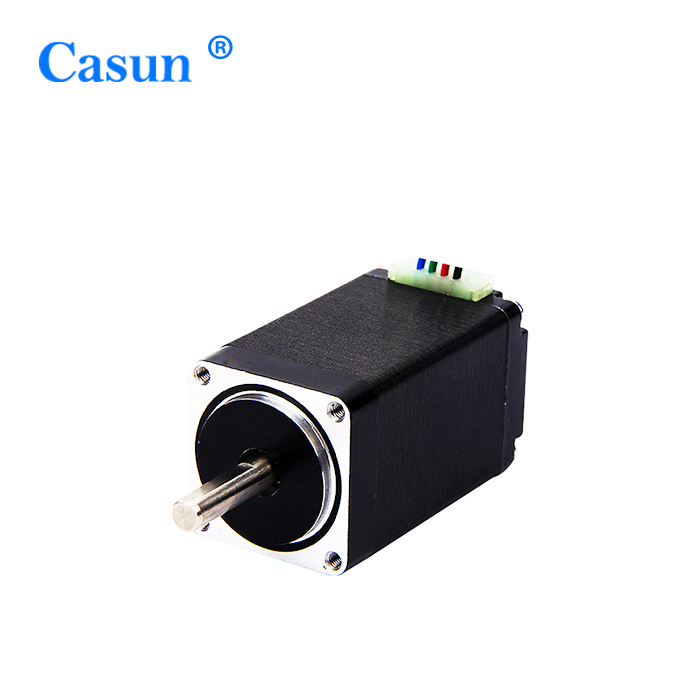

Casun ^® HYBRID STEPPER MOTOR (28SHD4501-14)

Motor Name: HYBRID STEPPER MOTOR

Size: NEMA 11 (28_*28_*51.5mm)

Feature: small volume, fast speed, low inertia

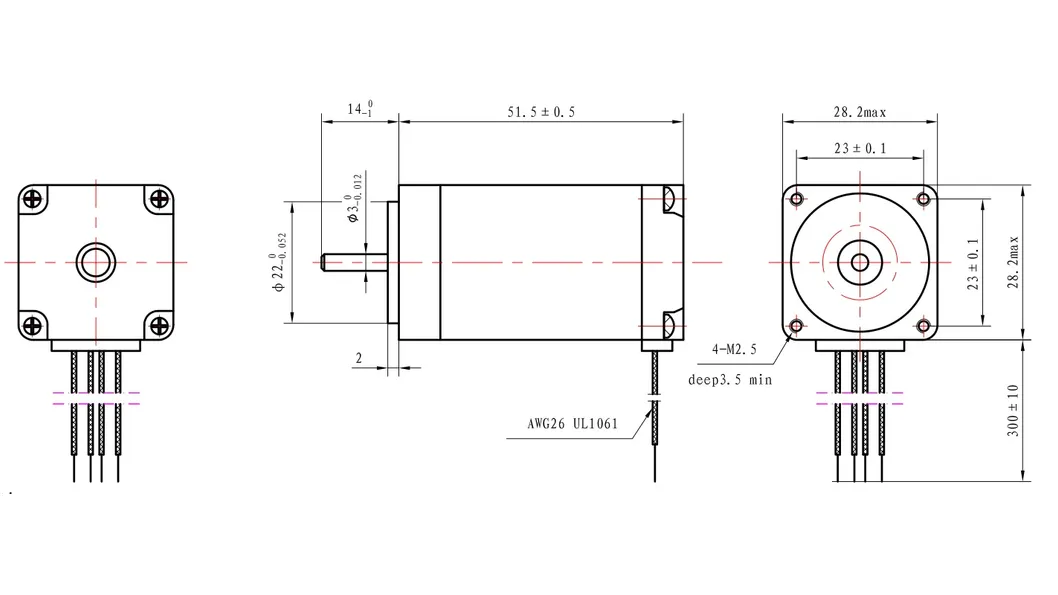

The Outline Drawing of NEMA 11 Stepper Motor:

Casun ^®HYBRID STEPPER MOTOR 28SHD4501-14P
General Specification		Electrical Specification
Step Angle	1.8°	Rated Voltage	6.16V
Number of Phase	2	Rated Current	0.67A
Insulation Resistance	100MΩmin. (500V DC)	Resistance per phase	9.2Ω±10%
Insulation Class	Class B	Inductance per Phase	7.2mH±20%
Rotor Inertia	18g.cm²	Holding torque	120mN.m
Mass	0.2kg	Detent torque	8mN.m

More Specification

Modle	Holding Torque	Rated Current	Resistance per phase	Inductance per phase	Detent Torque	Rotor inertia	Lead wire	Motor Length
Modle	mN.m	A	Ω	mH	mN.m	g.cm²	No.	mm
42SHD0512	200	0.7	12	15	7.5	20	4	26
42SHD0001	260	0.4	30	37	12	38	4	34
42SHD0002	280	0.6	22	28	12	38	4
42SHD0009	200	0.4	30	21	12	38	6
42SHD0029	200	1.2	2.1	1.2	12	38	6
42SHD0202	400	0.5	25	50	18	57	4	40
42SHD0216	400	1.0	4.5	10	18	57	4
42SHD0219	300	1.2	3.2	3.0	18	57	6
42SHD0404	450	1.5	2.0	2.8	37	72	4	48
42SHD0441	420	1.2	3.2	6	37	72	4	48
42SHD0801	600	1.5	2.0	3.2	42	102	4	60

Above is our partial products parameter, for more products pls contact us. OEM &ODM are welcomed.

Notice

1.Motors production
All the proucts we sold here are manufactured by Guangzhou FUDE Technology Co., Ltd.,China.

2.Motors selection
Please contact us to confirm the model and other details of the motor before purchase.

3.Payment
We can serve samples and accept fully prepayment only . 50% advance is needed for bulk purchase and balance before shipment .Paypal, Western Union, T/T are all accepted.

4.Delivery
Samples in stock can be delivered within 7 days and customized samples within 30 days. Delivery date for bulk order depends on quantity.

5.Feedback and after-sale service
Any problems in using are welcome to be informed !Our technician will give you professional advise. We will give you free maintenance within 24 months if the flaws are the result of production.
