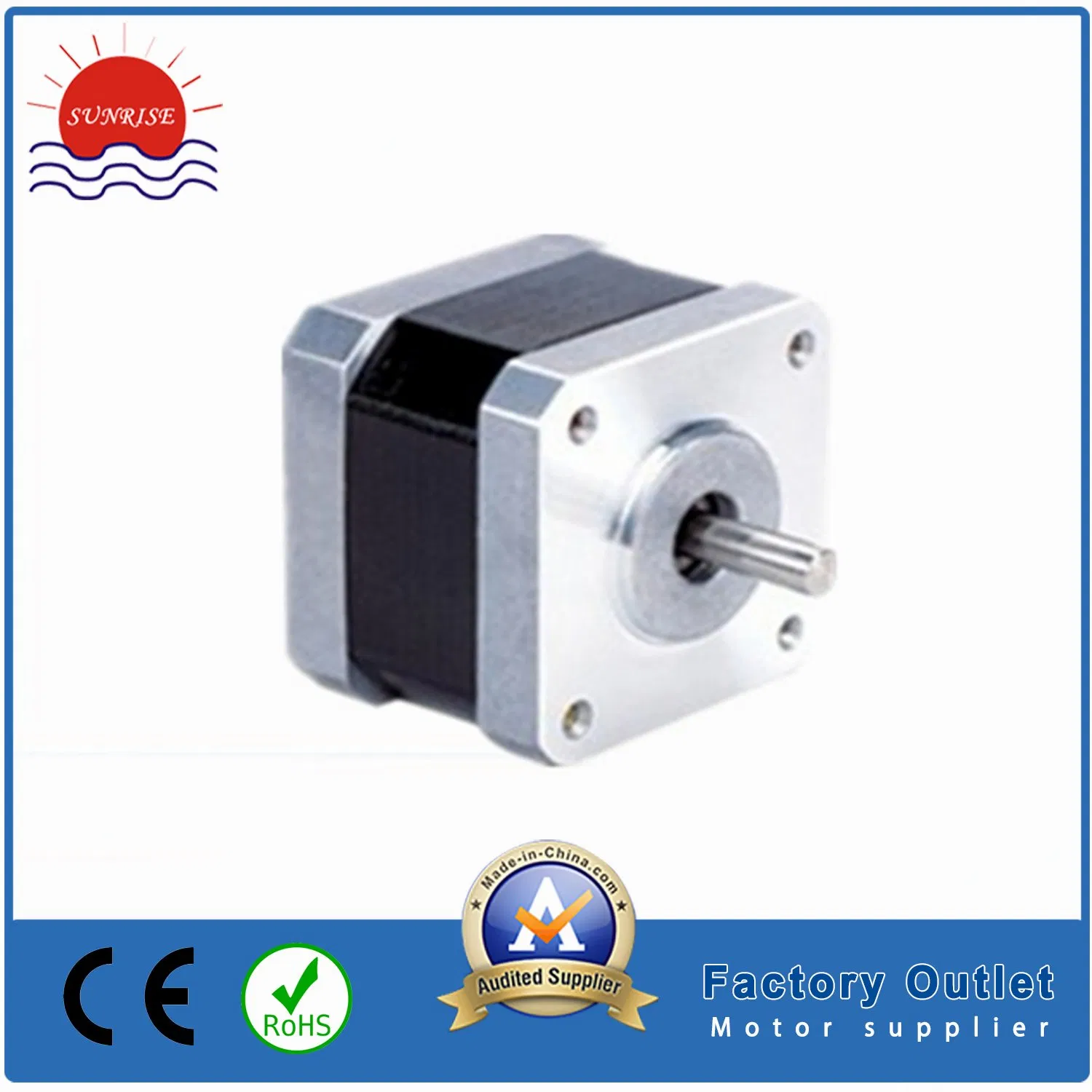

DC Motor Brushless DC Motor Brushless Motor BLDC Motor Brushed Motor Electric Motor PMDC Motor NEMA17 42HS2A40- 046 Stepping Motor/2-Phase Hybrid Stepping Motor
Product DescriptionModel:42hs2a40-046Holding Torque:28N.cmCurrent:0.4AResistance:30ΩMotor Length:40MMWeight:280gMotor are available with different winding and mechanical modification to meet specific applications.ModelHolding Torque (N·cm±10%)Current/Phase(A)Resistanc......
Send Inquiry
Product Description
Product Description
Model:42hs2a40-046
Holding Torque:28N.cm
Current:0.4A
Resistance:30Ω
Motor Length:40MM
Weight:280g
Motor are available with different winding and mechanical modification to meet specific applications.
Model:42hs2a40-046
Holding Torque:28N.cm
Current:0.4A
Resistance:30Ω
Motor Length:40MM
Weight:280g
Motor are available with different winding and mechanical modification to meet specific applications.
| Model | Holding Torque (N·cm±10%) | Current/Phase(A) | Resistance/Phase (ohms±10%) | Inductance/Phase (mH±20%) | Detent Torque (N·cm) | Rotor Inertia (g-cm 2 ) | Length (mm) | Weight (g) |
| 42HS2A40-046 | 28 | 0.4 | 30 | 28 | 2.2 | 54 | 40 | 280 |
