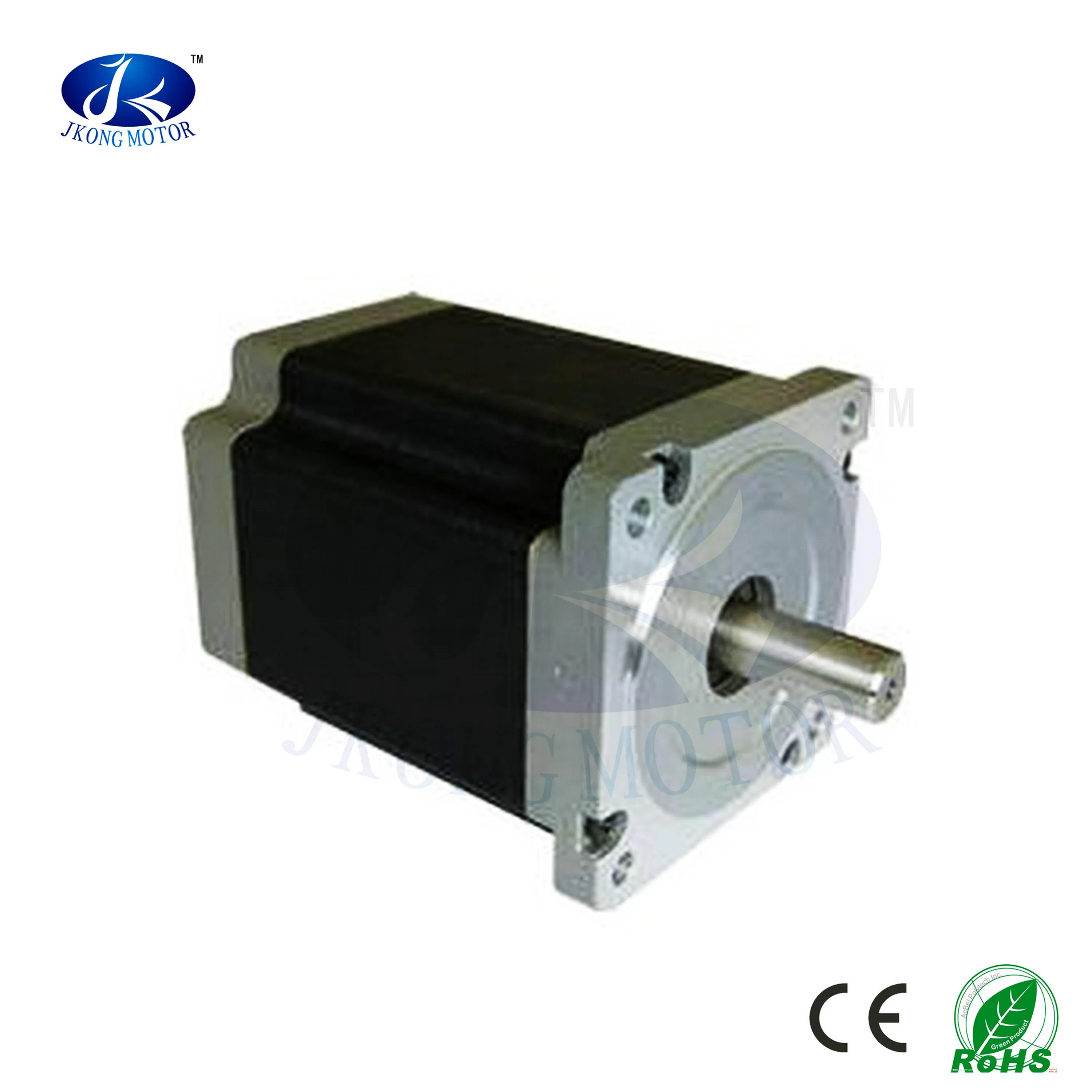

86mm 1.8degree 78mm Motor Length Hybrid Stepepr Motor

Product Description

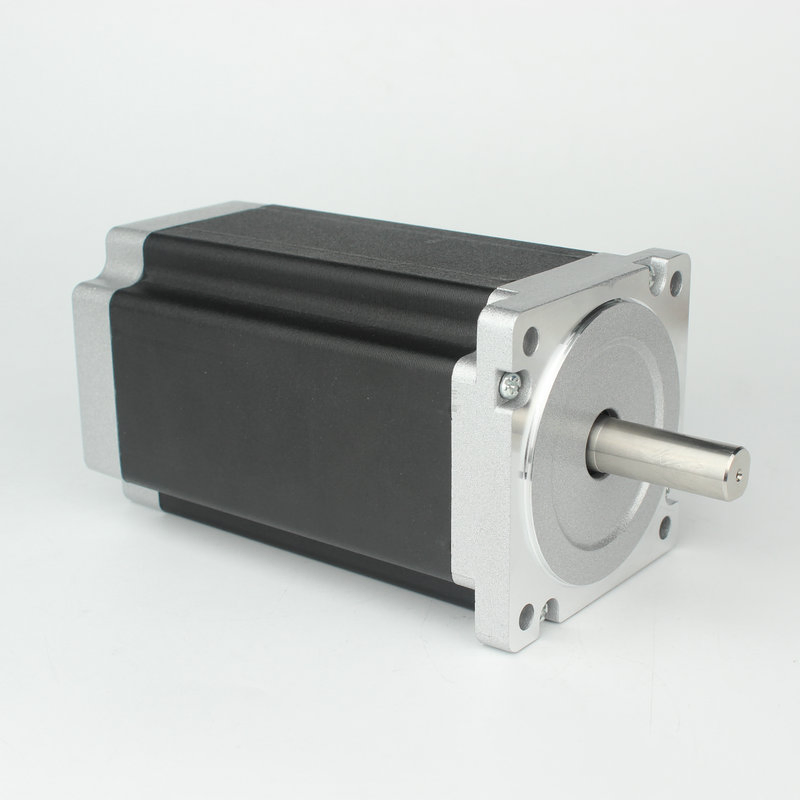

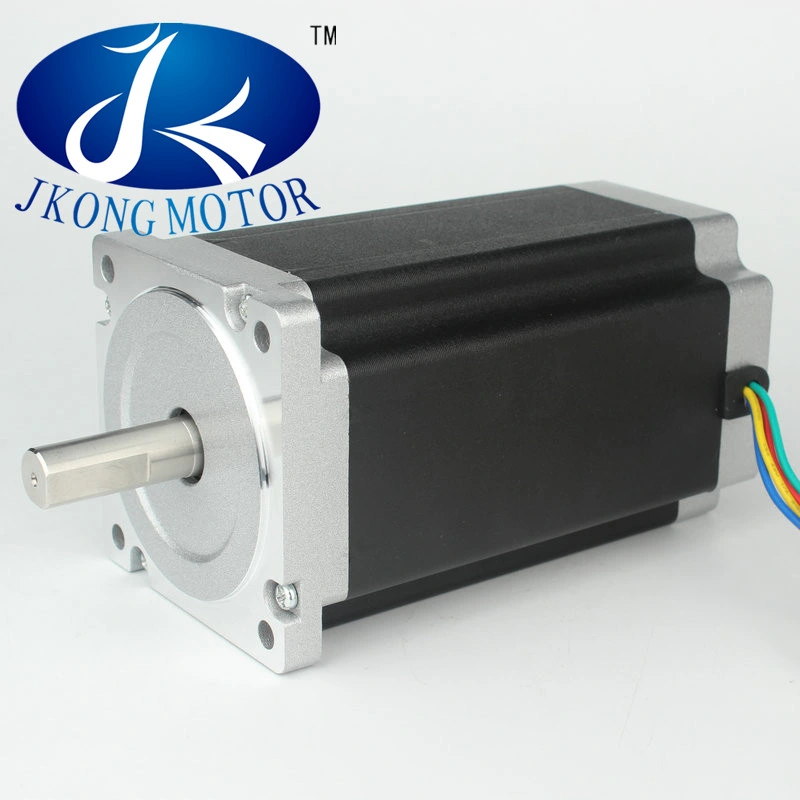

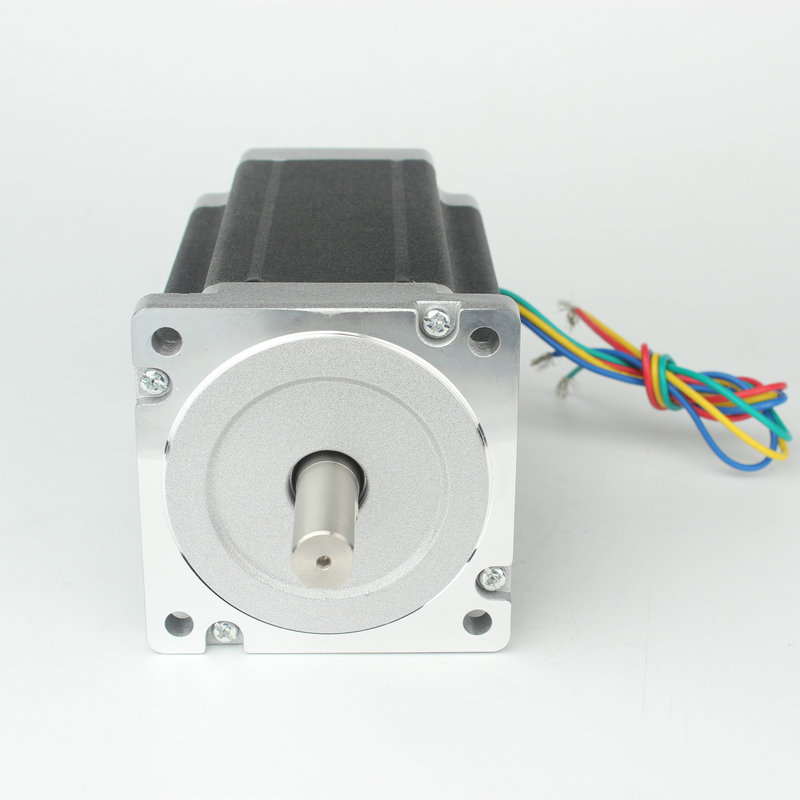

86mm 1.8degree 78mm motor length hybrid stepepr motor

Item Specifications:

Step Angle 1.8degree
Temperature Rise 80. C Max.
Ambient Temperature -20. C~+50. C
Insulation Resistance 100MΩ Min., 500VDC
Dielectric Strength 820VAC for 1s 3mA
Shaft Radial Play 0.02Max. (450 g-load)
Shaft Axial Play 0.08Max. (450 g-load)
Max. Radial force 220N (20mm from the flange)
Max. Axial force 60N

1. NEMA34 Hybrid Stepper Motor
2. Model Number: JK86HS78 - 5504
3. Phase: 2 Phase
4. Lead Wire (No. ): 4wires
5. Structure: Hybrid
6. Step Angle: 1.8 degree
7. Motor Height: 78mm
8. Current: 5...5A
9. Resistance: 0.46Ω
10. Inductance: 4 mH
11. Motor Weight: 2.3 KG
12. Holding Torque: 4.6 N. M
13. Speed: Low / High speed
14. Certification: CE, RoHS, ISO9001
15. Shape: Square
16. Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm²	Kg
JK86HS67-5904	1.8	67	5.9	0.28	1.7	3.4	4	0.8	1000	1.7
JK86HS67-2808	1.8	67	2.8	1.4	3.9	3.4	8	0.8	1000	1.7
JK86HS78-5504	1.8	78	5.5	0.46	4	4.6	4	1.2	1400	2.3
JK86HS78-4208	1.8	78	4.2	0.75	3.4	4.6	8	1.2	1400	2.3
JK86HS115-6004	1.8	115	6.0	0.6	6.5	8.7	4	2.4	2700	3.8
JK86HS115-4208	1.8	115	4.2	0.9	6	8.7	8	2.4	2700	3.8
JK86HS155-6204	1.8	155	6.2	0.75	9	12.2	4	3.6	4000	5.4
JK86HS155-4208	1.8	155	4.2	1.25	8	12.2	8	3.6	4000	5.4
