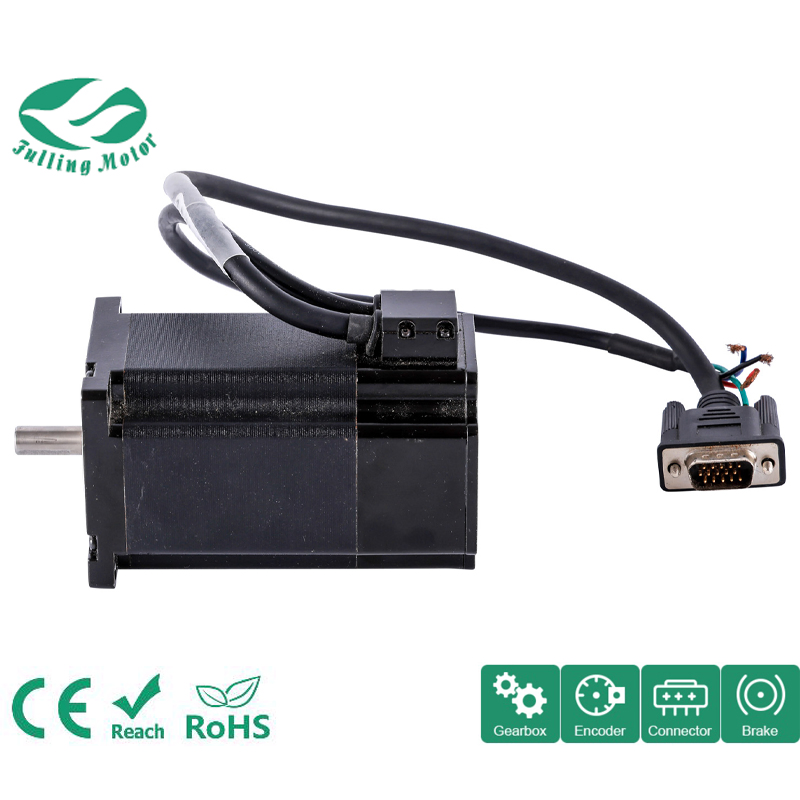

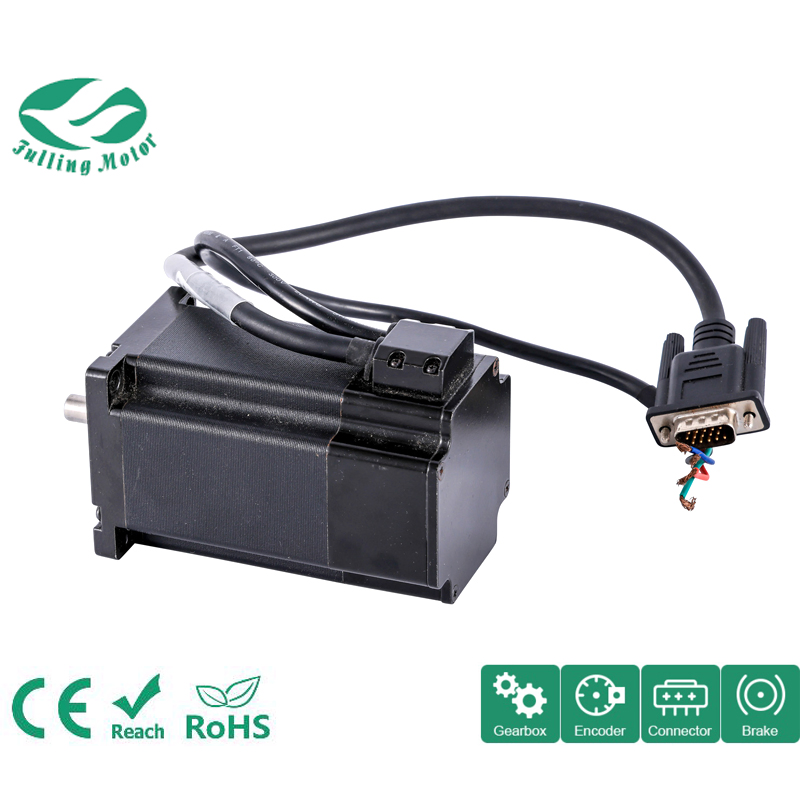

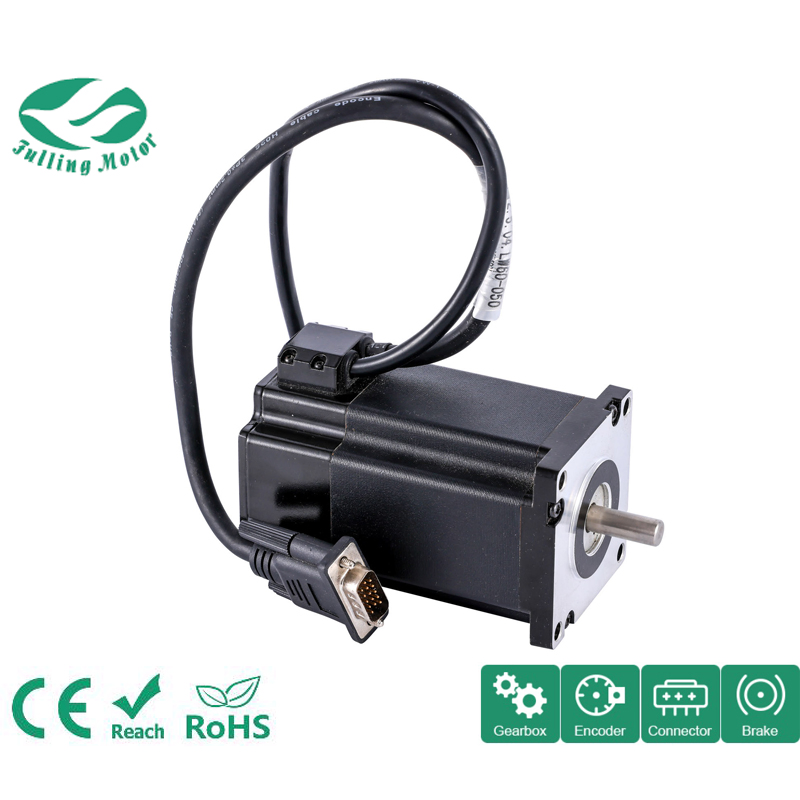

60mm enhanced torque CE stepping motor with connector for Disability equipment
Product Description1.2° 60mm 3 phase Hybrid Stepping MotorGeneral specification(Item)(Specifications)(Step Angle)1.2°(Step Angle Accuracy)±5% (full step, no load)( Radial Play)0.02mm@450 g( Axial Play)0.08mm@450 g(Max. radial force)75N 20mm (20mm from the flange)(Max. axi......
Send Inquiry
Product Description
1.2° 60mm 3 phase Hybrid Stepping Motor
General specification
(Item) | (Specifications) |
| (Step Angle) | 1.2° |
| (Step Angle Accuracy) | ±5% (full step, no load) |
| ( Radial Play) | 0.02mm@450 g |
| ( Axial Play) | 0.08mm@450 g |
| (Max. radial force) | 75N 20mm (20mm from the flange) |
| (Max. axial force) | 15N |
| (Dielectric Strength) | 600VAC / 1s |
| (Insulation Resistance) | 100MΩ ,500VDC |
| (Ambient Temperature) | -20.C~+50.C |
| (Insulation Class) | Class B |
Electrical specifications
| (Model No.) | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Detent Torque | # of Leads | Rotor Inertia | Weight | Length |
| Single shaft | A | Ω | mH | N.m | N.m | # | g-cm2 | kg | mm |
| FL603P1253-1503A | 1.5 | 4.1 | 9.5 | 0.8 | 0.07 | 3 | 260 | 0.8 | 53.5±1 |
| FL603P1277-1503A | 1.5 | 4.4 | 10 | 1.1 | 0.09 | 3 | 460 | 1.3 | 77.5±1 |

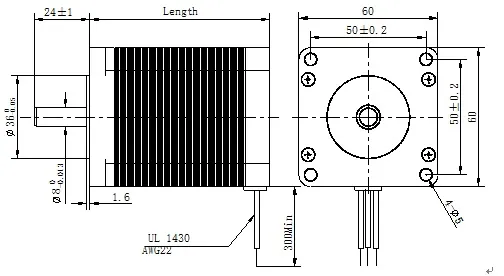

Dimension
Wiring Diagram
Pull out torque curve
The motor can be designed &manufactured with customized request.
Changzhou Fulling Motor Co., Ltd was established in year 2001 as a joint venture of Germany‐Swiss‐China. We are a professional motor manufacturer in Changzhou city, China. Our Company offers four major series of products: Hybrid stepper motors, DC brushless motors, Low Voltage Servo motors and the motor drivers. Production capacity exceeds more than 6 million motors per year. Changzhou Fulling Motor Co., Ltd also has several joint venture companies who specialized in the production of AC Servo motor, PM stepper motors, and DC gear motors.We sell nearly 8 million different motors to customers worldwide every year. Our products are widely used on industrial automation, robots, textile, printing, medical equipments, logistics, communication, household appliances and automobile etc. We export our motors to more than 30 countries such as Italy, Germany and United States.
With FULLING R&D team, well-managed production process and advanced testing equipment, we keep supplying reliable motors. By using strict quality managing system and service system, FULLING has successfully passed the quality management system certification for ISO9001, IATF16949 and ISO14001, which were authorized by the German TUV group.
All products are RoHS compliant and CE certified; some are UL approved.
Q:How long is the lead time of orders?A:Lead time : 10~12 weeks
Q:Vhat is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What's Moq?
A: No Moq , 1PC OK . Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet lT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should l do if 'm not satisfied with your product?
A: lf there are defects in its quality, we can exchange a good one for you.Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:Vhat is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
