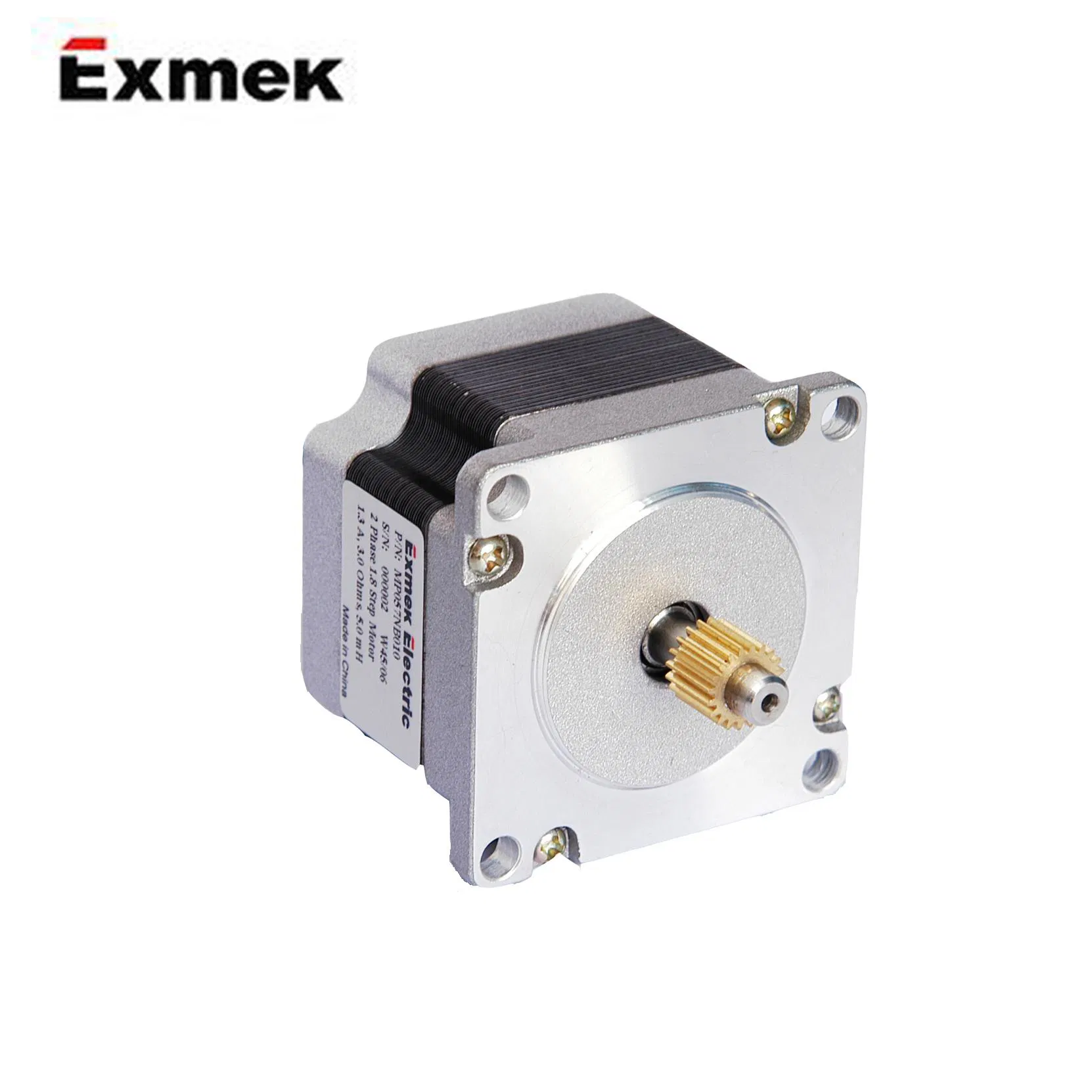

57mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP057SB202)
General informationStep angle accuracy: 1.8°±5%Temperature rise: 80°C maxAmbient temperature: -20°C~+50°CInsulation resistance: 100M(OHMS). min., At 500VDielectric strength: 500V AC, 1S, 2mAInsulation class: BMechanicalSpecificationsPart numberMP057SB202Pha......
Send Inquiry
Product Description
General information
Specifications
Special design available.
- Step angle accuracy: 1.8°±5%
- Temperature rise: 80°C max
- Ambient temperature: -20°C~+50°C
- Insulation resistance: 100M(OHMS). min., At 500V
- Dielectric strength: 500V AC, 1S, 2mA
- Insulation class: B

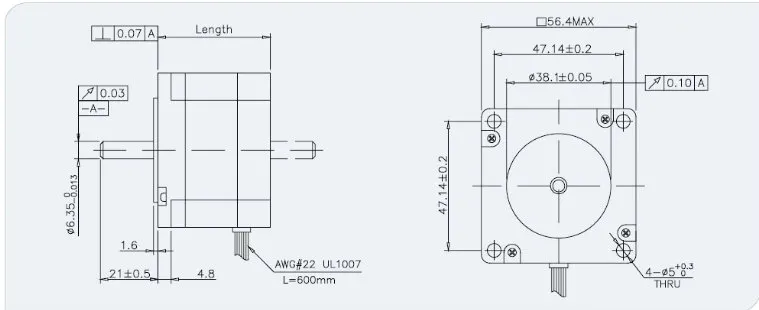

Specifications
| Part number | MP057SB202 |
| Phase current | 2A |
| Phase-resistance | 1.8 ohms |
| Phase inductance | 5.2mH |
| Holding torque | 88.2N/cm |
| Detent torque | 5.8N/cm |
| Number of wires | 6 |
| Rotor inertia | 260g.cm2 |
| Length | 56mm |
| Weight | 600g |
