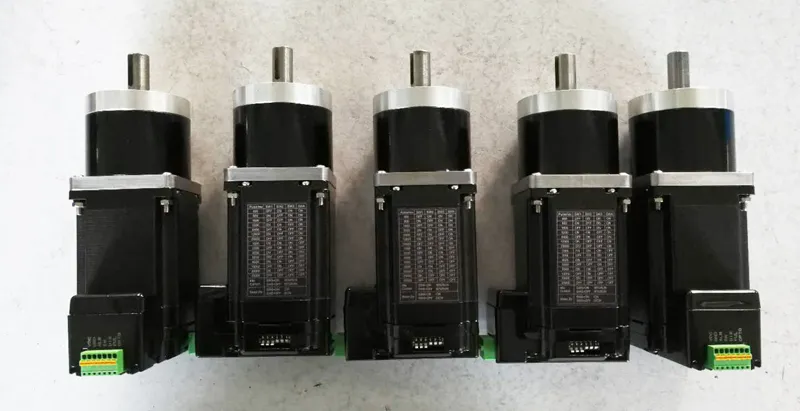

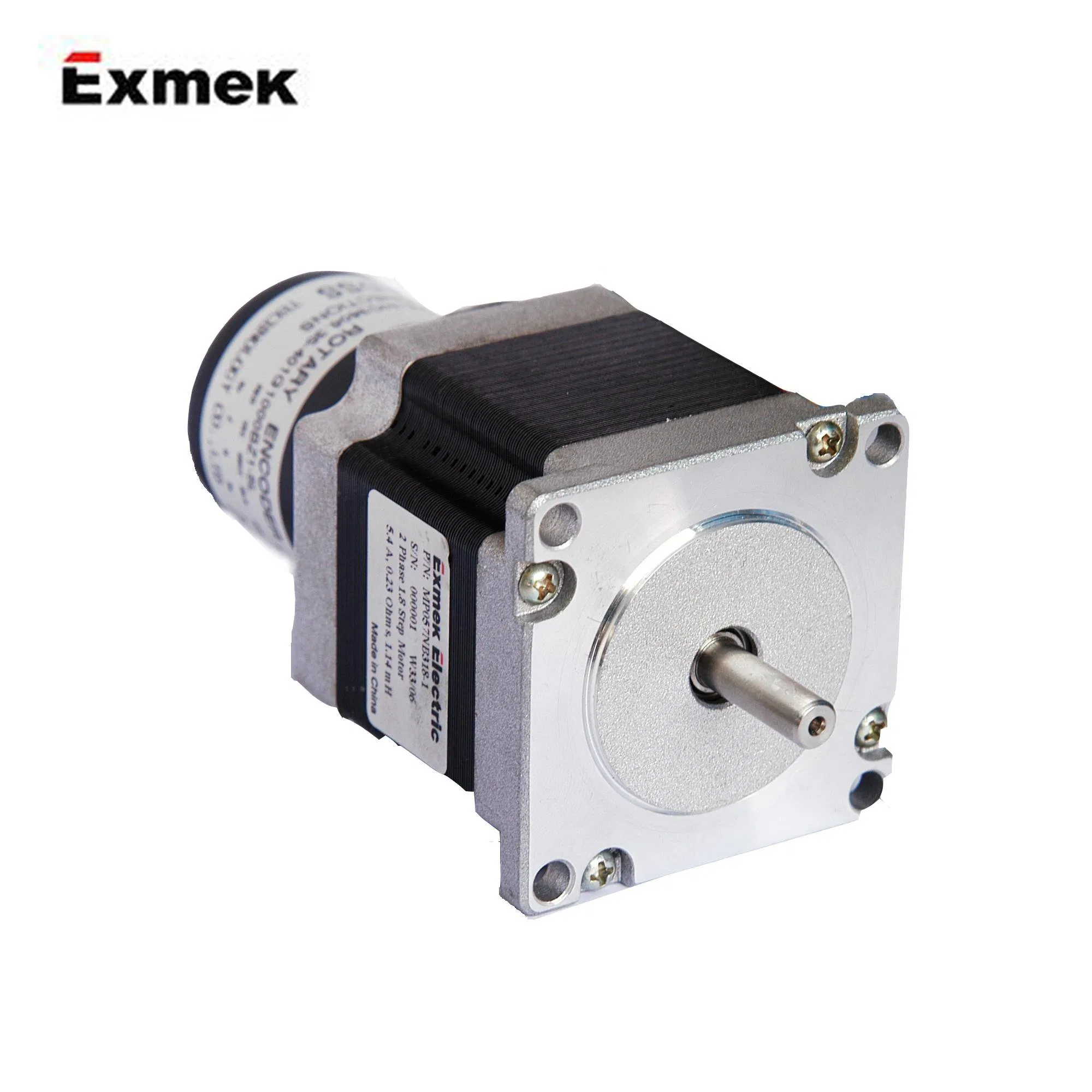

57mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP057NB522-10)
General informationStep angle accuracy: 1.8°±5%Temperature rise: 80°C maxAmbient temperature: -20°C~+50°CInsulation resistance: 100M(OHMS). min., At 500VDielectric strength: 500V AC, 1S, 2mAInsulation class: BMP057NB Series are integrated gearbox and driver......
Send Inquiry
Product Description
General information
MP057NB Series are integrated gearbox and driver available. If you want any different step motor, please do not hesitate to send us an inquiry.
Mechanical
Specifications
Special design available.
We are open for general discussion and questions. Contact us now!
- Step angle accuracy: 1.8°±5%
- Temperature rise: 80°C max
- Ambient temperature: -20°C~+50°C
- Insulation resistance: 100M(OHMS). min., At 500V
- Dielectric strength: 500V AC, 1S, 2mA
- Insulation class: B
MP057NB Series are integrated gearbox and driver available. If you want any different step motor, please do not hesitate to send us an inquiry.

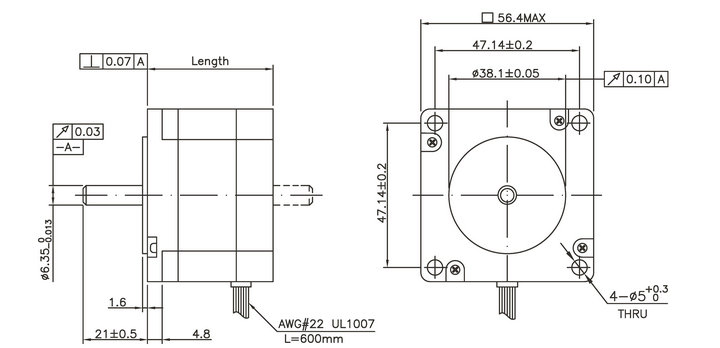

Mechanical
Specifications
| Part number | MP057NB522 |
| Phase current | 6A |
| Phase-resistance | 0.5 ohms |
| Phase inductance | 2mH |
| Holding torque | 280n/cm |
| Detent torque | 12N/cm |
| Number of wires | 4 |
| Rotor inertia | 800g.cm2 |
| Length | 115mm |
| Weight | 1600g |
We are open for general discussion and questions. Contact us now!
