4wire Hybrid Stepper Motors NEMA34 1.8 Degree 2 Phase 86hs67-2804
2 Phase 3.4N.M Hybrid Stepper Motors Nema34 1.8 Degree Textile Machinery JK86HS67-2804Nema 34 Hybrid Stepper MotorModel Number: JK86HS67-2804Phase: 2 PhaseLead Wire (No.):4 wireStructure: HybridStep Angle: 1.8°Motor Height:86 mmHolding Torque: 3.4N.m Speed: Low / High speedCertification: C......
Send Inquiry
Product Description
2 Phase 3.4N.M Hybrid Stepper Motors Nema34 1.8 Degree Textile Machinery JK86HS67-2804

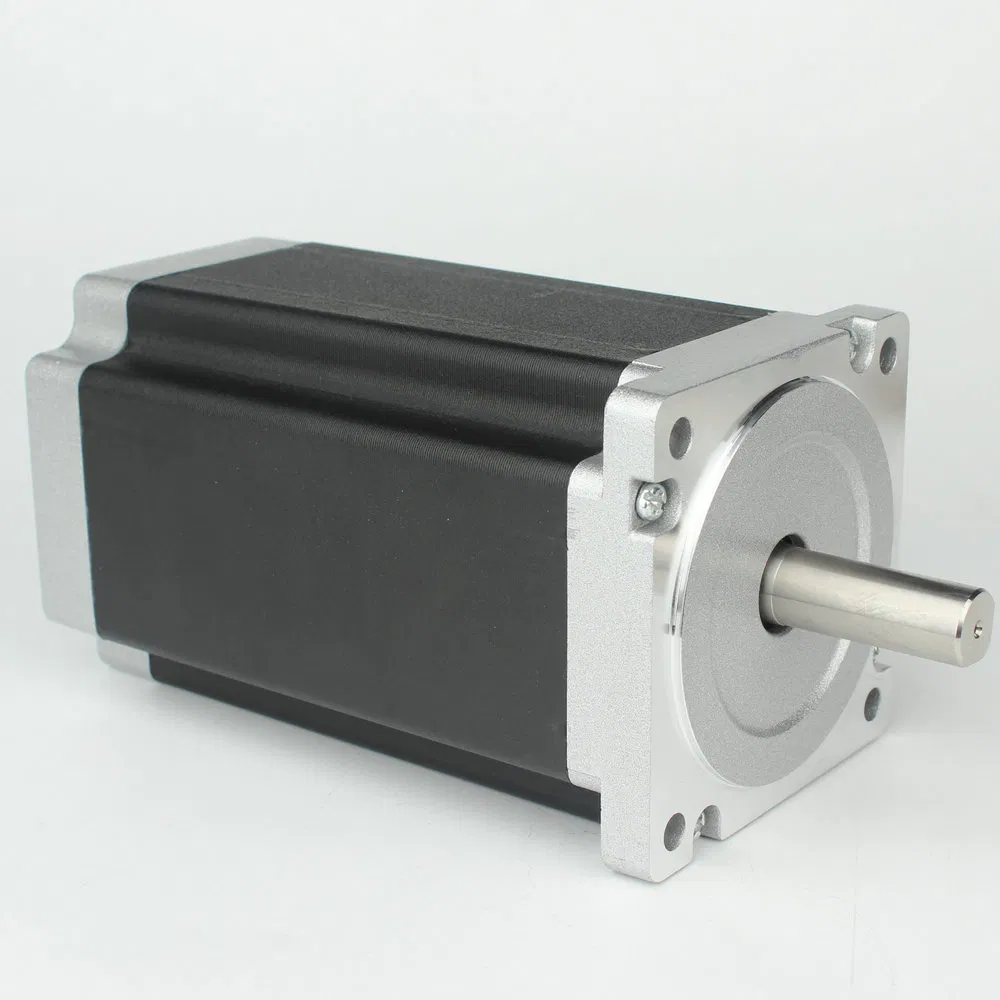

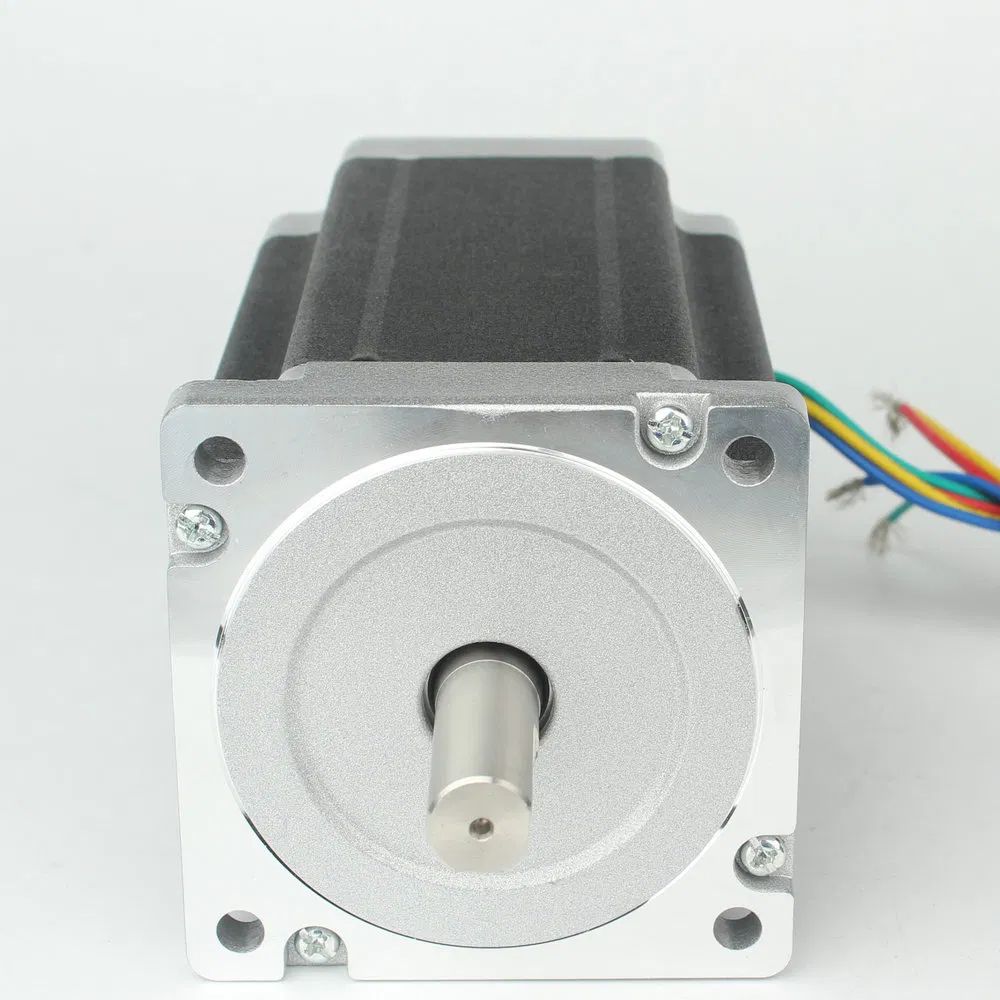

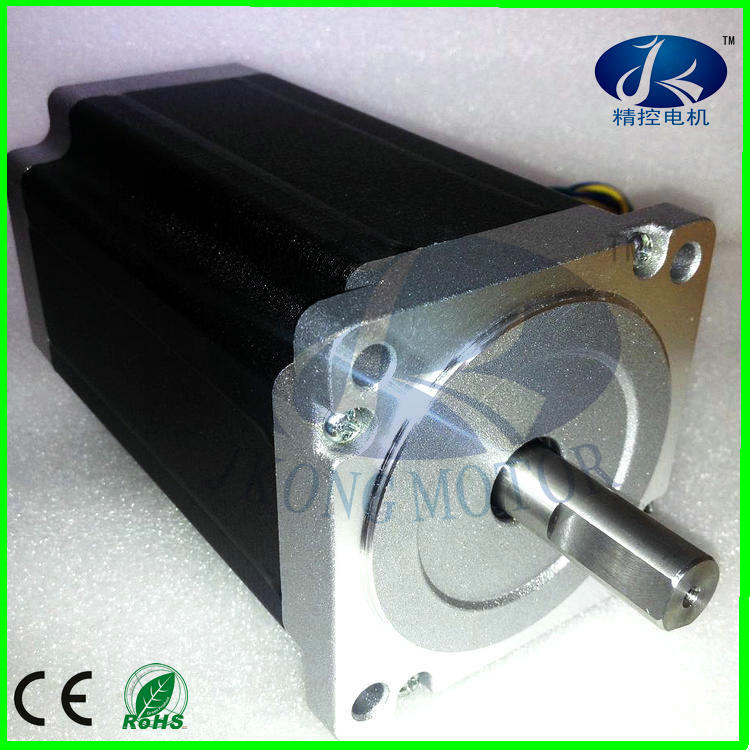

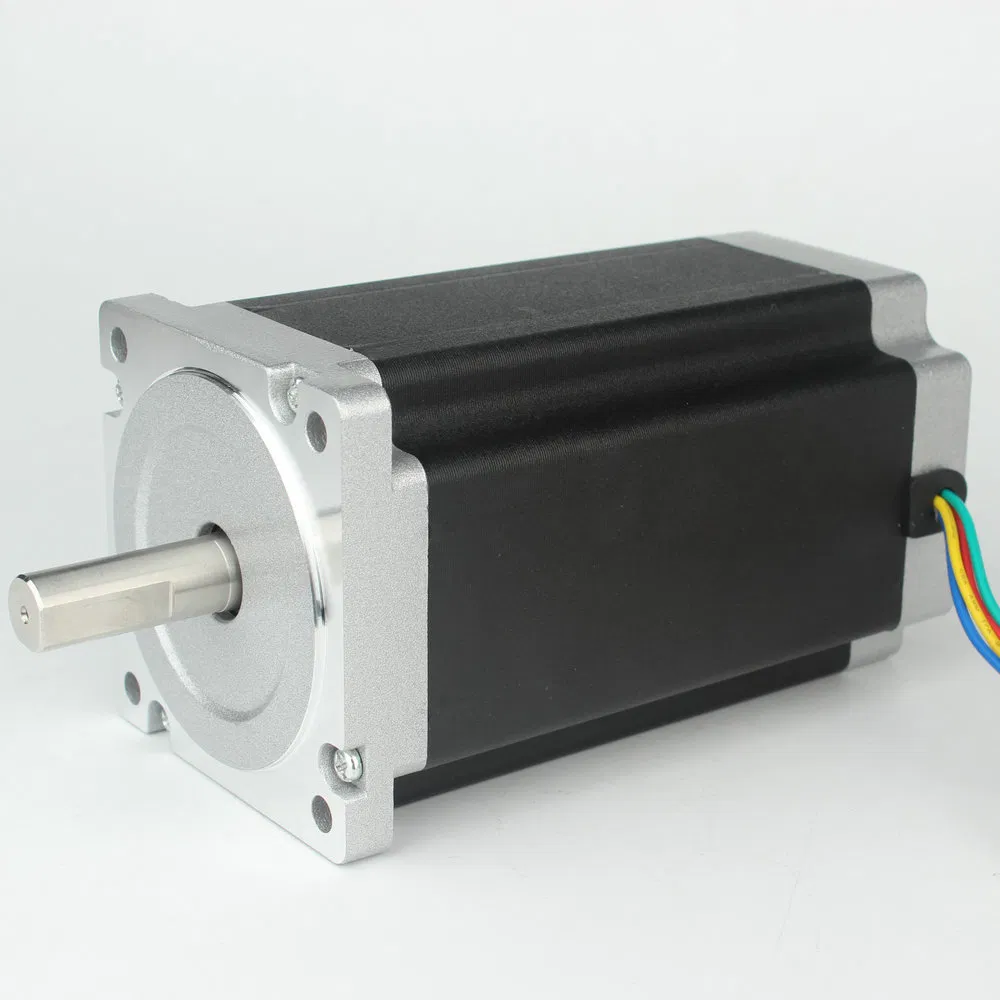

Nema 34 Hybrid Stepper Motor
- Model Number: JK86HS67-2804
- Phase: 2 Phase
- Lead Wire (No.):4 wire
- Structure: Hybrid
- Step Angle: 1.8°
- Motor Height:86 mm
- Holding Torque: 3.4N.m
- Speed: Low / High speed
- Certification: CE, ROHS, ISO9001
- Shape: Square
- Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.
Desciption:
NEMA34 stepping motor , 86mm square stepper motor .
3.4N.m holding torque
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Matching Stepper motor Driver: JK2060AC JKD860
WHY YOU CHOOSE US:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.
if you need more information . please contact with us , our contact information:
Changzhou Jingkong Motor&Electric Appliance Co.,Ltd
Contact Person : Ms Jane
More Quantity . more discount !!!
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg | |
| JK86HS67-5904 | 1.8 | 67 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
| JK86HS67-2808 | 1.8 | 67 | 2.8 | 1.4 | 3.9 | 3.4 | 8 | 0.8 | 1000 | 1.7 |
| JK86HS78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86HS78-4208 | 1.8 | 78 | 4.2 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
| JK86HS115-6004 | 1.8 | 115 | 6.0 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
| JK86HS115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
| JK86HS155-6204 | 1.8 | 155 | 6.2 | 0.75 | 9 | 12.2 | 4 | 3.6 | 4000 | 5.4 |
| JK86HS155-4208 | 1.8 | 155 | 4.2 | 1.25 | 8 | 12.2 | 8 | 3.6 | 4000 | 5.4 |

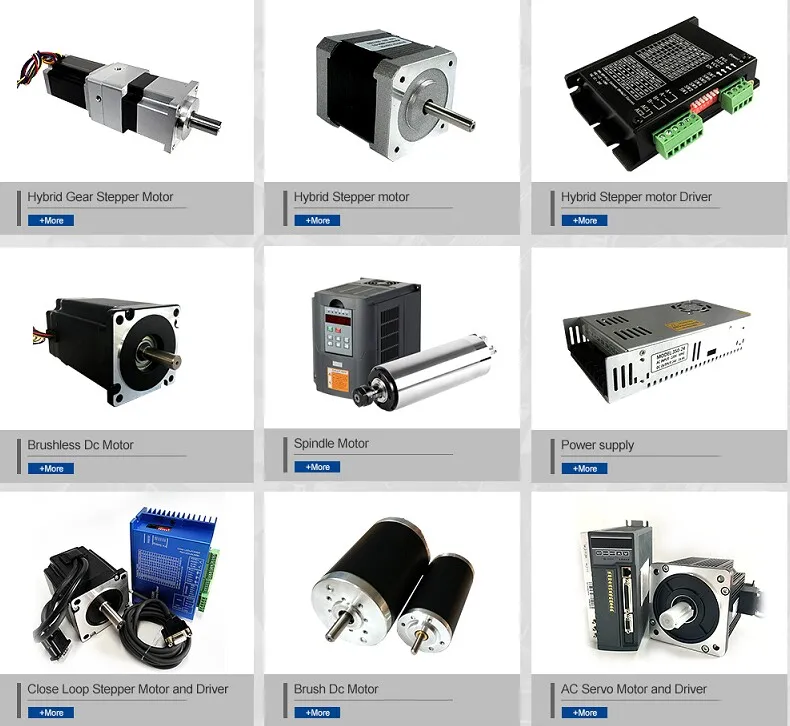

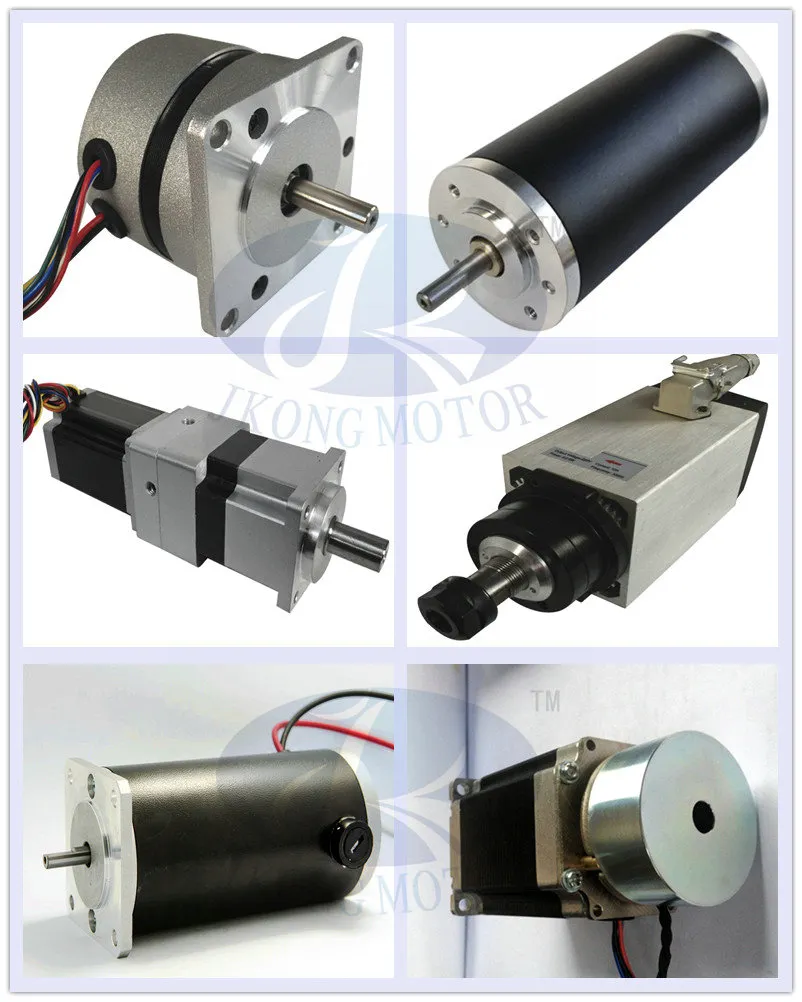

Our Products:

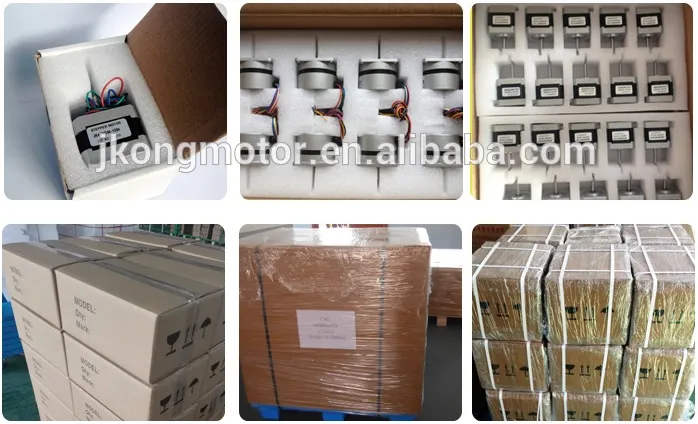

Our Packing:

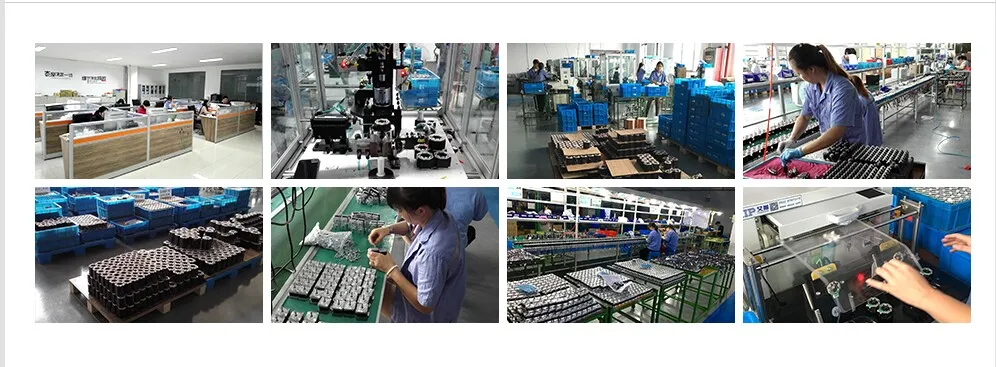

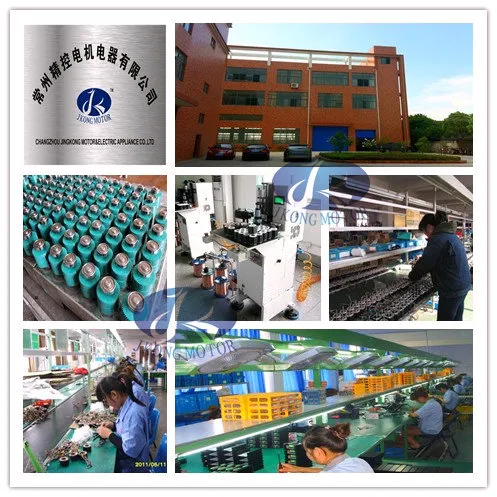

About our company:
