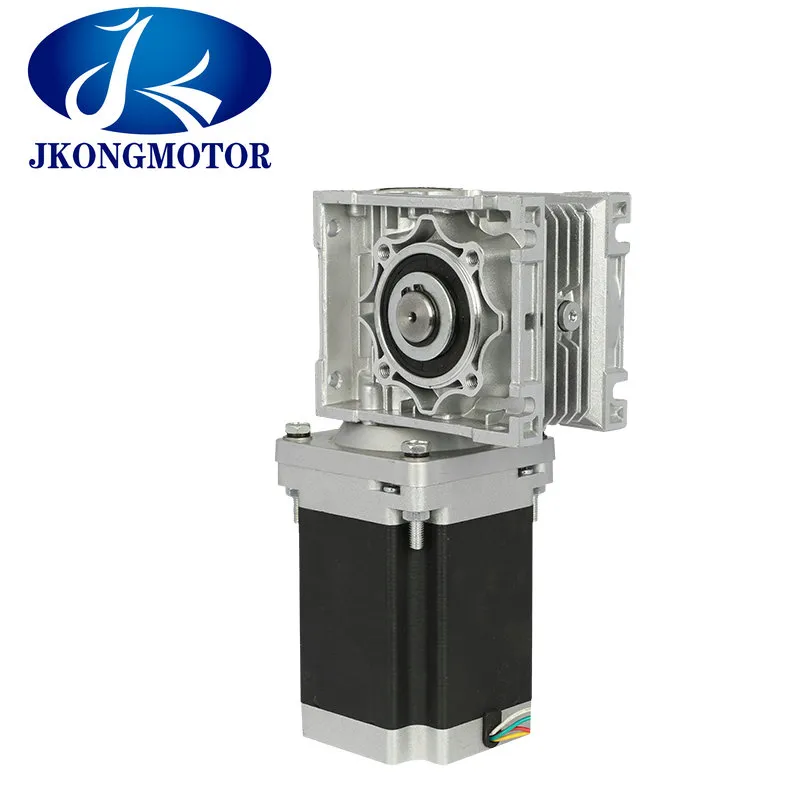

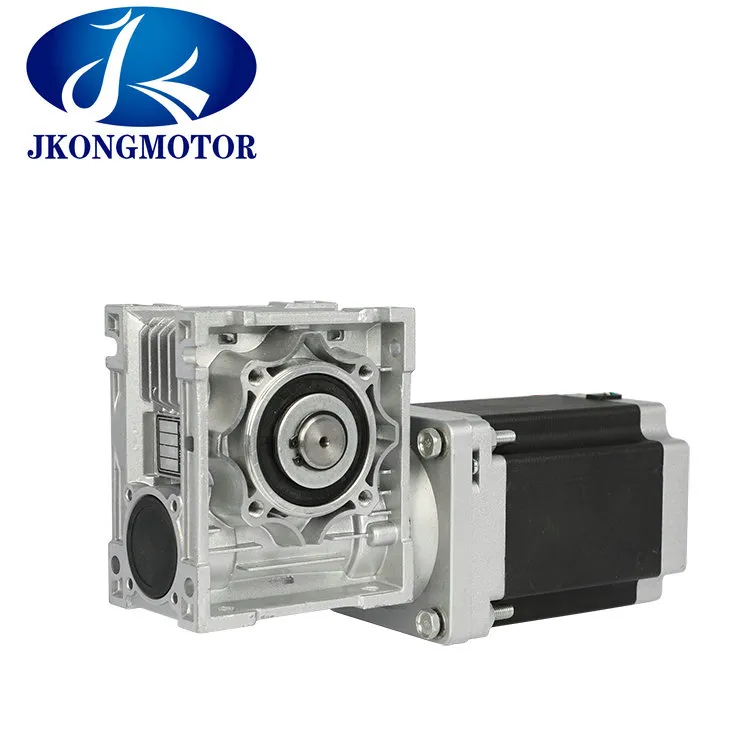

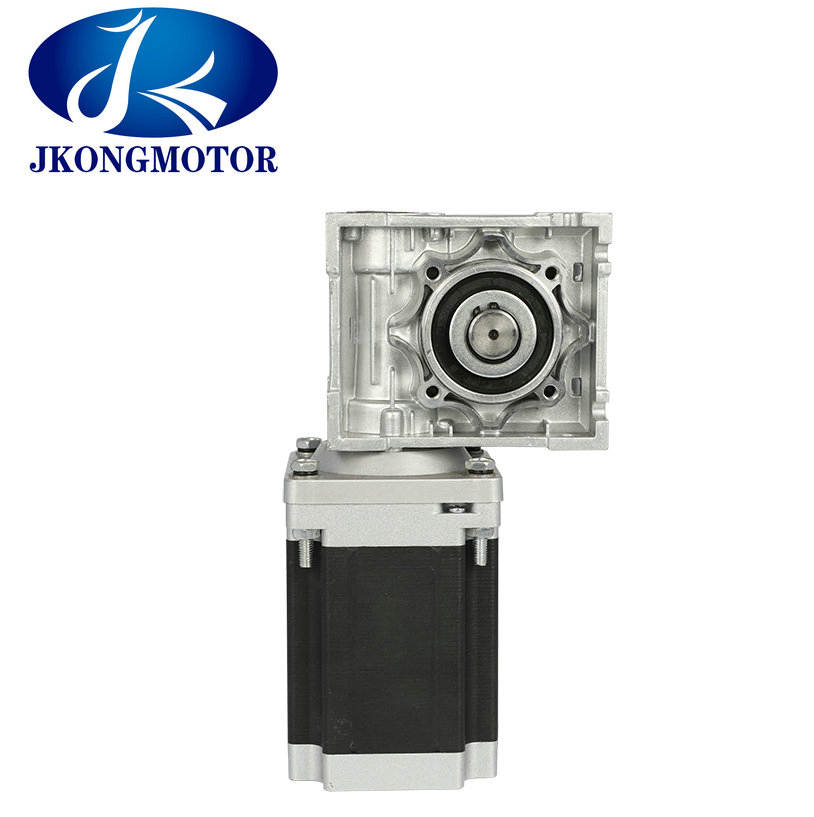

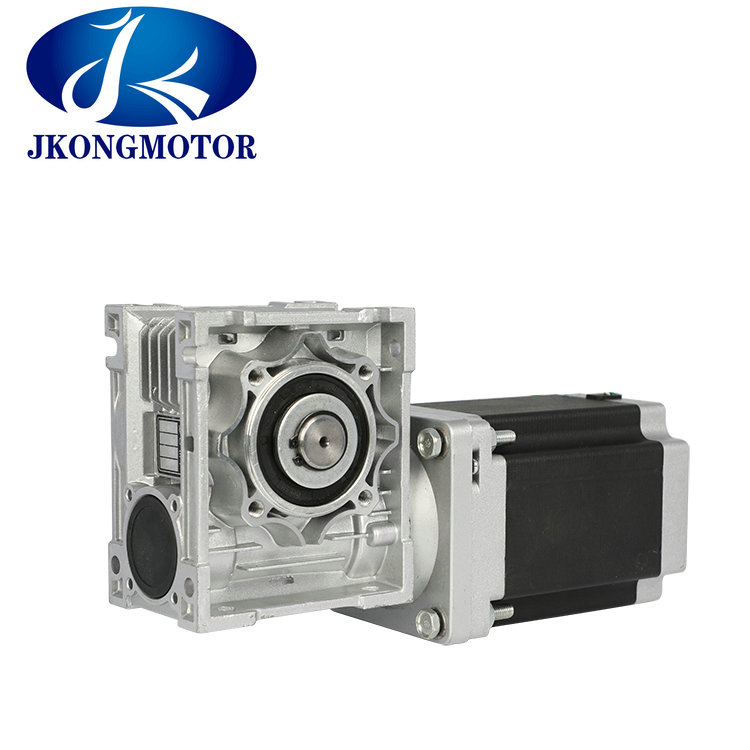

48V DC 86mm Customizable Stepper Motor with Worm Gearbox High Precision
48V DC 86mm customizable stepper motor with worm gearbox high precisionGeneral Specification:Step Angle Accuracy: ±5%Resistance Accuracy: ±10%Inductance Accuracy: ±20%Temperature Rise: 80°C MaxAmbient Temperature: -20°C~+50°CInsulation Resist......
Send Inquiry
Product Description
48V DC 86mm customizable stepper motor with worm gearbox high precision
General Specification:
Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

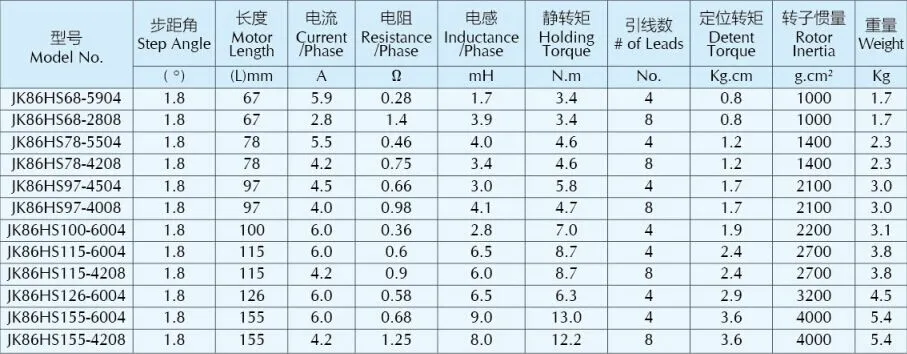

Specification:
Applications:
Used for robots stepper motor,
electronic automatic equipment stepping motor,
medical instrument stepping motor,
advertising instrument stepper motor,
lighting& audio equipment stepper motor,
printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
