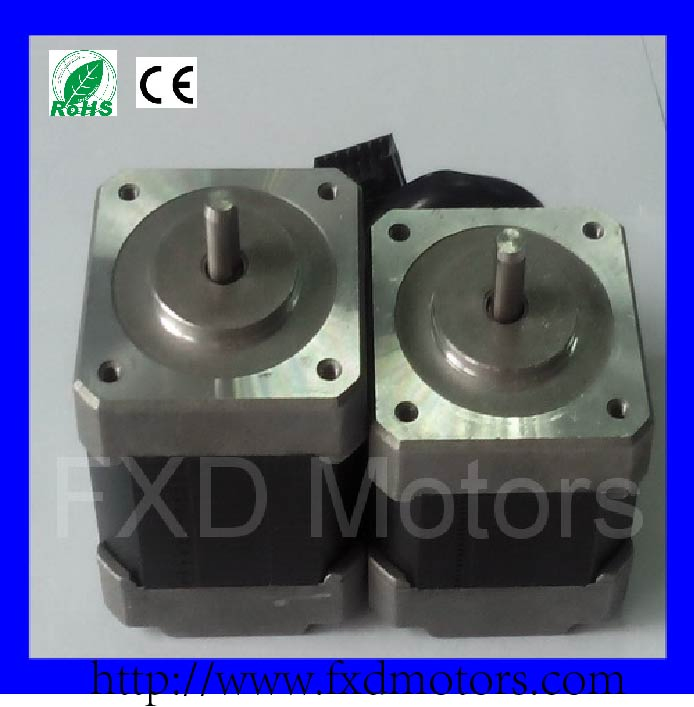

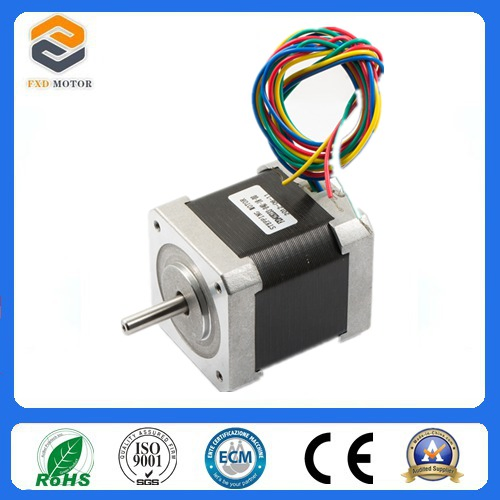

42mm Electric Motor for Textile Machine
Model:FXD 42 H 4 33 -060 -09General Info A B C D E F GStep angle accuracy±5%Note: A FuxiandaTemperature rise80K Max B Motor dia or square sizeAmbient temperature20-+50ºC C Hybrid stepper motorInsulation resistance100M Min.500VDC D Pha......
Send Inquiry
Product Description
| Model:FXD 42 H 4 33 -060 -09 | General Info | |
| A B C D E F G | Step angle accuracy | ±5% |
| Note: A Fuxianda | Temperature rise | 80K Max |
| B Motor dia or square size | Ambient temperature | 20-+50ºC |
| C Hybrid stepper motor | Insulation resistance | 100M Min.500VDC |
| D Phase number | Dielectric strenght | 500VAC.3mA,1 minute |
| E Motor length | IP Class | IP40 |
| F Phase current multiply by 100 | Insulation Class | Class B |
| G Step angle multiply by 10 |
Motor specification
| Model | Step angle | Motor lengh | Phase current | Phase resistance | Phase inductance | Holding torque | Lead No. | Weight |
| (°) | L(mm) | (A) | (Ω) ±10% @25ºC | (mH) | (g.cm) | (g) | ||
| FXD42H433-060-09 | 0.9 | 33 | 0.6 | 10 | 9.5 | 1580 | 6 | 220 |
| FXD42H433-031-09 | 0.9 | 33 | 0.31 | 38.5 | 33 | 1580 | 6 | 220 |
| FXD42H233-133-09 | 0.9 | 33 | 1.33 | 2.1 | 4.2 | 2200 | 4 | 220 |
Applications:
The stepper motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note: If you have some different specifications, we can product stepper motor as your special requirements.
Web: http://fxdmotor.en.made-in-china.com/ Phone:+86 0519 83666368
http://fxdmotor.en.made-in-china.com Mob: 15295151006
Why choose us? 1. Environmental friendly
2. In time delivery
3. Negotiable and competitive price
4. CE, ROHS, SGS certification
5. In time after-sale service
6.2-year guarantee period
7. Custom products
