42mm 1.8 Degree Customized Enhanced Hybrid Stepper Motor (MP042NB606)
General informationStep angle accuracy: 1.8°±5%Temperature rise: 80°C maxAmbient temperature: -20°C~+50°CInsulation resistance: 100M(OHMS). min., At 500VDielectric strength: 500V AC, 1S, 2mAInsulation class: BMP042NB Series are integrated gearbox and brake ......
Send Inquiry
Product Description
General information

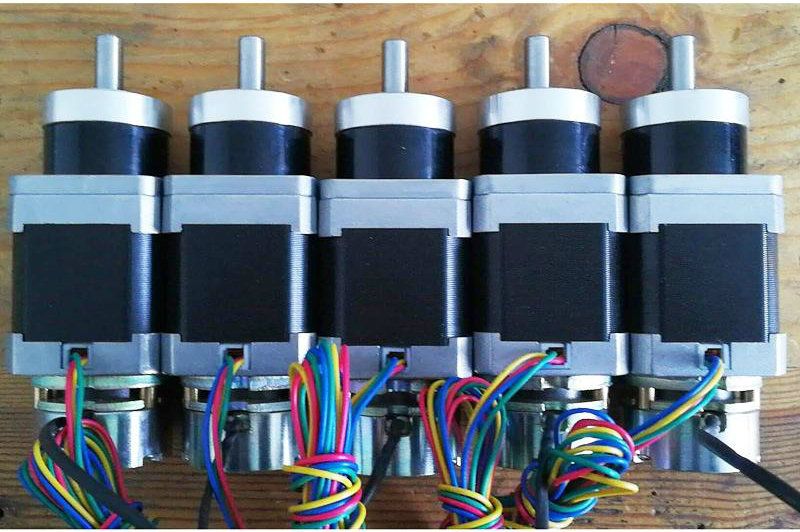

MP042NB Series are integrated gearbox and brake available. If you want any different step motor, please do not hesitate to send us an inquiry.

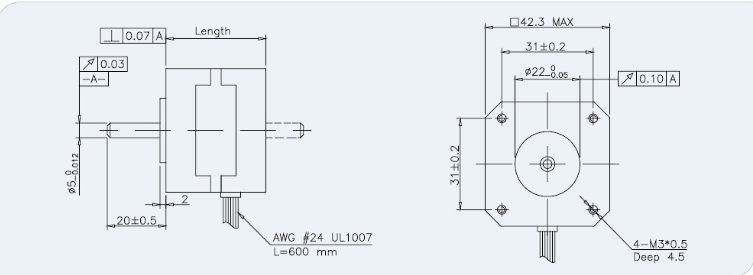

Mechanical
Specifications
Special design available.
- Step angle accuracy: 1.8°±5%
- Temperature rise: 80°C max
- Ambient temperature: -20°C~+50°C
- Insulation resistance: 100M(OHMS). min., At 500V
- Dielectric strength: 500V AC, 1S, 2mA
- Insulation class: B
MP042NB Series are integrated gearbox and brake available. If you want any different step motor, please do not hesitate to send us an inquiry.
Mechanical
Specifications
| Part number | MP042NB606 |
| Phase current | 1.2 A |
| Phase resistance | 12 Ohms |
| Phase inductance | 35 mH |
| Holding torque | 75 N/cm |
| Detent torque | 6 N/cm |
| Number of wires | 4 |
| Rotor inertia | 68 g.cm2 |
| Length | 60 mm |
| Weight | 480 g |
