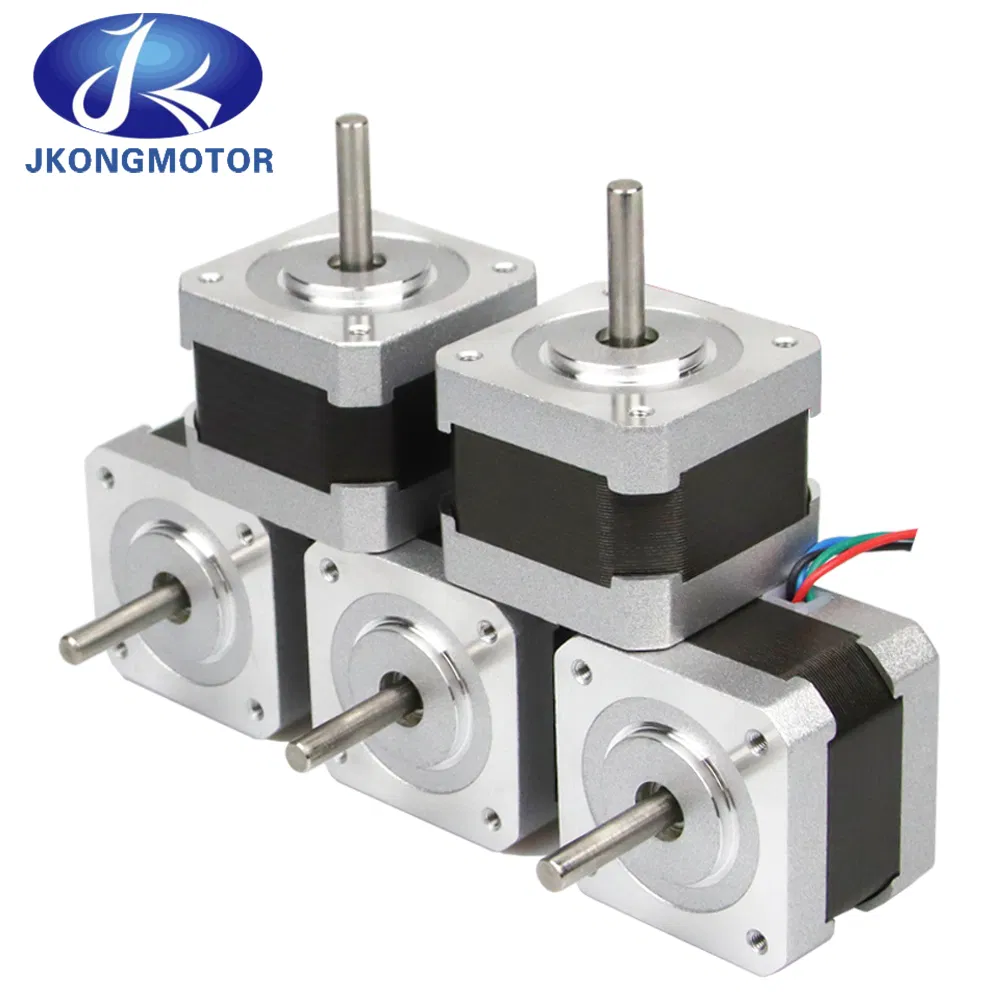

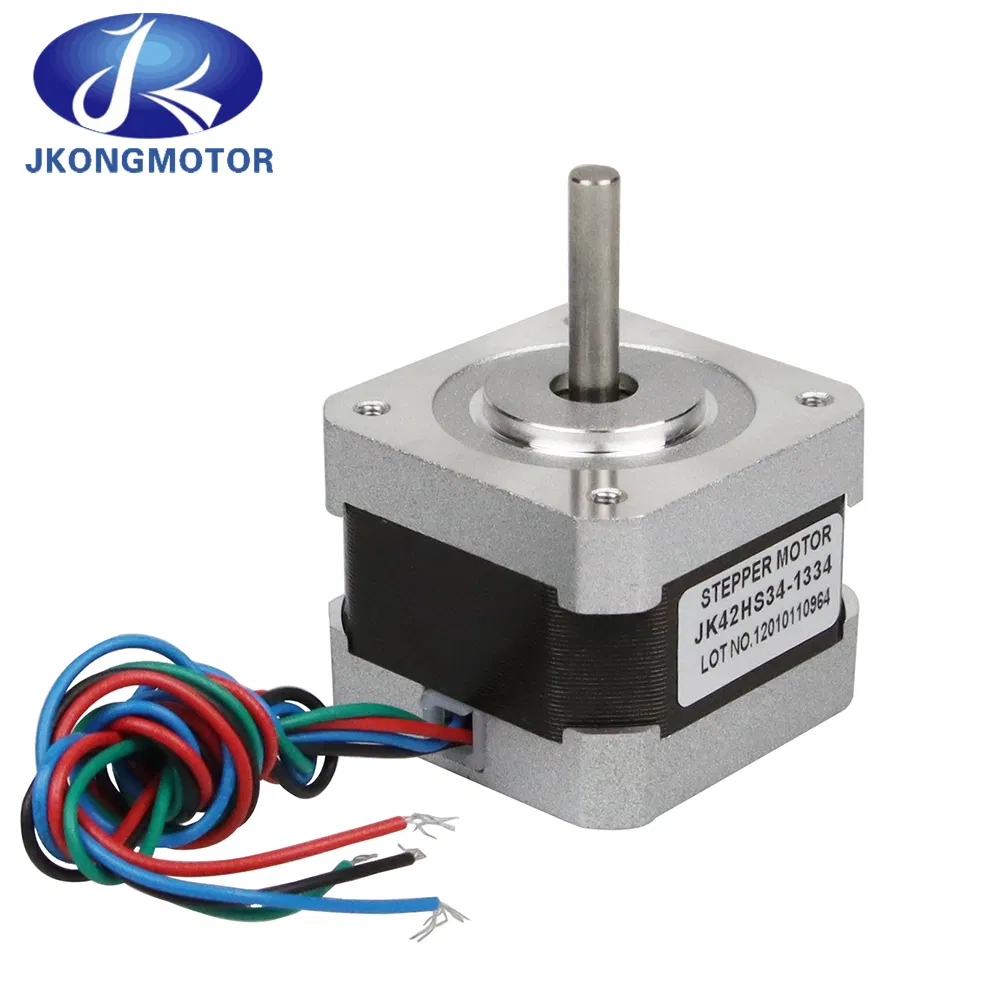

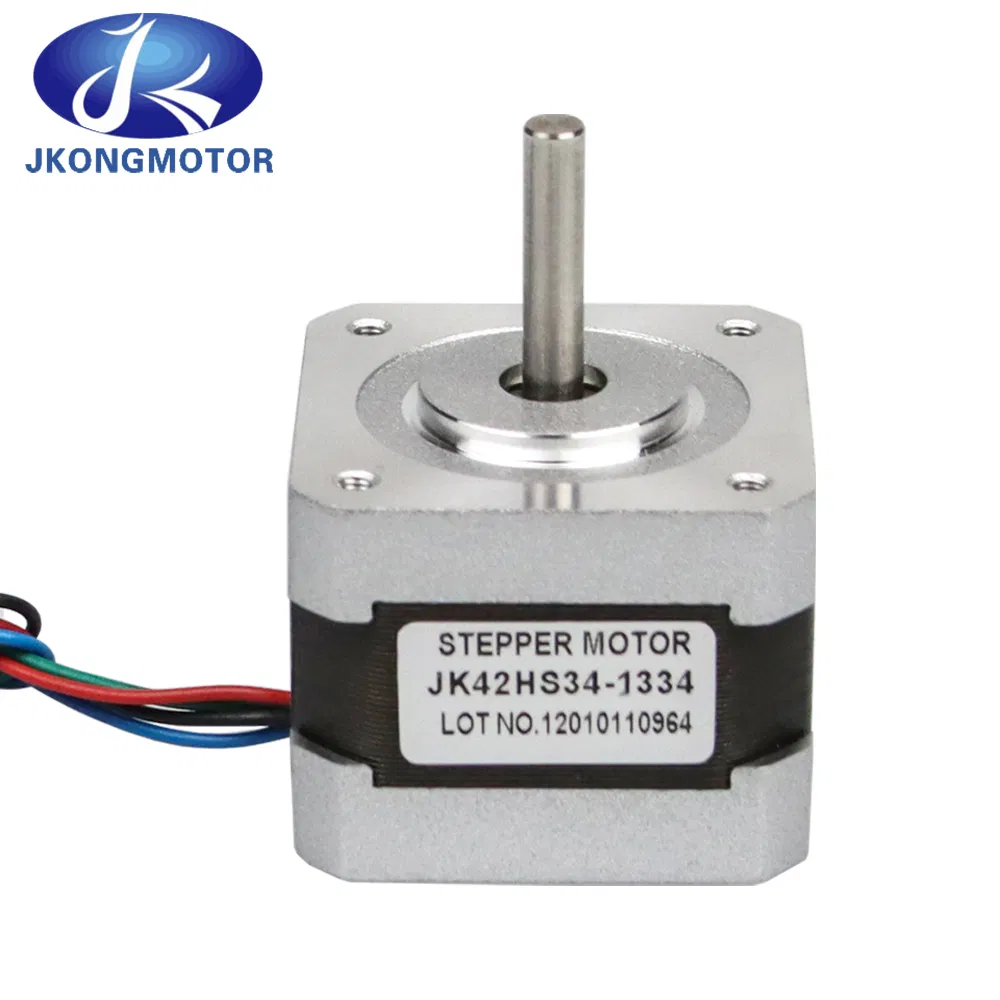

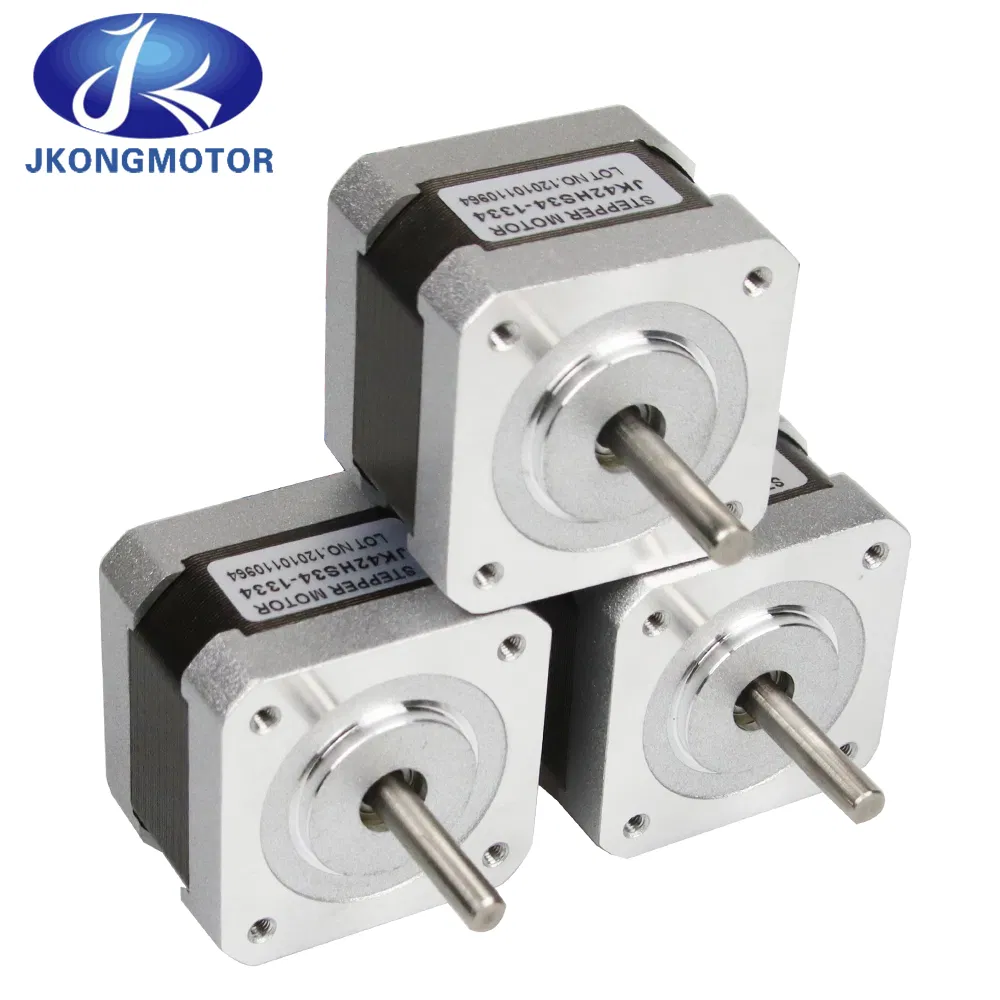

China 42bygh34 Stepper Motor NEMA 17 17HS4401 17HS13-0404s1 for Laser Machine

Product Description

42mm 2phase hybrid stepper motor for cnc machine

General Specification:

Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
JK42HS28-0504	1.8	28	0.5	20	21	1.5	4	85	24	0.22
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS34-0406	1.8	34	0.4	24	15	1.6	6	120	34	0.22
JK42HS34-0956	1.8	34	0.95	4.2	2.5	1.6	6	120	34	0.22
JK42HS40-0406	1.8	40	0.4	30	30	2.6	6	150	54	0.28
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS40-1206	1.8	40	1.2	3	2.7	2.9	6	150	54	0.28
JK42HS48-0406	1.8	48	0.4	30	25	3.1	6	260	68	0.35
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS48-1206	1.8	48	1.2	3.3	2.8	3.17	6	260	68	0.35
JK42HS60-0406	1.8	60	0.4	30	39	6.5	6	280	102	0.5
JK42HS60-1704	1.8	60	1.7	3	6.2	7.3	4	280	102	0.5
JK42HS60-1206	1.8	60	1.2	6	7	5.6	6	280	102	0.5

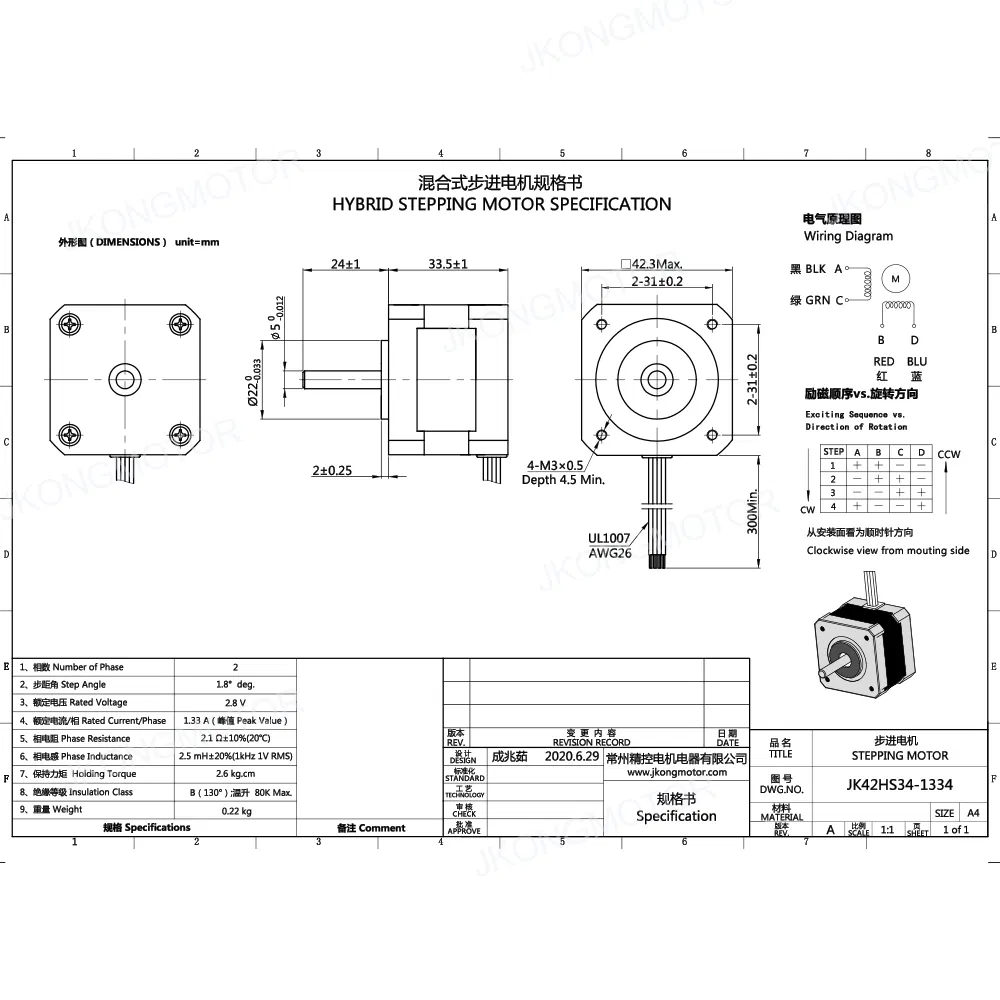

Drawing(unit=mm)

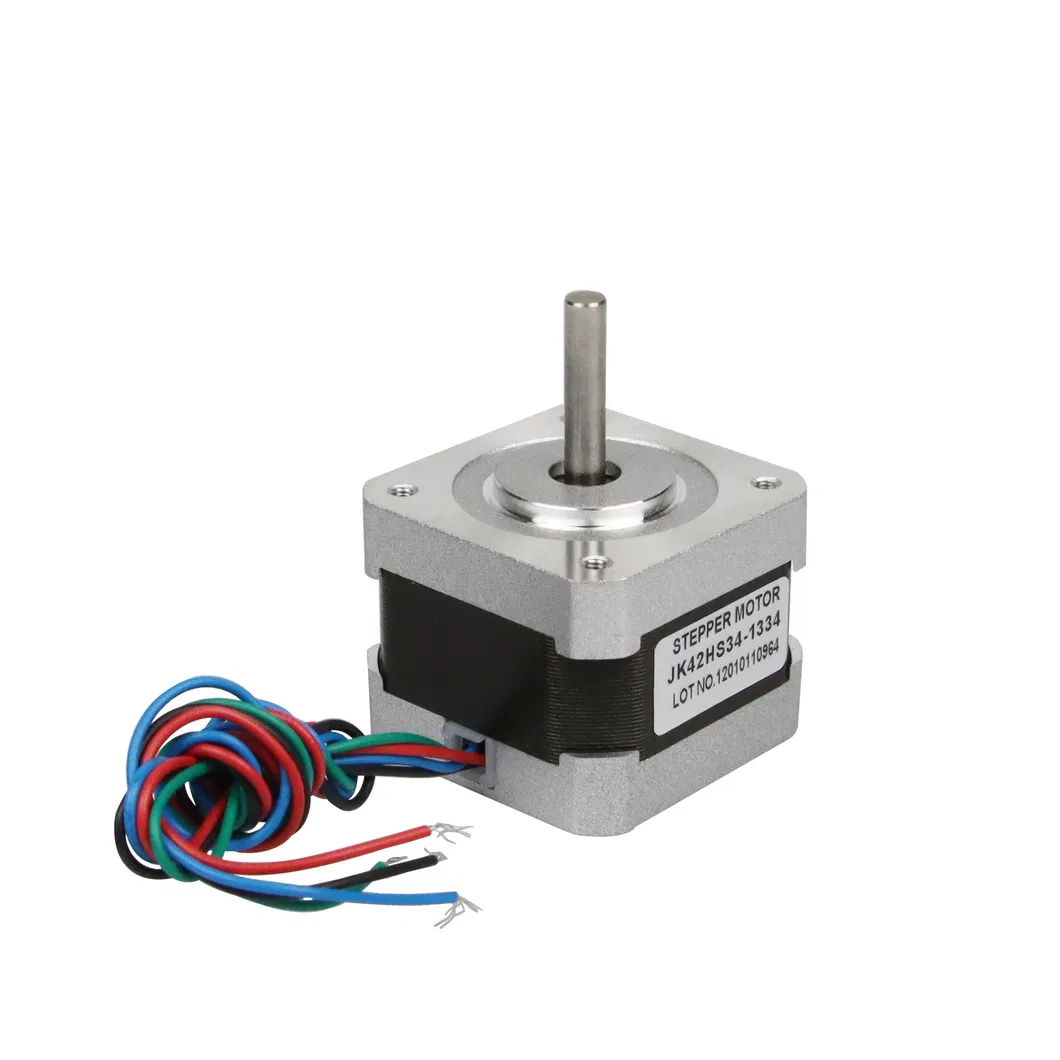

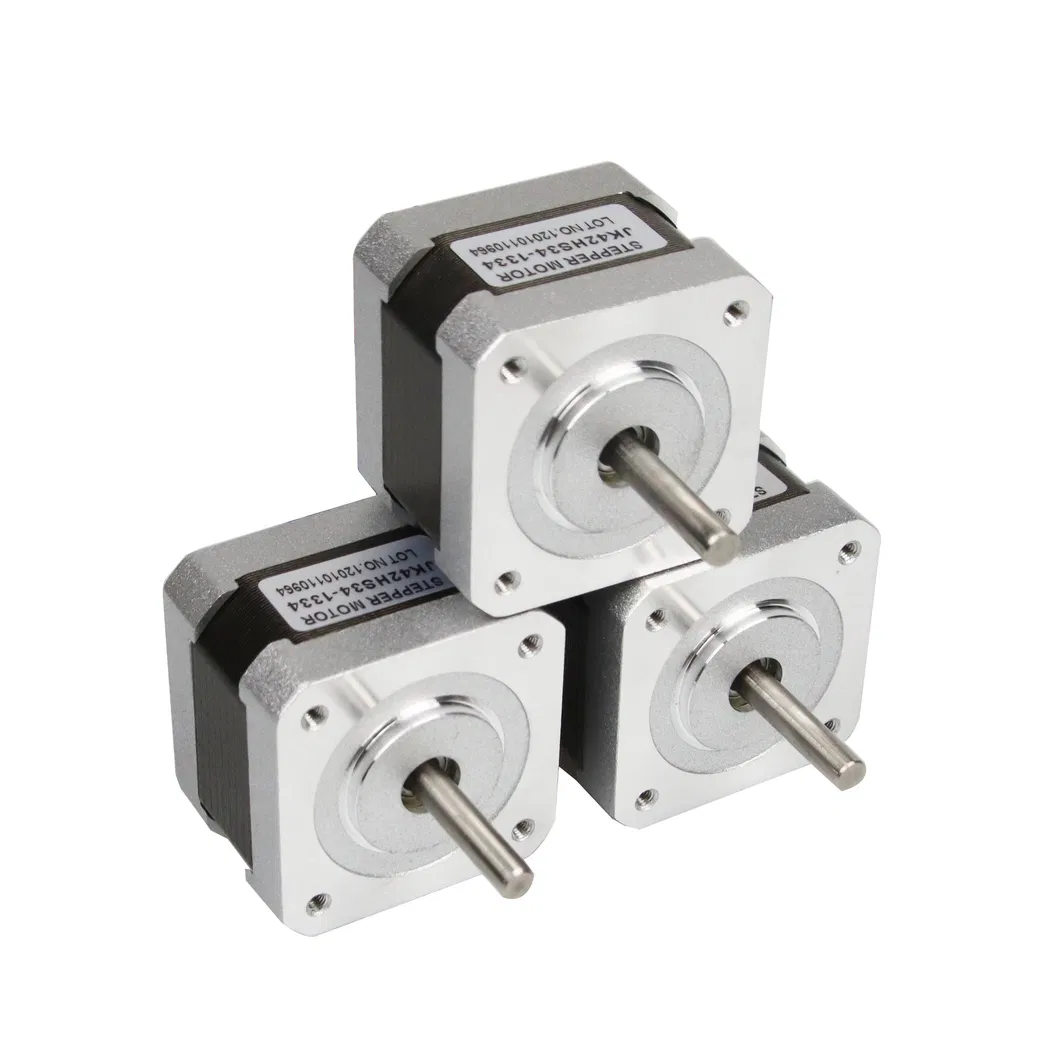

42bygh34 Stepper Motor NEMA 17 17HS4401 17HS13-0404s1 for Laser Machine

Applications:

Used for 3D printer ,
electronic automatic equipment stepping motor,
medical instrument stepping motor,
advertising instrument stepper motor,
lighting& audio equipment stepper motor,
printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

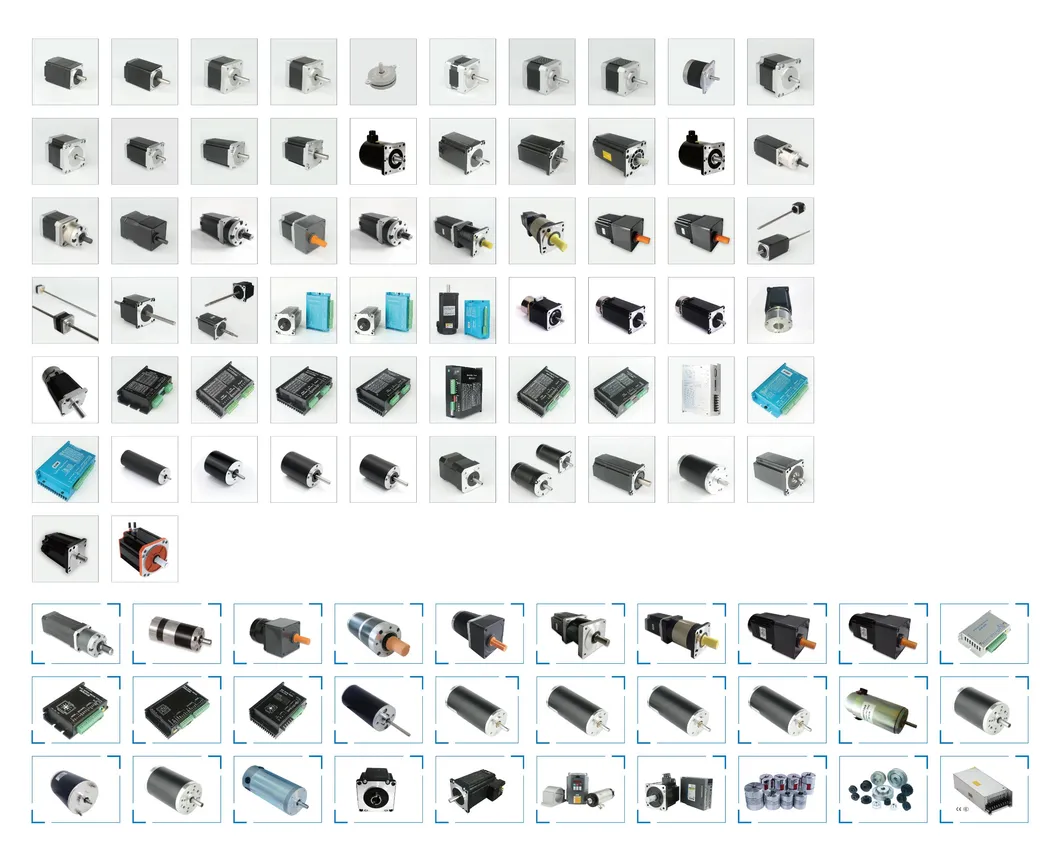

Other product
