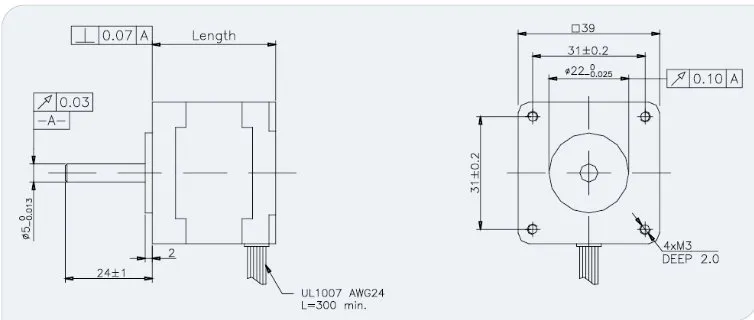

39mm 1.8 Degree Customized Enhanced Hybrid Stepper Motor (MP039NA401)
General informationStep angle accuracy: 1.8°±5%Temperature rise: 80°C maxAmbient temperature: -20°C~+50°CInsulation resistance: 100M(OHMS). min., At 500VDielectric strength: 500V AC, 1S, 2mAInsulation class: BMechanicalSpecificationsPart number MP039NA401Ph......
Send Inquiry
Product Description
General information
Specifications
Special design available.
- Step angle accuracy: 1.8°±5%
- Temperature rise: 80°C max
- Ambient temperature: -20°C~+50°C
- Insulation resistance: 100M(OHMS). min., At 500V
- Dielectric strength: 500V AC, 1S, 2mA
- Insulation class: B
Specifications
| Part number | MP039NA401 |
| Phase current | 0.8A |
| Phase-resistance | 40 ohms |
| Phase inductance | 100mH |
| Holding torque | 27.4N/cm |
| Detent torque | 2.5N/cm |
| Number of wires | 4 |
| Rotor inertia | 40g.cm2 |
| Length | 44mm |
| Weight | 250g |
