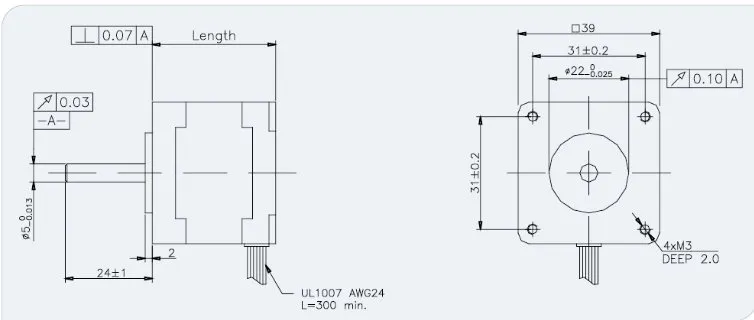

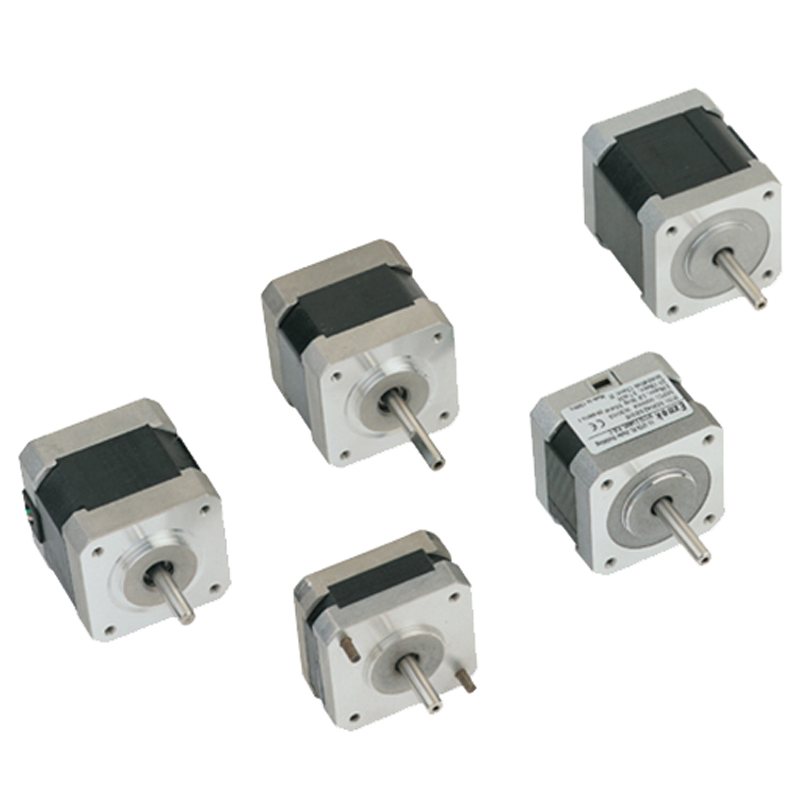

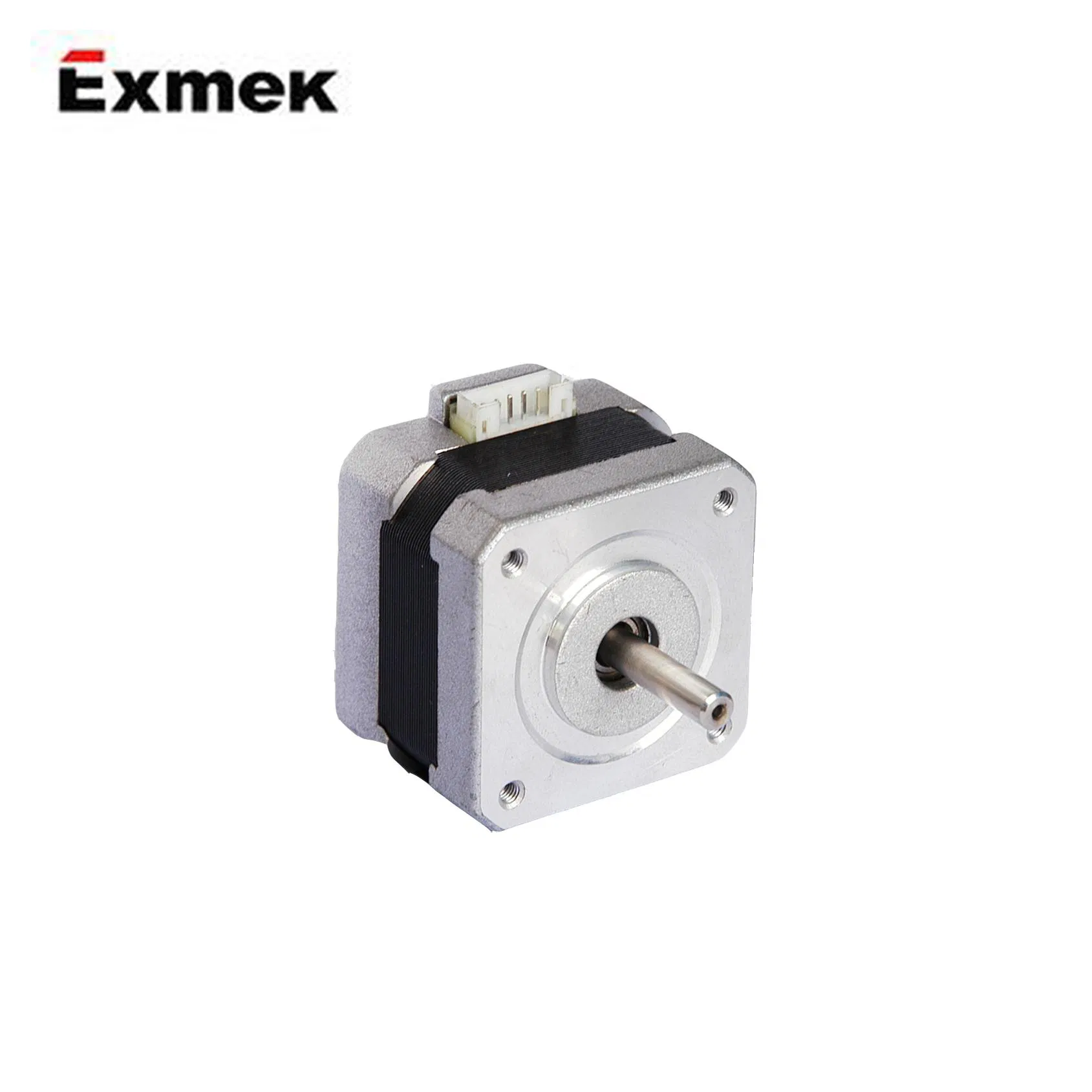

39mm 1.8 Degree Customized Enhanced Hybrid Stepper Motor (MP039NA106)
General informationStep angle accuracy: 1.8°±5%Temperature rise: 80°C maxAmbient temperature: -20°C~+50°CInsulation resistance: 100M(OHMS). min., At 500VDielectric strength: 500V AC, 1S, 2mAInsulation class: BMechanicalSpecificationsPart number MP039NA106Ph......
Send Inquiry
Product Description
General information
Specifications
Special design available.
- Step angle accuracy: 1.8°±5%
- Temperature rise: 80°C max
- Ambient temperature: -20°C~+50°C
- Insulation resistance: 100M(OHMS). min., At 500V
- Dielectric strength: 500V AC, 1S, 2mA
- Insulation class: B
Specifications
| Part number | MP039NA106 |
| Phase current | 0.6A |
| Phase resistance | 7 Ohms |
| Phase inductance | 6.4mH |
| Holding torque | 8.3N/cm |
| Detent torque | 1.2N/cm |
| Number of wires | 4 |
| Rotor inertia | 14g.cm2 |
| Length | 20mm |
| Weight | 120g |
