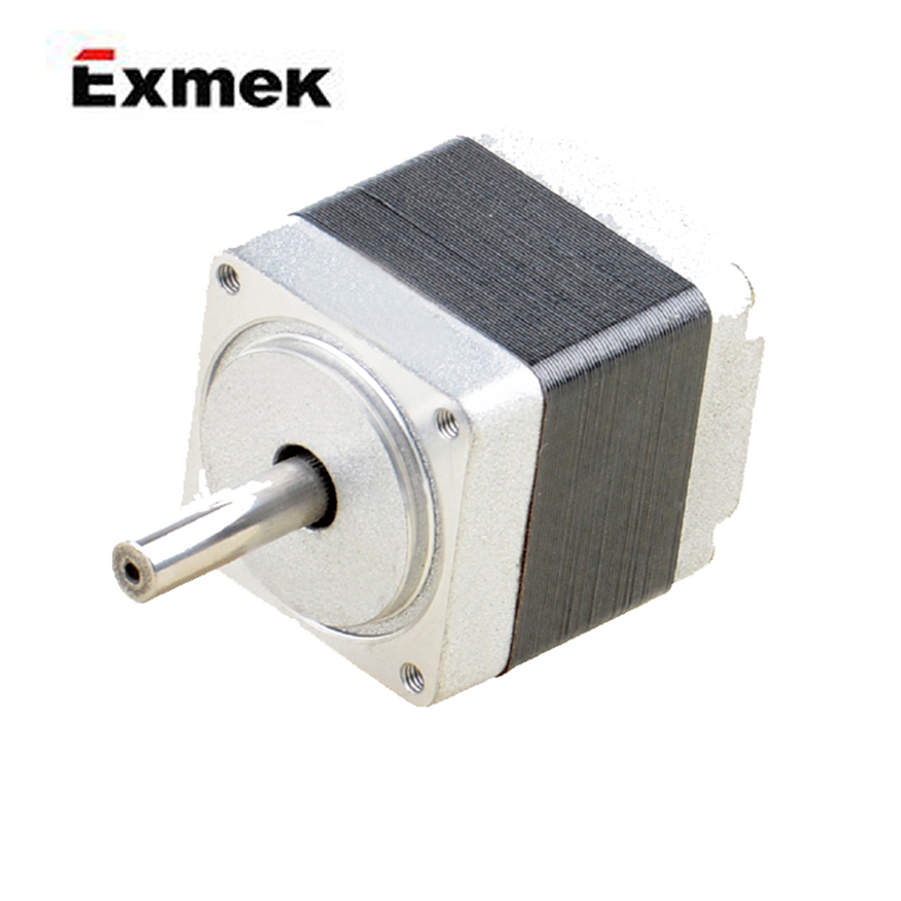

20mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP020NA101)
General informationStep Angle Accuracy: 1.8°±5%Temperature Rise: 80°C MaxAmbient Temperature: -20°C~+50°CInsulation Resistance: 100M (OHMS). Min.,At 500VDielectric Strength: 500VAC ,1S,2mAInsulation Class: BSpecificationsPart No. MP020NA101Phase current 0.6......
Send Inquiry
Product Description
General information
Mechanical
Special shaft and other mechanical characteristic are optional.
- Step Angle Accuracy: 1.8°±5%
- Temperature Rise: 80°C Max
- Ambient Temperature: -20°C~+50°C
- Insulation Resistance: 100M (OHMS). Min.,At 500V
- Dielectric Strength: 500VAC ,1S,2mA
- Insulation Class: B
| Part No. | MP020NA101 |
| Phase current | 0.6(A) |
| Phase resistance | 6.5(OHMS) |
| Phase inductance | 1.7(mH) |
| Holding torque | 1.8(Ncm) |
| Detent torque | 0.2(Ncm) |
| No. of wires | 4 |
| Rotor inertia | 2(g.cm²) |
| L | 30(mm) |
| Weight | 60(g) |

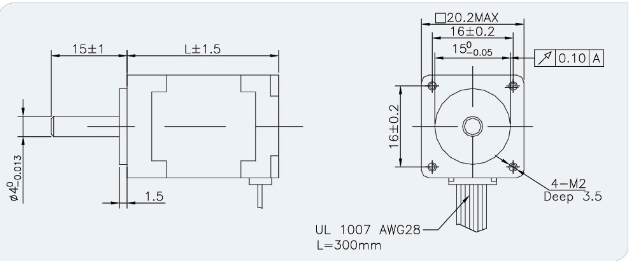

Mechanical
Special shaft and other mechanical characteristic are optional.
