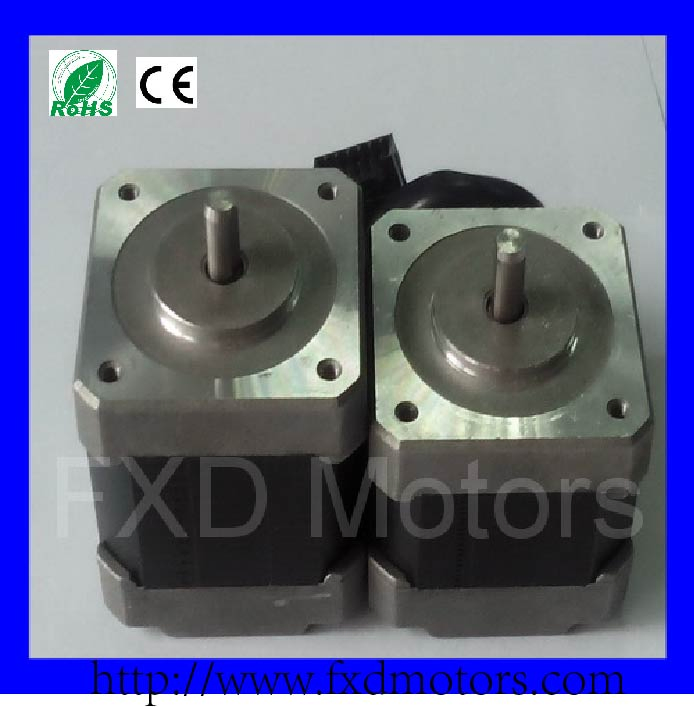

2 Phase 42mm Step Motor for Packing Machine

Product Description

Model:FXD 42 H 4 38 -100 -18	General Info
A B C D E F G	Step angle accuracy	±5%
Note: A Fuxianda	Temperature rise	80K Max
B Motor dia or square size	Ambient temperature	20-+50ºC
C Hybrid stepper motor	Insulation resistance	100M Min.500VDC
D Phase number	Dielectric strenght	500VAC.3mA,1 minute
E Motor length	IP Class	IP40
F Phase current multiply by 100	Insulation Class	Class B
G Step angle multiply by 10

Motor specification

Model	Step Angle	Motor Length	Rated Current	Phase Resistance	Phase Inductance	Holding Torque	Lead Wire	Motor Weight
Unit	(°)	(mm)	(A)	(Ω) ±10% @25ºC	(mH)	(N.cm Min)	(NO.)	(g)
FXD42H438-100-18	1.8/0.9	38	1.0	5.2	5	32	6	250
FXD42H240-170-18	1.8/0.9	40	1.7	1.5	2.7	39	4	340
FXD42H440-120-18	1.8/0.9	40	1.2	3.2	2.7	28	6	340
FXD42H240-050-18	1.8/0.9	40	0.5	24	28	4.4	4	340

Applications:

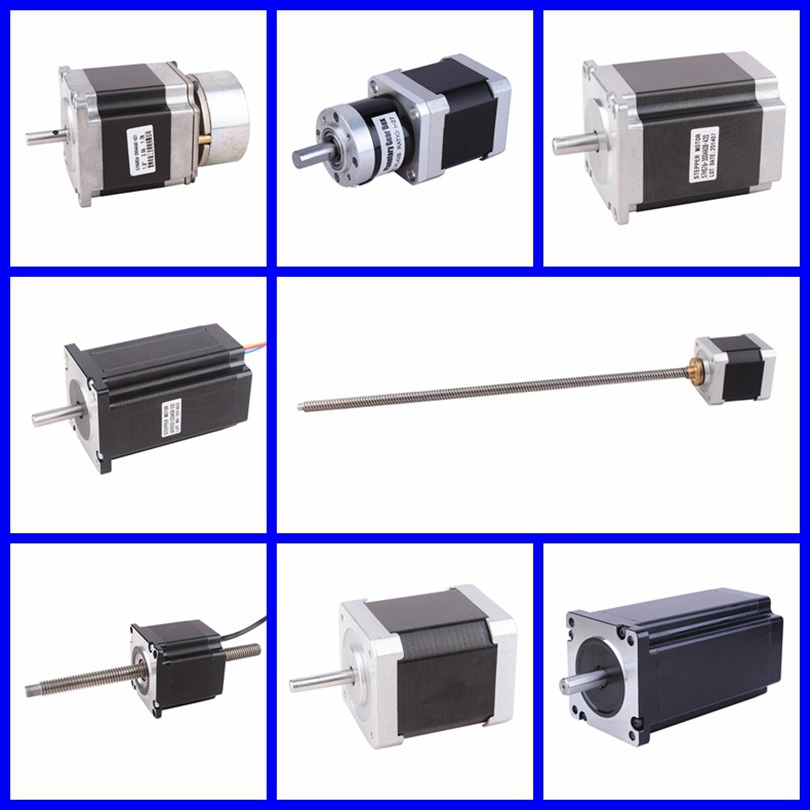

The stepper motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note: If you have some different specifications, we can product stepper motor as your special requirements.
Web: http://fxdmotor.en.made-in-china.com/ Phone:+86 0519 83666368
http://fxdmotor.en.made-in-china.com Mob: 15295151006

Why choose us? 1. Environmental friendly
2. In time delivery
3. Negotiable and competitive price
4. CE, ROHS, SGS certification
5. In time after-sale service
6. 2-year guarantee period
7. Custom products
