Product Description
General information
MP110YG Series are integrated gearbox available. If you want any different step motor, please do not hesitate to send us an inquiry.

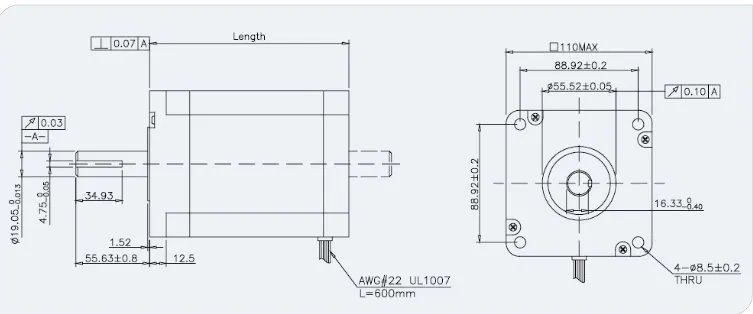

Mechanical
Specifications
Special design available.
- Step angle accuracy: 1.8°±5%
- Temperature rise: 80°C max
- Ambient temperature: -20°C~+50°C
- Insulation resistance: 100M(OHMS). min., At 500V
- Dielectric strength: 500V AC, 1S, 2mA
- Insulation class: B
MP110YG Series are integrated gearbox available. If you want any different step motor, please do not hesitate to send us an inquiry.
Mechanical
Specifications
| Part number | MP110YG200 | ||
| Connection | Parallel | Series | Unipolar |
| Phase Current | 15.8(A) | 7.9(A) | 11.2(A) |
| Phase Resistance | 0.1 (OHMS) | 0.41 (OHMS) | 0.21 (OHMS) |
| Phase Inductance | 2.1 (mH) | 8.4 (mH) | 2.1 (mH) |
| Holding Torque | 22.09 (Nm) | 22.09 (Nm) | 15.63 (Nm) |
| Detent Torque | 0.59 (Nm) | 0.59 (Nm) | 0.59 (Nm) |
| number of wires | 8 | 8 | 8 |
| Rotor inertia | 10.9 (g.cm²) | 10.9 (g.cm²) | 10.9 (g.cm²) |
| L | 150 (mm) | 150 (mm) | 150 (mm) |
| Weight | 8.34 (Kg) | 8.34 (Kg) | 8.34 (Kg) |
