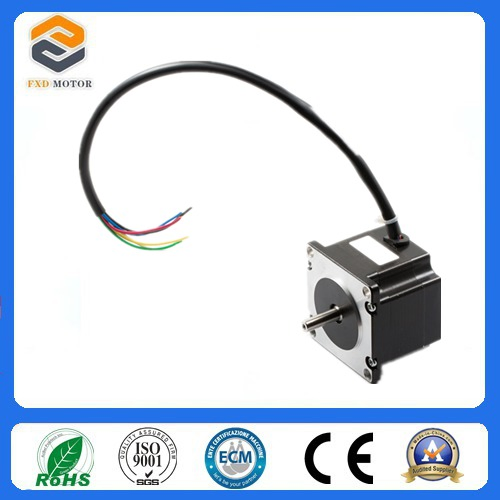

1.8 Deg 57mm Stepping Motor with Negotiable Price

Product Description

Model:FXD 57 H 2 51 -200 -18	General Info
A B C D E F G	Step angle accuracy	±5%
Note: A Fuxianda	Temperature rise	80K Max
B Motor dia or square size	Ambient temperature	20-+50ºC
C Hybrid stepper motor	Insulation resistance	100M Min.500VDC
D Phase number	Dielectric strenght	500VAC.3mA,1 minute
E Motor length	IP Class	IP40
F Phase current multiply by 100	Insulation Class	Class B
G Step angle multiply by 10

Motor specification

Model	Step angle	Motor length	Phase current	Phase resistance	Phase inductance	Holding torque	Lead No.	Weight
Unit	(°)	L(mm)	(A)	(Ω)25ºC	(mH)	(Kg.cm)		(g)
FXD57H251-200-18	1.8	51	2.0	1.6	4.2	8.2	4	1010
FXD57H451-160-18	1.8	51	1.6	2.6	5	9	6	500
FXD57H256-150-18	1.8	56	1.5	3.8	12	12	4	500
FXD57H256-200-18	1.8	56	2.0	1.8	2.8	9	4	700

.

Applications:
The stepper motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note: If you have some different specifications, we can product stepper motor as your special requirements.
Web: http://fxdmotor.en.made-in-china.com/ Phone:+86 0519 83666368
http://fxdmotor.en.made-in-china.com Mob: 15295151006

Why choose us? 1. Environmental friendly
                            2. In time delivery
                            3. Negotiable and competitive price
                            4. CE, ROHS, SGS certification
                            5. In time after-sale service
                            6.2-year guarantee period
                            7. Custom products
