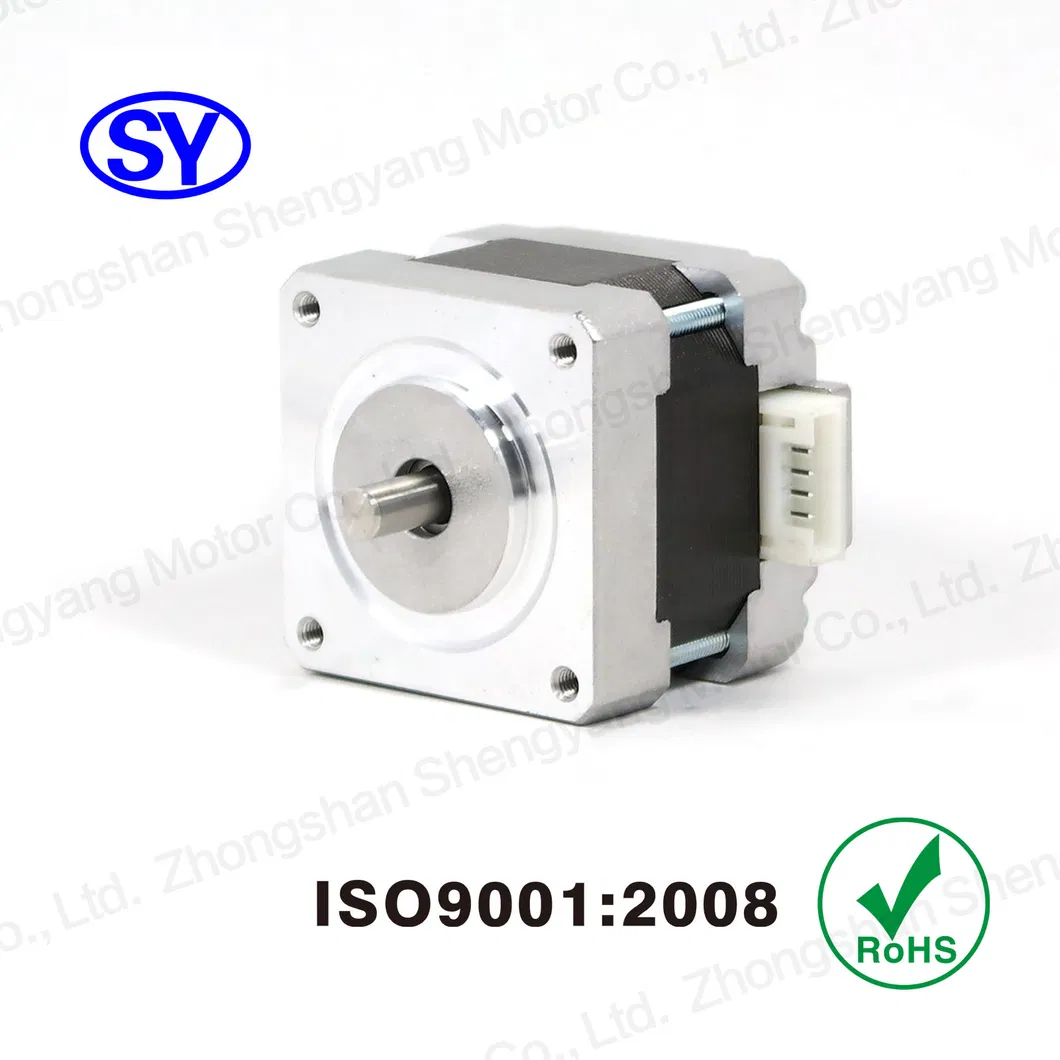

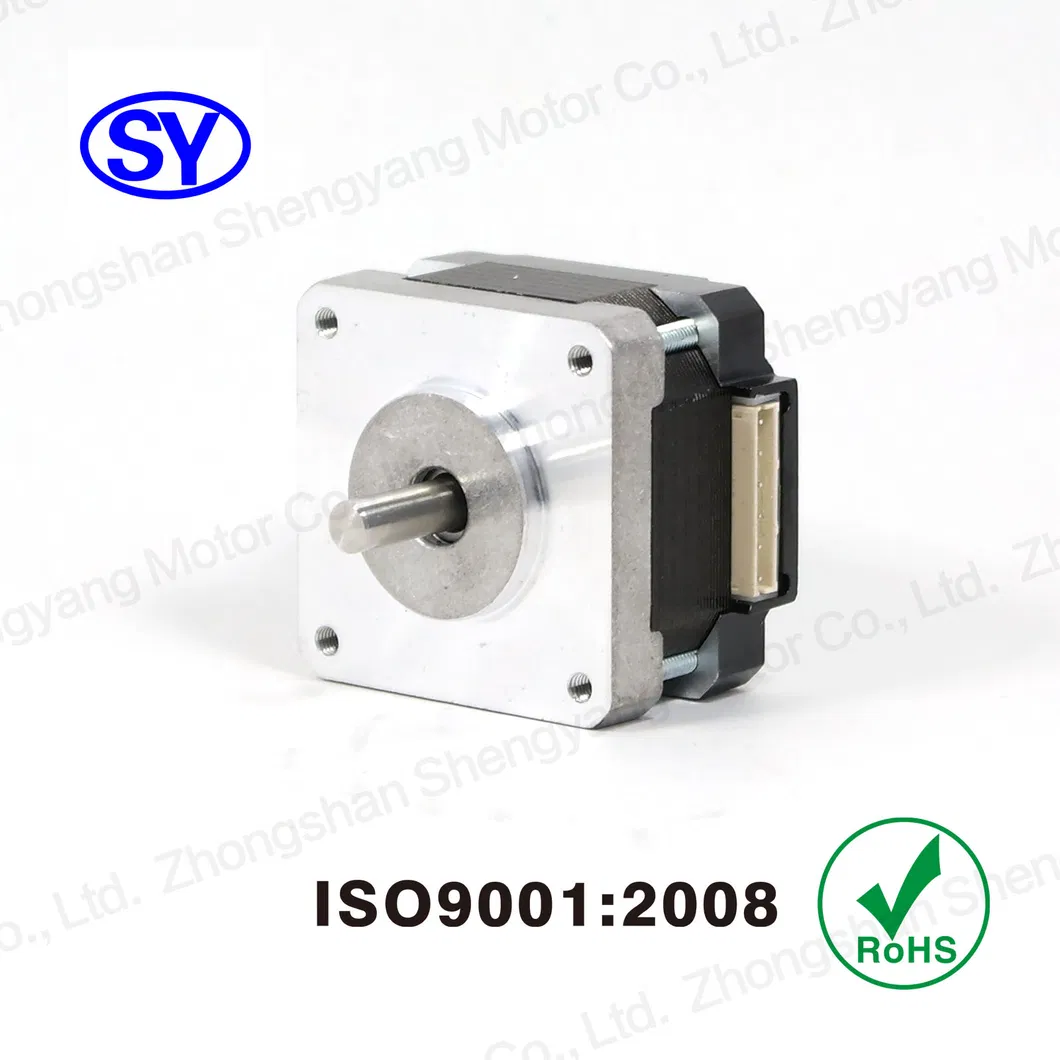

0.2 Nm 39 mm (NEMA 16) Stepper Electrical Motor
0.2 Nm 39 MM (NEMA 16) Stepper Electrical Motor Features:Low noise Low inertia Low vibration High accuracy Product Descriptions: 1. Specifications:Motor Model: 39BYG205-1-25 Step Angle:1.8°± 5% full step, no load Motor Length: 25 mm (0.98 in) Holding Torque: 200mNm (28.32 oz-in) ......
Send Inquiry
Product Description
0.2 Nm 39 MM (NEMA 16) Stepper Electrical Motor
Features:
Low noise
Low inertia
Low vibration
High accuracy
Low noise
Low inertia
Low vibration
High accuracy
Product Descriptions:
Motor Model: 39BYG205-1-25
1. Specifications:
Motor Model: 39BYG205-1-25
Step Angle:1.8°± 5% full step, no load
Motor Length: 25 mm (0.98 in)
Holding Torque: 200mNm (28.32 oz-in)
Rated Current: 0.4A DC
Resistance per Phase: 34 ohm
Inductance per Phase: 58 mH
Shaft Length: 15 mm (0.59 in)
Connectors: Connectors
Ambient Temperature:-24ºC- +60ºC
Relative humidity:90% MAX
Resistance Accuracy:± 10%
Insulation Resistance:Larger than 100mΩ 500V DC
Dielectric Strength:600V AC for 1S, leakage current less than 1mA
2. Notes:
Performance and parameters are customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
Performance and parameters are customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all motor are on rigid quality control, every staff can develop their talent.
If there is any question,please feel free to contact us.
If there is any question,please feel free to contact us.
Your satisfaction is source of our exertion!
Contacts: Ms. Rita Law
Mobile: (+86) 13631101993
shengyangmotor.en.made-in-china.com
| Series & Length | Model Number | Holding Torque | Rated Current | Resistance per Phase | Inductance per Phase |
| mNm oz-in | A | ohm | Mh | ||
| 39BYG0 20mm (0.79in) | 39BYGOO1 | 90 12.74 | 0.4 | 28 | 19 |
| 39BYG1 22mm (0.87in) | 39BYG103 | 120 17 | 0.4 | 22 | 32 |
| 39BYG9 23mm (0.91in) | 39BYG902 | 180 25.49 | 0.4 | 26 | 40 |
| 39BYG2 25mm (0.98in) | 39BYG205 | 200 28.32 | 0.4 | 34 | 58 |
| 39BYG3 34mm (1.34in) | 39BYG308 | 130 18.4 | 0.28 | 44 | 25 |
