FF-N10 Small DC Gear Motor to Children Toy
With the rapid growth of communication, miniature video games, consumer electronic products and medical and health care equipment industries, samll dc gear motor have been widely used. However, due to the complexity of Gear Reducer Motor production process, high precision and power consumption requi......
Send Inquiry
Product Description
With the rapid growth of communication, miniature video games, consumer electronic products and medical and health care equipment industries, samll dc gear motor have been widely used. However, due to the complexity of Gear Reducer Motor production process, high precision and power consumption requirements, the market is far from saturated, there is a lot of room for innovation and growth.

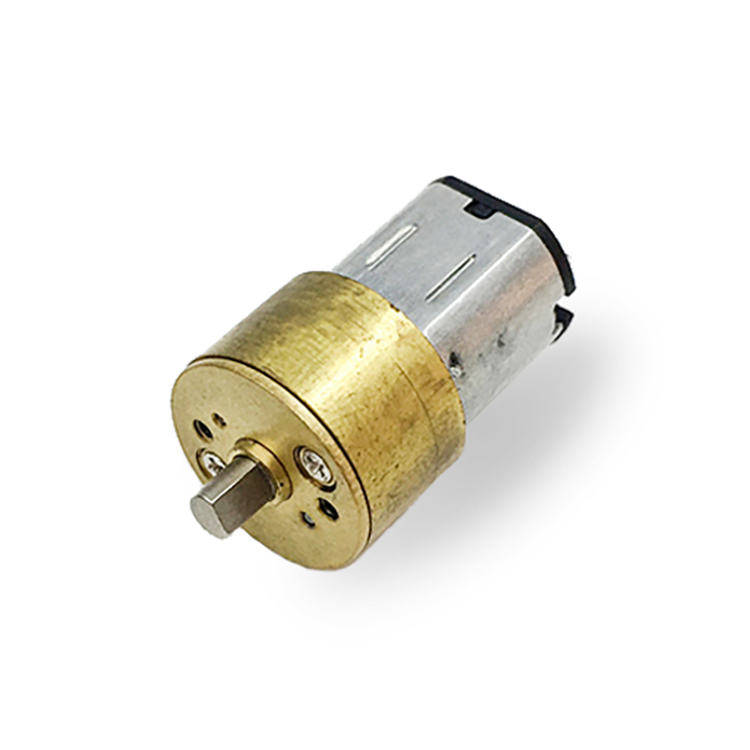

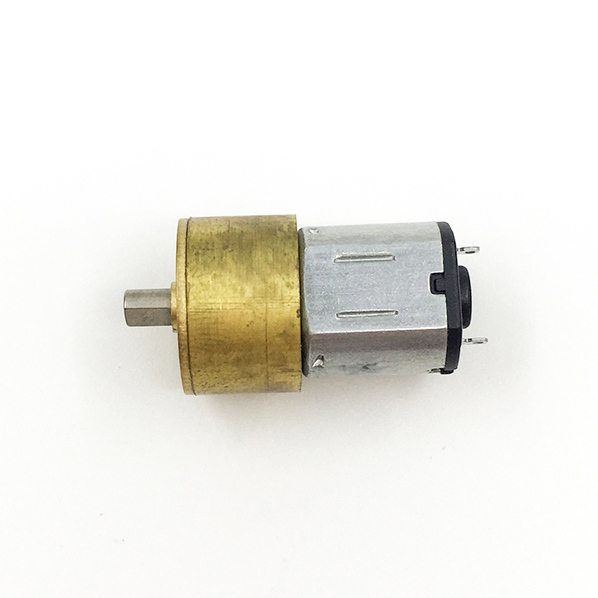

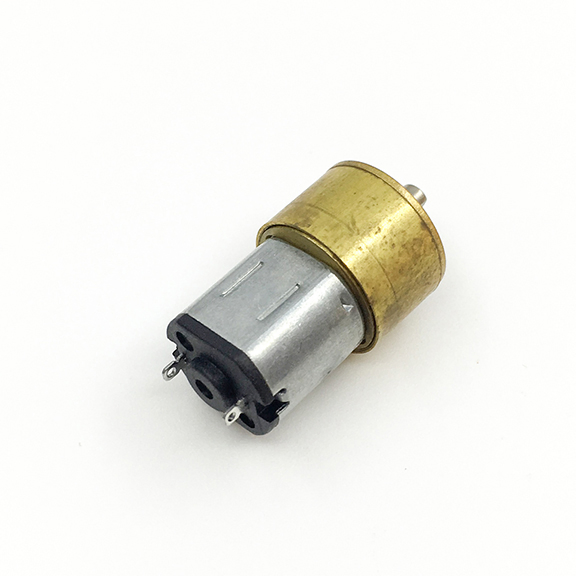

The following is a Gear Motor produced by our company:FF-N10 Small DC Gear Motor To Children Toy
FF-N10 Small DC Gear Motor To Children Toy Product Description:Parameters in a certain range can be customized according to customer's demand
N10 Gear Motor Voltage range: 3~12 V (eg:1.5V 3V 4.5V 6V 12V)
N10 Dc Gear Motor Speed range: 32~2000 RPM

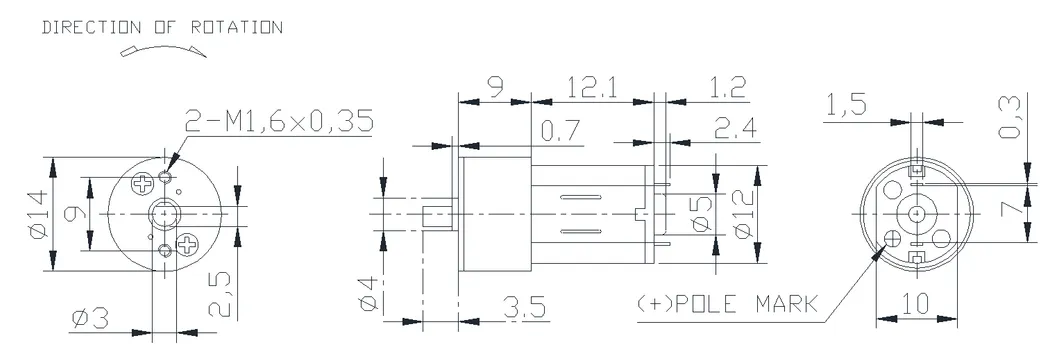

Samll Dc Gear Motor Overall dimensions: 14.0 x 21.0mm
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
Parameters of the model
|
VOL TAGE | NO LOAD | AT MAXIMUM | STARTING | |||||||
NOMINAL (V) |
SPEED |
CURRENT | SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT | |||
r/min | A | r/min | A | mN.m | g.cm | W | mN.m | kg.cm | A | ||
N10AGR100-06300 | 12 | 350 | 0.060 | 280 | 0.160 | 19.6 | 200 | 0.57 | 98 | 1.0 | 0.60 |
N10AGR50-06350 | 12 | 600 | 0.070 | 460 | 0.180 | 14.7 | 150 | 0.70 | 78.4 | 800 | 0.52 |
N10AGR380-07260 | 5.0 | 47 | 0.050 | 40 | 0.100 | 29.4 | 300 | 0.12 | 147 | 1.5 | 0.40 |
N10AGR298-07210 | 4.5 | 65 | 0.060 | 55 | 0.110 | 19.6 | 200 | 0.11 | 98 | 1.0 | 0.45 |
N10AGR100-07260 | 5.0 | 185 | 0.040 | 150 | 0.100 | 9.8 | 100 | 0.15 | 49 | 0.5 | 0.40 |
N10AGR1000-08220 | 6.0 | 25 | 0.060 | 21 | 0.145 | 98 | 1000 | 0.21 | 441 | 4.5 | 0.68 |
N10AGR100-08180 | 5.0 | 260 | 0.075 | 210 | 0.200 | 14.7 | 150 | 0.32 | 78.4 | 0.8 | 0.78 |
N10AGR625-09180 | 3.0 | 25 | 0.065 | 22 | 0.120 | 29.4 | 300 | 0.07 | 156.8 | 1.6 | 0.53 |
N10AGR298-09180 | 3.0 | 52 | 0.060 | 45 | 0.120 | 19.6 | 200 | 0.09 | 98 | 1.0 | 0.55 |
N10AGR1000-09200 | 3.0 | 14 | 0.060 | 12.5 | 0.100 | 49 | 500 | 0.06 | 264.6 | 2.7 | 0.48 |
N10AGR100-09165 | 3.3 | 200 | 0.065 | 165 | 0.160 | 9.8 | 100 | 0.16 | 49 | 0.5 | 0.65 |
|
|
|
|
|
|
|
|
|
|
|
|
Our engineering department can provide special designs for different shaft length .

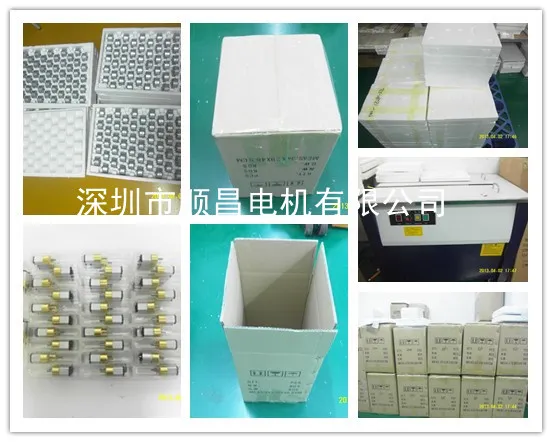

Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%.

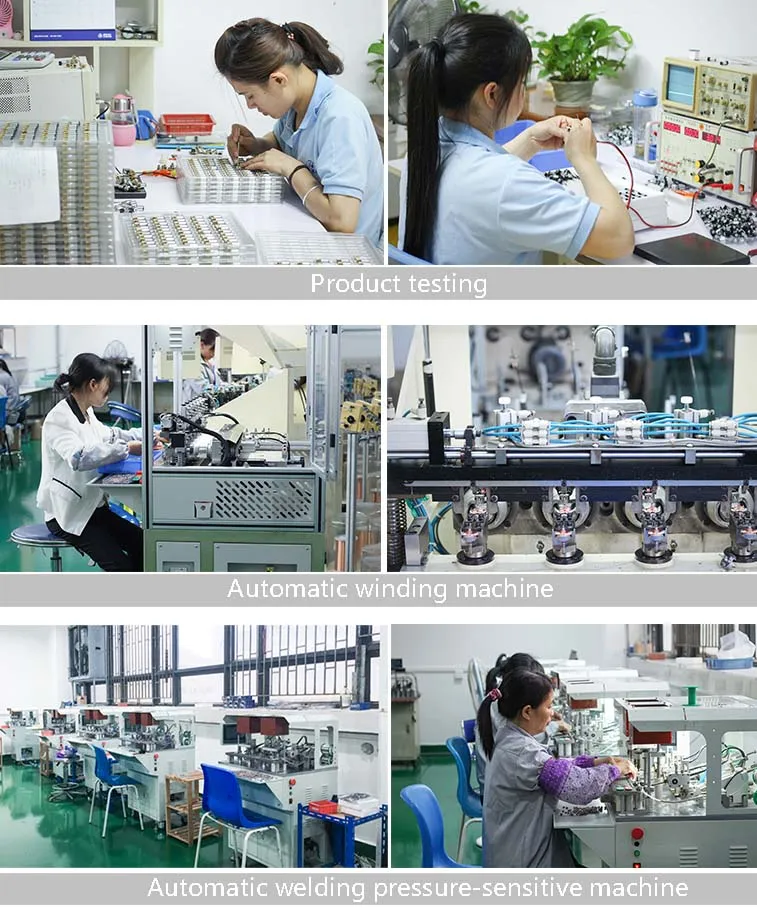

Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
As long as you put forward demand, we can recommend suitable motor products for you, welcome to consult!
