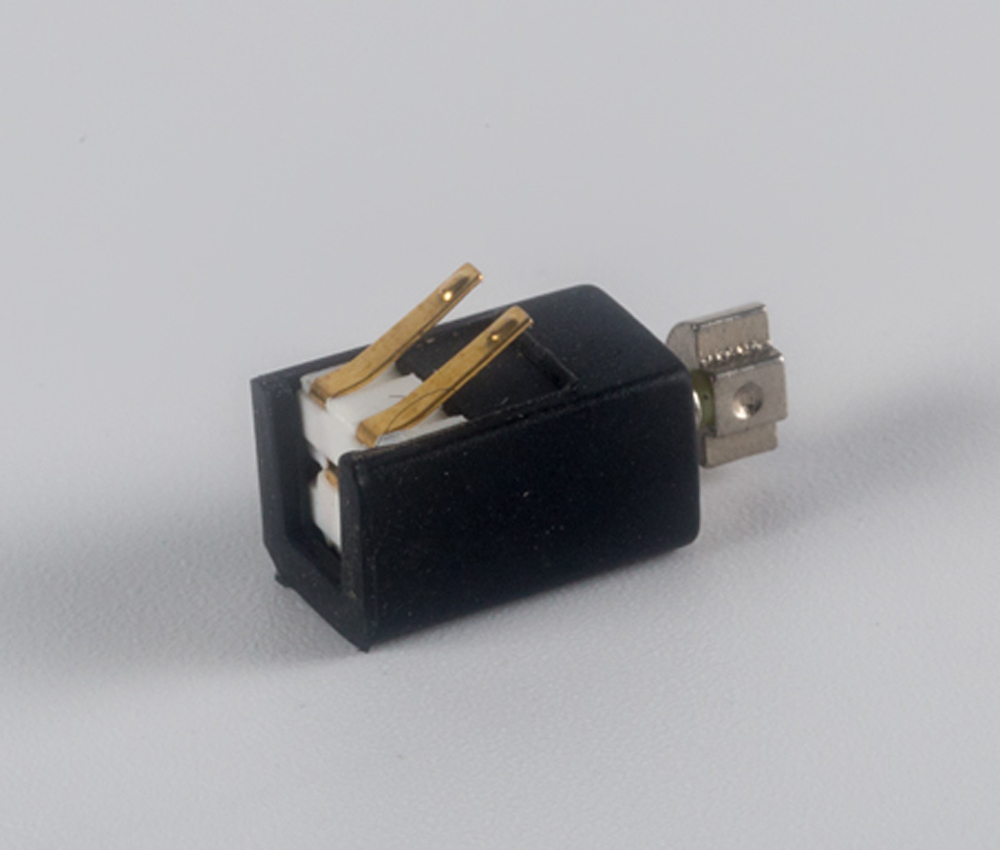

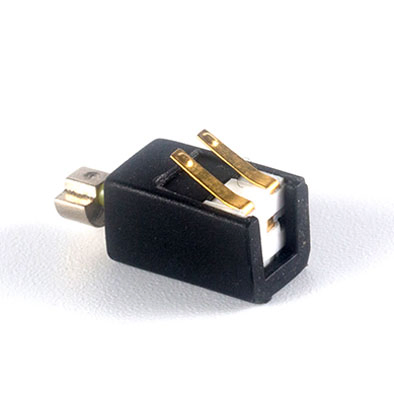

3.0V 0408 Electric Coreless Mini Vibration Motor with Spring Contact
Technical data:Motor modelmotor size (mm)Rated voltageRated speedRated currentCounterweightStarting CurrentStarting VoltageAxial End PlayDiameterLength of motor bodyOverall length V DC rpm mA /mA V DC mmIND-YZ0408H-2.0 4.0 8.0 12.03.0V13,000±2,000 ≤85mA ......
Send Inquiry
Product Description
Technical data:

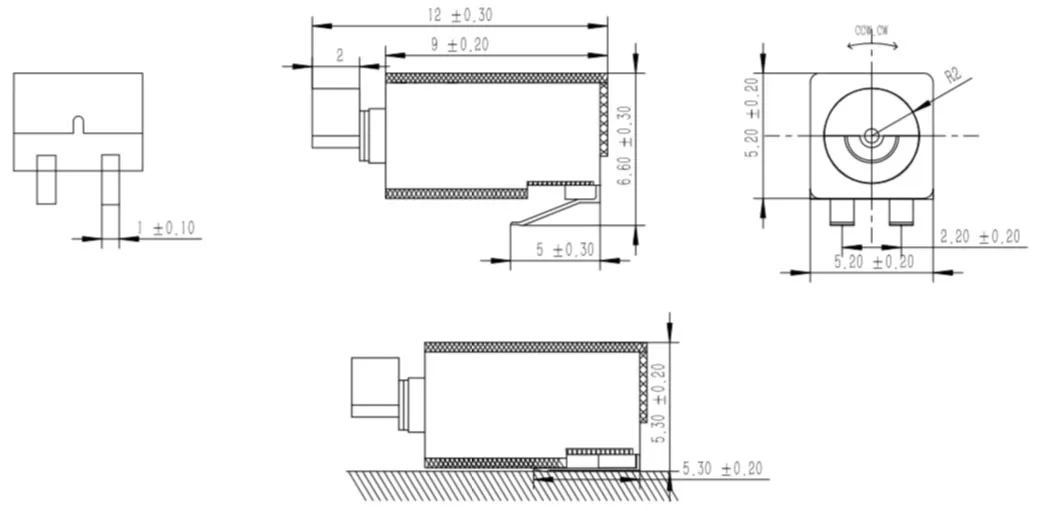

Product Drawing:

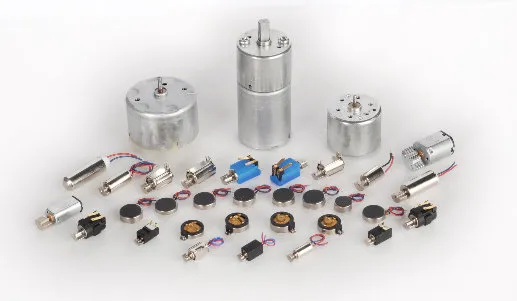

You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Company Information:

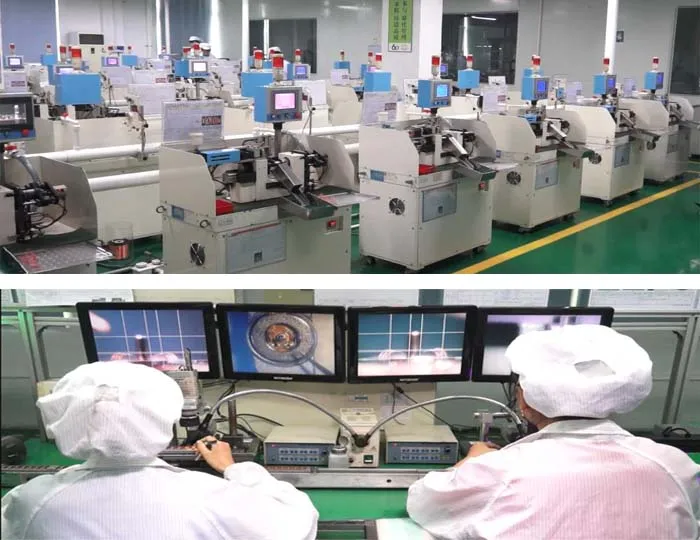

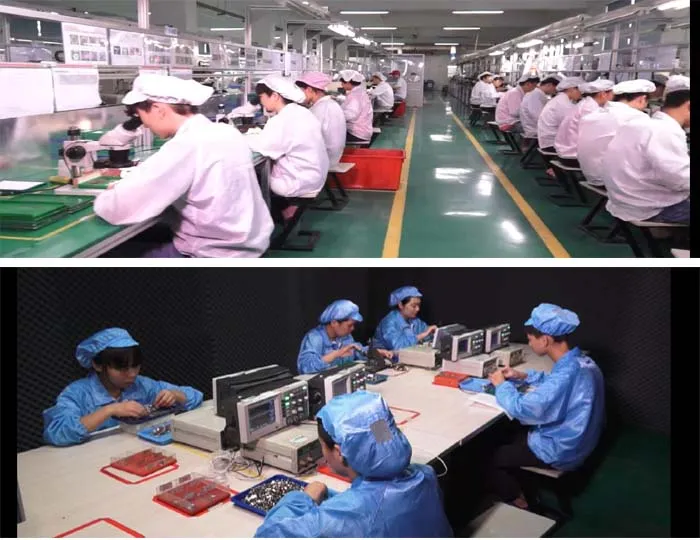

Manufacturing all kinds of micro motor for over ten years. These motors are widely used in telecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts to become one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy our customers worldwide. This is the target we aim at now and forever.
FAQ:
Q1.Do you provide the samples?
A:YES! We offer free samples with shipping and taxes paid by the buyer.
Q2.Do you have MOQ requirement?
A:We don't have MOQ limit,small orders accepted.
usually more than 1000pcs and the more you ordered the better price you get.
Q3. Do you have the item in stock?
A:I am sorry we don't have the item in stock, All products are made with orders.
Q4. Do you provide technology support?
A:YES.we have strong R&D capability, we can provide technology support if you need.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Contact Information:
SHENZHEN INEED YOUNGSUN TECHNOLOGY CO., LTD.
Tel: +86-0769-2289 1076 Fax:+86-0769-2289 1069
China Office:Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808, China
Web: ineed-motor.en.made-in-china.com
| Motor model | motor size (mm) | Rated voltage | Rated speed | Rated current | Counterweight | Starting Current | Starting Voltage | Axial End Play | ||
| Diameter | Length of motor body | Overall length | V DC | rpm | mA | / | mA | V DC | mm | |
| IND-YZ0408H-2.0 | 4.0 | 8.0 | 12.0 | 3.0V | 13,000±2,000 | ≤85mA | R2.0*2.0 | ≤100mA | ≤2.0 V DC | 0.05-0.3mm |
Product Drawing:
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Company Information:
Manufacturing all kinds of micro motor for over ten years. These motors are widely used in telecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts to become one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy our customers worldwide. This is the target we aim at now and forever.
Competitive Advantages:
- Experienced Staff: average 7-year experience in R&D
- International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Small Orders Accepted
- Short Lead Time 2-3 Weeks
FAQ:
Q1.Do you provide the samples?
A:YES! We offer free samples with shipping and taxes paid by the buyer.
Q2.Do you have MOQ requirement?
A:We don't have MOQ limit,small orders accepted.
usually more than 1000pcs and the more you ordered the better price you get.
Q3. Do you have the item in stock?
A:I am sorry we don't have the item in stock, All products are made with orders.
Q4. Do you provide technology support?
A:YES.we have strong R&D capability, we can provide technology support if you need.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Contact Information:
SHENZHEN INEED YOUNGSUN TECHNOLOGY CO., LTD.
Tel: +86-0769-2289 1076 Fax:+86-0769-2289 1069
China Office:Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808, China
Web: ineed-motor.en.made-in-china.com
