DC Motor Cylinder Rated Voltage 3V USD for Mobile Phone
Technical data:Motor modelmotor size (mm)Rated voltageRated speedRated currentStarting currentStarting voltageInsulation resistance Operating voltage DiameterLength of motor bodyOverall length:V DCrpmmAmAV DCMΩV DCCH-0408-03145-1715-30-1.54.08.011.21.5≥10,000≤35mA&......
Send Inquiry
Product Description
Technical data:

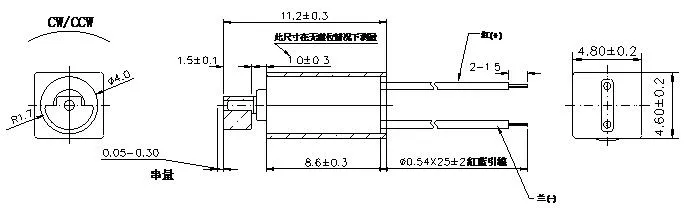

Product Drawing:

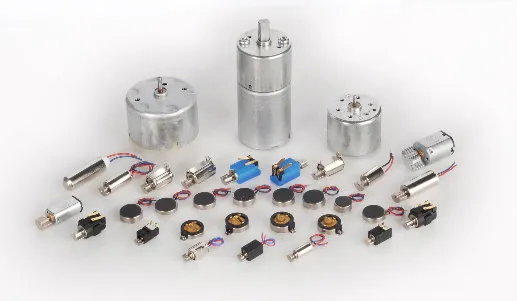

You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.

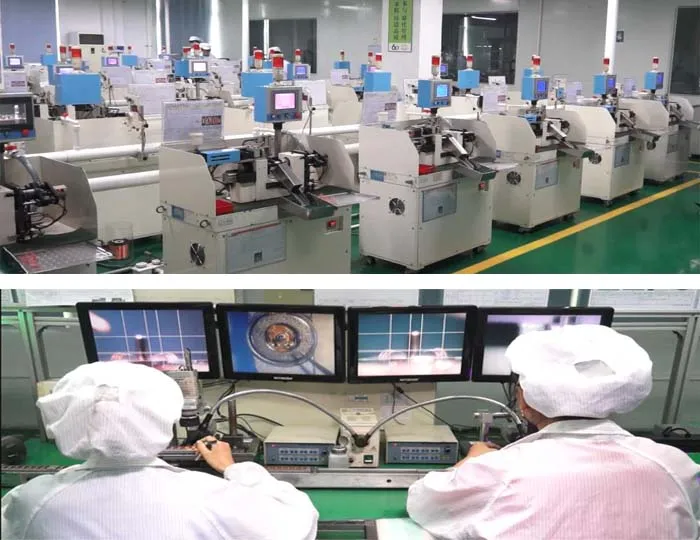

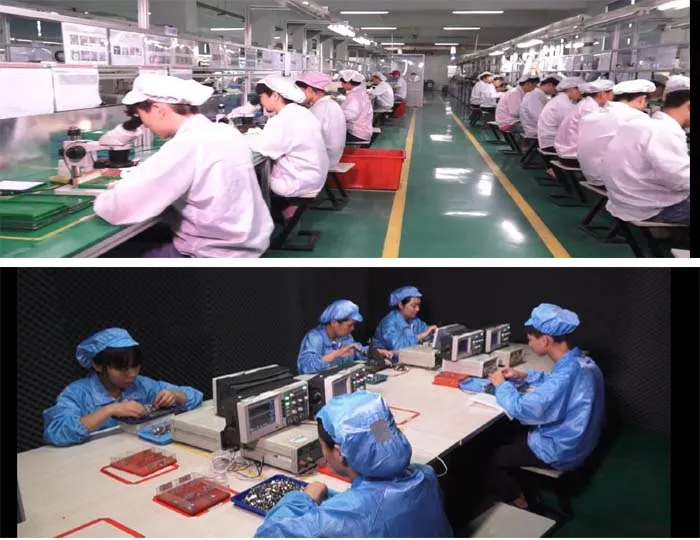

Company Show:
FAQ:
Q1.Do you provide the samples?
A:YES! We offer free samples with shipping and taxes paid by the buyer.
Q2.Do you have MOQ requirement?
A:We don't have MOQ limit,small orders accepted.
usually more than 1000pcs and the more you ordered the better price you get.
Q3. Do you have the item in stock?
A:I am sorry we don't have the item in stock, All products are made with orders.
Q4. Do you provide technology support?
A:YES.we have strong R&D capability, we can provide technology support if you need.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Contact Information:
SHENZHEN INEED YOUNGSUN TECHNOLOGY CO., LTD.
Tel: +86-0769-2289 1076 Fax:+86-0769-2289 1069
China Office:Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808, China
Web: ineed-motor.en.made-in-china.com
| Motor model | motor size (mm) | Rated voltage | Rated speed | Rated current | Starting current | Starting voltage | Insulation resistance | Operating voltage | ||
| Diameter | Length of motor body | Overall length: | V DC | rpm | mA | mA | V DC | MΩ | V DC | |
| CH-0408-03145-1715-30-1.5 | 4.0 | 8.0 | 11.2 | 1.5 | ≥10,000 | ≤35mA | ≤70mA | ≤0.9 | ≥1.0 | 1.0-2.0 |
Product Drawing:
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Company Show:
FAQ:
Q1.Do you provide the samples?
A:YES! We offer free samples with shipping and taxes paid by the buyer.
Q2.Do you have MOQ requirement?
A:We don't have MOQ limit,small orders accepted.
usually more than 1000pcs and the more you ordered the better price you get.
Q3. Do you have the item in stock?
A:I am sorry we don't have the item in stock, All products are made with orders.
Q4. Do you provide technology support?
A:YES.we have strong R&D capability, we can provide technology support if you need.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Contact Information:
SHENZHEN INEED YOUNGSUN TECHNOLOGY CO., LTD.
Tel: +86-0769-2289 1076 Fax:+86-0769-2289 1069
China Office:Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808, China
Web: ineed-motor.en.made-in-china.com
