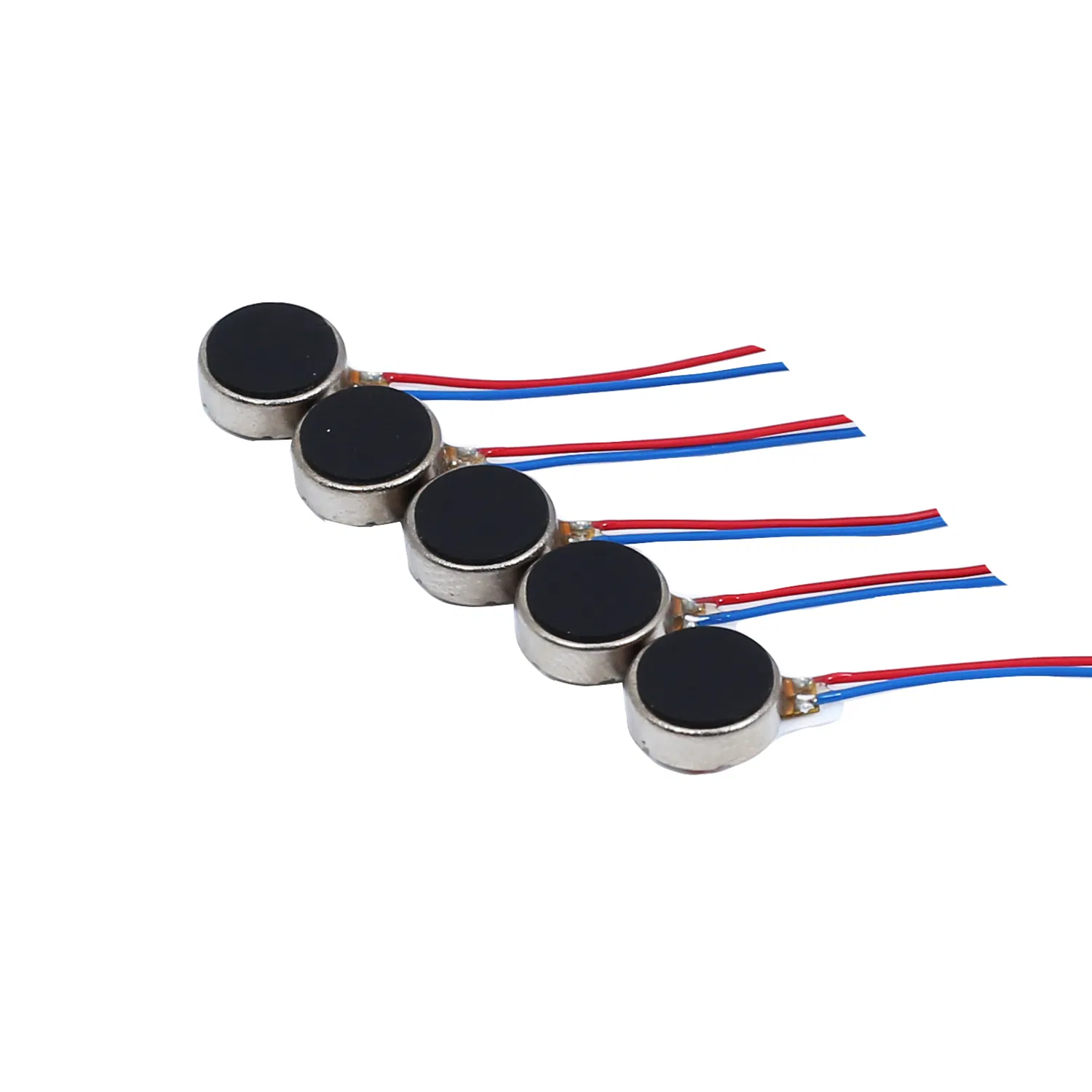

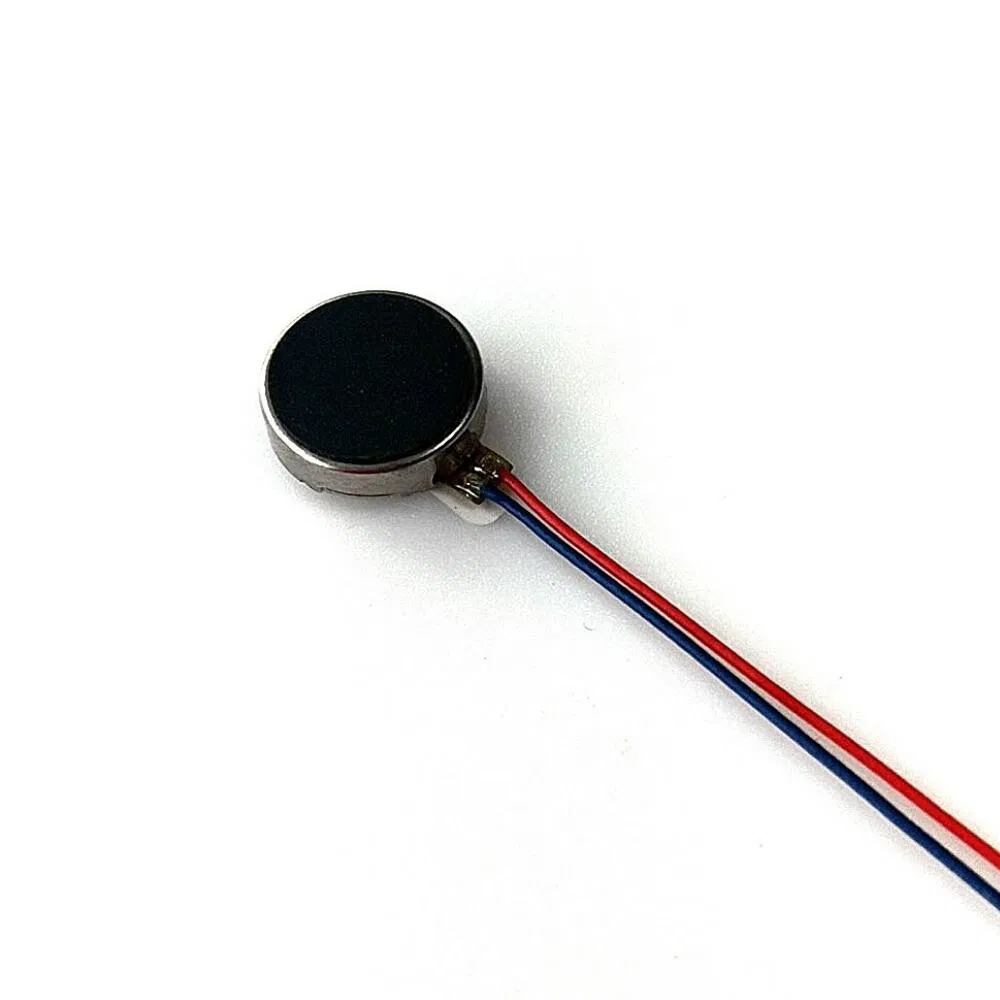

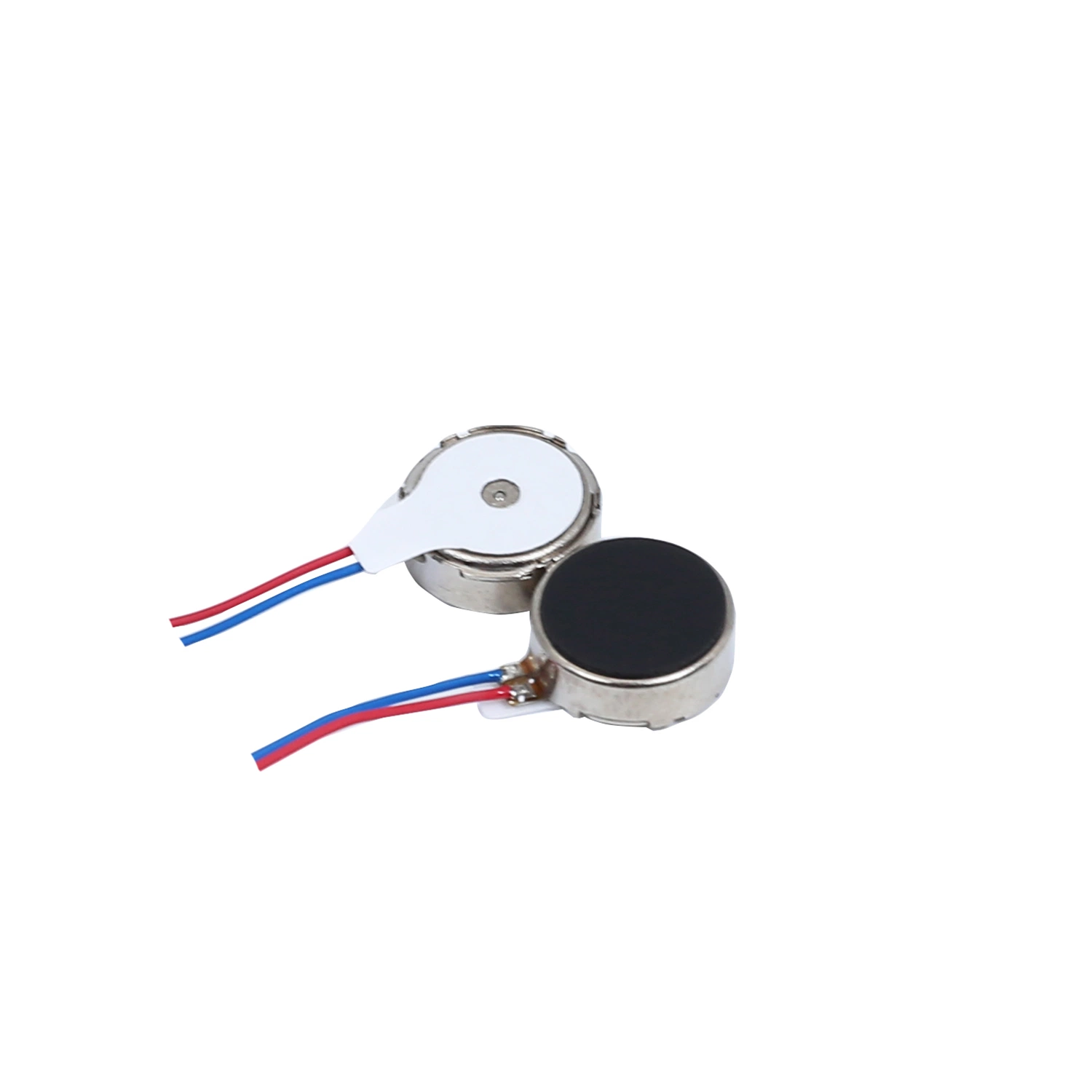

3.0 V DC C1034 Vibra Electric Motor for Consumer Electronics Part
Technical data:Motor modelmotor size (mm)Rated voltageRated speedRated currentStarting currentStarting voltageInsulation resistance Operating voltage DiameterThicknessV DCrpmmAmAV DCMΩV DCC1034BE03C27103.43.010,000801902.3≥102.4-3.6Product Drawing: A variety of connecto......
Send Inquiry
Product Description
| Motor model | motor size (mm) | Rated voltage | Rated speed | Rated current | Starting current | Starting voltage | Insulation resistance | Operating voltage | |
| Diameter | Thickness | V DC | rpm | mA | mA | V DC | MΩ | V DC | |
| C1034BE03C27 | 10 | 3.4 | 3.0 | 10,000 | 80 | 190 | 2.3 | ≥10 | 2.4-3.6 |

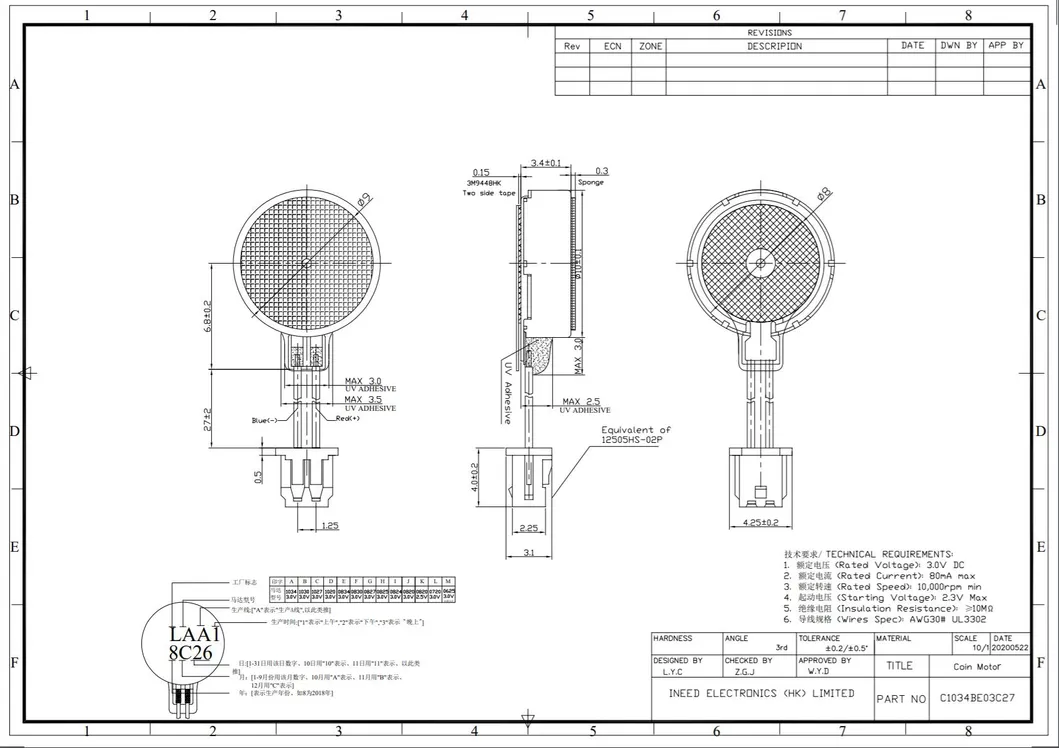

Product Drawing:
A variety of connectors, spring contacts, FPC or with bare contact pads can be added to our vibrating motor. We can also design a custom FPC
for your application. If your application requires it, foam pads of varying thicknesses and/or double stick tape tape may also be added.

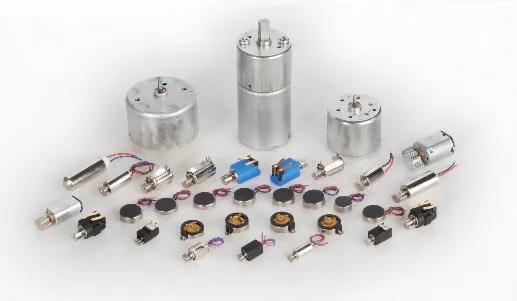

You could find the right haptic solution with our below various vibrators:7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Company information
Manufacturing all kinds of micro motor for over ten years. These motors are widely used intelecommunication devices and health care products, medical devices and robotic products.
Monthly capacity over 15 million motors.We have been making the best efforts tobecome one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy ourcustomers worldwide. This is the target we aim at now and forever.
1) Competitive Advantages
- Experienced Staff: average 7-year experience in R&D
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Small Orders Accepted
- Short Lead Time 2-3 Weeks
- International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011

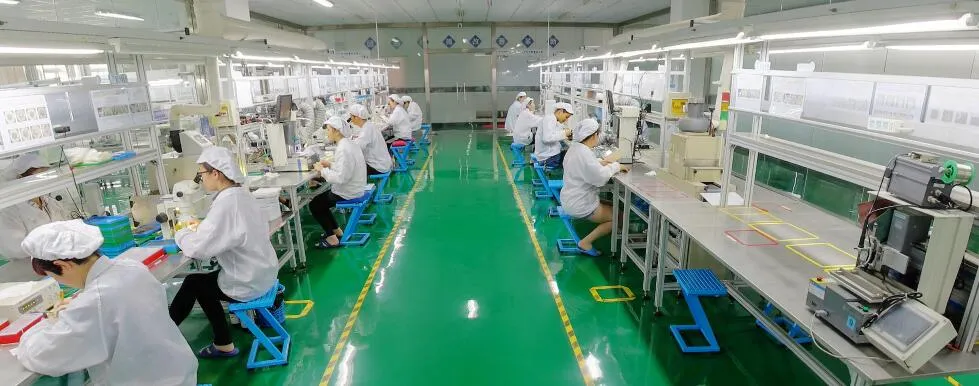

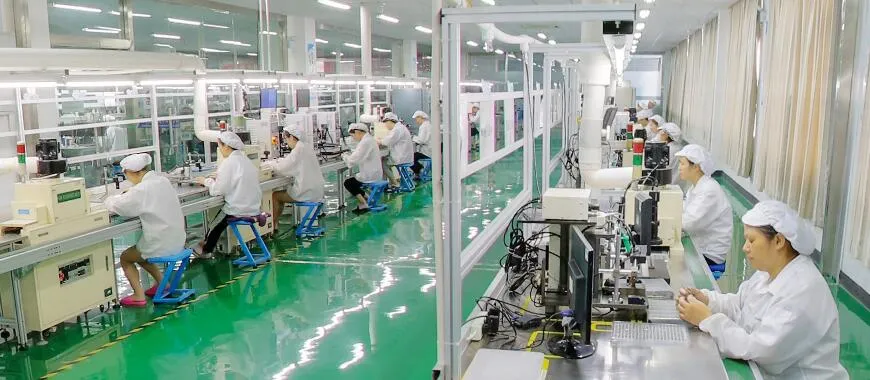

2) Production workshop (Part)
Worshop site 1 Worshop site 2

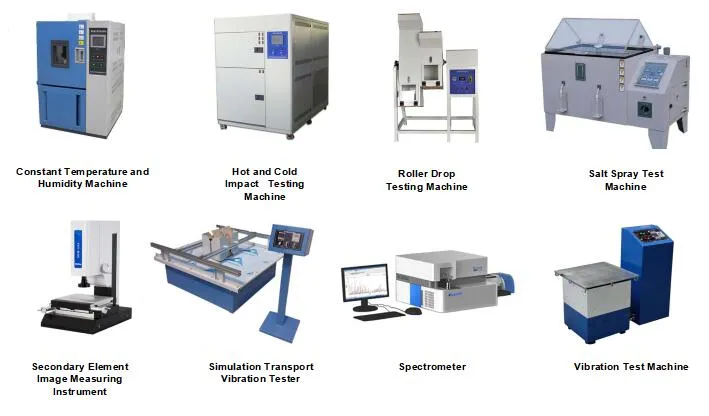

3) Testing equipments

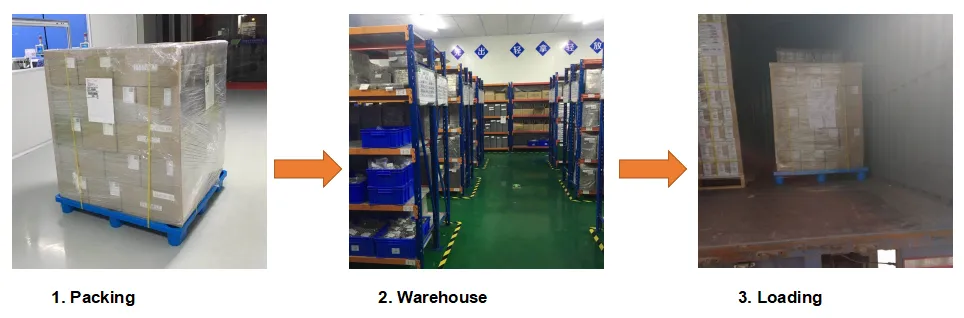

Packing Details
100pcs per tray, 8000 pcs per carton
Carton size: 45cm*28.5cm*30.5cm
Gross weight: 5.5kgs/ carton
Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.
Shipping Details
Samples Can be shipped within 10 days.
Mass production order leading time according to the actual situation.
FAQ:Q1.Do you provide the samples?
A:YES! We offer free samples with shipping and taxes paid by the buyer.
Q2.Do you have MOQ requirement?
A:We don't have MOQ limit,small orders accepted.
usually more than 1000pcs and the more you ordered the better price you get.
Q3. Do you have the item in stock?
A:I am sorry we don't have the item in stock, All products are made with orders.
Q4. Do you provide technology support?
A:YES.we have strong R&D capability, we can provide technology support if you need.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
