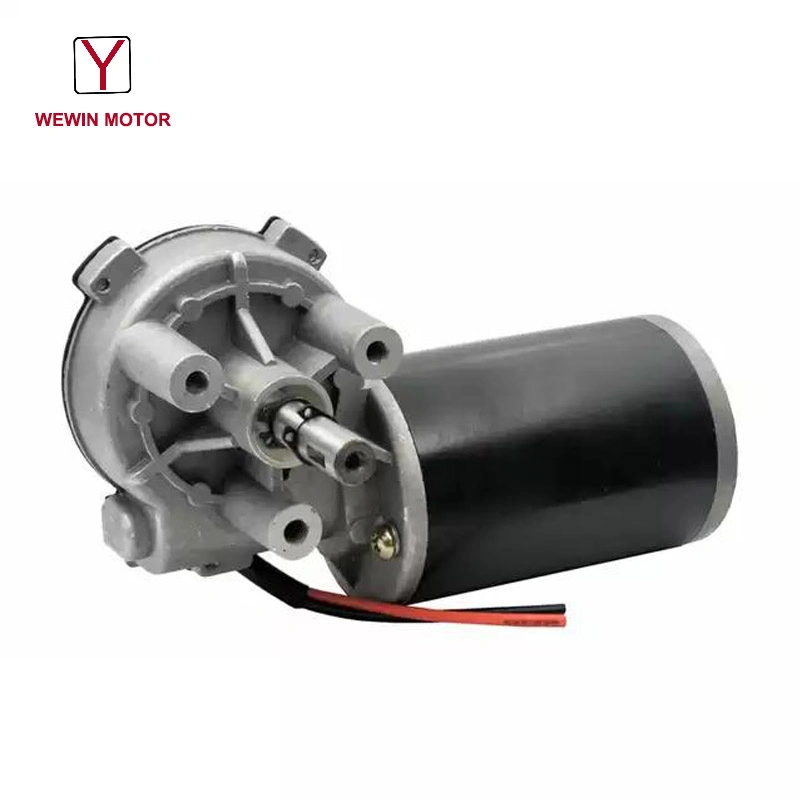

Strong Self-Lock DC Worm Gear Motor 12V High Torque Reduction Gearbox with Encoder
Strong Self-lock DC Worm Gear Motor 12v High Torque Reduction Gearbox with EncoderNOTE:We can design and manufacture according to your required like voltage,power,speed,torque,dimension and motor direction.More Applications:Car simulator ,auto garage door opener ,sliding gate,rolling shutter door,se......
Send Inquiry
Product Description

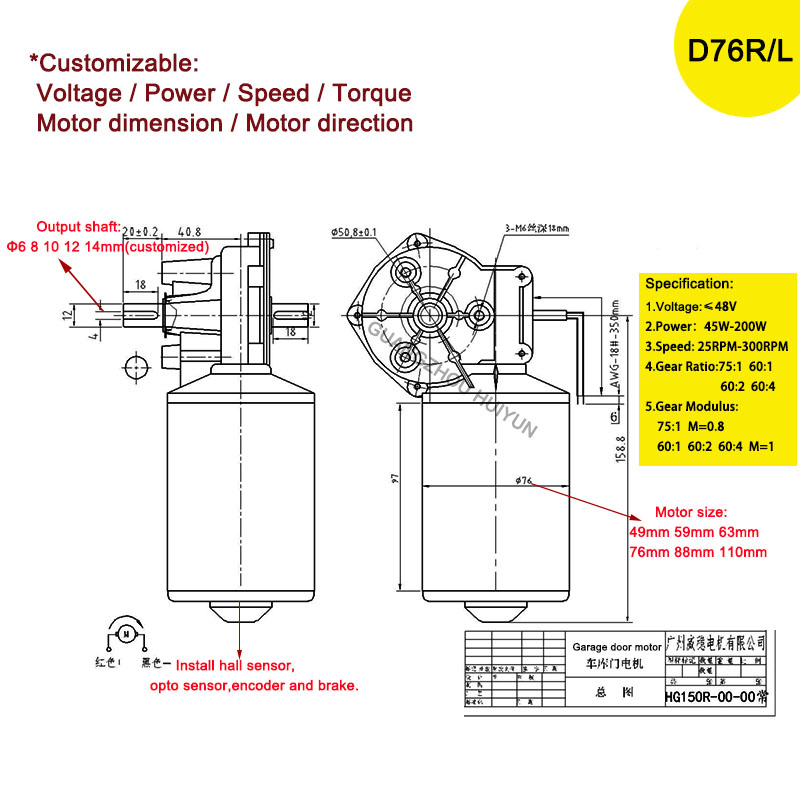

NOTE:We can design and manufacture according to your required like voltage,power,speed,torque,dimension and motor direction.
More Applications:
Car simulator ,auto garage door opener ,sliding gate,rolling shutter door,sewing machine,vending machine,food processor blender machine,smart home lifting cabinet,office intelligent equipment,welding machine,floor polisher,truck lift,stair lift,hospital lift bed ,hydraulic pump electric forklift.
Motor type: motor ,dc motor,dc motors,gear motor,gear motors,geared motor,dc geared motor,electric motor,electric motors,gearbox motor,dc motor with encoder,brake motor,small dc motors,China electric motor,electrical motor, dc motor with gearbox,12v motor,24v motor ,motor 12 v, garage door motor,pmdc motor.Main characteristic:

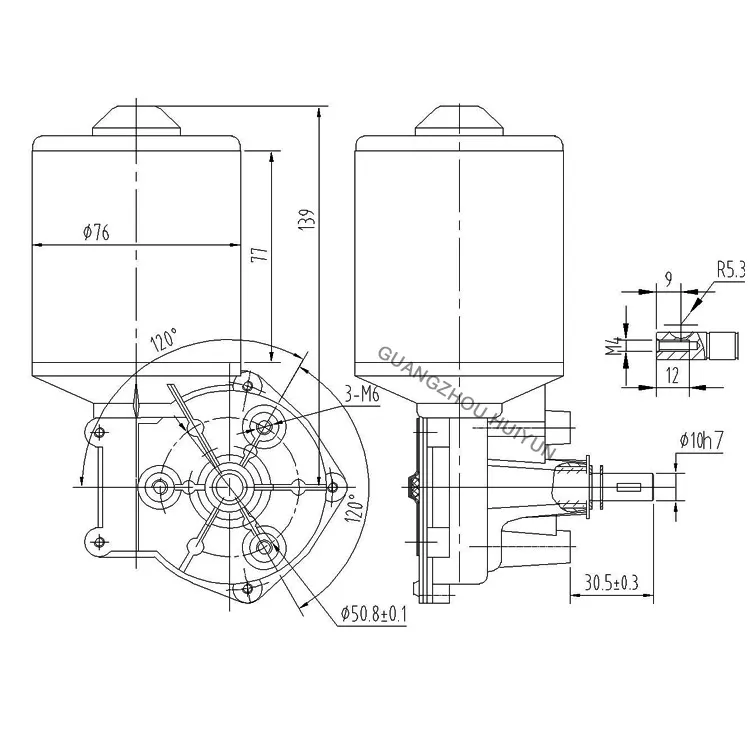

Model :D76R-24v45w-30rpm
| Motor type | dc motor with gearbox |
| Motor size | 49mm 59mm,63mm,76mm,88mm,110mm |
| Motor Power | 45w, 65w, 95w, 120w |
| Voltage | 12V,24V, 36v, 48v |
| Output speed | 60-220rpm |
| Gear ratio | 75:1 60:1 60:2 60:4 |
| Gear modulus | 75:1 M=0.8 60:1 60:2 60:4 M=1 |
| Torque | Less 20N.M |
| Motor length | 77mm, 85mm, 97mm |
| Motor gearbox | Left angle motor,right angle motor |
| Material of gear | Plastic / copper |
| Motor Advantage | 1.Low noise < 60db 2.Long life span > 4000hr(continuously working) 3.Competitive factory price 4.Sample order are welcome |

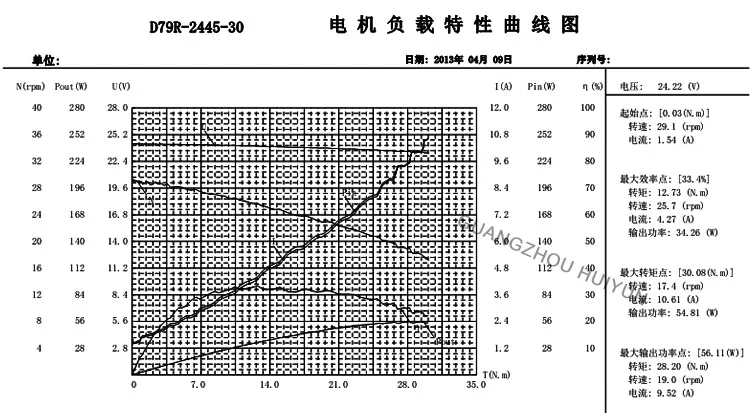

| Products Type | Voltage | Power | No Load | Load | Gear ratio | Motor length | |||
| V | W | Speed | Current | Speed | Current | Torque | |||
| RPM | A | RPM | A | N.M | mm | ||||
| D76L -2445-150 | 24 | 45 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 77 |
| D76L -2445-180 | 24 | 45 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 77 |
| D76L -2445-210 | 24 | 45 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 77 |
| D76L -2465-150 | 24 | 65 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 85 |
| D76L -2465-180 | 24 | 65 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 85 |
| D76L -2465-210 | 24 | 65 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 85 |
| D76L -2495-150 | 24 | 95 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 97 |
| D76L -2495-180 | 24 | 95 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 97 |
| D76L -2495-210 | 24 | 95 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 97 |

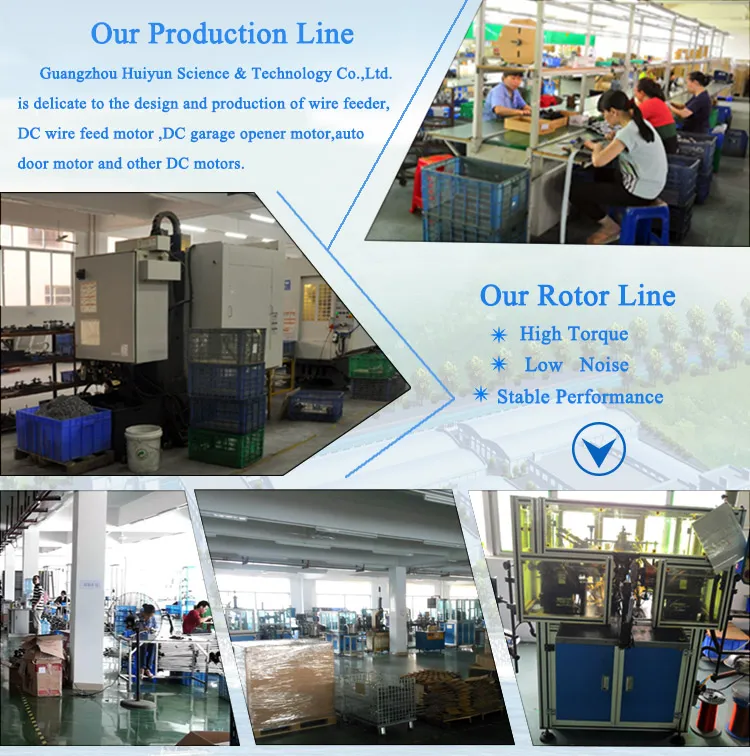

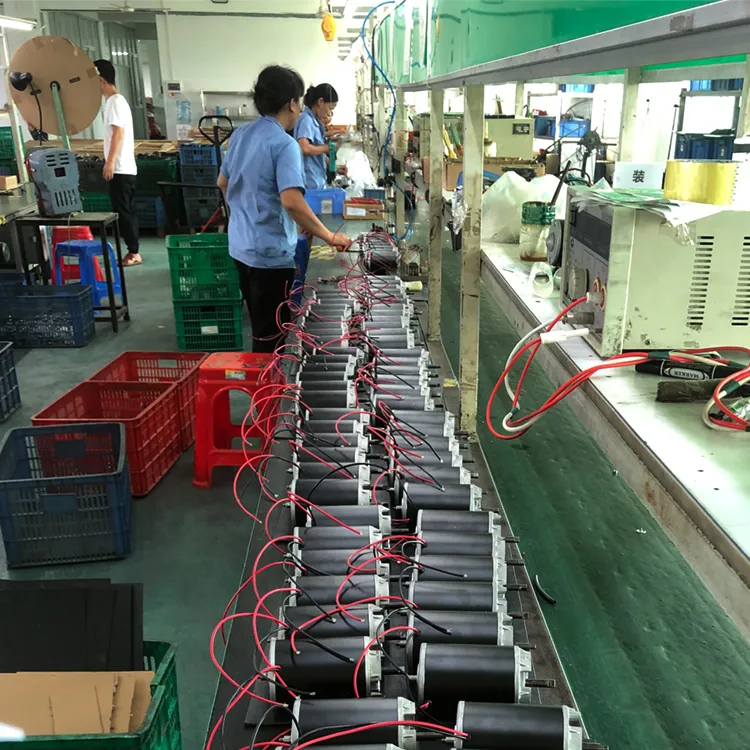

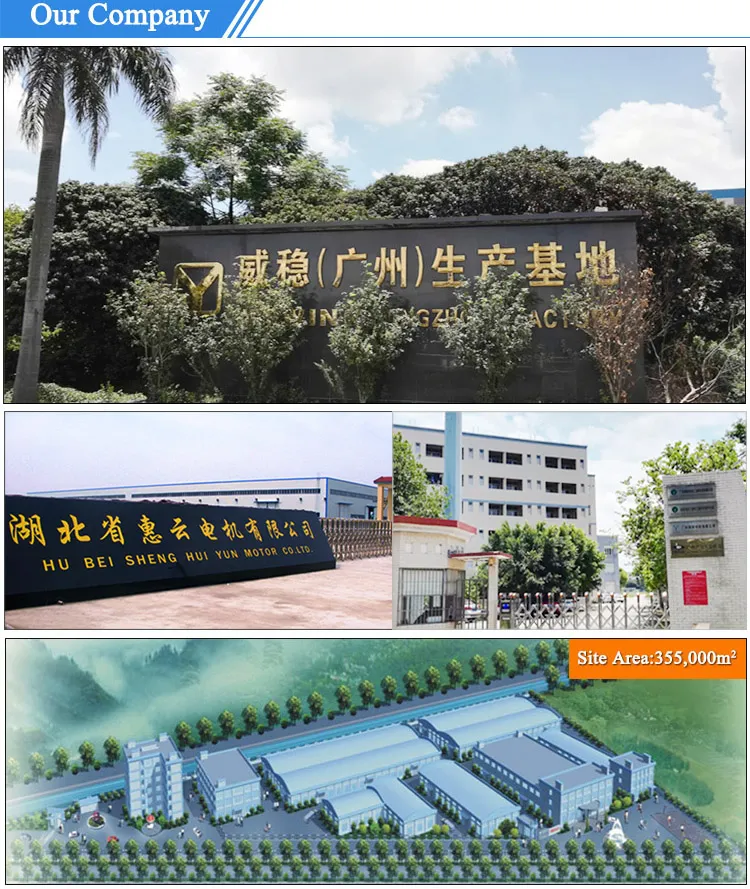

Guangzhou Huiyun Science & Technology Co.,Ltd factory is located in Huadu, Guangzhou, we can design and manufacture of motors according to all our customers' demands so far,we can manufacture about 60,000 motors per month.
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State,India,Korea and so on.
Company Advantages:
1. Big production capacity, fast delivery.
2. Strict QC inspecting rules: all products must be 100% inspected before delivery.
3. OEM/ODM services are available
4. 24 hours online service.
5. Prompt quotation for your inquiry
6. Quality,reliability and long product life.
7. Professional manufacturer offers competitive price.
8. Diversified rich experienced skilled workers.
RFQ:
Q: Are you trading company or manufacturer ?
A: We are Integration of industry and trade, with over 20 years experience in DC worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfaction.
Q: What is your main product?
-DC Motor: Gear motor and Micro motor without gear box-Welding equipment: Wire feeder, Welding rod, Welding Torch, Earth clamp, Electrode holder, and Rectifier
Q: What if I don't know which DC motor I need?
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
