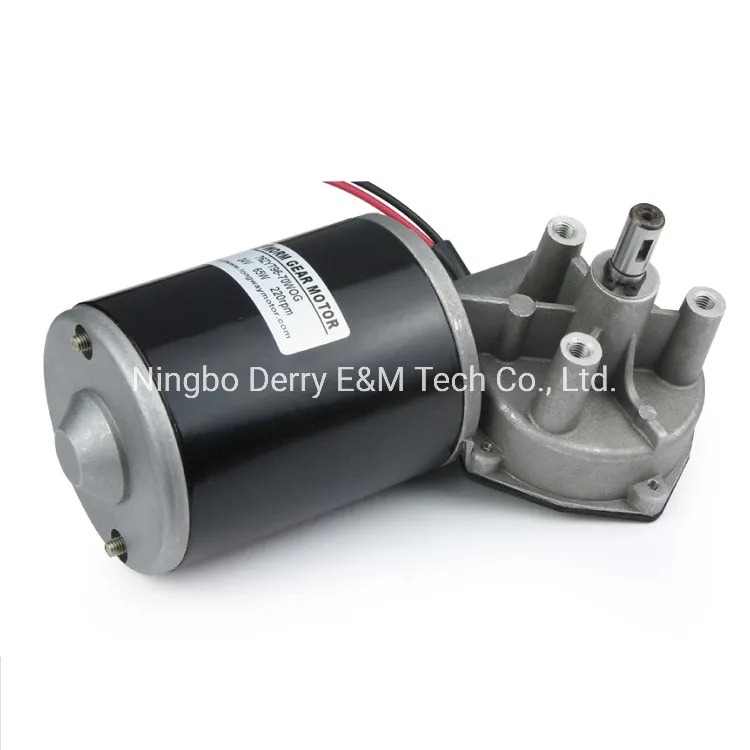

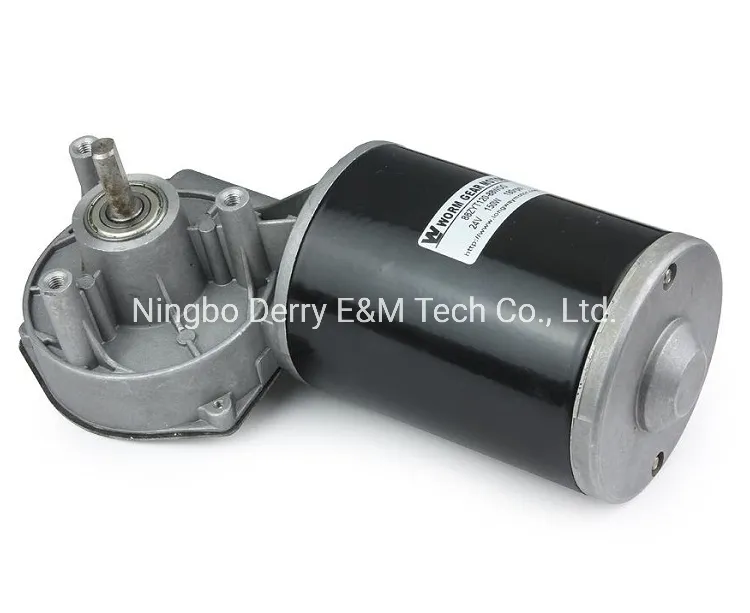

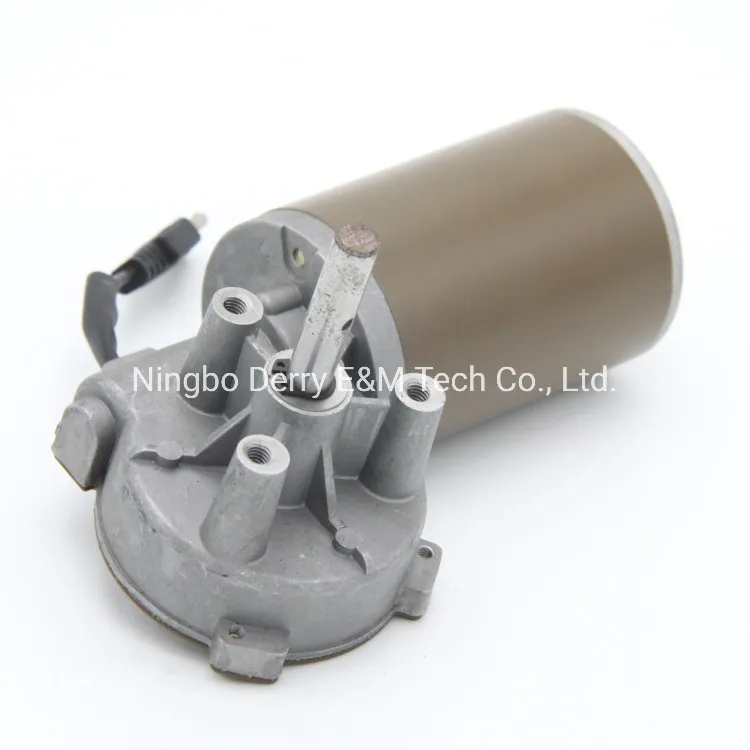

88mm 12V/24V Worm Gear Motor for Sliding Door
88mm 12V/24V Worm Gear Motor for sliding door 1.size:Diameter 88mm 2.life time:5000 hours 3.material:copper or plastic88mm diameter high quality 12V DC WORM GEAR MOTOR Application:welding machine, electrical household, diamond machinery, office intelligent equipment, hotel leisure, antomated machine......
Send Inquiry
Product Description
1.size:Diameter 88mm
2.life time:5000 hours
3.material:copper or plastic
88mm diameter high quality 12V DC WORM GEAR MOTOR
Application:
welding machine, electrical household, diamond machinery, office intelligent equipment, hotel leisure, antomated machine and so on.
Motor Voltage: DC12V, 24V,42V,48V,90V,110V ,300V
Motor Rated Power:15W, 25W,30W,45W,65W, 95W,120W,50W,180W
Motor no-load Speed:15RPM, 30RPM,60RPM,80RM,120RPM,150RPM,180RPM,200RPM,220RPM.
| MODEL | VOTAGE (V) | POWER (W) | NO-LOAD SPEED(RPM) | NO-LOAD CURRENT(A) | LOAD SPEED(RPM) | LOAD CURRENT(A) | LOAD TORQUE(N.M) | RATIO | MOTOR LENGTH(MM) |
| 88ZYT | 36 | 100 | 20±2 | ≤2.5 | 16±2 | ≤5.5 | ≥5.5 | 1:82 | 100 |
| 88ZYT | 28 | 200 | 200±5 | ≤2.5 | 185±5 | ≤6.0 | ≥5.0 | 1:34 | 100 |
| 88ZYT | 24 | 150 | 180±5 | ≤2.0 | 185±5 | ≤6.0 | ≥5.0 | 1:34 | 100 |
| 88ZYT | 12 | 120 | 100±5 | ≤3.2 | 95±5 | ≤8.0 | ≥4.5 | 1:34 | 100 |

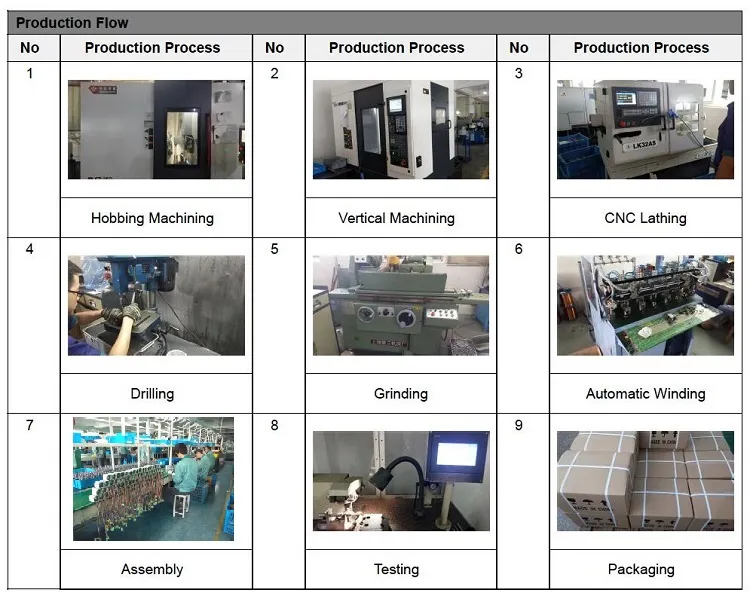

2.Production Flow

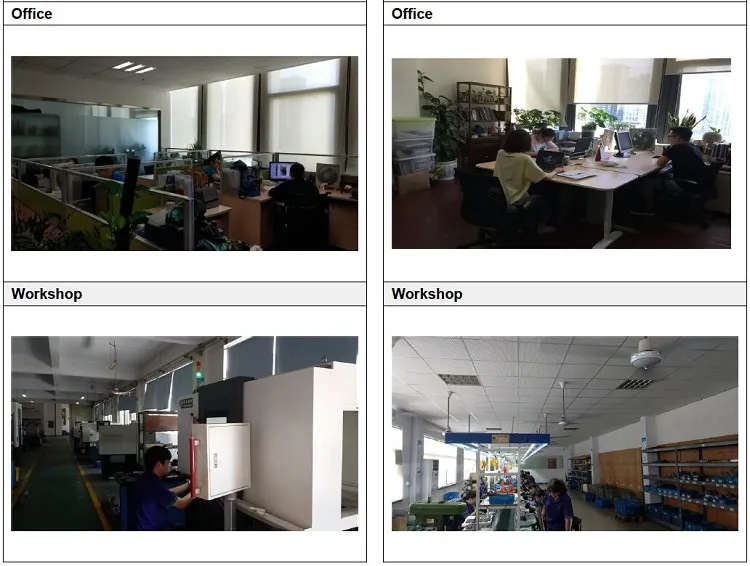

3.Company Information
In recent ten years, Derry has been dedicated to the manufacture of the motor products and the main products can be classified into the following series, namely DC motor, DC gear motor, AC motor, AC gear motor, Stepper motor, Stepper gear motor, Servo motor and Linear actuator series.
Our motor products are widely applied in the fields of aerospace industry, automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling.
4.Our Services
1). General Service:
Quick Reply | All enquiry or email be replied in 12 hours, no delay for your business. |
Professional Team | Questions about products will be replied professionally, exactly, best advice to you. |
Short Lead time | Sample or small order sent in 7-15 days, bulk or customized order about 30 days. |
Payment Choice | T/T, Western Union,, L/C, etc, easy for your business. |
Before shipment | Take photos, send to customers for confirmation. Only confirmed, can be shipped out. |
Language Choice | Besides English, you can use your own language by email, then we can translate it. |
2). Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
5.Package & Shipping
