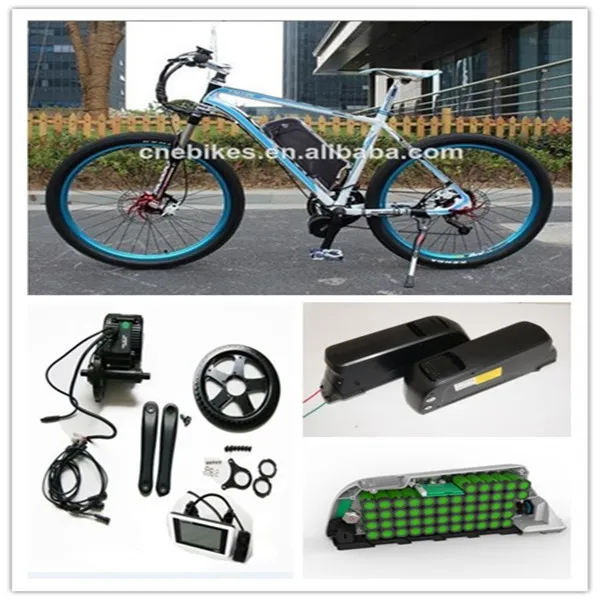

Bafang /8fun Electric Bike MID Crank Drive Motor Kit with Lithium Battery

Motor Type: 36V 250W Brushless Geared Bafang Crank Mid Drive Motor (Gates Polychain Reducer Motor)

Motor Specification: 36v 250w

Motor Weight: about 4kgs

Brushless, Low Noise, High Efficient, Long Life

No Reluctance, Easy Installation

High Torque and good speed, more than 30 degree climbing ability

Support PAS, shall install at left side

LCD Display: 4-speed PAS LCD Control Display (display speed and set speed limit)

36V Throttle  ( optional )

Brake Levers  ( optioanal )

PAS System

Which bike can use bafang crank mid drive motor kits?

1. Bottom Bracket Width shall be 68mm

2. Suitable for 24-26" Mountain Bike or 16-20" Folding Bike

3. Your bike shall have the down tube to fix motor

4. Front Derailleur shall be removed

MID drives are the holy grail power-providers for electric bikes. If you want to know how you can spend a lot of money on an electric bike and get the ultimate in efficiency and performance this is a good start. MID drives are not the easiest or the cheapest electric bikes to build, but can be the cream of the crop once you are out riding, especially off road, especially climbing hills or even mountains.

When compared to a hub motor, a MID drive is an elegant solution. This is because MID drives allow you to use the bike's transmission as the motor's gears, so the electric motor can run in its optimum RPM range. This translates to a happier more efficient motor and a lighter better balanced e-bike. Why a lighter bike? When going through the gears, you dont need as heavy a motor to propel you up hills without smoking, and you dont need as much battery because a MID drive is considerably more efficient than a hub motor especially when climbing.

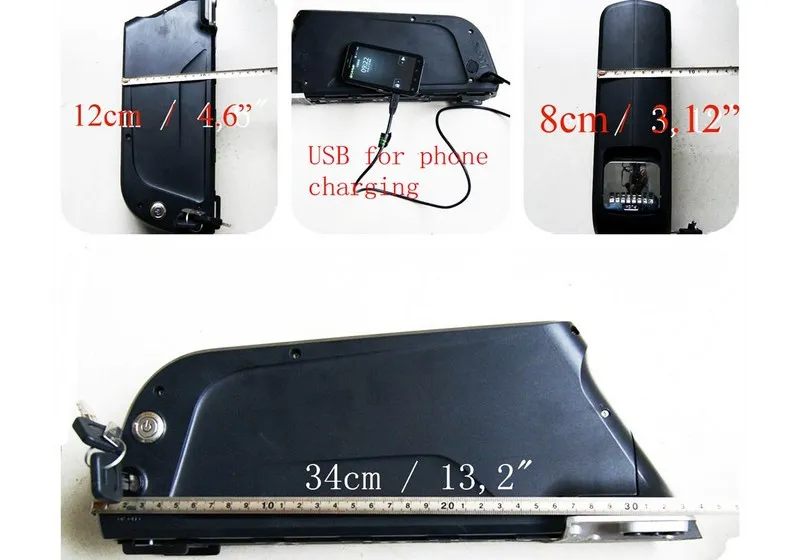

Lithium battery suggested For Bafang mid drive motor kit
