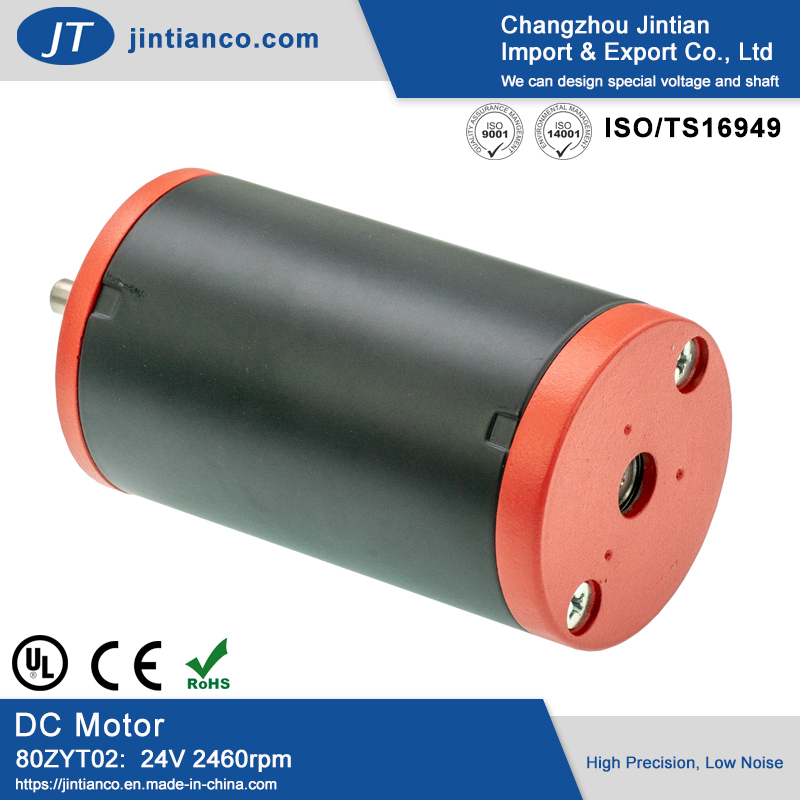

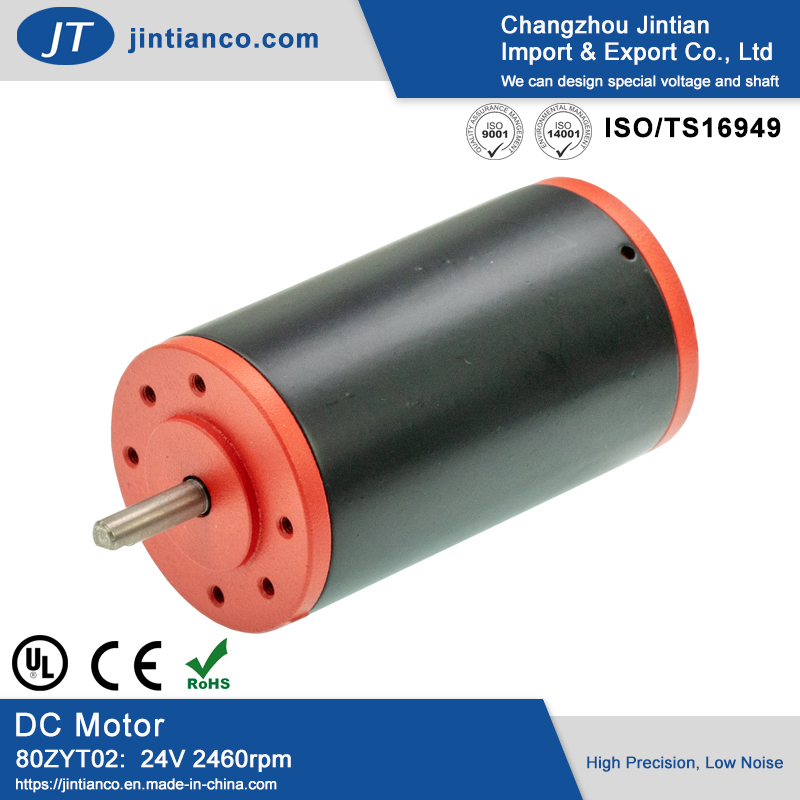

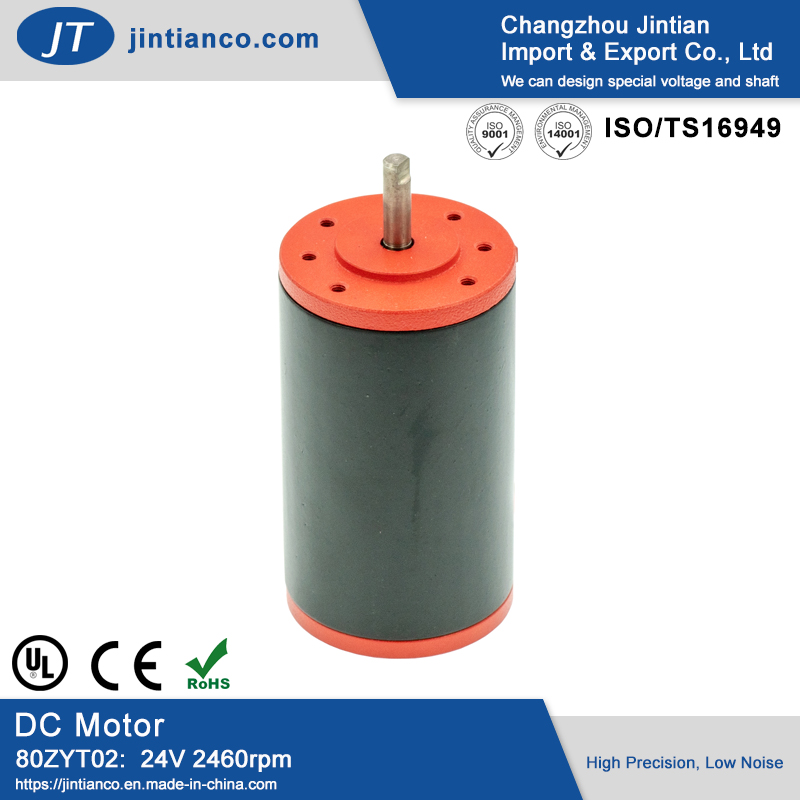

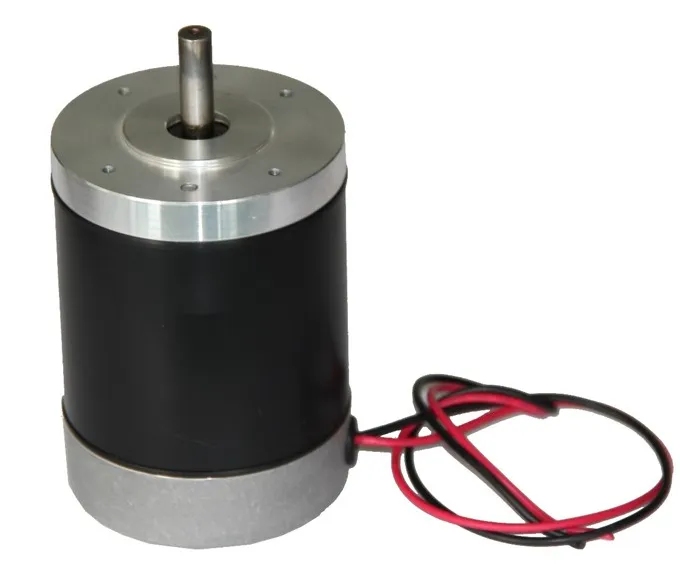

Size 80mm Pm DC Electric Moto 12volt /24volt Option for Optical Encoder
Quiet, stable and reliable for long life operation1.Diameters: 80mm2.Lengths: 108mm;128mm;148mm3.Continuous torques: 0.50Nm;0.82Nm;0.65Nm4.Power: 106W;180W;140W5.Speeds up to 2030rpm;2100rpm;2050rpm6.Environmental conditions: -10~+40°C7.Number of poles:48.Mangnet material:Hard Ferrit9.Insul......
Send Inquiry
Product Description
Quiet, stable and reliable for long life operation
1.Diameters: 80mm
2.Lengths: 108mm;128mm;148mm
3.Continuous torques: 0.50Nm;0.82Nm;0.65Nm
4.Power: 106W;180W;140W
5.Speeds up to 2030rpm;2100rpm;2050rpm
6.Environmental conditions: -10~+40°C
7.Number of poles:4
8.Mangnet material:Hard Ferrit
9.Insulation class:B
10.Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback
11.We can design the special voltage and shaft, and so on

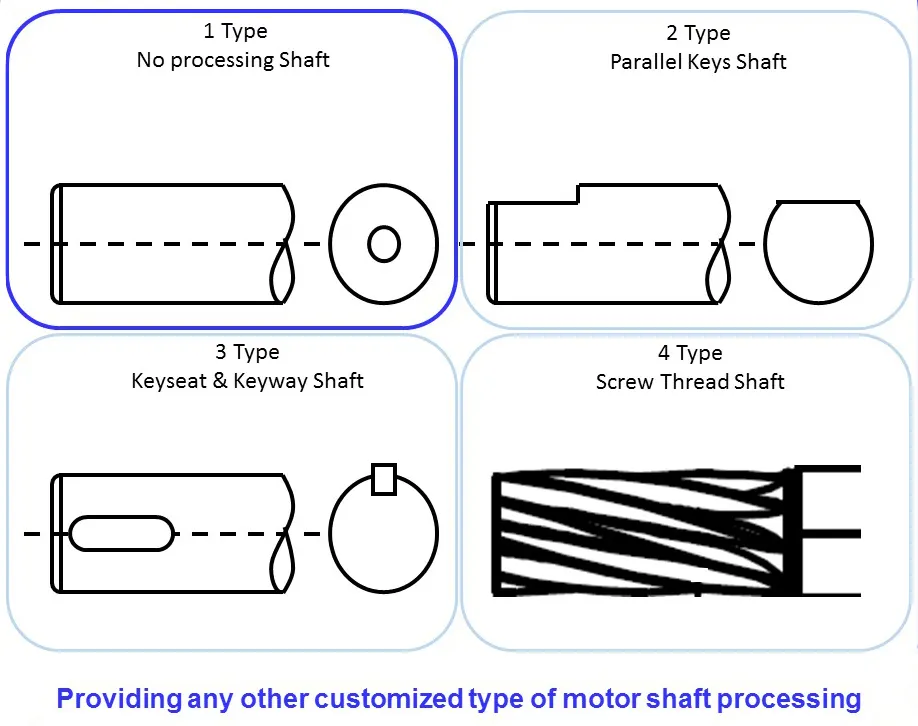

Normal type of shaft
1.Diameters: 80mm
2.Lengths: 108mm;128mm;148mm
3.Continuous torques: 0.50Nm;0.82Nm;0.65Nm
4.Power: 106W;180W;140W
5.Speeds up to 2030rpm;2100rpm;2050rpm
6.Environmental conditions: -10~+40°C
7.Number of poles:4
8.Mangnet material:Hard Ferrit
9.Insulation class:B
10.Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback
11.We can design the special voltage and shaft, and so on

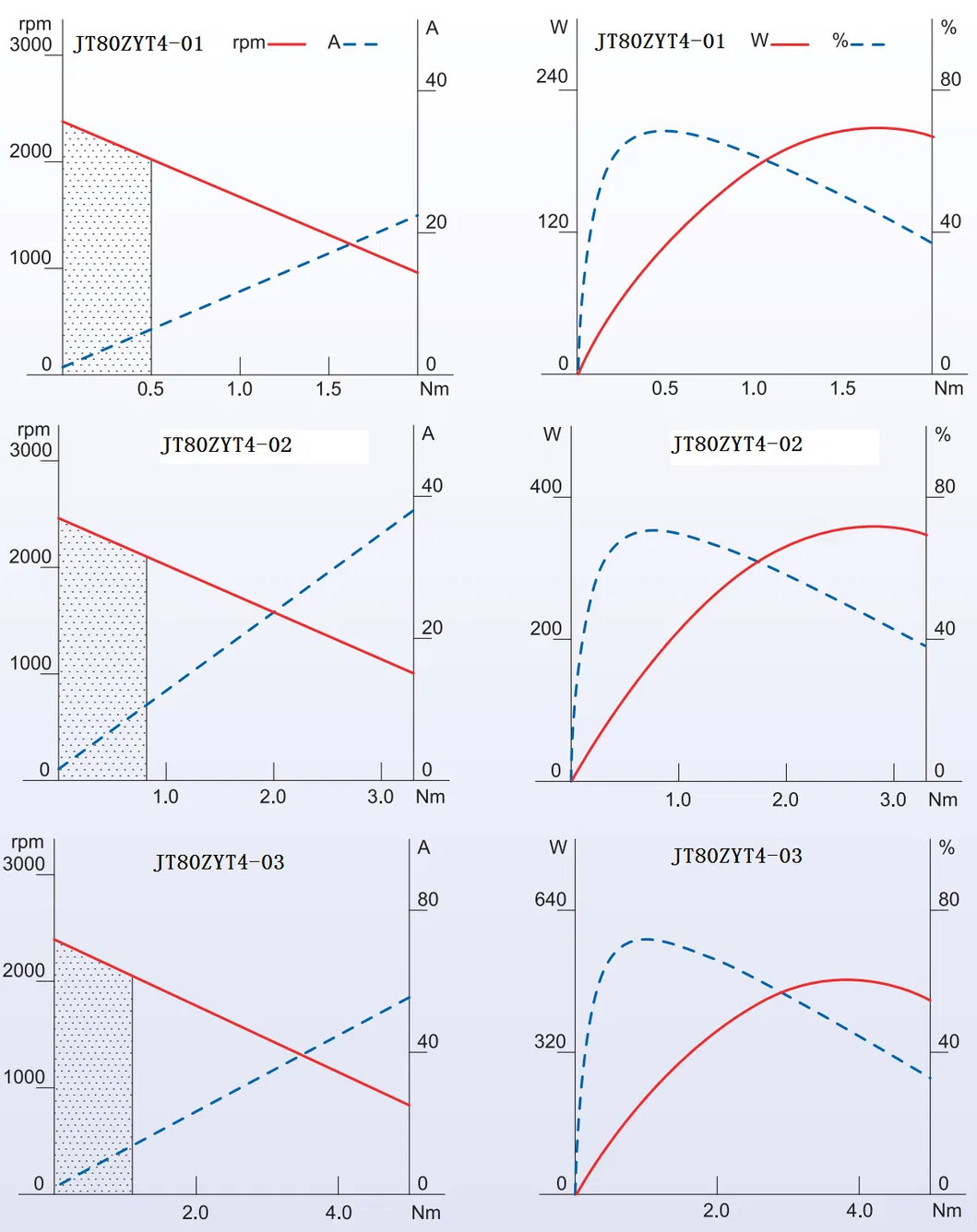

| Model | 80ZYT4-01 | 80ZYT4-02 | 80ZYT4-03 | |
| Voltage | V | 24 | ||
| No load speed | rpm | 2380 | 2460 | 2390 |
| Rated torque | Nm | 0.50 | 0.82 | 1.10 |
| Rated speed | rpm | 2030 | 2100 | 2050 |
| Rated current | A | 6.5 | 10.7 | 14.0 |
| Stall torque | Nm | 3.40 | 5.58 | 7.90 |
| Stall current | A | 37.4 | 63.2 | 84.6 |
| Rotor inertia | Kgmm² | 420 | 550 | 700 |
| Back-EMF constant | V/krpm | 9.8 | 9.5 | 9.8 |
| Torque Constant | Nm/A | 0.0935 | 0.0906 | 0.0934 |
| Resistance(20ºC) | ohm | 0.65 | 0.38 | 0.28 |
| Weight | Kg | 1.7 | 2.0 | 2.3 |

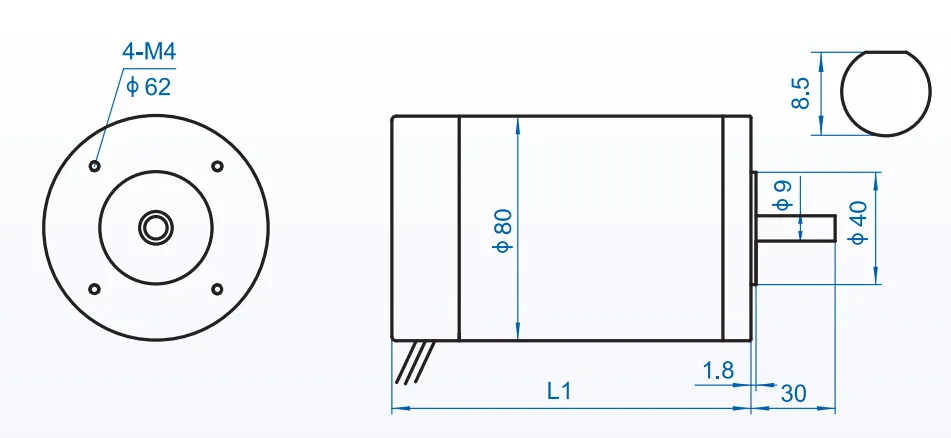

| L1 | mm | 108 | 128 | 148 |
| Rotor:La | mm | 30 | 50 | 70 |
Normal type of shaft
