China Round Brushless 82mm DC Planetary Gear Motor Excellence in Quality

Product Description

TaiBang Motor Industry Group Co., Ltd.

The main products is induction motor, reversible motor, DC brush gear motor, DC brushless gear motor, CH/CV big gear motors, Planetary gear motor ,Worm gear motor etc, which used widely in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc, and is the preferred and matched product for automatic machine.

Motor Model Instruction

Model	Gear Head	Rated Power	Voltage	Ampere	Speed	Torque	Shell Diameter	Motor Height
Model	Gear Head	W	V	A	r/min	mN.m	mm	06
GDM06-55SP GDM06-55SC	2GN	10	12	1.52	1500	63.63	Φ55	70
					1800	53
					2200	43.4
	Axis				3200	29.85
	2GN		24	0.7	1500	63.63
					1800	53
					2200	43.4
	Axis				3200	29.85

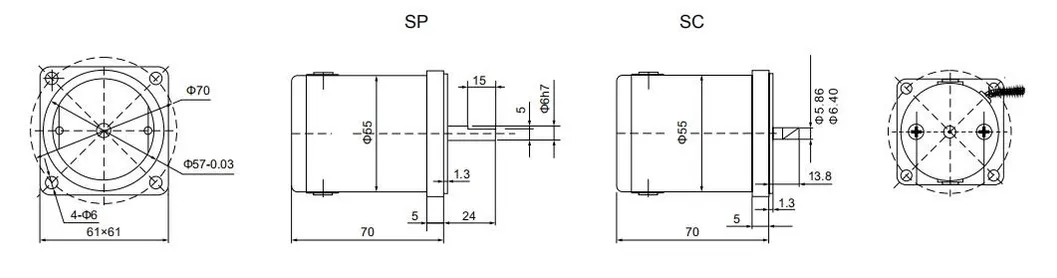

Drawing:GDM06-55/70SP/SC
Round Brushless 82mm DC Planetary Gear Motor Excellence in Quality

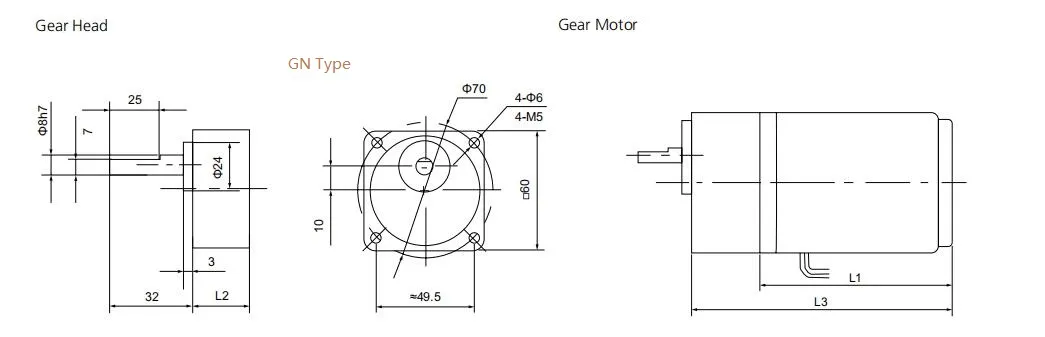

Type	Reduction Ratio	L1 mm	L2 mm	L3 mm
GDM06-55/70SC	1:3~1:20	70	32	102
GDM06-55/70SC	1:25~1:300	70	42	112

Note:Specification only for reference.
Shaft dimension and specification(voltage,torque,speed,etc) can be customized.
