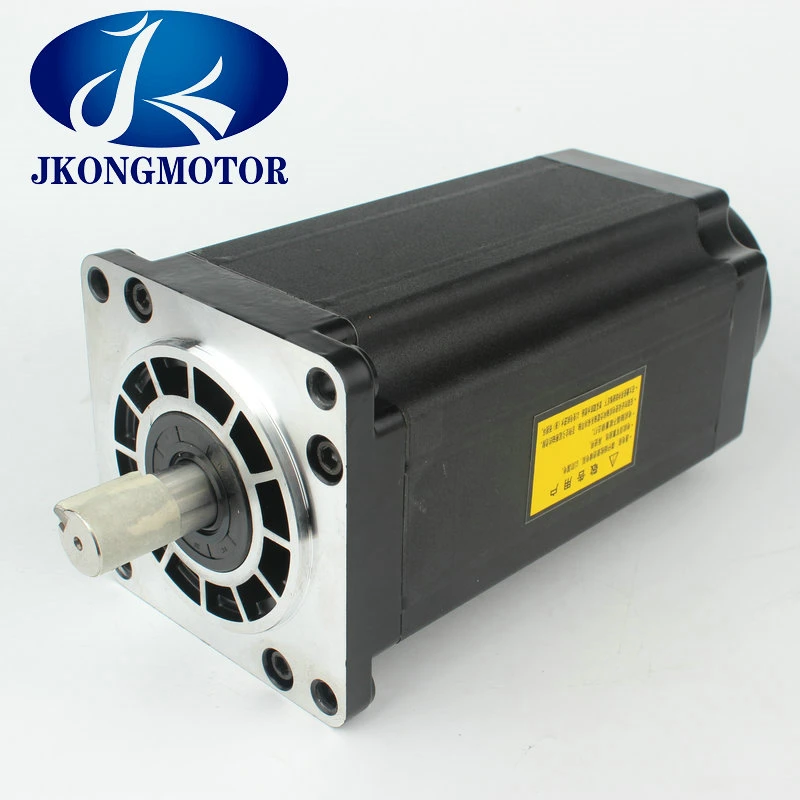

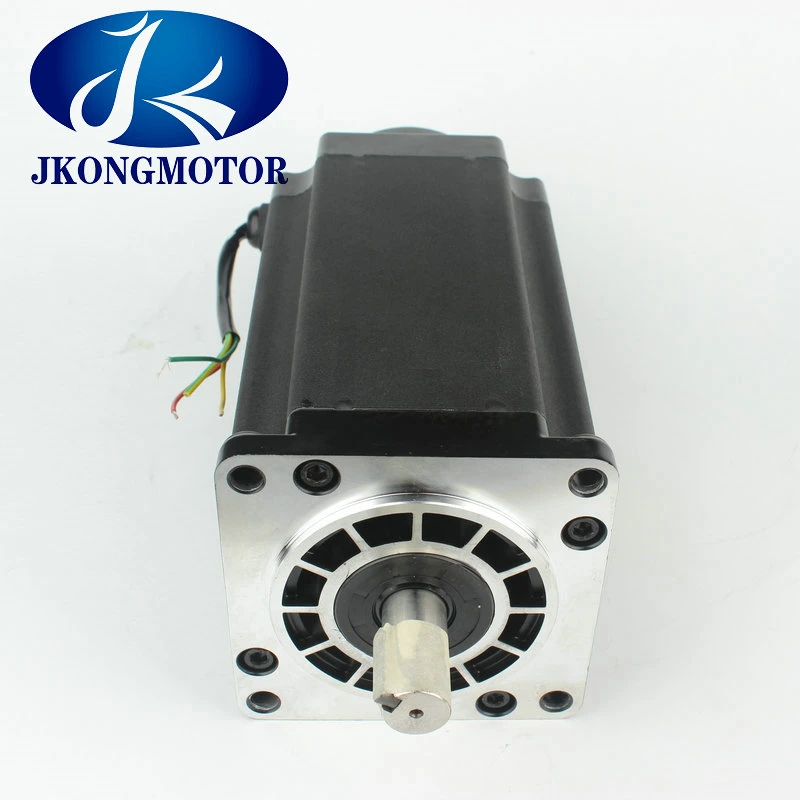

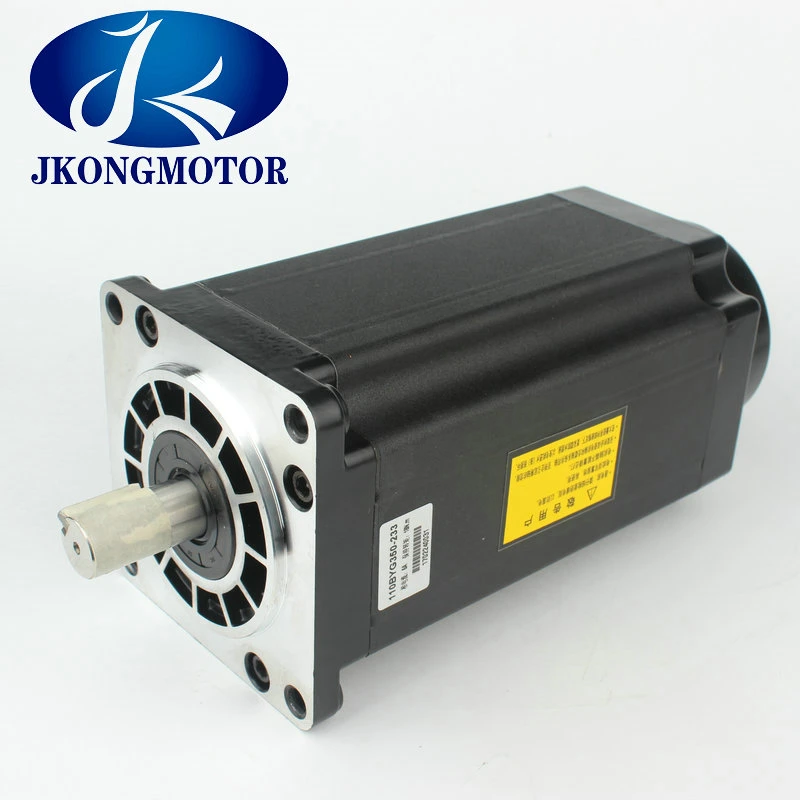

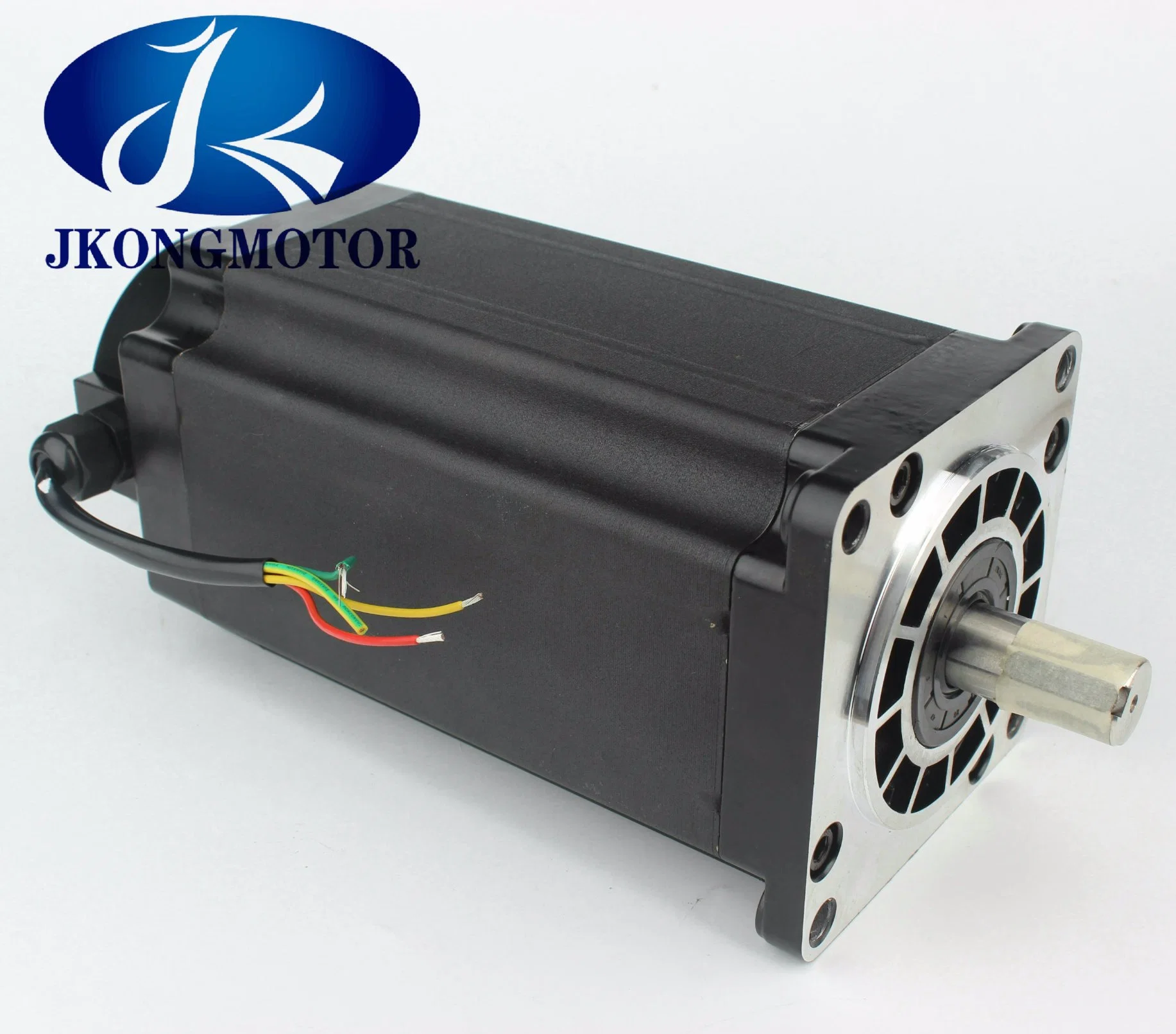

NEMA42 3 Phase Stepper Motor Electric DC Motor for 3D Printer
NEMA42 3 phase stepper motor electric dc motor for 3d printerGenaral Specification:ItemSpecificationsStep Angle1.2°Temperature Rise80ºCmaxAmbient Temperature-20ºC~+50ºCInsulation Resistance100 MΩ Min. ,500VDCDielectric Strength500VAC for 1minute Shaft Rad......
Send Inquiry
Product Description
NEMA42 3 phase stepper motor electric dc motor for 3d printer
Genaral Specification:
Electrical Specification:
Products of special request can be made according to the customer request !
company information:
our certification:
Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
Genaral Specification:
| Item | Specifications |
| Step Angle | 1.2° |
| Temperature Rise | 80ºCmax |
| Ambient Temperature | -20ºC~+50ºC |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Rotoer inertia | Leads | Motor Length |
| ( °) | (L)mm | A | Ω | mH | N.m | g.cm | Kg | ||
| JK110H3P134-3003 | 1.2 | 134 | 3 | 3.15 | 17 | 8 | 9750 | 3 | 7.8 |
| JK110H3P162-3003 | 1.2 | 162 | 3 | 4.2 | 22 | 13 | 12100 | 3 | 8.3 |
| JK110H3P194-5003 | 1.2 | 194 | 5 | 2.14 | 17.5 | 16 | 15300 | 3 | 10.5 |
| JK110H3P233-5003 | 1.2 | 233 | 5 | 1.93 | 23 | 20 | 18600 | 3 | 12.6 |
| JK110H3P253-5003 | 1.2 | 253 | 5 | 2.4 | 24.4 | 22 | 21000 | 3 | 13.1 |
| JK110H3P285-5003 | 1.2 | 285 | 5 | 2.9 | 27 | 25 | 24300 | 3 | 14.8 |

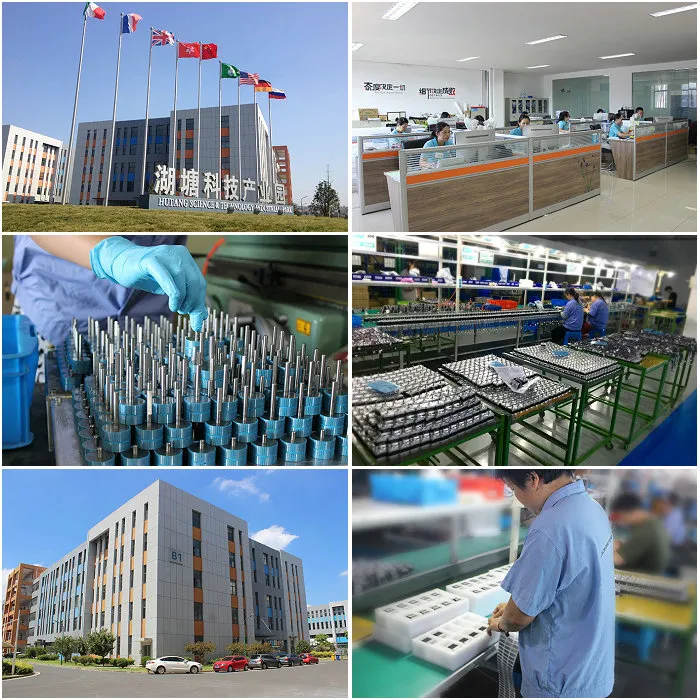

company information:
our certification:
Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
