NEMA 17 Low Rpm Gear Reducer Stepper Motor for Factory Price
nema17 Planetary Gearbox Stepping Motor price on hot saleGeneral SpecificatiHousing MaterialMetalBearing at OutputBall BearingsMax.Radial Load(12mm from flange) ≤80NMax.Shaft Axial Load≤30NRadial Play of Shaft (near to Flange)≤0.06mmAxial Play of Shaft ≤0.3mmBacklash at N......
Send Inquiry
Product Description

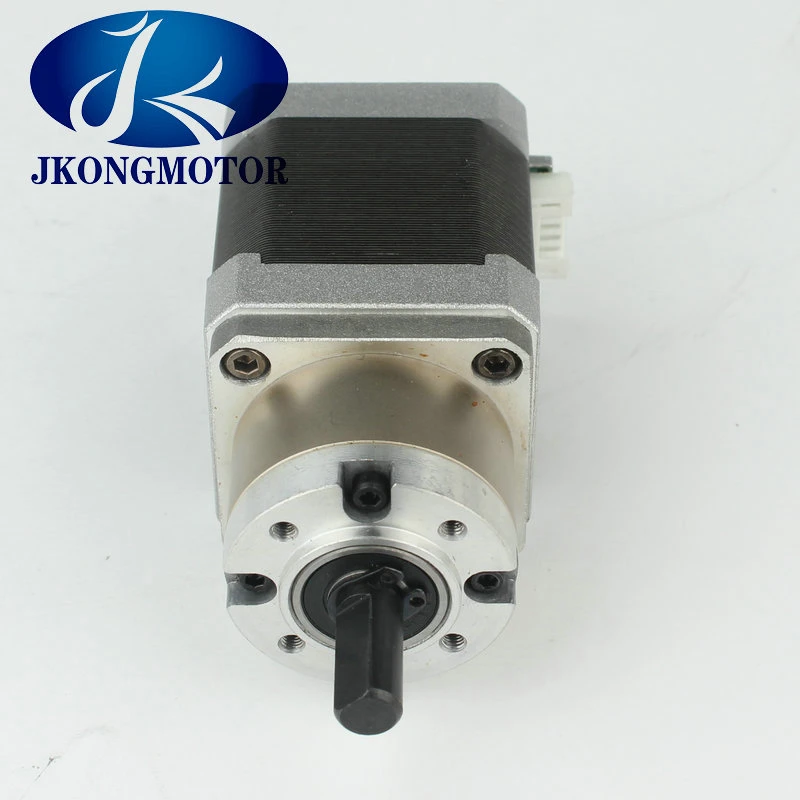

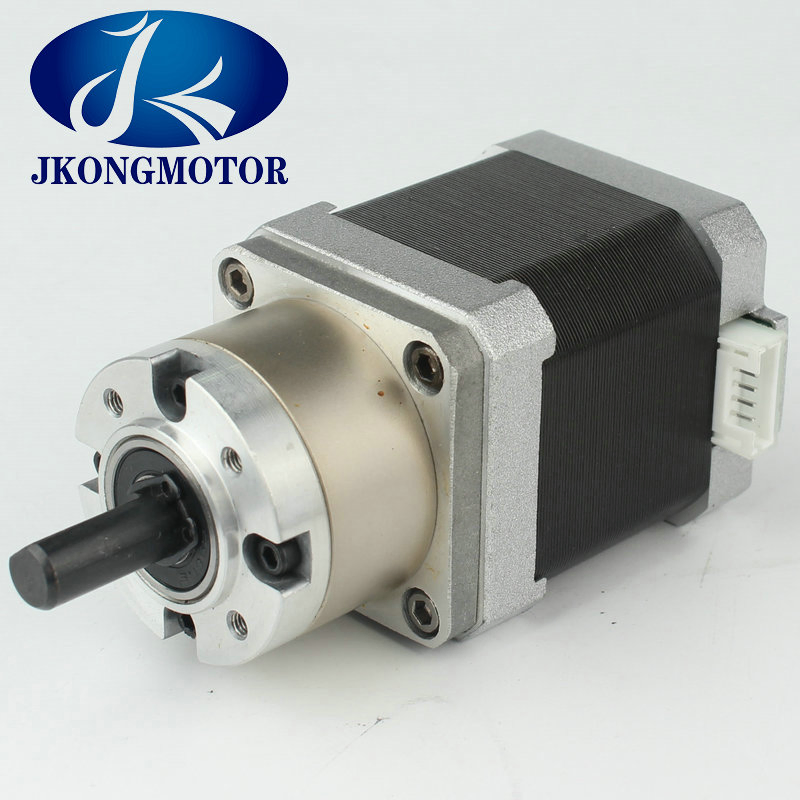

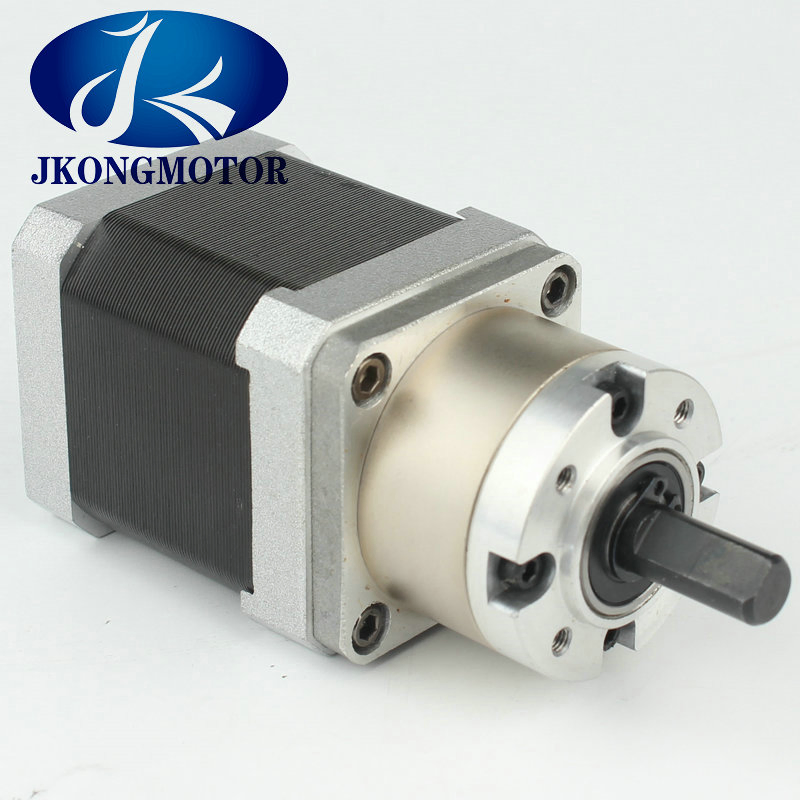

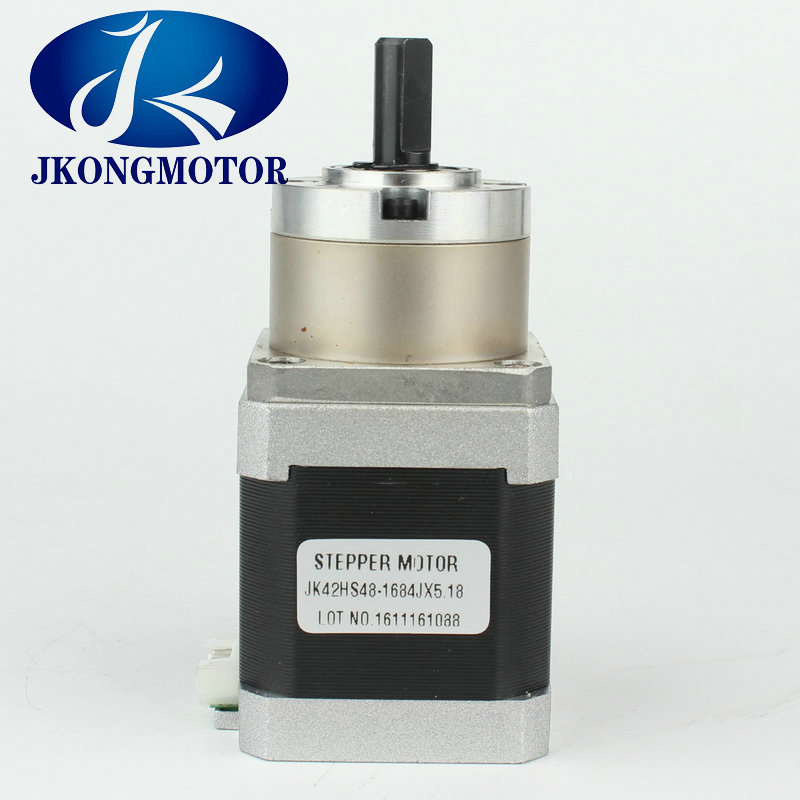

nema17 Planetary Gearbox Stepping Motor price on hot sale
General Specificati
Electrical Specification:
42HS Planetary Gearbox Specifications

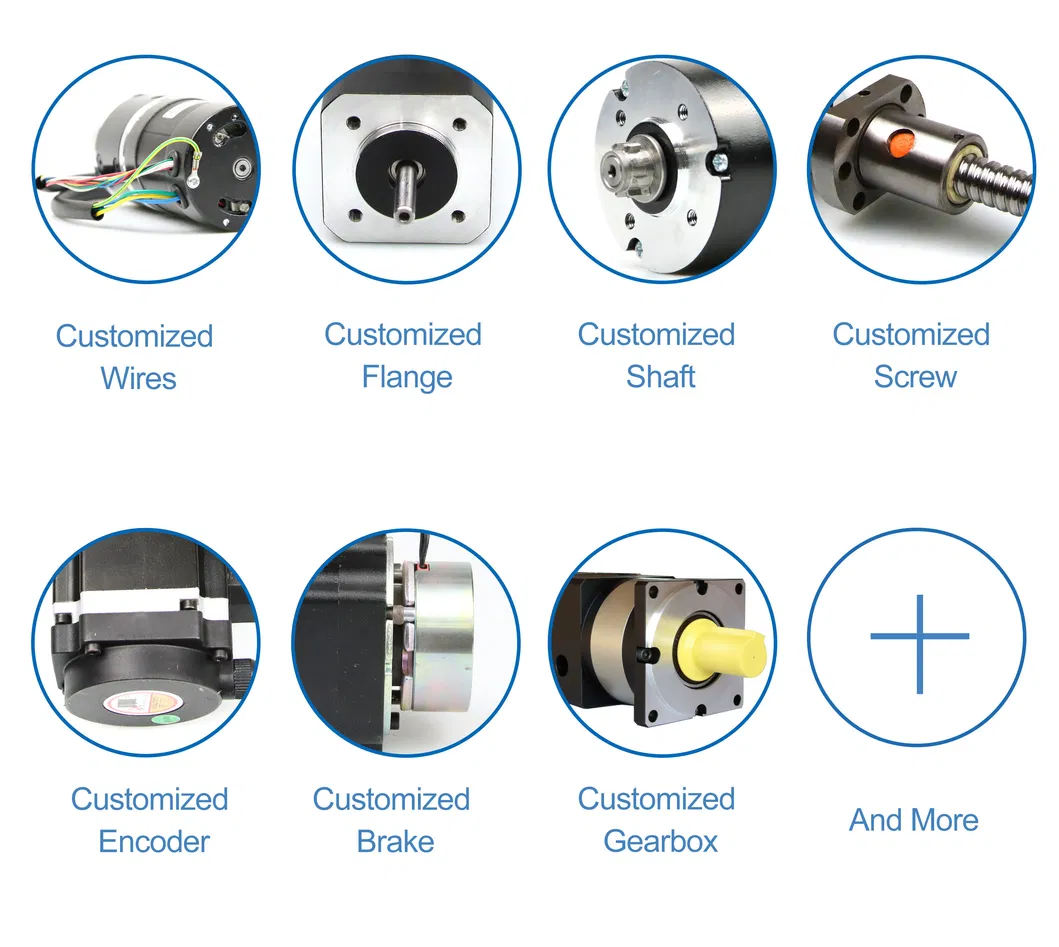

Products of special request can be made according to the customer request !
company information:
our certification:

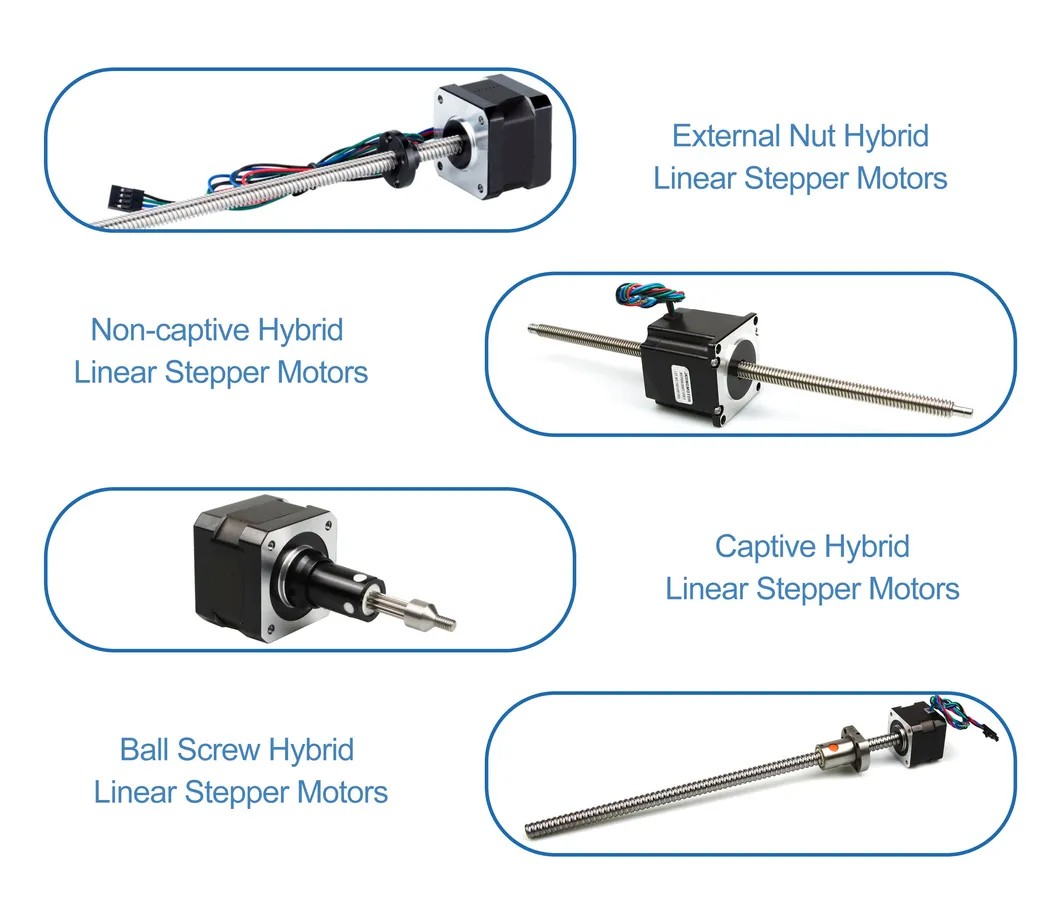

Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
General Specificati
| Housing Material | Metal |
| Bearing at Output | Ball Bearings |
| Max.Radial Load(12mm from flange) | ≤80N |
| Max.Shaft Axial Load | ≤30N |
| Radial Play of Shaft (near to Flange) | ≤0.06mm |
| Axial Play of Shaft | ≤0.3mm |
| Backlash at No-load | 1.5° |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3 | 2.7 | 2.9 | 6 | 150 | 54 | 0.28 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | 0.5 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 280 | 102 | 0.5 |
42HS Planetary Gearbox Specifications
| Reduction ratio | 3.71 | 5.18 | 13.76 | 19.2 | 26.8 | 51 | 71 | 99.5 | 139 |
| Number of gear trains | 1 | 2 | 3 | ||||||
| Length(L2) mm | 27.3 | 35 | 42.7 | ||||||
| Max.rated torque kg.cm | 20 | 30 | 40 | ||||||
| Short time permissible torque kg.cm | 40 | 60 | 80 | ||||||
| Weight g | 350 | 450 | 550 | ||||||

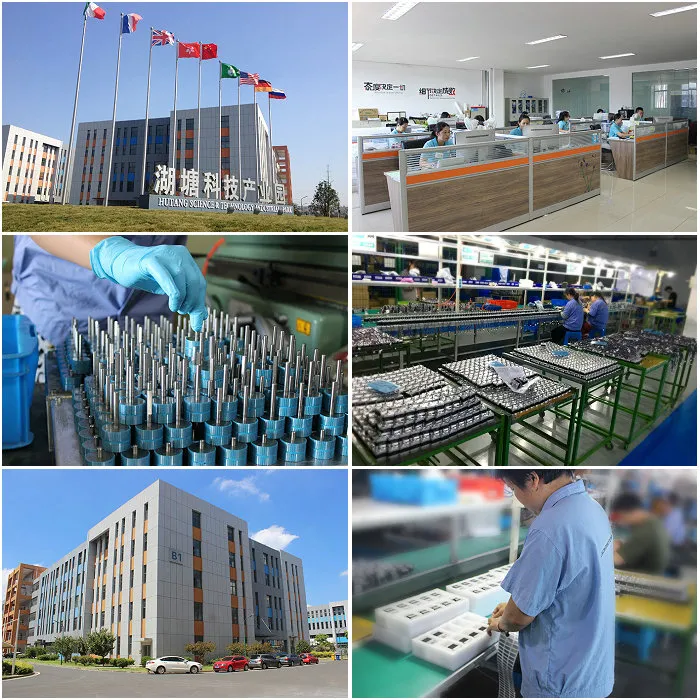

company information:
our certification:
Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
