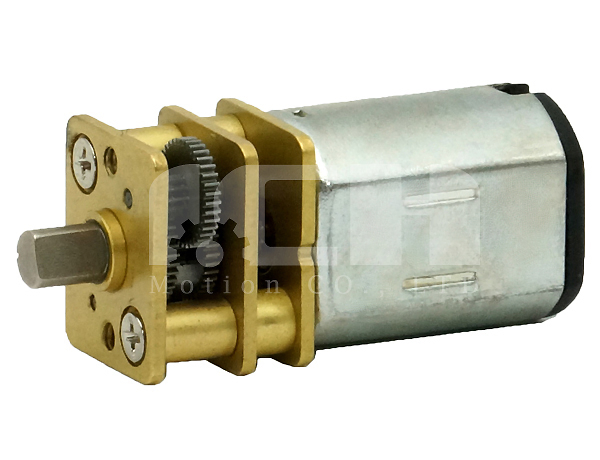

N20 Plastic Gearbox Micro Gear Motor 2.4V 3V 6V 50rpm 70rpm for Smart Electric Door Lock
Note:The specifications can be designed according to the customer's requirements!Application:Electric Drill, Screwdriver, Scanners, Printers, Vending Machine, Window Curtain, Coffee Machine, Electric Lock, etc.Parameter: Number of stages345Gear ratio i1050210 100250 150298Length of gearbox L(mm)......
Send Inquiry
Product Description
Note:
The specifications can be designed according to the customer's requirements!
Application:
Electric Drill, Screwdriver, Scanners, Printers, Vending Machine, Window Curtain, Coffee Machine, Electric Lock, etc.
Parameter:
Specification:
About Us:
We specialized in researching, developing, and servicing electric motors, gearbox, and high precision gears with the small module. After years of development, we have an independent product design and R&D team, service team, and a professional quality control team. To realize our service concept better, provide high-quality products and excellent service, we have been committed to the core ability and training. We have a holding factory in Nanjing, which produces high precision small mold gears, gear shaft, gearbox, and planetary gearbox assembling.
Work-flow:
Certificate:
RoHS, CE, and more...
Service:
ODM & OEM
Gearbox design and development
Package&Ship:
Carton, pallet, or what you want
The delivery time is about 30-45 days.
Customer's Visiting:
FAQ:
1. Can you custom gearbox?
YES.
2. DO you provide the sample?
YES.
3. Do you provide technical support?
YES
4. Do you have a factory?
Yes, we are a professional manufacturer.
5. Can I come to your company to visit?
YES
The specifications can be designed according to the customer's requirements!
Application:
Electric Drill, Screwdriver, Scanners, Printers, Vending Machine, Window Curtain, Coffee Machine, Electric Lock, etc.
Parameter:
Number of stages | 3 | 4 | 5 |
| Gear ratio i | 10 | 50 | 210 |
| 100 | 250 | ||
| 150 | 298 | ||

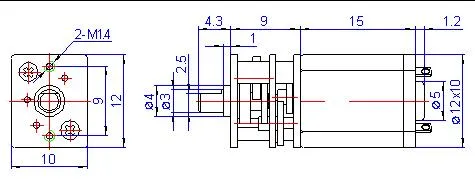

| Length of gearbox L(mm) | 9.0 | ||
Specification:
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED rpm | CURRENT mA | SPEED rpm | TORQUE kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
| D122-003210 | 3.0 | 35 | 35 | 27 | 0.25 | 80 | 70 | 1.2 | 250 |
| D122-001100 | 3.0 | 110 | 50 | 91 | 0.14 | 150 | 130 | 1.0 | 650 |
| D122-001050 | 2.4 | 300 | 60 | 240 | 0.07 | 250 | 170 | 0.4 | 1000 |
| D122-004298 | 3.0 | 50 | 60 | 40 | 0.4 | 250 | 170 | 2.2 | 1000 |
About Us:
We specialized in researching, developing, and servicing electric motors, gearbox, and high precision gears with the small module. After years of development, we have an independent product design and R&D team, service team, and a professional quality control team. To realize our service concept better, provide high-quality products and excellent service, we have been committed to the core ability and training. We have a holding factory in Nanjing, which produces high precision small mold gears, gear shaft, gearbox, and planetary gearbox assembling.

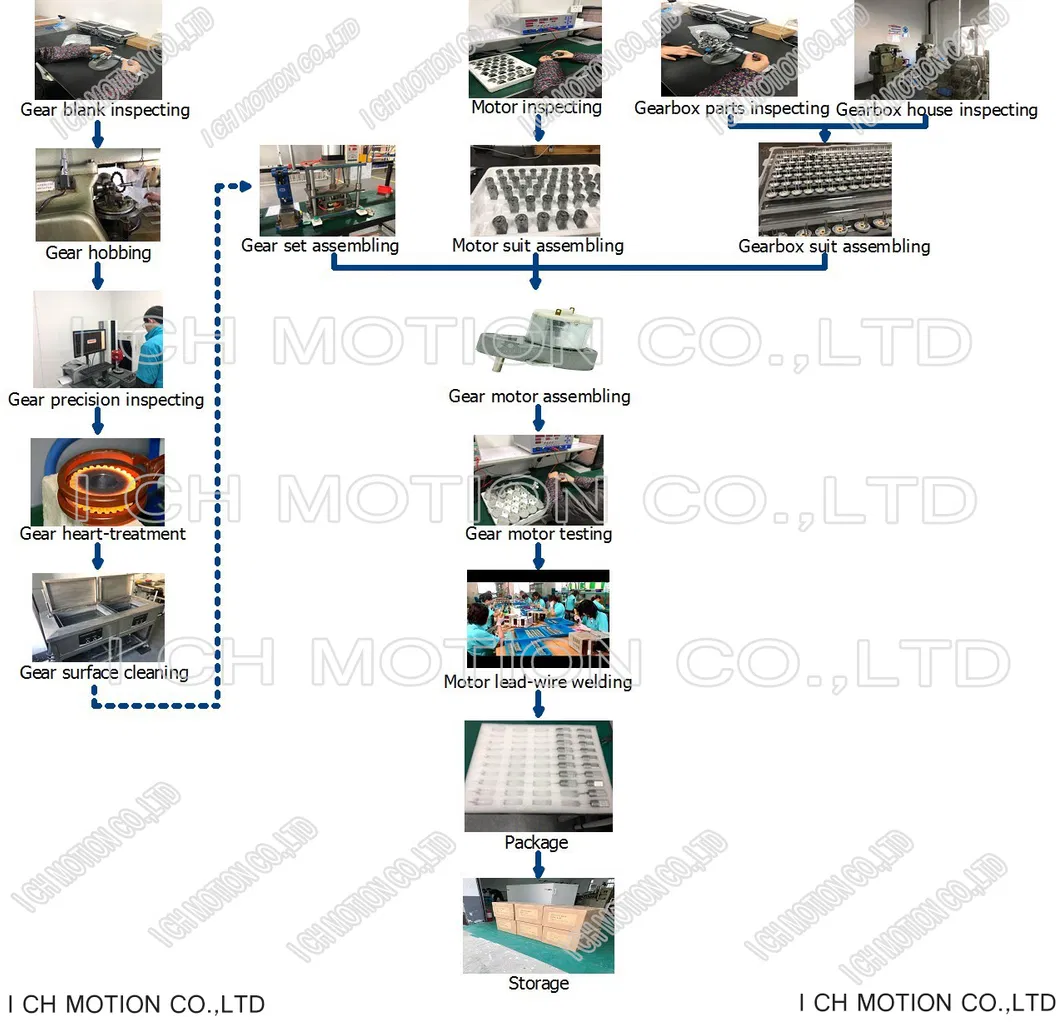

Work-flow:

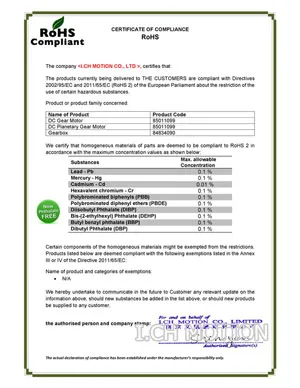

Certificate:
RoHS, CE, and more...
Service:
ODM & OEM
Gearbox design and development
Package&Ship:
Carton, pallet, or what you want
The delivery time is about 30-45 days.
Customer's Visiting:
FAQ:
1. Can you custom gearbox?
YES.
2. DO you provide the sample?
YES.
3. Do you provide technical support?
YES
4. Do you have a factory?
Yes, we are a professional manufacturer.
5. Can I come to your company to visit?
YES
