Low Noise 12V 52W 97W 63mm Brush Planetary DC Motor for Cutting Machine
voltageVDCno load speedRPMno load currentAload torqueKG.CMon load speedRPMpowerWratio12801.860688060:1121301.2331103020:1121501.2451303020:1121701.4351504524:124301.460253060:1246512050608020:1242101.0401804575:1technical feature High Power version with 50A stall current:With 48CPR encoder or not 48......
Send Inquiry
Product Description

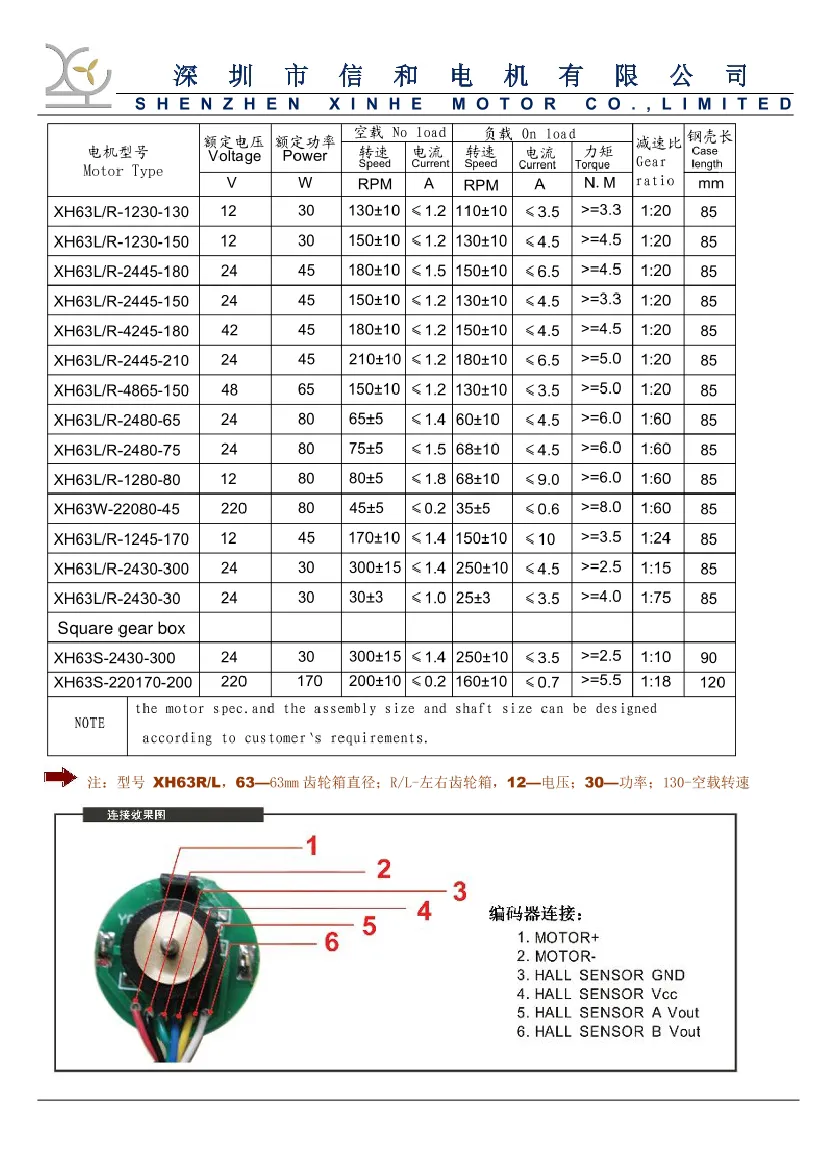

| voltage VDC | no load speed RPM | no load current A | load torque KG.CM | on load speed RPM | power W | ratio |
| 12 | 80 | 1.8 | 60 | 68 | 80 | 60:1 |
| 12 | 130 | 1.2 | 33 | 110 | 30 | 20:1 |
| 12 | 150 | 1.2 | 45 | 130 | 30 | 20:1 |
| 12 | 170 | 1.4 | 35 | 150 | 45 | 24:1 |
| 24 | 30 | 1.4 | 60 | 25 | 30 | 60:1 |
| 24 | 65 | 120 | 50 | 60 | 80 | 20:1 |
| 24 | 210 | 1.0 | 40 | 180 | 45 | 75:1 |

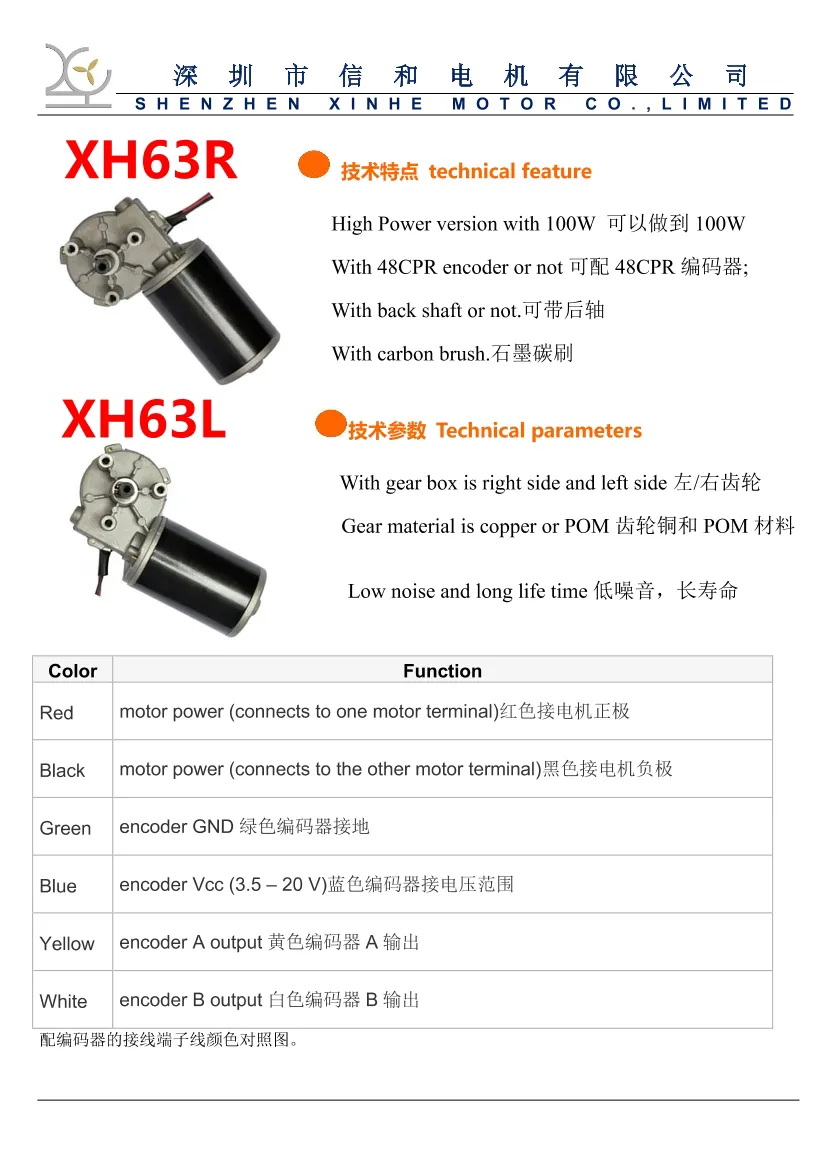

technical feature High Power version with 50A stall current:
With 48CPR encoder or not 48CPR
With back shaft or not.
With metal brush or carbon brush.

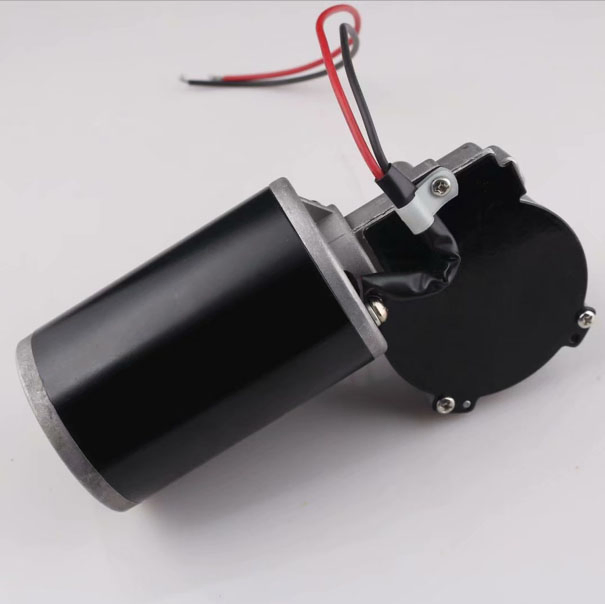

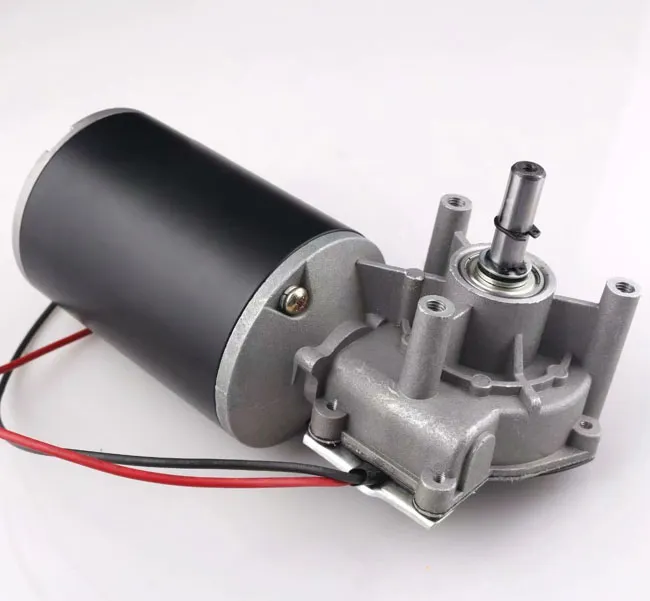

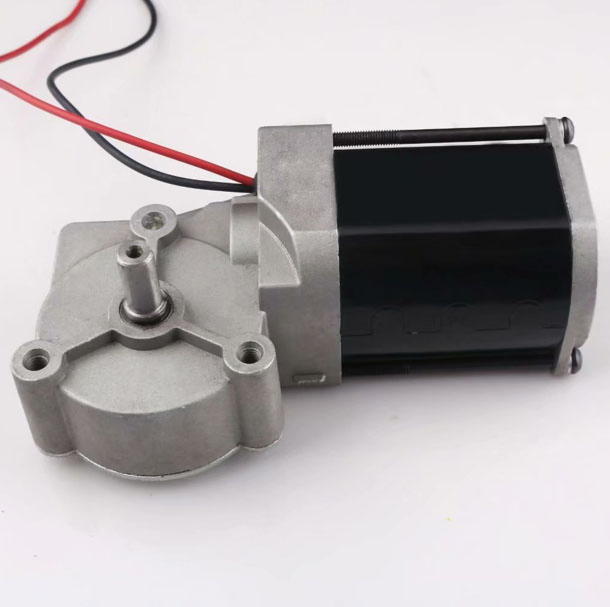

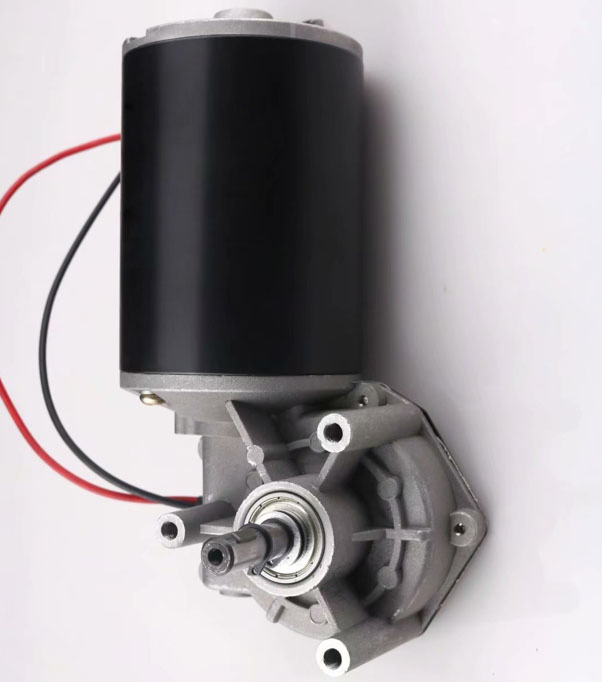

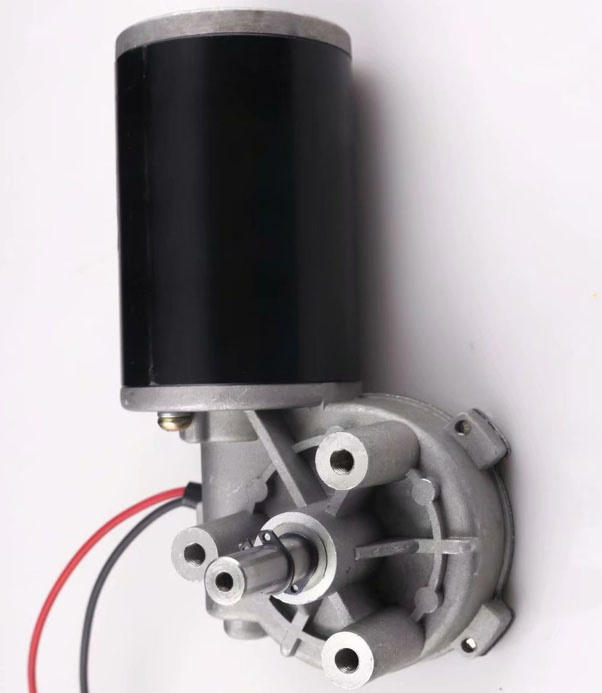

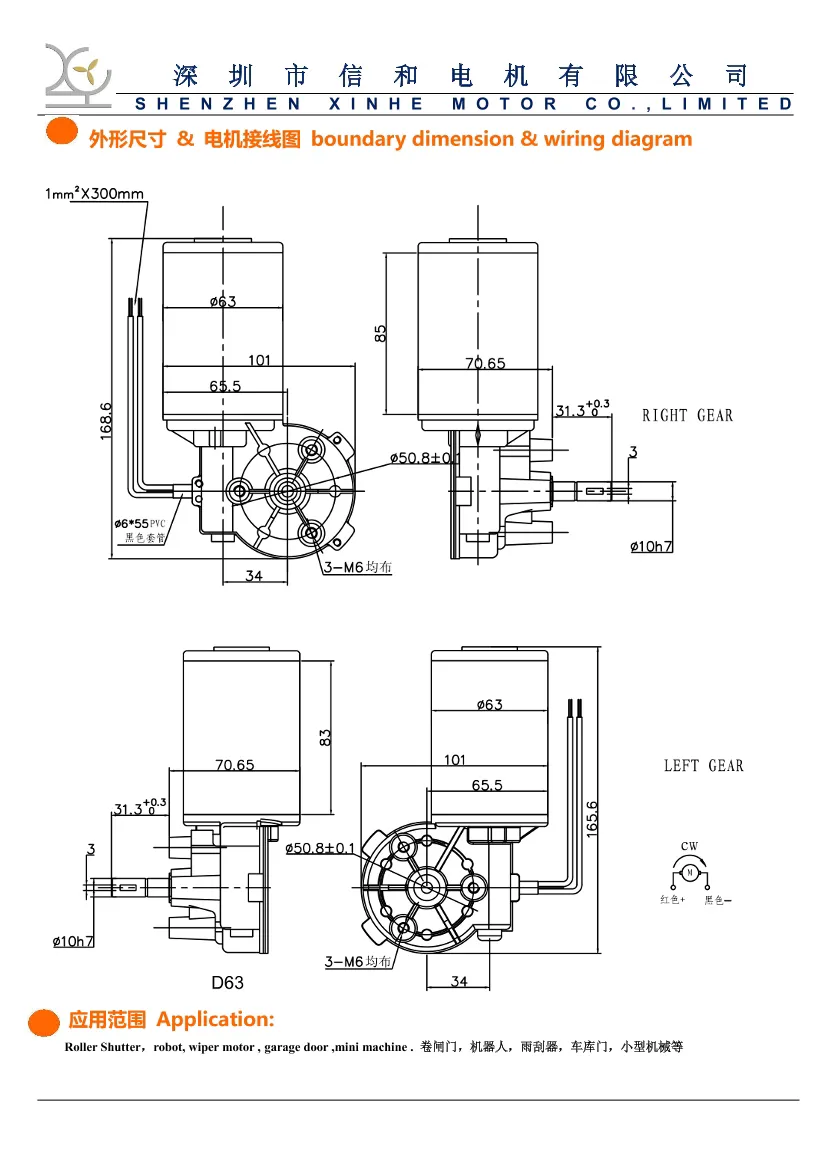

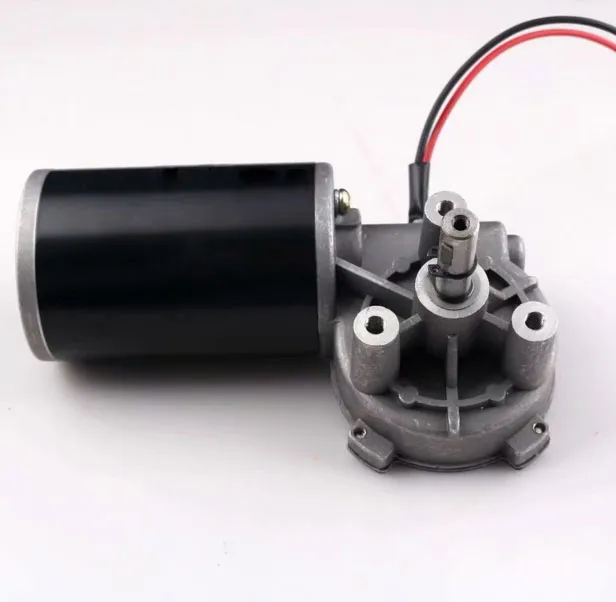

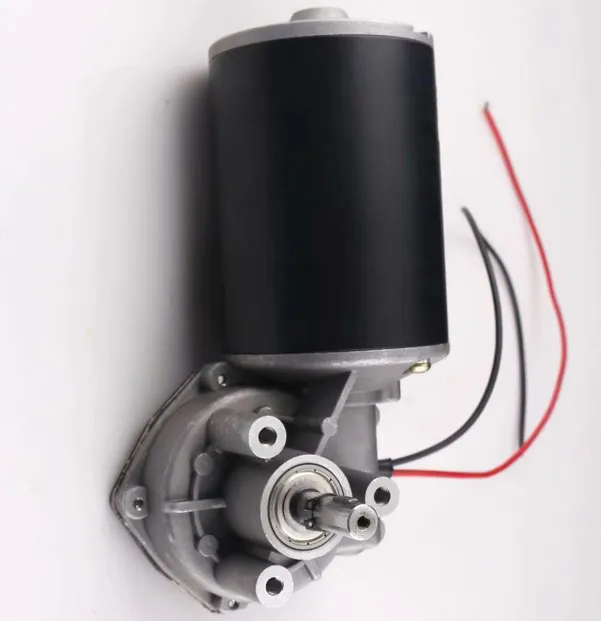

63mm dcworm gear motor
