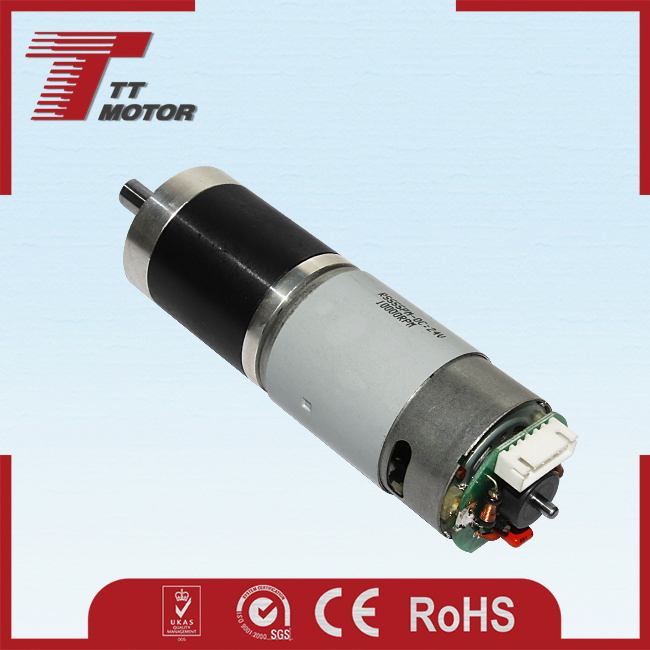

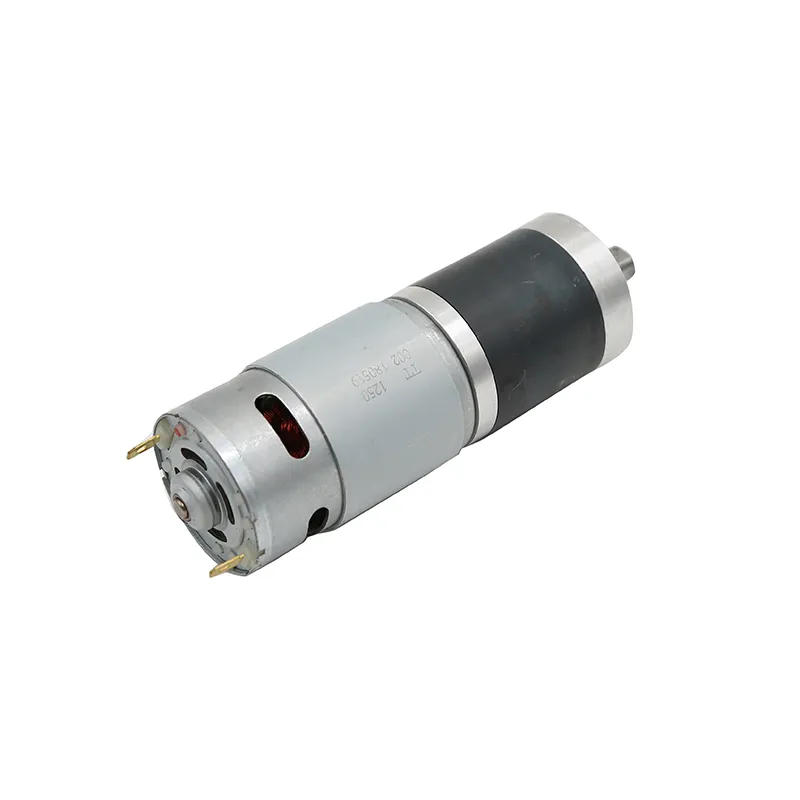

Household appliances big torque DC gear electrical motor

Household appliances big torque dc gear electrical motorGear motor Main Features1.36mm planetary gearbox plus 36mm DC motor2.Small size DC gear motor with low speed and big torque3.36mm gear motor provide 3.0Nm torque and more reliable4.DC gear motors can match encoder 11ppr5.Reduction ratio:4,14,19......

Send Inquiry

Product Description

Household appliances big torque dc gear electrical motor

Gear motor Main Features

1.36mm planetary gearbox plus 36mm DC motor

2.Small size DC gear motor with low speed and big torque

3.36mm gear motor provide 3.0Nm torque and more reliable

4.DC gear motors can match encoder 11ppr

5.Reduction ratio:4,14,19,27,51,71,100,139,189,264,369,516,720

Motor technical data :

Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
Motor model no.	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TRS-555PM-1233	12	3300	200	2800	200	1000	5.7	1150	5.5
TRS-555PM-1250	12	5000	250	4300	230	1600	10.1	1640	12.6
TRS-555PM-2440	24	4000	150	3150	200	700	6.4	1000	2.7

Gear motor technical data : GMP36-555PM-1233-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5	47.5
No-load speed rpm	750	160	60	32	23	17	12	9	6	4
Rated speed rpm	700	150	55	28	20	15	11	8	6	4
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30	30
Max.momentary tolerance torque kg.cm	3.7	15	35	70	70	70	70	70	70	70

Gear motor technical data : GMP36-555PM-1250-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5	47.5
No-load speed rpm	1200	250	95	48	35	25	19	13	10	7
Rated speed rpm	1070	225	85	43	31	23	16	12	9	7
Rated torque kg.cm	0.8	3.4	8	16	22	26	30	30	30	30
Max.momentary tolerance torque kg.cm	6	25	59	70	70	70	70	70	70	70

Gear motor technical data : GMP36-555PM-2440-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5	47.5
No-load speed rpm	980	200	75	38	28	21	15	10	8	6
Rated speed rpm	750	155	60	30	21	16	13	9	7	5
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30	30
Max.momentary tolerance torque kg.cm	3.2	13	25	50	60	70	70	70	70	70

Product Application

Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

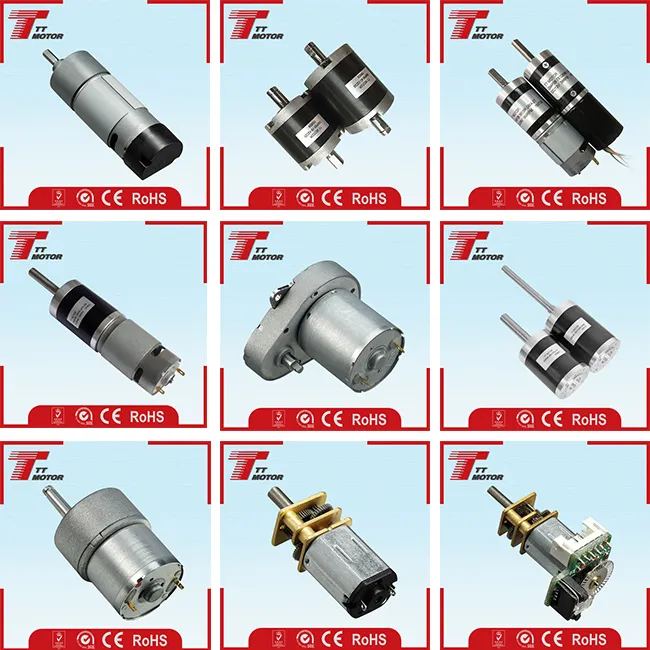

Related Products

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country

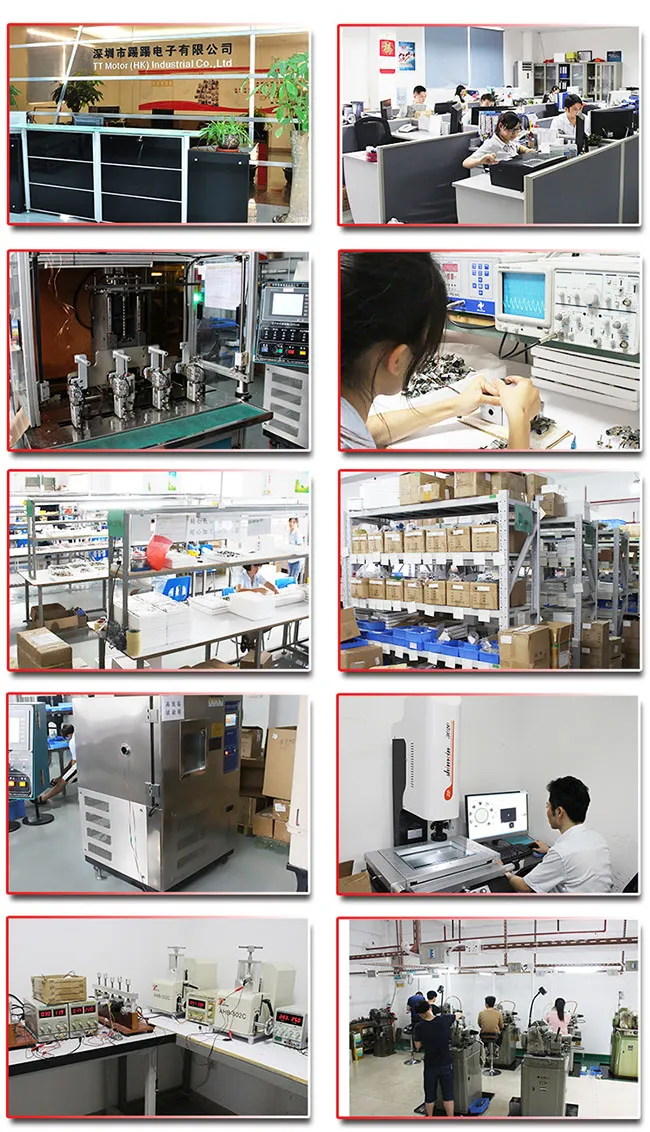

Our Company

TT Motor (HK) Industrial Co., Ltd has been specializing in bldc motor,brushless motor,stepper motor,dc motor,electric motor,micro motors, geared motors and their respective parts since 2006.

Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.

By leveraging our hard-won reputation for honesty, dependability and quality, TT Motor aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Certifications

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Our website:ttmotor.en.made-in-china.com

Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the delivering?
A: Devliver time depends on the quantity you order. Usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.

Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
