High Torque 30nm Electrical PMDC Geared Motor for Moblility Scooter/Vehicle
24V250W, 95RPM DC Brushed Hub Motor8Inch Powered Wheel with Single Axis/EMB Brake/Hand lever Most use in Electric Vehicle, Wheelchair/Hospital Bed/ Electric Forklift and So on.Singleoutput Axis ,electromagnetic brake and manual clutch brake.Bigger starting torque, wide speed range.Low speed runnin......
Send Inquiry
Product Description

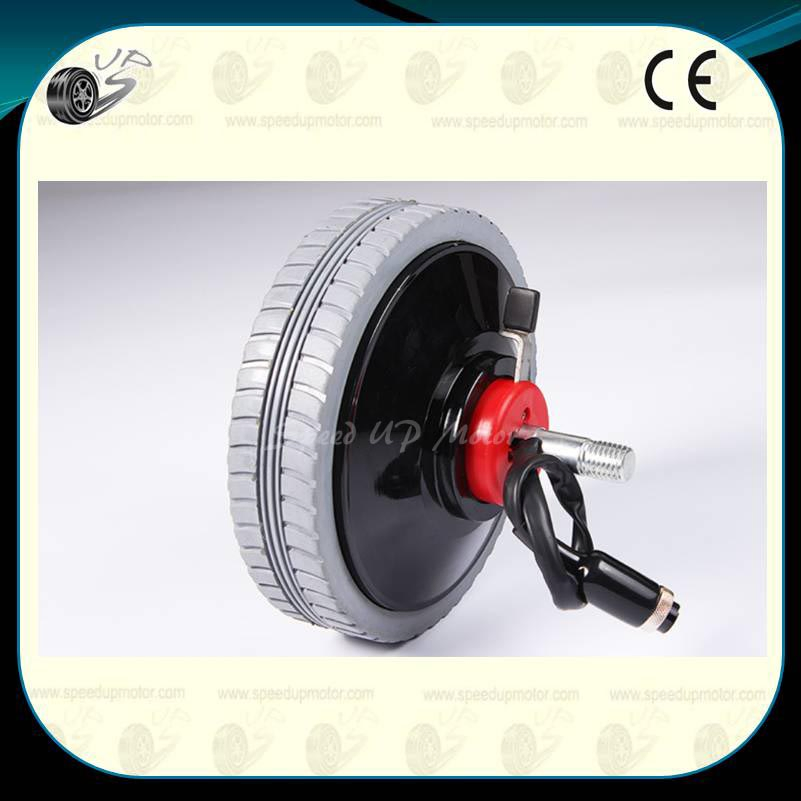

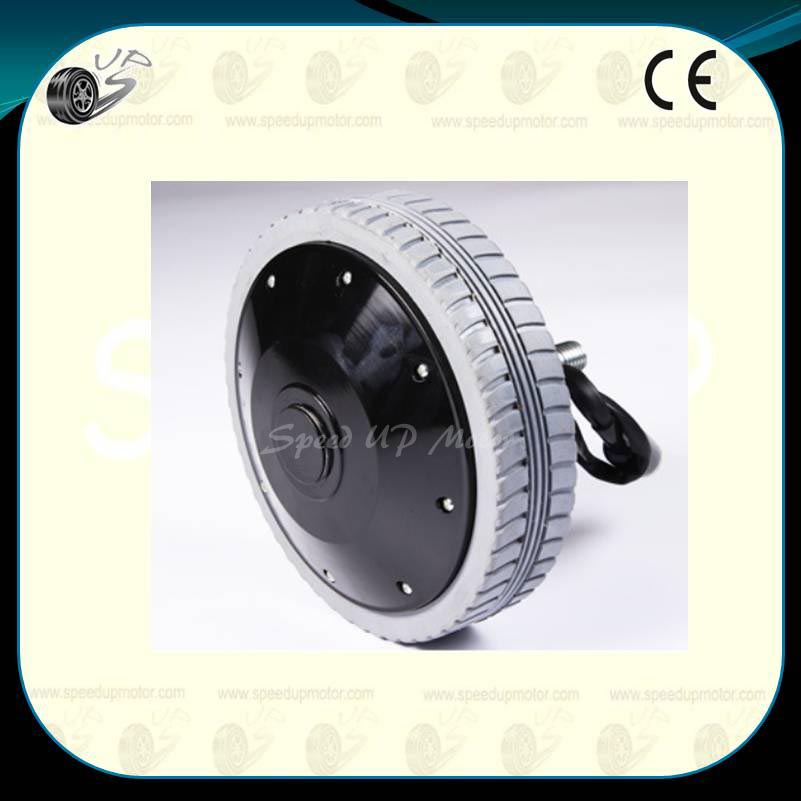

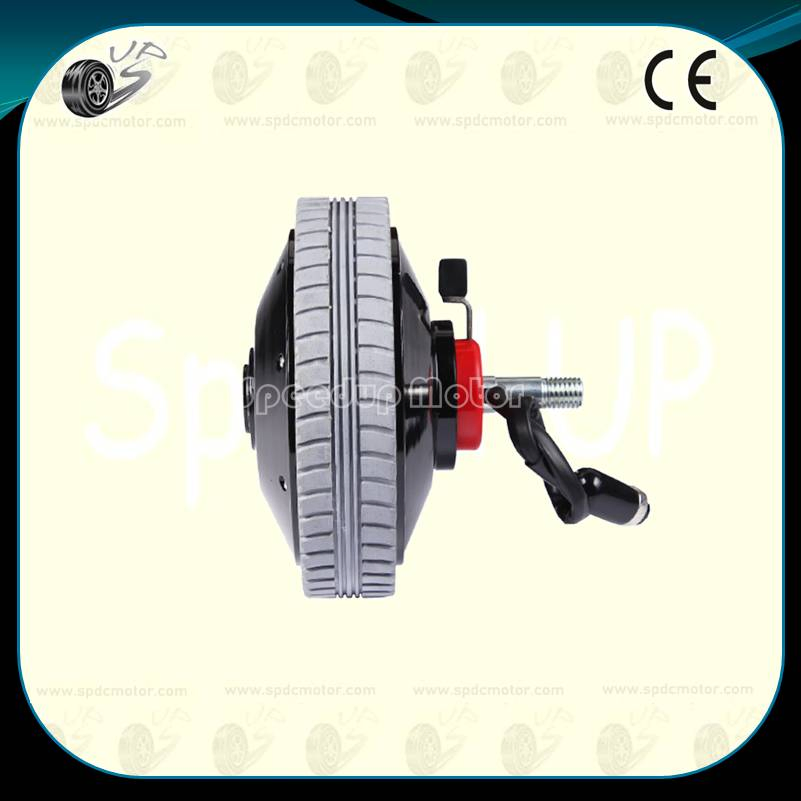

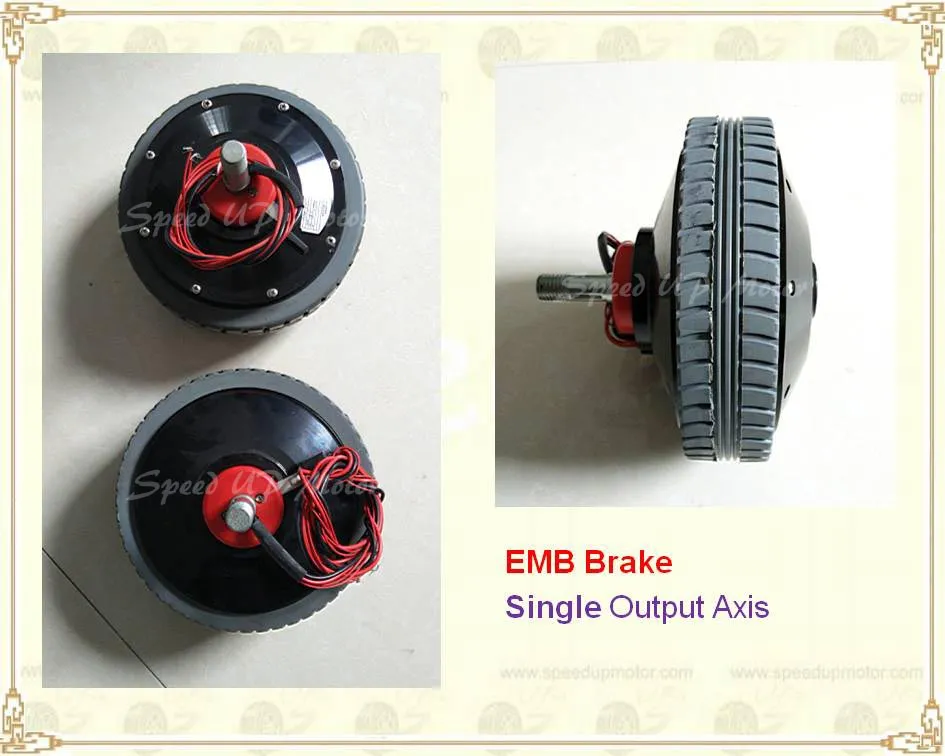

24V250W, 95RPM DC Brushed Hub Motor
8Inch Powered Wheel with Single Axis/EMB Brake/Hand lever
Most use in Electric Vehicle, Wheelchair/Hospital Bed/ Electric Forklift and So on.
- Singleoutput Axis ,electromagnetic brake and manual clutch brake.
- Bigger starting torque, wide speed range.
- Low speed running and good performance for commutation ability
- Small volume and high efficiency
- Rated voltage can be 24V/36V
- Rated output power can be 180/200/250/300W
- Rated speed 70/100/130/180rpmor customized
Specifications:
| Product types: | Brush DC HUB motor |
| Model: | 1DY-E3B |
| Rated power: | 250W |
| Rated voltage: | 24V |
| Rated speed | 95RPM |
| Custom made: | Yes |

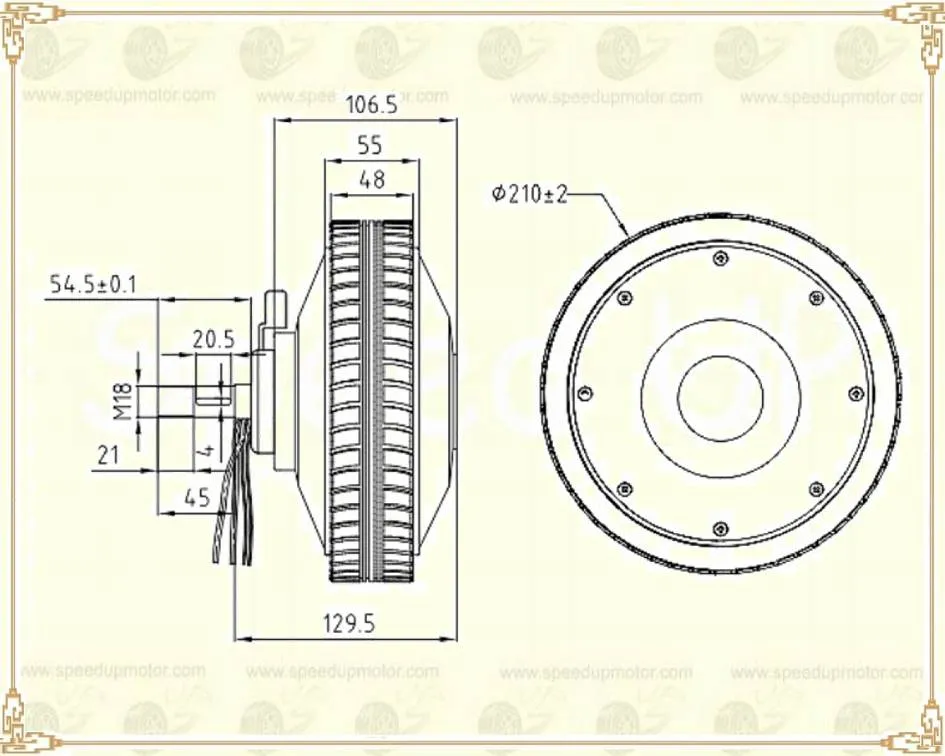

| Diameter: | 210mm |
| Thickness: | 143.6mm |
| Output axis | Single |
Design Options:
- Operating voltages to suit
- Custom shaft(Axis)sizes/profiles
- Tailored performance profiles
- Special OEM configurations
- Gear ratio selections
Competitive Advantage:
- Use thin plate-type printed armature winding
- High strength and wear-resistant gear shifting system.

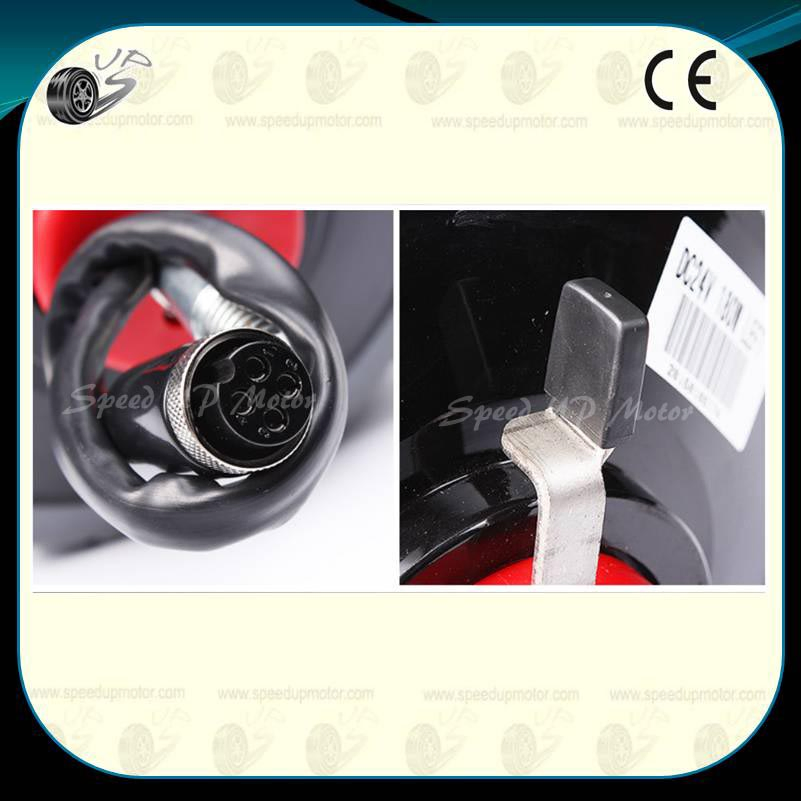

- Built-in brake with electromagnetic clutch,and support manual clutch.
- Bigger starting torque, wide speed range.
- Low speed running and good performance for commutation ability
- Small volume and high efficiency
