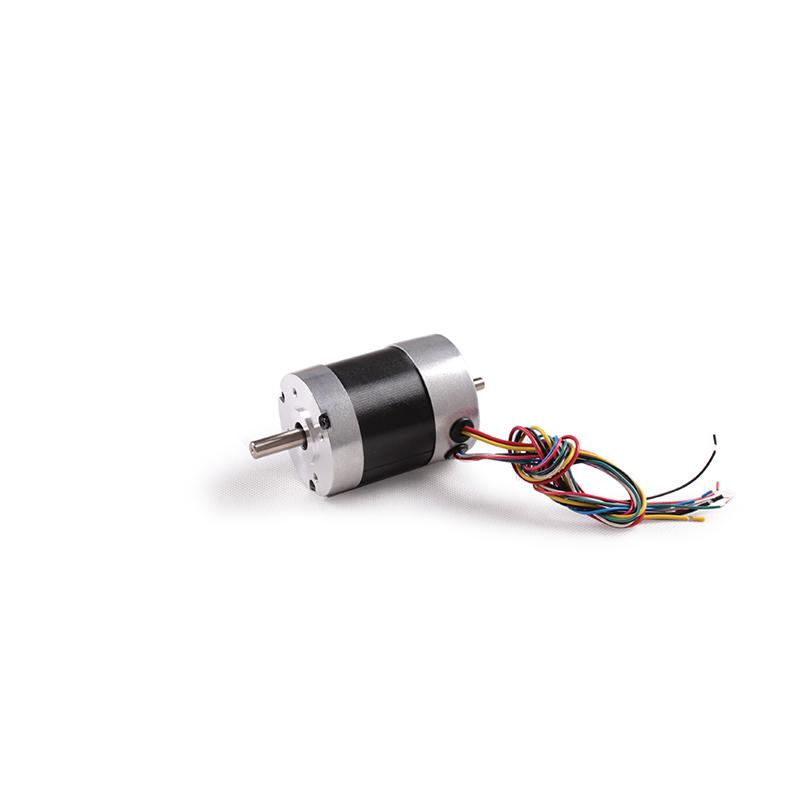

High-Quality China Bg BLDC Mini Explosion-Proof 75W High Torque Low Rpm 4000rpm DC Planetary Gear Motor

Product Description

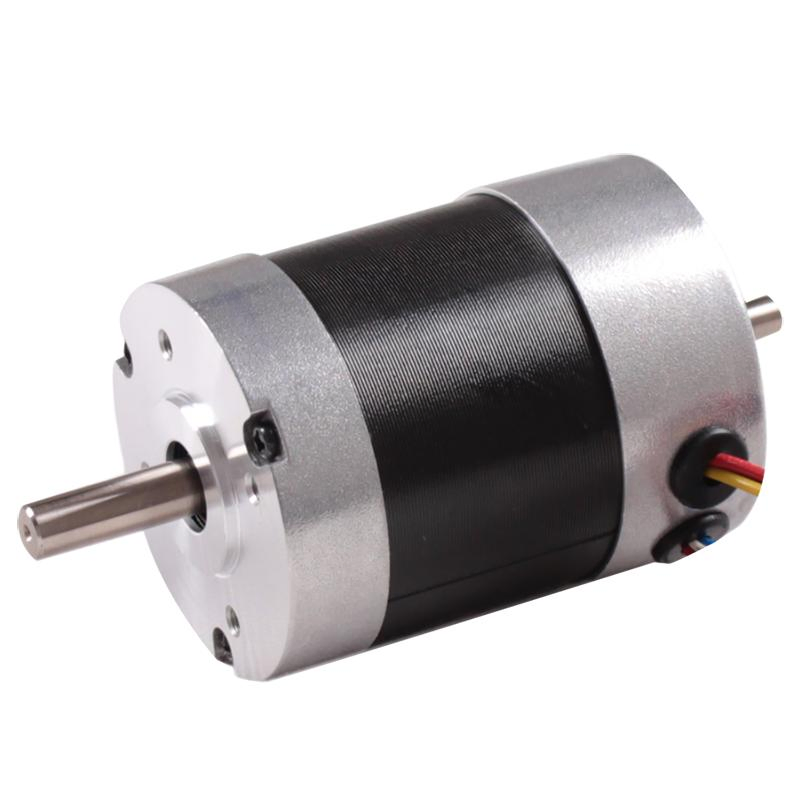

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

*FL57BL/56JM300*K	Φ57,:3N.m~30N.m
	57mm OD Planetary Gearbox, Permissible Load Range: 3N.m~30N.m

Wire Diagram

U	V	W	Vcc	Ha	Hb	Hc	GND
Yellow	Red	Black	Red	Blue	Green	White	Black
UL1430 AWG20			UL1430 AWG20

Dimensions

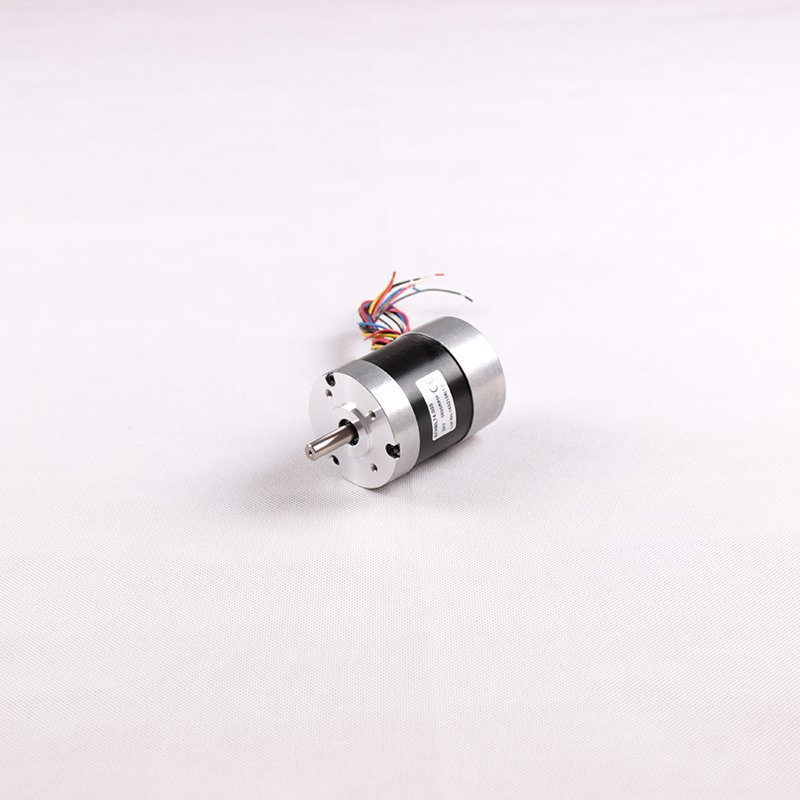

Brushless Motor Technical Data

TYPE
	Number of poles	Number of phase	Rated voltage	No-load speed	Rated speed	Rated torque	Rated power	Reak torque	Peak current	Line to line resistance	Line to line inductance
	Number of poles	Number of phase	VDC	r/min	r/min	N.m	W	N.m	A	ohms	mH
FL57BL54-3650	4	3	36	5000	4000	0.11	46	0.39	6.8	1.63	4.4
FL57BL74-3650	4	3	36	5000	4000	0.22	99	0.7	12	0.64	2
FL57BLA54-3650	6	3	36	5000	4000	0.2	83	0.6	14	0.87	1

Brushless Gear Motor Technical Data
FL57BLS54-3650 (LD=53.6mm) FL57BLS54-3650 DC Brushless Motor(LD=53.6mm)

Reduction ratio	3.60	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187	220
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4	4
(L) Length(L) mm	37.8	37.8	37.8	49.5	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9
Rated speed r/min	111	941	750	308	267	222	174	143	93	77	66	56	42	33	26	21	18
Rated torque N.m	0.36	0.42	0.53	1.2	1.3	1.6	2.0	2.5	3.5	4.2	4.9	5.8	7.7	9.7	11	13	16
N.m Max. permissible load in a short time	9	9	9	36	36	36	36	36	72	72	72	72	72	72	90	90	90

FL57BLS74-3650 (LD=73.6mm) FL57BLS74-3650 DC Brushless Motor(LD=73.6mm)

Reduction ratio	3.60	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187	220
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4	4
(L) Length(L) mm	37.8	37.8	37.8	49.5	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9
Rated speed r/min	111	941	750	308	267	222	174	143	93	77	66	56	42	33	26	21	18
Rated torque N.m	0.71	0.84	1.1	2.3	2.7	3.2	4.1	5.0	6.9	8.4	9.8	12	15	19	22	27	30
N.m Max. permissible load in a short time	9	9	9	36	36	36	36	36	72	72	72	72	72	72	90	90	90

FL57BLA54-3650 (LD=53.6mm) FL57BLA54-3650 DC Brushless Motor(LD=53.6mm)

Reduction ratio	3.60	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187	220
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4	4
(L) Length(L) mm	37.8	37.8	37.8	49.5	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9
Rated speed r/min	111	941	750	308	267	222	174	143	93	77	66	56	42	33	26	21	18
Rated torque N.m	0.65	0.77	1.0	2.1	2.4	2.9	3.7	4.5	6.3	7.6	8.9	11	14	18	20	24	29
N.m Max. permissible load in a short time	9	9	9	36	36	36	36	36	72	72	72	72	72	72	90	90	90

High-Quality China Bg BLDC Mini Explosion-Proof 75W High Torque Low Rpm 4000rpm DC Planetary Gear Motor

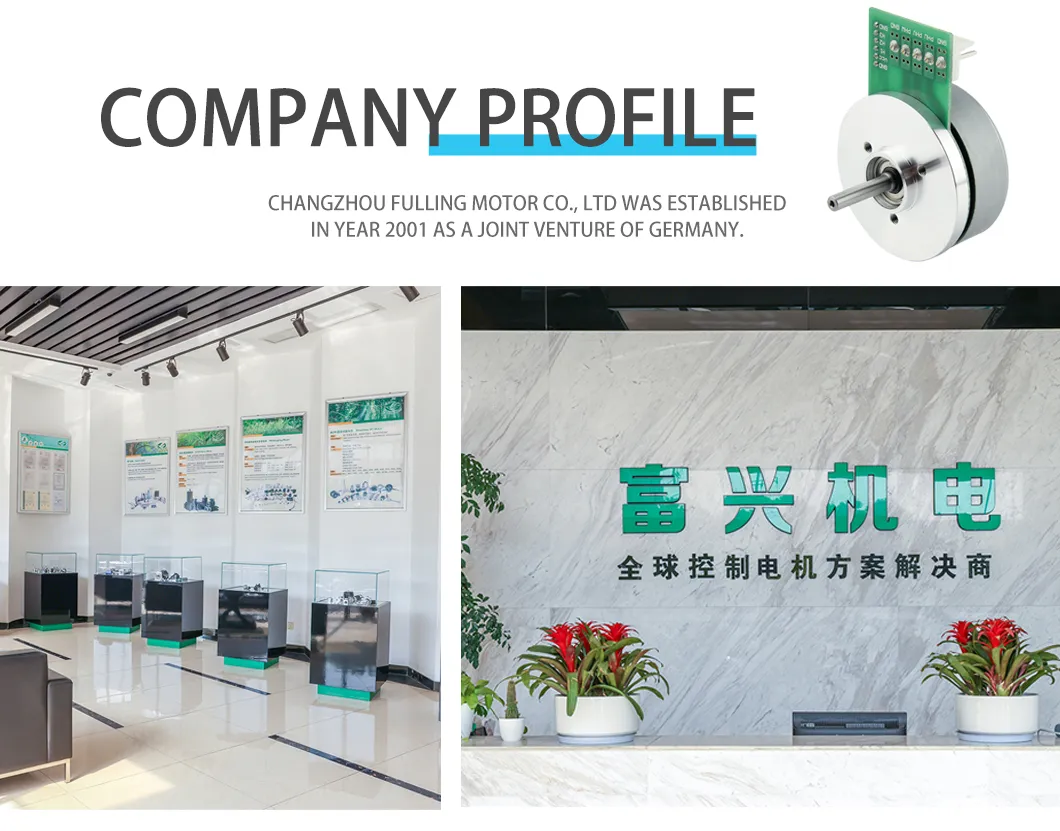

Changzhou Fulling Motor Co., Ltd was established in year 2001 as a joint venture of Germany‐Swiss‐China. We are a professional motor manufacturer in Changzhou city, China. Our Company offers four major series of products: Hybrid stepper motors, DC brushless motors, Low Voltage Servo motors and the motor drivers. Production capacity exceeds more than 6 million motors per year. Changzhou Fulling Motor Co., Ltd also has several joint venture companies who specialized in the production of AC Servo motor, PM stepper motors, and DC gear motors.

We sell nearly 8 million different motors to customers worldwide every year. Our products are widely used on industrial automation, robots, textile, printing, medical equipments, logistics, communication, household appliances and automobile etc. We export our motors to more than 30 countries such as Italy, Germany and United States.
With FULLING R&D team, well-managed production process and advanced testing equipment, we keep supplying reliable motors. By using strict quality managing system and service system, FULLING has successfully passed the quality management system certification for ISO9001, IATF16949 and ISO14001, which were authorized by the German TUV group.
All products are RoHS compliant and CE certified; some are UL approved.

High-Quality China Bg BLDC Mini Explosion-Proof 75W High Torque Low Rpm 4000rpm DC Planetary Gear Motor

Q:How long is the lead time of orders?
A:Lead time : 10~12 weeks

Q:Vhat is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.

Q: What's Moq?
A: No Moq , 1PC OK . Small Order Welcome.

Q:Do You Make Customized Product?
A:Yes,We Accpet lT.

Q:About After Sale Serive?
A: After Sales Services 24/7.

Q: What should l do if 'm not satisfied with your product?
A: lf there are defects in its quality, we can exchange a good one for you.Generally, this problem is rare.

Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details

Q:Vhat is the quality level of your product?
A:We produce good quality, refuse to produce low quality
