High Power electirc BLDC motor 48V 5KW electric motorcycle conversion kit
Cooling/Air Cooling 48v 5kw bldc motor for Electric Motorcycle.Clean, Quiet, Efficient, Light Weight, Monstrous Powerful, and Affordable. Powerful, Efficient and Reliable BLDC MotorsWe are leading manufacturer of general-purpose brushless dc (BLDC) motors with power range from 200W to 20KW, and the ......
Send Inquiry
Product Description
Cooling/Air Cooling 48v 5kw bldc motor for Electric Motorcycle.
Clean, Quiet, Efficient, Light Weight, Monstrous Powerful, and Affordable.
Powerful, Efficient and Reliable BLDC Motors
We are leading manufacturer of general-purpose brushless dc (BLDC) motors with power range from 200W to 20KW, and the voltage range from 24V to 120V DC. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors.
Model: HPM5000B -- High Power BLDC Motor
1. Voltages: 48/72V/96v
2. Rated power: 5KW
3. Peak power: 6KW
4. Speed: 3000-5000rpm
5. Rated torque: 10 Nm
6. Peak torque: 25 Nm
7. Efficiency: >90%
8. Dimensions: 18cm dia. 12.5cm height
9. Weight: Aircooling(7.35kg);Liquid cooling (8kg)
10. Cooling: air or liquid cooling

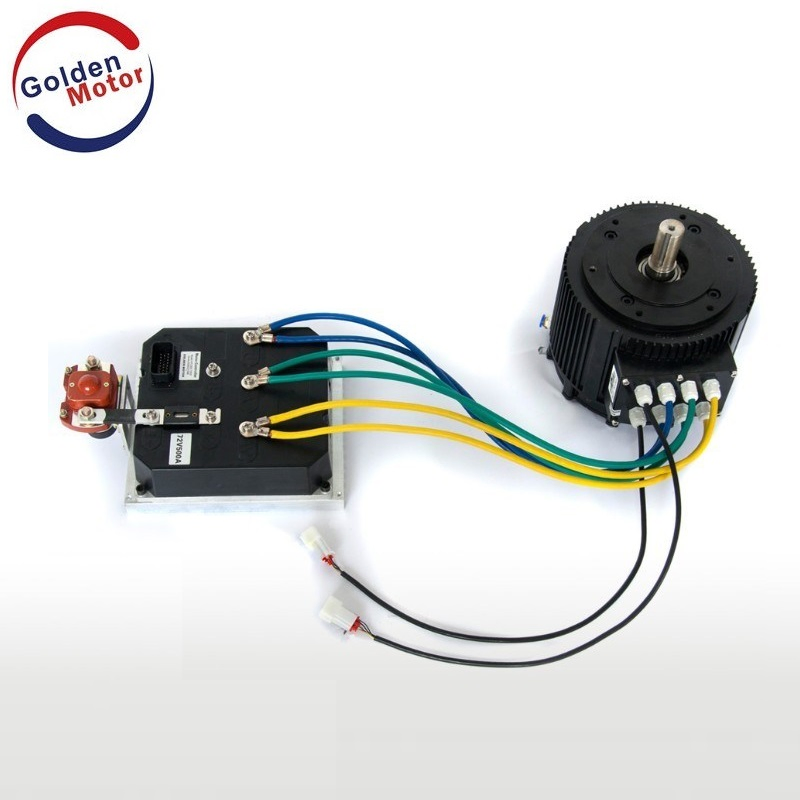

The Specifications of Our BLDC Motor Kit:
BLDC Motor(HPM10KA) Air Cooling | 1.Model: HPM-5KW High Power BLDC Motor 2.Voltage:48V/72V/96V/120V 3.Rated Power:5KW-20KW 4.Efficeincy: 91% 5.Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V 6.Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v 7.Speed: 2000-6000rpm (customizable) 8.Weight:17Kgs 9.Casing: AluSmartum 10.Length (height): 170mm 11.Diameter: 206mm | Type: 48V/5KW Weight: 17kgs/unit |
| Type: 72V/5KW Weight: 17kgs/unit | ||
| BLDC Motor(HPM10KL) Liquid Cooling | 1.Model: HPM-5KW -- High Power BLDC Motor 2.Voltage:48V/72V/96V/120V 3.Rated Power:5KW-20KW 4.Efficeincy: 91% 5.Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V 6.Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v 7.Speed: 2000-6000rpm (customizable) 8.Weight:17Kgs 9.Casing: AluSmartum 10.Length (height): 170mm 11.Diameter: 206mm | Type: 48V/5KW Weight: 17kgs/unit |
| Type: 72V/5KW Weight: 17kgs/unit |

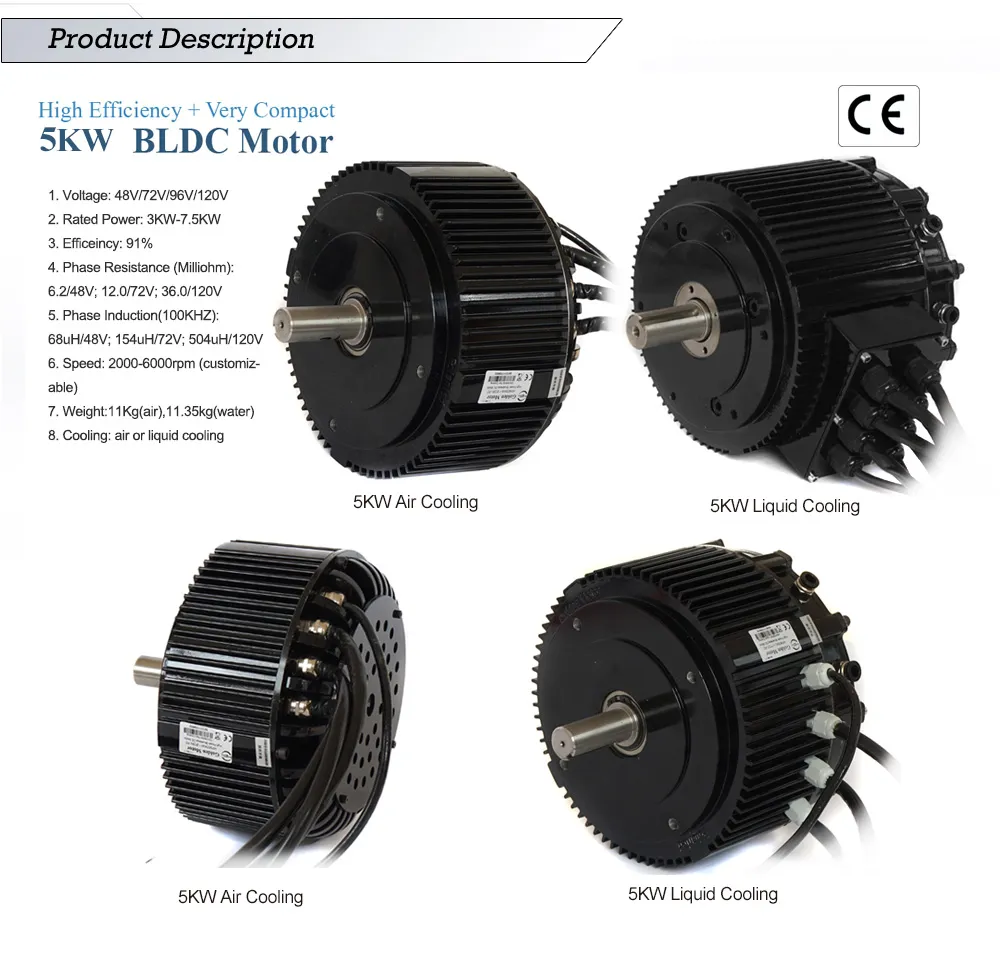

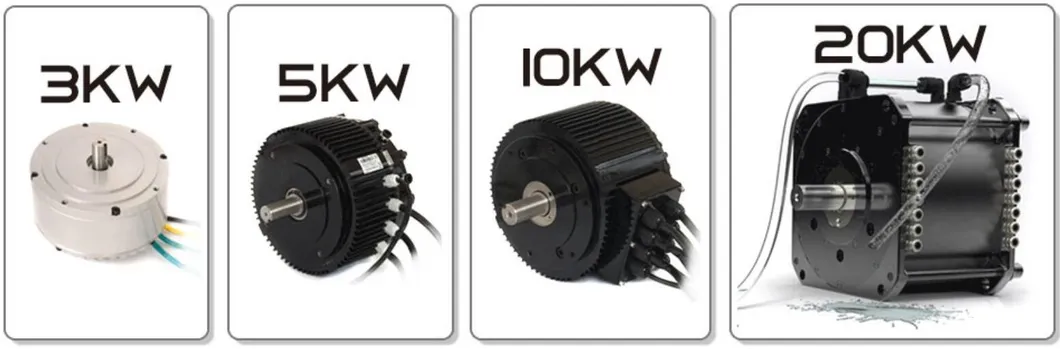

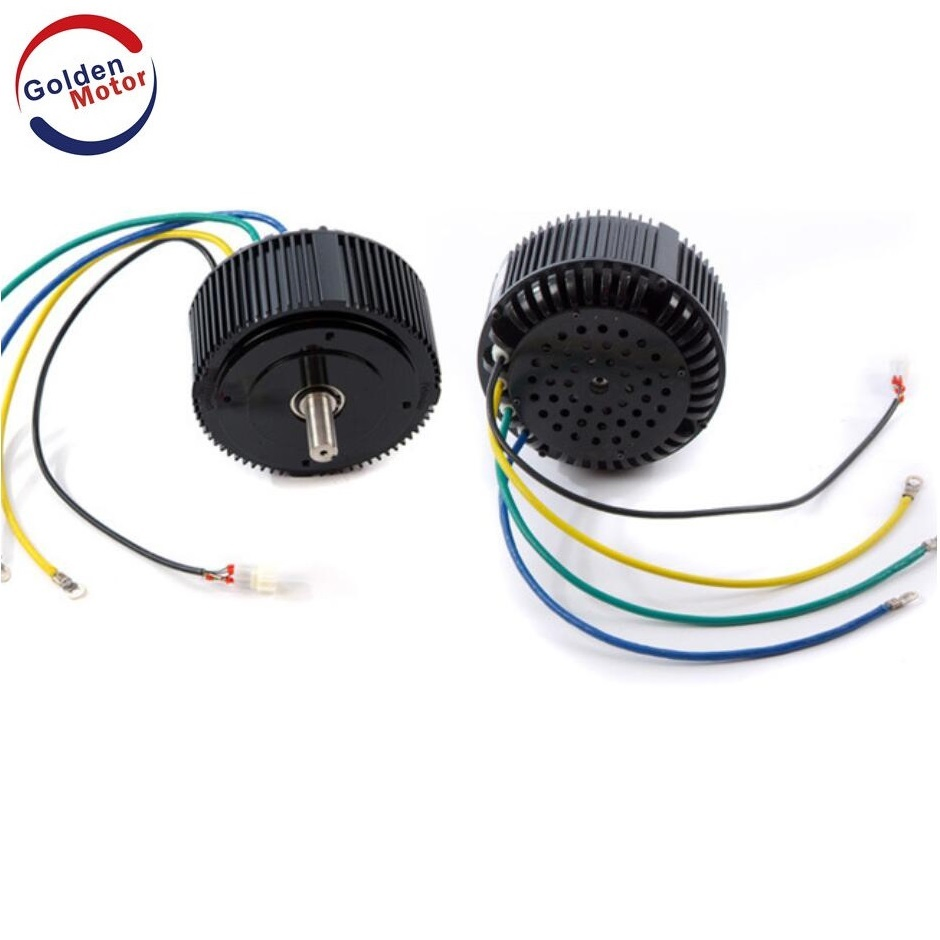

Pictures of the 3KW -10KW BLDC Motor
Application of Electric motorcycle Conversion Model

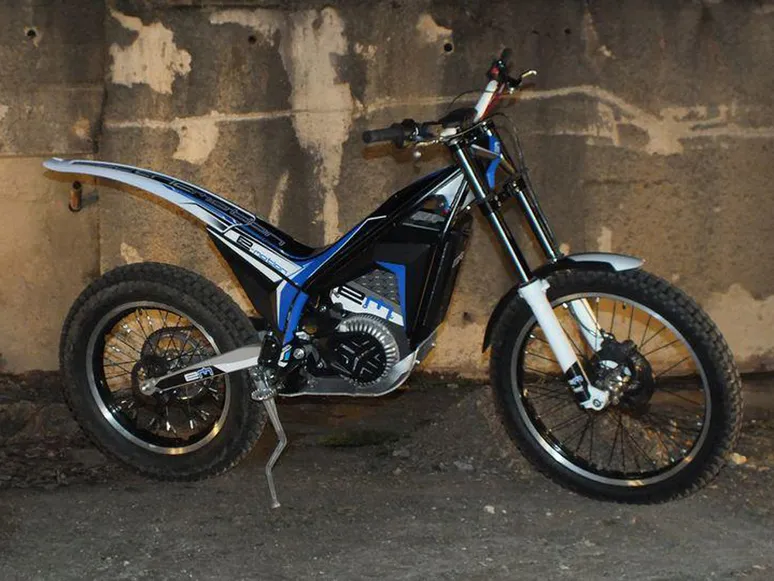

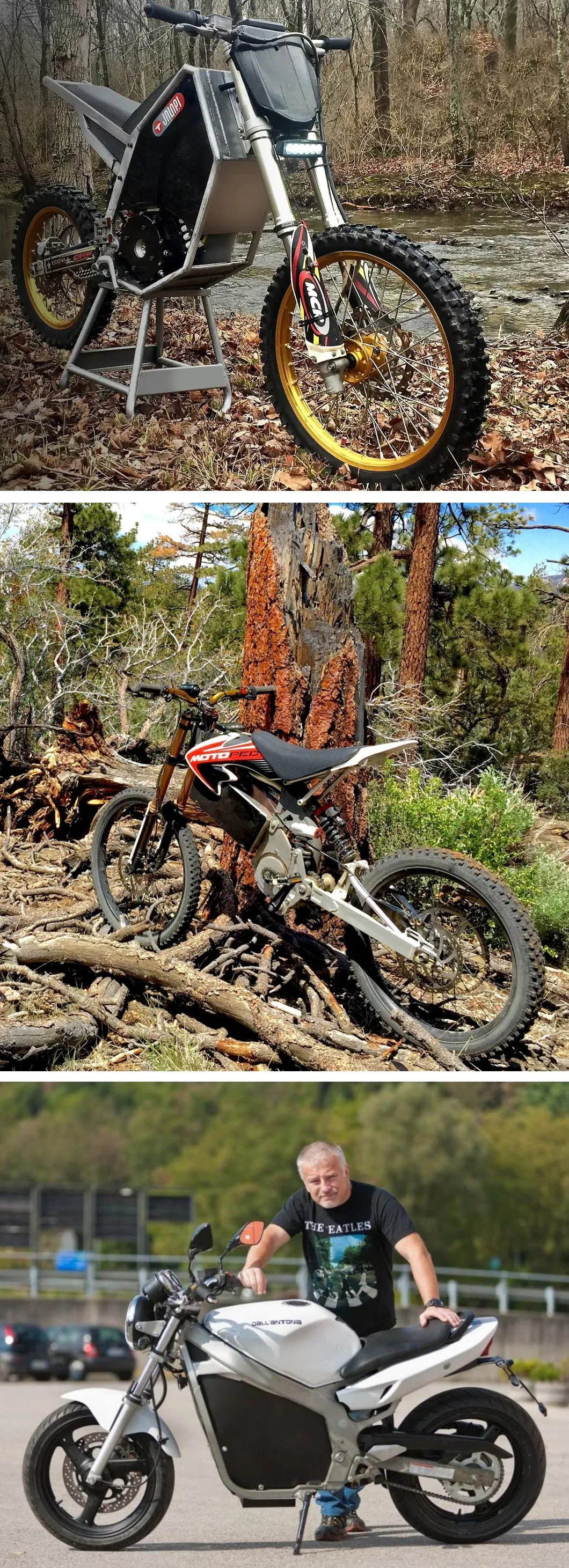

3KW, 5KW, 10KW BLDC Motor for Electric Motorcycle from Our Clients
Why Choose US?
Our Service
1.Reply your inquiry in 24 working hours.
2.Customized design is available.OEM & ODM are welcomed.
3.Professional engineers & Exclusive and unique solution.
4.Well-trained staffs.
5.Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6.Warranty :We warrant that this product shall be free from defects in material or workmanship for 1 year from the date of purchase.The warranty of the battery is 1year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
7.Payment :TT /PAYPAL
Dealer Policy:
1.Join Golden Motor Dealership Today -- Our website attracts and redirects over 5000 potential buyers daily to our dealers worldwide!
2.Now we have our 180 dealers in the world.
3.To be our dealer,you just place the first order worth of the minimum 5000$.
4.When you are to be our dealer,your info will be put on our dealer page on our website.which have thousands of visitors every day.
