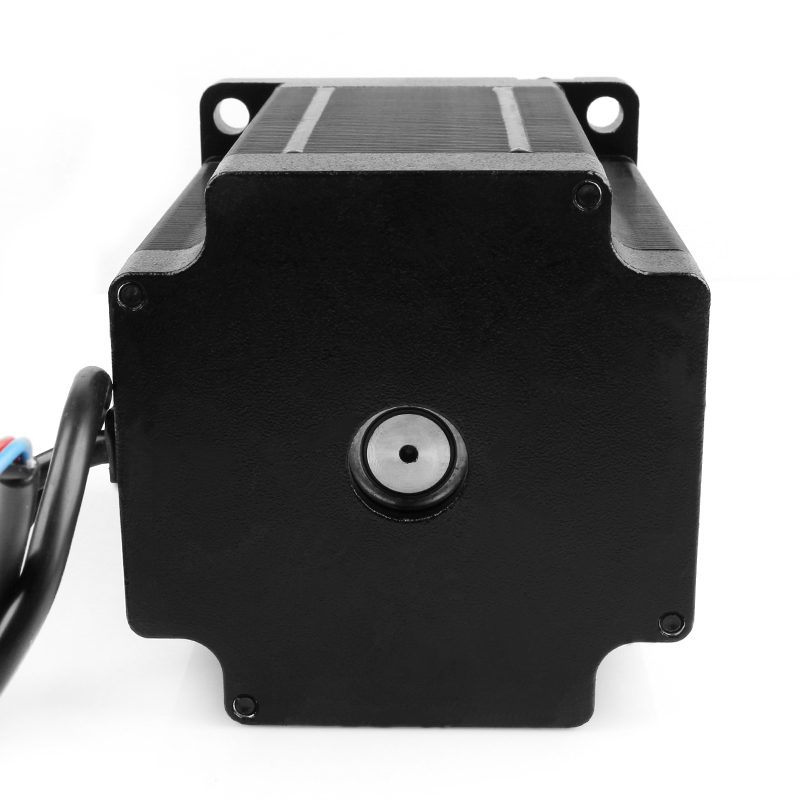

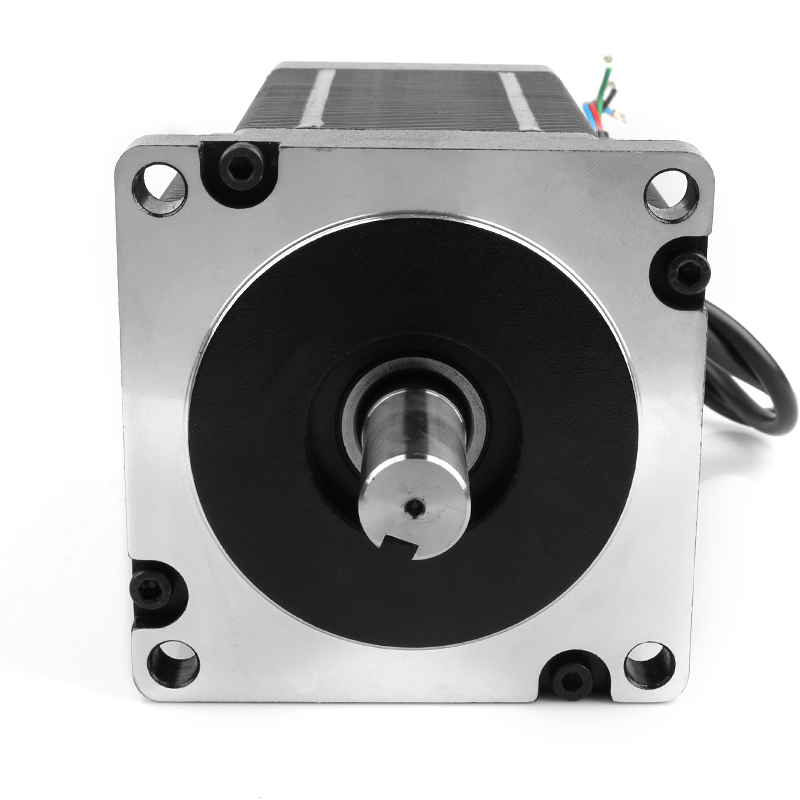

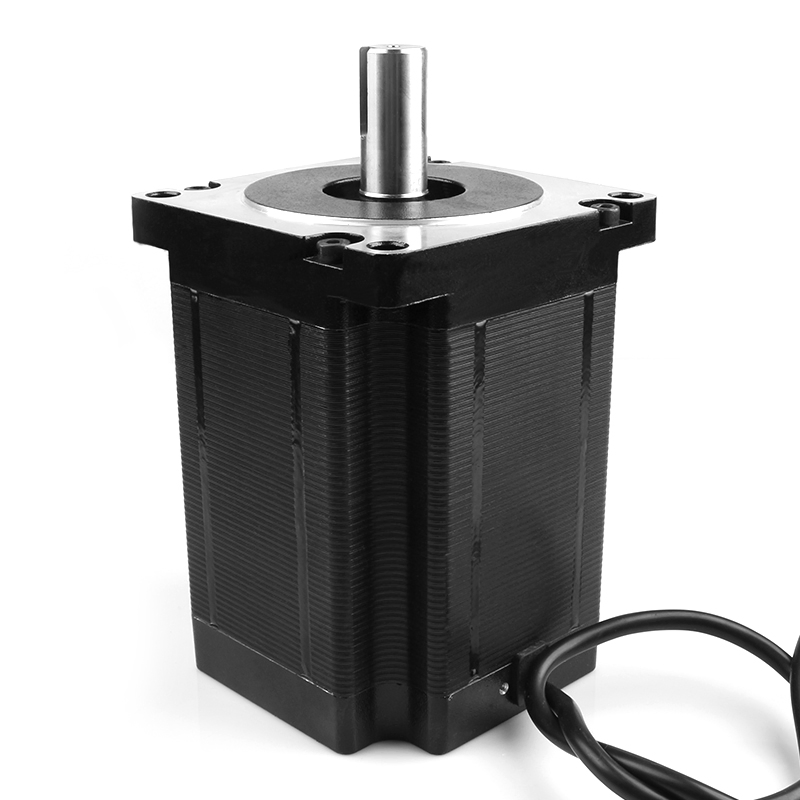

China 3phase Stepper Motor NEMA42 Stepping Motor for CNC Sewing Machine

Product Description

China 3phase Stepper Motor NEMA42 Stepping Motor for CNC Sewing Machine

Technical Parameters

Step Angle Accuracy	±5%
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80ºCMax.
Ambient Temperature	-10ºC-+50ºC
Insulation Resistance	100MΩMin.500 VDC
Dielectric Strength	500VAC
Shaft Radial Play	0.06Max.(450 g-load)
Shaft Axial Play	0.08Max.(450 g-load)
Insulation Class	Class B 130°

Technical Specifications

Model No	Holding torque	Current /Phase	Resistance /Phase	Step Angle	Rotor Inertia	Weight	Length
	Nm	A	Ω	°	gfcm²	kg	mm
110BYGH3100-4006A	13	4	1.0	1.2 °	5500	5	100
110BYGH3150-5006A	22	5	1.4	1.2 °	11000	8.5	150
110BYGH3200-6006A	28	6	2.0	1.2 °	15000	11.8	200

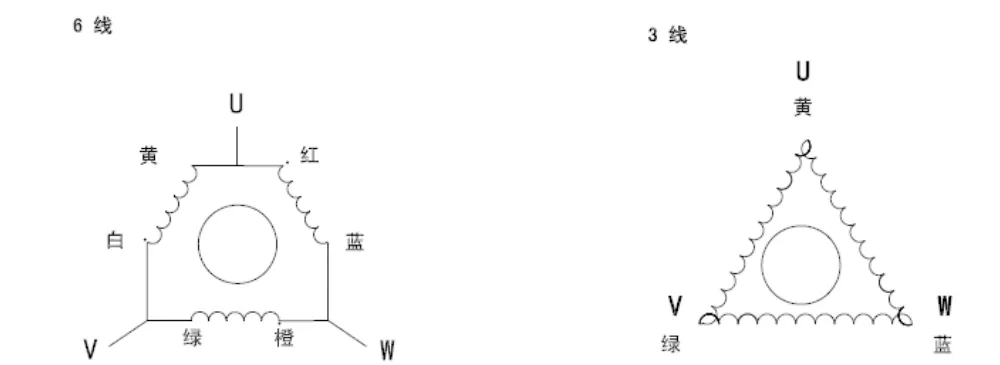

Wiring Diagram
China 3phase Stepper Motor NEMA42 Stepping Motor for CNC Sewing Machine

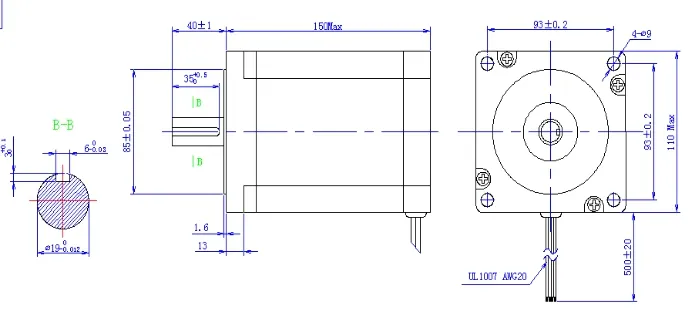

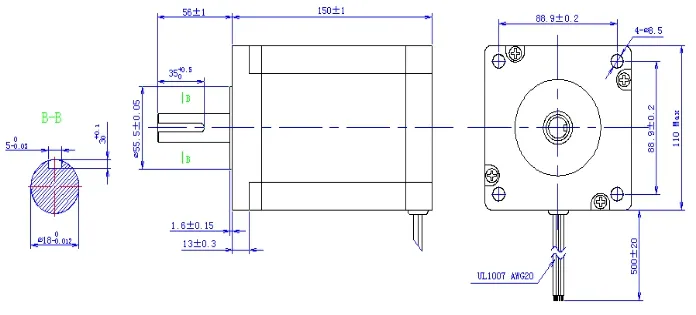

Dimension

FAQ
1. How can we know the product quality?
A1: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

2. How can we get your catalog?
A2: Please go to below website link to download it .-http://sihengmotor.en.made-in-china.com

3. Can we have free sample?
A3: Sorry friend,you should pay the sample cost,but we can apply the discount for you.

4. Is this your final price? May i have the discount?
A4: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.

5.Is there cheap shipping cost to import to our country?
A5: Yes, we have our regular shipping company, they have very good price.

6. Can we visit your factory?
A6: Yes welcome warmly.

7.What is the Warranty for your products?
A7: One year warranty for all electronic products. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.
