90ZYT155- 2453 DC Motor Electric Motor Low Voltage DC Motor PMDC Motor/Permanent Magnet DC Motor
Permanent Magnet DC Motor Technical SpecificationsModelVoltage(V DC)No LoadRated LoadLength(mm)Current(A)Speed(r/min)Torque(N.m)Current(A)Speed(r/min)90ZYT150-2433241.133000.5810300015090ZYT155-2453242.553000.823470015590ZYT165-3623361.223001.210160016590ZYT195-15025150......
Send Inquiry
Product Description
Permanent Magnet DC Motor
Technical Specifications
| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | |||
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 90ZYT150-2433 | 24 | 1.1 | 3300 | 0.58 | 10 | 3000 | 150 |
| 90ZYT155-2453 | 24 | 2.5 | 5300 | 0.8 | 23 | 4700 | 155 |
| 90ZYT165-3623 | 36 | 1.2 | 2300 | 1.2 | 10 | 1600 | 165 |
| 90ZYT195-15025 | 150 | 0.2 | 2500 | 1.15 | 3 | 2000 | 195 |
| 90ZYTA144-1253 | 12 | 3 | 5300 | 0.9 | 50 | 4700 | 144 |
1. Special motors can be customized per your requirements.
2. Bearing Option:Ball bearing and sleeve bearing.

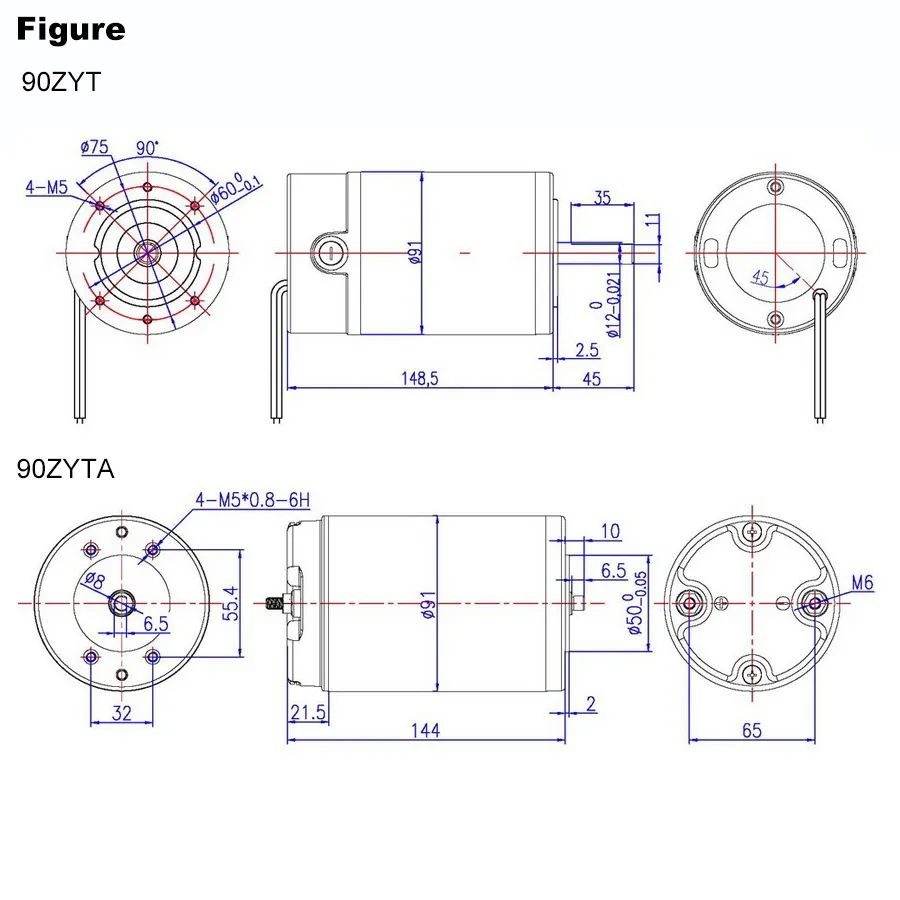

Dimensions
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
If you need more information,please contact with me.
