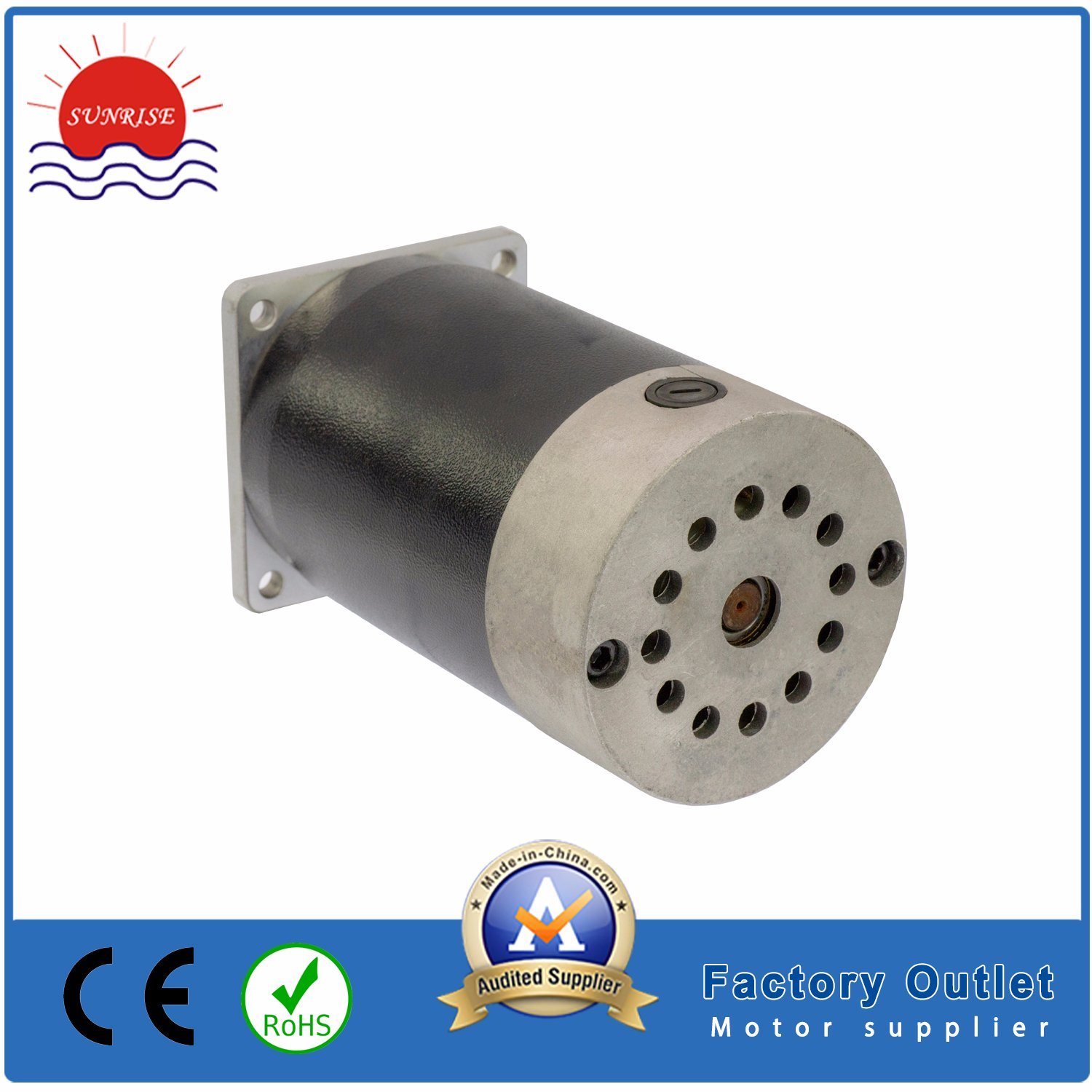

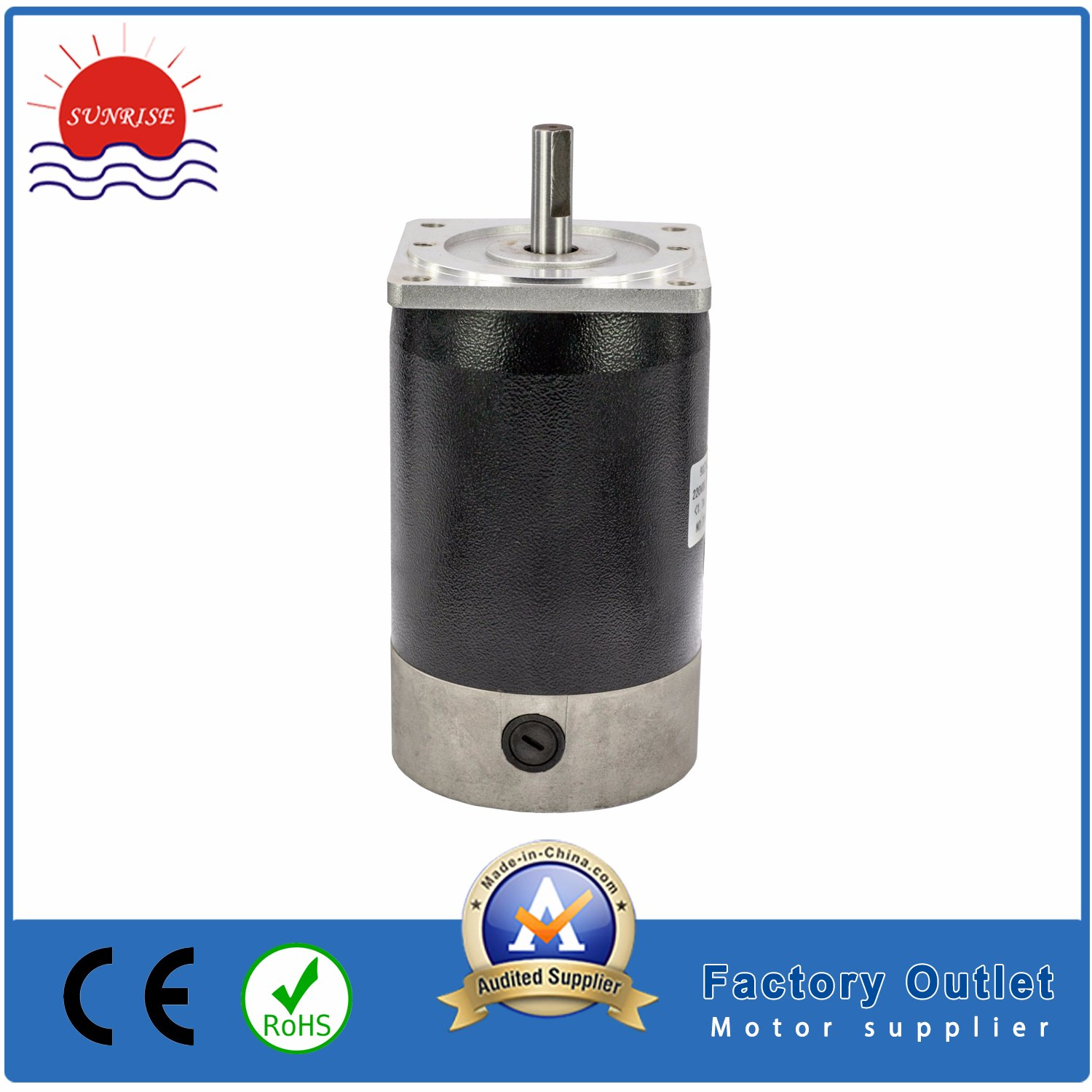

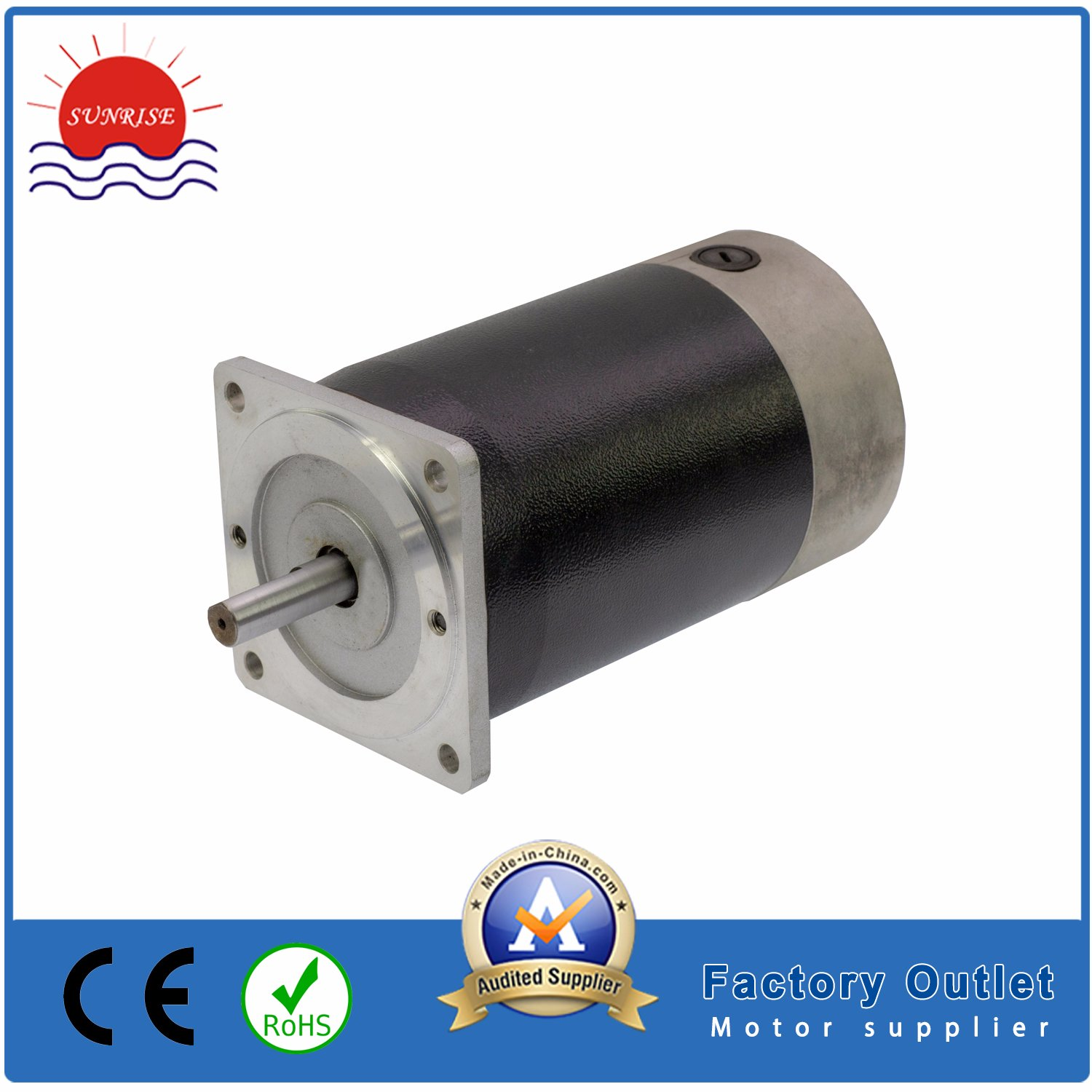

90zyt155- 2453 24V 2.5A PMDC Brushed Motor

Product Description

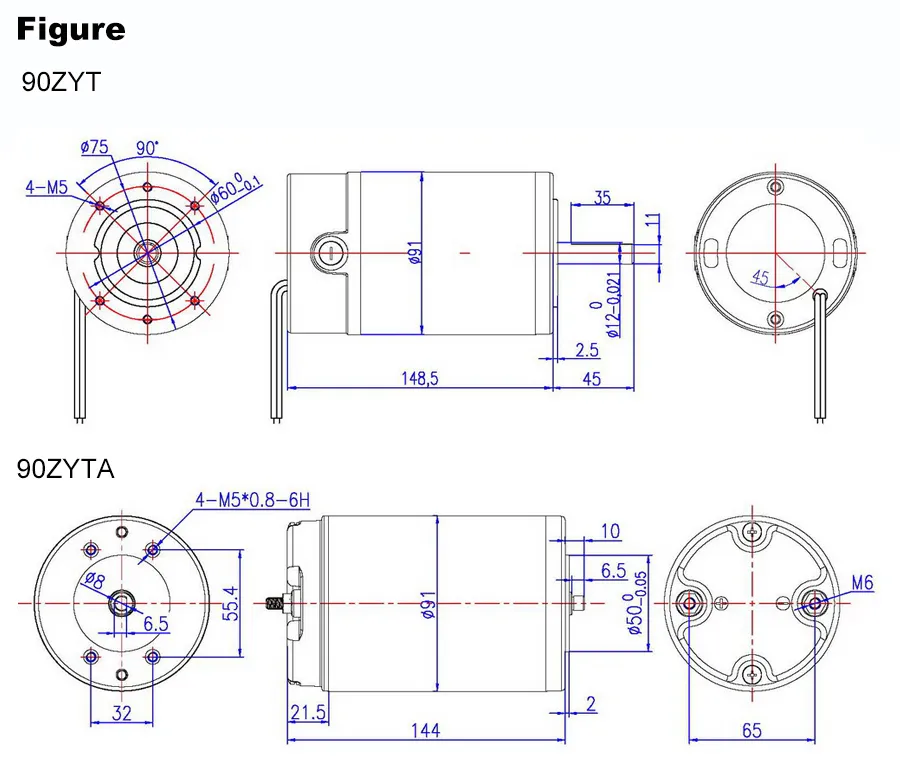

PMDC Motor 90ZYT
Model	Voltage	No Load		Rated Load			Length
	Voltage	Current	Speed	Torque	Current	Speed	Length
	(V DC)	(A)	(r/min)	(N.m)	(A)	(r/min)	(mm)
90ZYT150-2433	24	1.1	3300	0.58	10	3000	150
90ZYT155-2453	24	2.5	5300	0.8	23	4700	155
90ZYT165-3623	36	1.2	2300	1.2	10	1600	165
90ZYT195-15025	150	0.2	2500	1.15	3	2000	195
90ZYTA144-1253	12	3	5300	0.9	50	4700	144
90ZYT006	24	2.5	5300	0.8	23	4700	155
90ZYT007	36	1.2	2300	1.2	10	1600	165
Special motors can be customized per your requirements.
Encoder and gear box can be fixed.

90zyt155-2453 24V 2.5A PMDC Brushed Motor

FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q: How about Sample order?
A: Sample is available for you. please contact us for details.

Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.

Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
