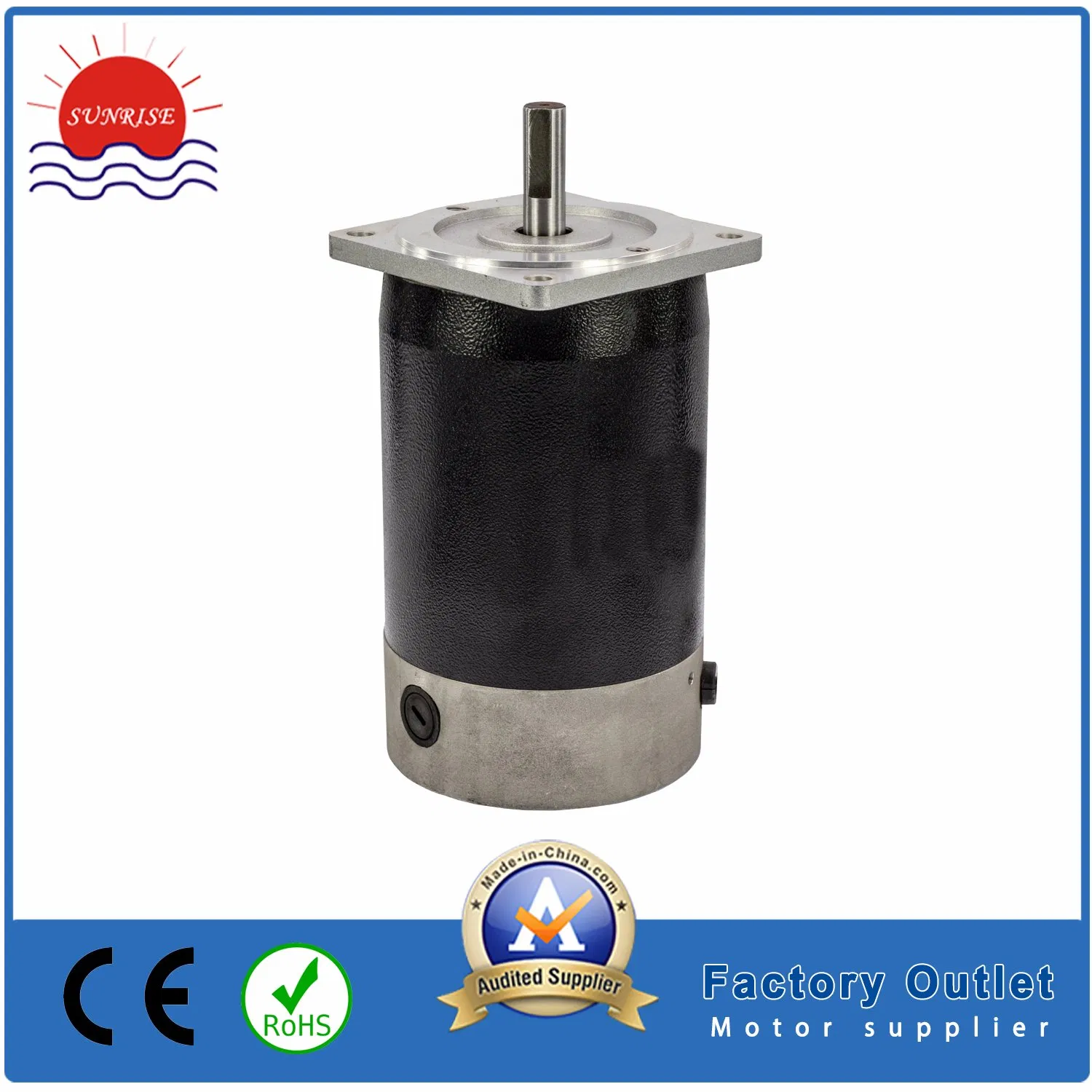

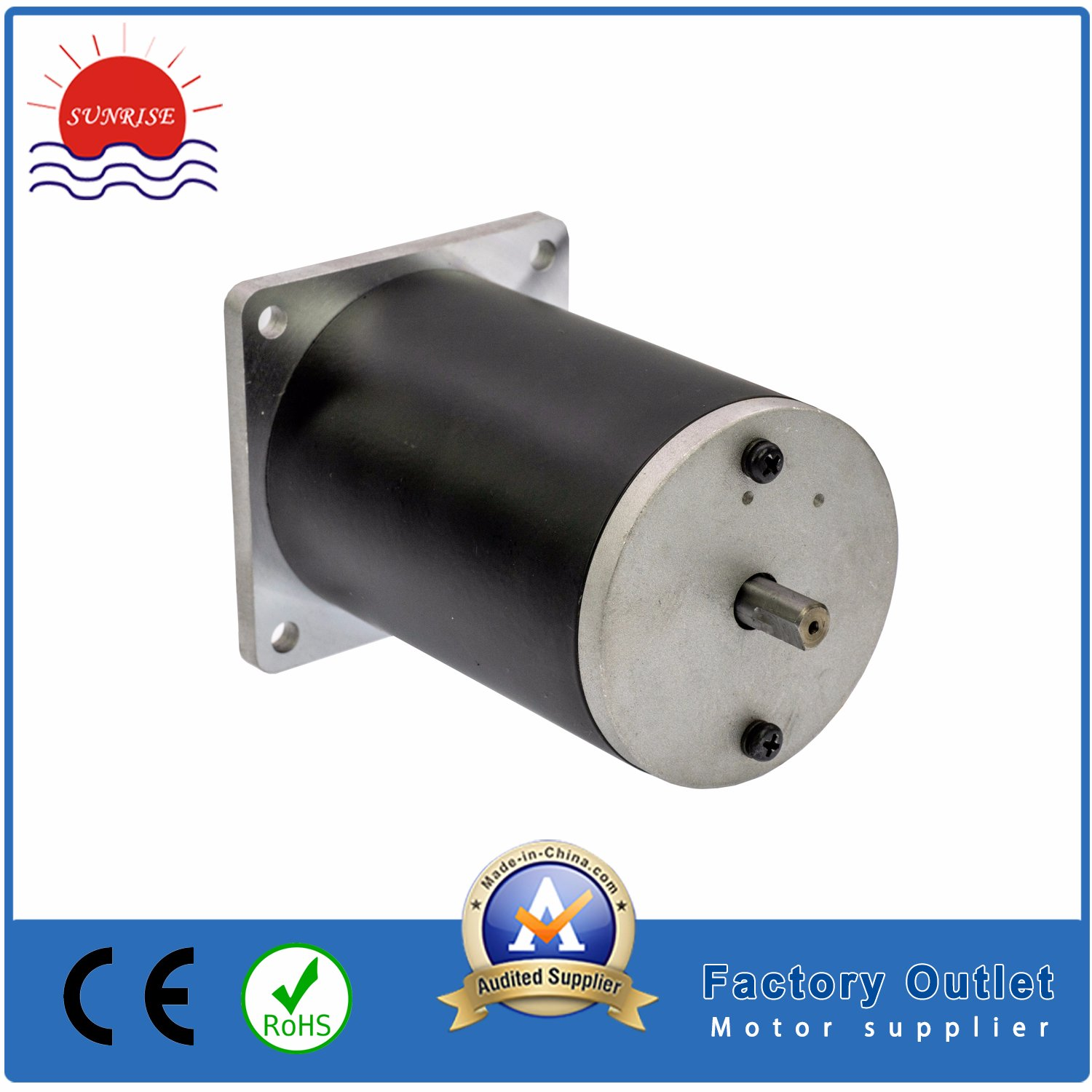

90zyt155- 2453 24V 2.5A Electric DC Brushed Motor

Product Description

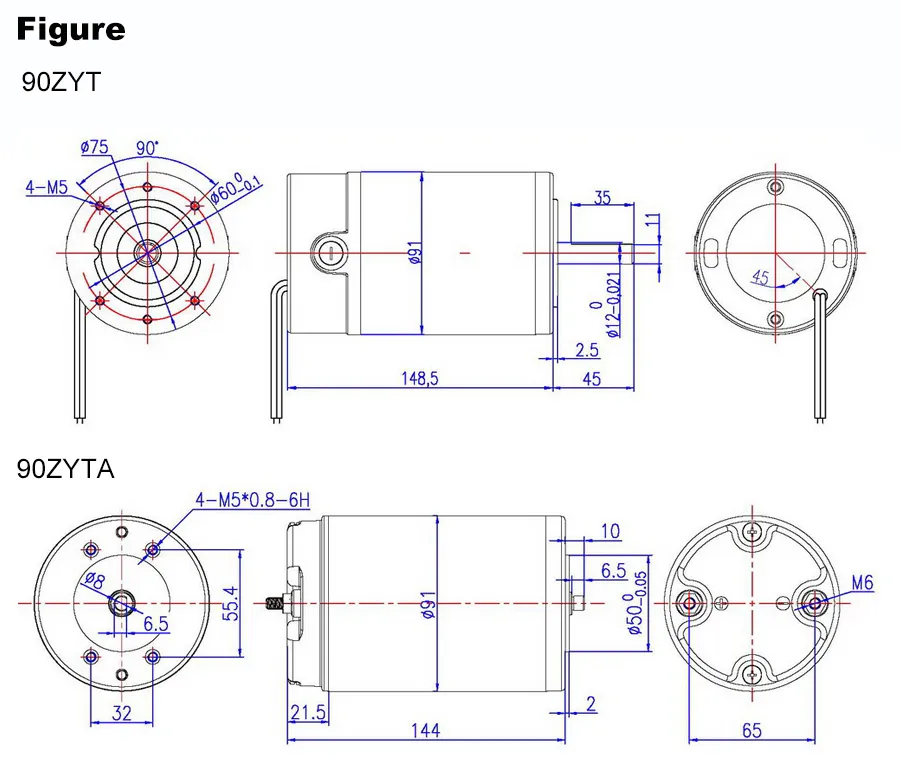

PMDC Motor 90ZYT
Model	Voltage	No Load		Rated Load			Length
	Voltage	Current	Speed	Torque	Current	Speed	Length
	(V DC)	(A)	(r/min)	(N.m)	(A)	(r/min)	(mm)
90ZYT150-2433	24	1.1	3300	0.58	10	3000	150
90ZYT155-2453	24	2.5	5300	0.8	23	4700	155
90ZYT165-3623	36	1.2	2300	1.2	10	1600	165
90ZYT195-15025	150	0.2	2500	1.15	3	2000	195
90ZYTA144-1253	12	3	5300	0.9	50	4700	144
90ZYT006	24	2.5	5300	0.8	23	4700	155
90ZYT007	36	1.2	2300	1.2	10	1600	165
Special motors can be customized per your requirements.
Encoder and gear box can be fixed.

90zyt155-2453 24V 2.5A Electric DC Brushed Motor
