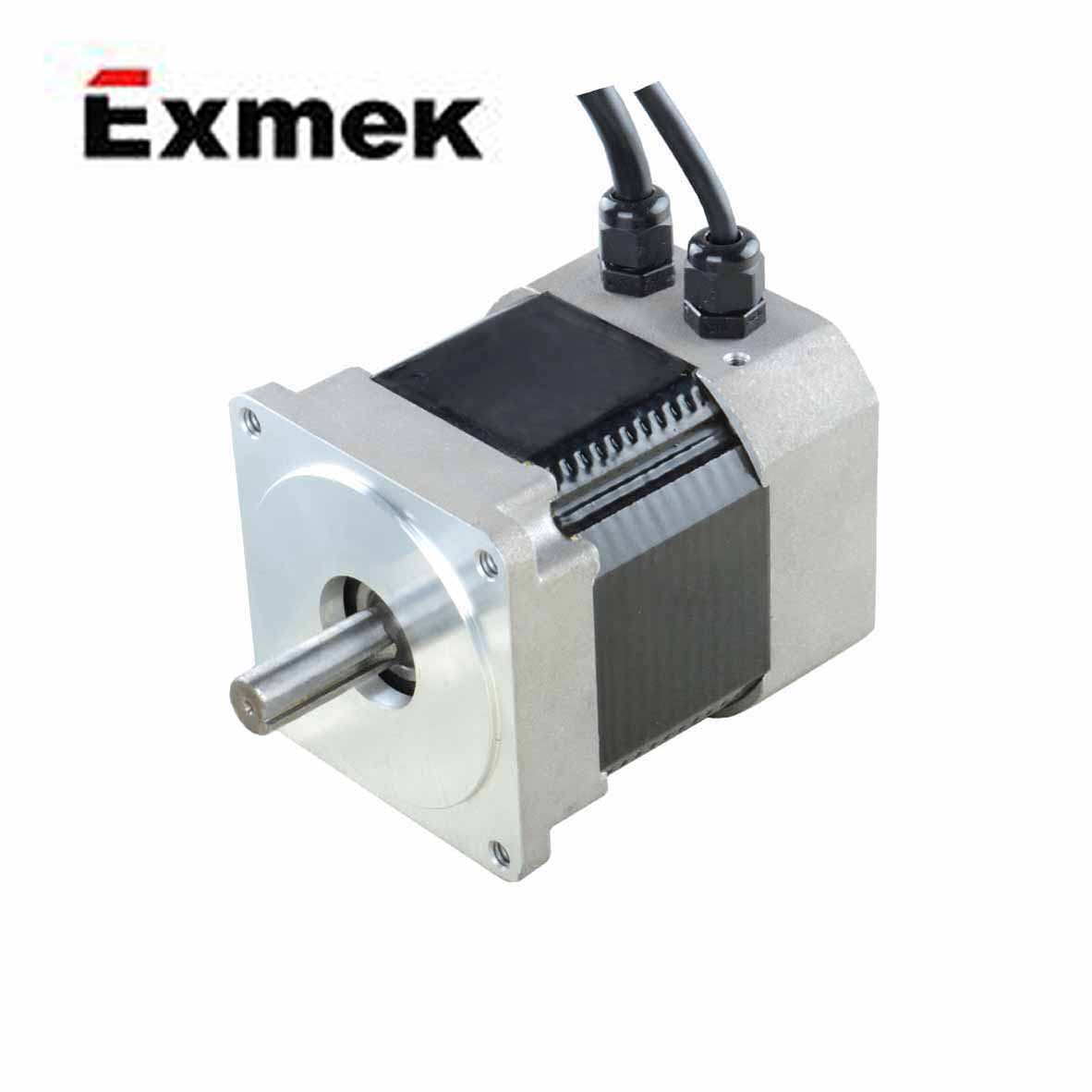

82mm DC Brushless Motor with 5000rpm 1.51 Nm (MB082GA400)
General informationNEMA 34 frame size8-pole with three phasesIntegrated hall effect commutationInsulation class F Bonded neo magnetUL certified structureSpecifications Specification MB082GA400 Supply Voltage (reference) 170 Vdc Rated Continuous Torque 1.51 Nm Rated Speed at Cont. Torque 5000 rpm Rat......
Send Inquiry
Product Description
General information
Mechanical
Characteristic diagram
- NEMA 34 frame size
- 8-pole with three phases
- Integrated hall effect commutation
- Insulation class F
- Bonded neo magnet
- UL certified structure
| Specification | MB082GA400 |
| Supply Voltage (reference) | 170 Vdc |
| Rated Continuous Torque | 1.51 Nm |
| Rated Speed at Cont. Torque | 5000 rpm |
| Rated Continuous Stall Current | 11.8 A |
| Rated Continuous Output Power | 791 W |
| Rated Peak Torque | 4.59 Nm |
| Rated Peak Current | 35.5 A |
| Torque Constant | 0.1399 Nm/A |
| Voltage Constant | 14.64 V/krpm |
| Terminal Resistance | 0.22 Ω |
| Inductance | 1.06 mH |
| Insulation Class | F |
| Rotor Inertia | 1.58E-04 |
| Motor Weight | 3.04Kg |
| Motor Length | 115mm |

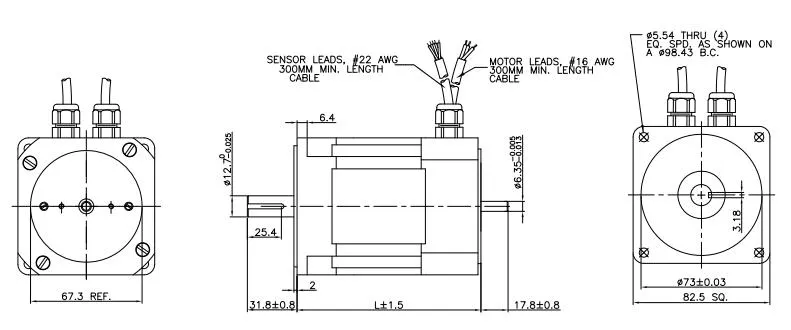

Mechanical

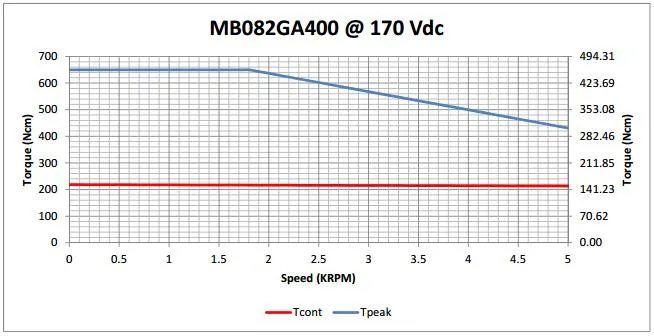

Characteristic diagram
