80W DC 12V/24V 45rpm DC Worm Gear Motor for Garage Door Opener
PROFESSIONAL MANUFACTURER OF SINGLE-PHASE SERIES MOTOR /GEAR MOTORPower,Speed,Torque,Shaft ,Stator Lamination,Rotation And Installing Location can be customized according to customer's requirements.Product DescriptionProduct Name:DC Reduction MotorModel No.DCR45-50Brand:XINJIAApplication:for Gri......
Send Inquiry
Product Description
PROFESSIONAL MANUFACTURER OF SINGLE-PHASE SERIES MOTOR /GEAR MOTOR
Power,Speed,Torque,Shaft ,Stator Lamination,Rotation And Installing Location
can be customized according to customer's requirements.
Product Description
| Product Name: | DC Reduction Motor |
| Model No. | DCR45-50 |
| Brand: | XINJIA |
| Application: | for Grinder/Mixer/Juicer |
| Starting Mode | Direct on-line Starting |
| Rated Voltage: | DC24V |
| Rated Power: | 50W |
| No-load Power: | 30W±10% |
| Rated Speed: | 95rpm±10% |
| No-load Speed: | 136rpm±10% |
| Gear Ratio: | 39:1 |
| Rated Torque: | 2.0N.m |
| No-load Current: | 1.4A±10% |
| No-load Spark: | Class≤2 |
| Withstand Voltage: | 1800V/1sec/5mA |
| Output Bearing: | Ball Bearing |
| Out-axis Diam: | ø15 |
| Customized: | yes |
| Packing: | foam&carton,or accroding to customers' specific requirements |
| MOQ: | 500 pcs |
| Delivery Time: | Depends on quantity from 2 weeks to 4 weeks. |
| Payment Term: | T/T, L/C, D/P |
Remarks:
- The performances as above are just for reference only. We can adjust our motor specifications according to customer's requirements.
- OEM & ODM are both available. Please feel free to contact us with your detailed requirements .
- If ask for quotation, please tell voltage, draft, input power, air flow at least, so we could quote quickly.

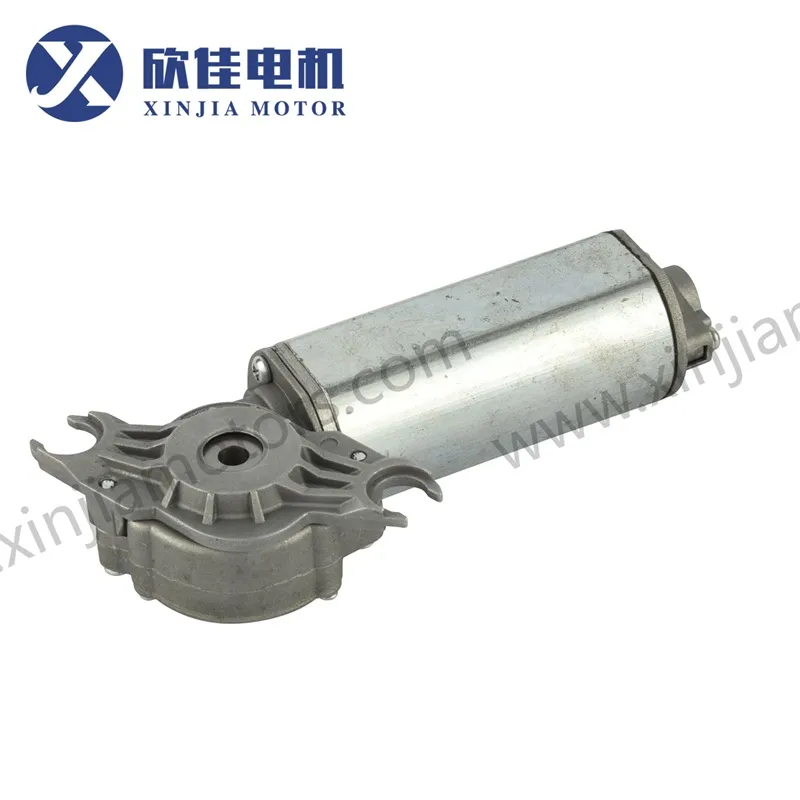

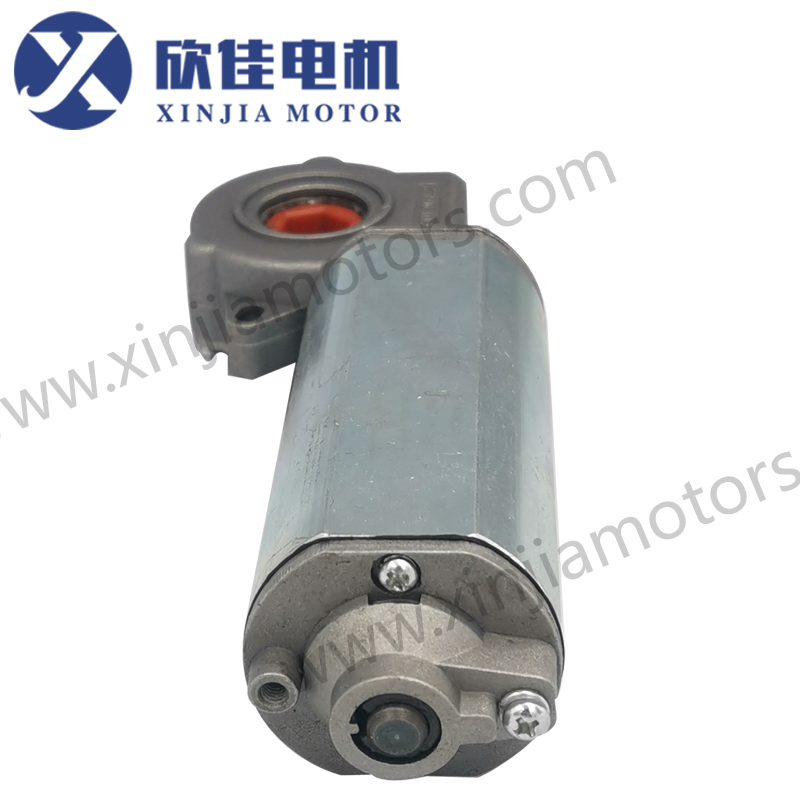

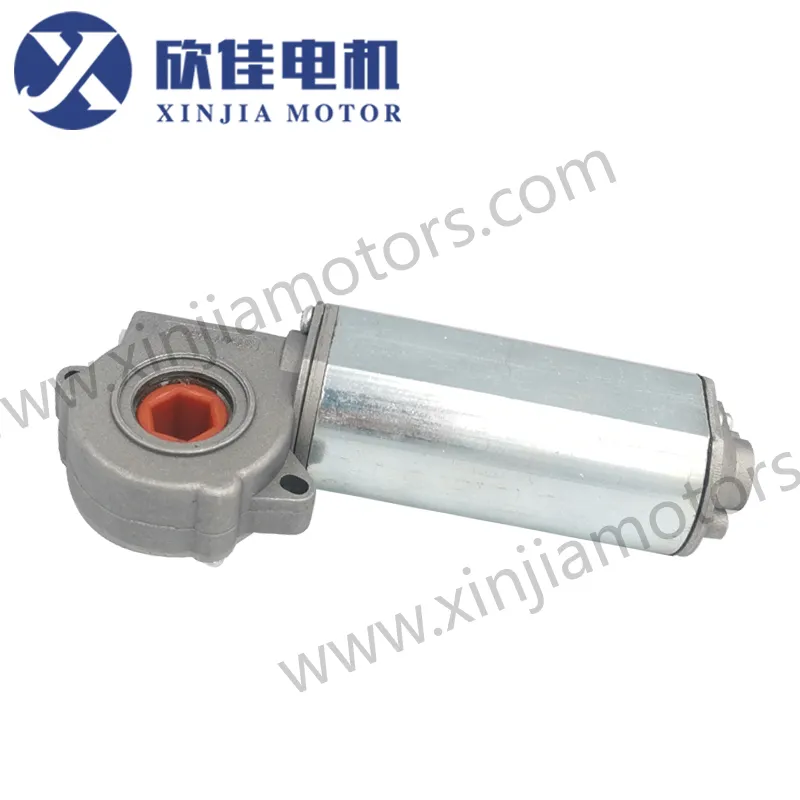

Detail View

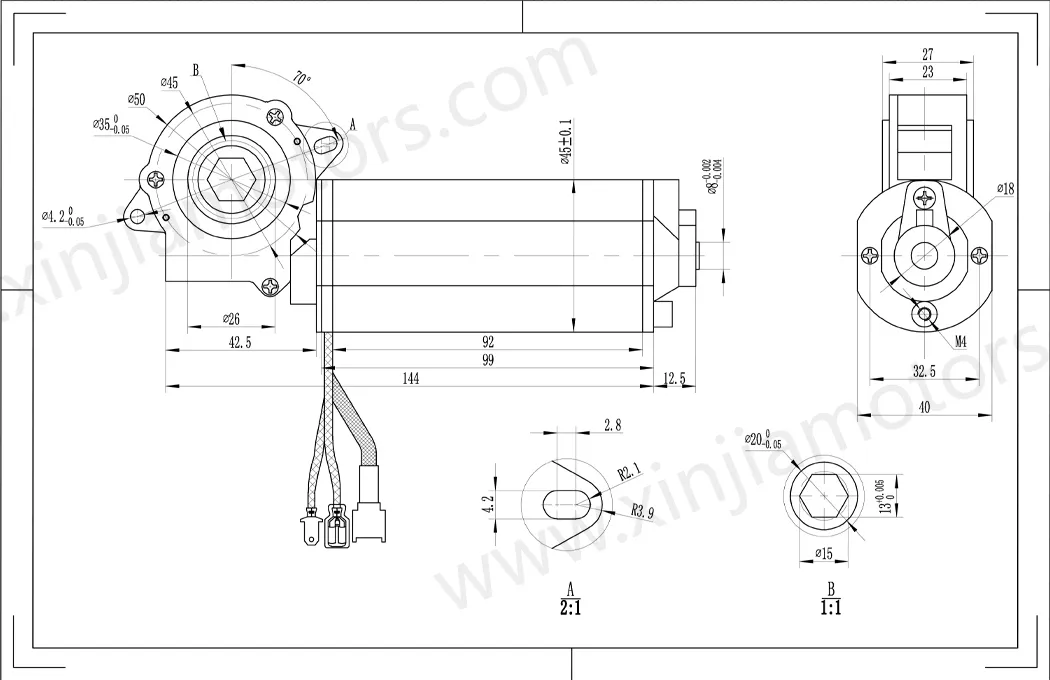

Assembly Drawning
